This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
General Properties:
Properties
Antenna Connector Type
Microcontroller
Radio Chipset
Update Rate Max
Communication Protocol/
Standard
Communication interface
Channels
Memory Type
ANT
Conn
µC
RF-IC
Value
RF pad
SoC
SiRFstar V 5e B01
5
NMEA, OSP
UART, I
2
C
52
ROM-based
Hz
Unit
RF-Electrical Properties:
Properties
Rx Sensitivity (Tracking)
Rx Sensitivity (Acquisition)
Frequency min.
Frequency max.
Impedance
Return Loss
Current Consumption
(Acquisition)
Current Consumption (Tracking)
f
min.
f
max.
Z
RL
Input Frequency = 1575.42 MHz
Input Frequency = 1575.42 MHz
VDD = 1.8 V, Temperature = 25°C, power
level = -130dBm, GPS-GLO
VDD = 1.8 V, Temperature = 25°C, power
level = -130dBm, GPS-GLO
Test conditions
GPS
GPS
Value
-164
-148
1560
1620
50
-7
52
50
Unit
dBm
dBm
MHz
MHz
Ω
dB
mA
mA
Electrical Properties:
Properties
Operating Supply Voltage Min.
Operating Supply Voltage Max.
Recommended Supply Voltage
Current Consumption (Hibernate)
V
DD min.
V
DD max.
V
DD typ
Value
1.71
1.89
1.8
53
Unit
V
V
V
µA
GNSS Performances:
Properties
GNSS Constellations Supported
Position Accuracy (GPS & GLO)
Position Accuracy (GPS)
Time To First Fix (Cold Start)
Time To First Fix (Hot Start)
Test conditions
GPS L1 (1575.42 MHz), GLONASS L1 (1602
MHz)
Static, VDD = 1.8 V, Temperature = 25°C,
power level = -130dBm, Circular Error
Probability (50%)
Static, VDD = 1.8 V, Temperature = 25°C,
power level = -130dBm, Circular Error
Probability (50%)
Static, VDD = 1.8 V, Temperature = 25°C,
power level = -130dBm, GPS-GLO
Static, VDD = 1.8 V, Temperature = 25°C,
power level = -130dBm, GPS-GLO
Value
GPS, GLONASS
Unit
1.5
2.5
28
1
m
m
s
s
General Information:
It is recommended that the temperature of the component does not exceed +85°C under worst case conditions
Operating Temperature
Storage Conditions (in original
packaging)
Moisture Sensitivity Level (MSL)
-40 up to +85 °C
< 40 °C ; < 90 % RH
3
Product Specific Pinning:
Certification:
RoHS Approval
REACh Approval
Compliant [ 2011/65/EU&2015/863 ]
Conform or declared [ (EC)1907/2006 ]
Pin
/RESET
RX
Pad
1
2
Description
Reset
Receive
I/O
Input
Input/Output
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
RaSi
DESCRIPTION
001.000
2020-02-19
DIN ISO 2768-1m
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WIRL-POSI Elara-II GPS-GLO GNSS
module T&R
BUSINESS UNIT
ORDER CODE
2613021137000
STATUS
PAGE
eiSmart
Valid
2/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Product Specific Pinning:
Pin
/CTS
WAKE_UP
TX
ON_OFF
1PPS
GND
GND
NC
VCC
VCC
GND
RF_IN
GND
/RTS
Pad
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Description
Clear to send signal
Operation mode status
Transmit
Power State Control
UTC Time Mark
Negative supply voltage
Negative supply voltage
Not connected
Positive supply voltage (VDD)
Positive supply voltage (VDD)
Negative supply voltage
RF Signal Input
Negative supply voltage
Request to send signal
I/O
Input/Output
Output
Input/Output
Input
Output
Supply
Supply
--
Supply
Supply
Supply
Input
Supply
Input/Output
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
RaSi
DESCRIPTION
001.000
2020-02-19
DIN ISO 2768-1m
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WIRL-POSI Elara-II GPS-GLO GNSS
module T&R
BUSINESS UNIT
ORDER CODE
2613021137000
STATUS
PAGE
eiSmart
Valid
3/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

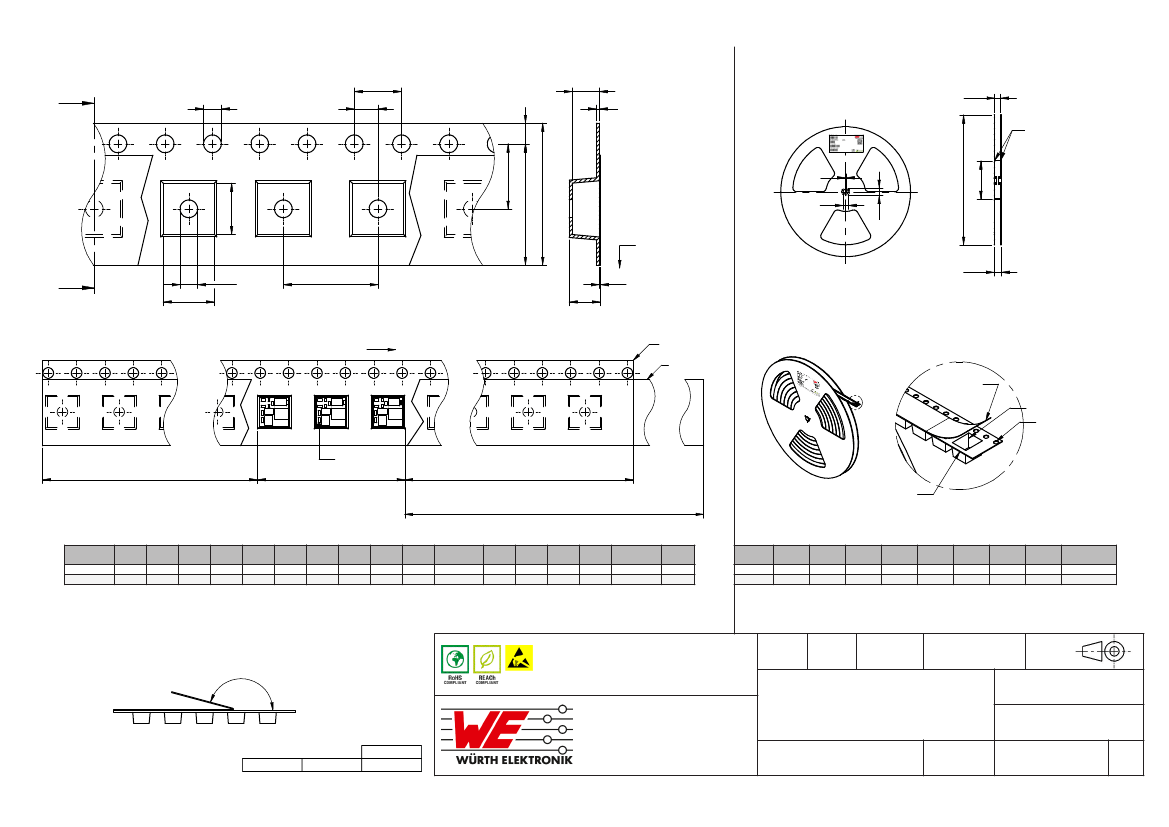

Packaging Specification - Tape and Reel: [mm]
P0
K0
T
Packaging Specification - Tape and Reel: [mm]
W3
A
D0
P2
E1
W1
close to center
N
W2
B
F
W
B0
E2
C
D
Top Cover
Tape
A
D1
A0
P1
T2
T1
End
Feeding direction
Start
Carrier Tape
Cover Tape
detail B
B
Cover Tape
Chip Cavity
Sprocket Hole
No Component
min.160mm
Pin 1
Components
No Component
min.100mm
Cover Tape
min. 400mm
Embossment
Tape Type
2a
A0
(mm)
±0,1
4,35
B0
(mm)
±0,1
4,35
W
(mm)
±0,3
12,00
T
(mm)
±0,05
0,35
T1
(mm)
ref.
0,10
T2
(mm)
typ.
2,55
K0
(mm)
±0,1
2,30
P0
(mm)
±0,1
4,00
P1
(mm)
±
8,00
P2
(mm)
±0,05
2,00
D0
(mm)
+0,1/ -0,0
1,50
D1
(mm)
min.
1,50
E1
(mm)
±0,1
1,75
E2
(mm)
min.
10,25
F
(mm)
±0,05
5,50
Material
Polystyrene
Qty.
(pcs.)
500
A
(mm)
± 2,0
330,00
B
(mm)
min.
1,50
C
(mm)
min.
12,80
D
(mm)
min.
20,20
N
(mm)
min.
60,00
W1
(mm)
+ 2,0
12,40
A
W2
(mm)
max.
18,40
W3
(mm)
min.
11,90
W3
(mm)
max.
15,40
Material
Polystyrene
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
RaSi
001.000
2020-02-19
DIN ISO 2768-1m
165° - 180°
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
DESCRIPTION
WIRL-POSI Elara-II GPS-GLO GNSS
module T&R
BUSINESS UNIT
ORDER CODE
2613021137000
STATUS
PAGE
Pull-of force
Tape width
12 mm
0,1 N - 1,3 N
eiSmart
Valid
4/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

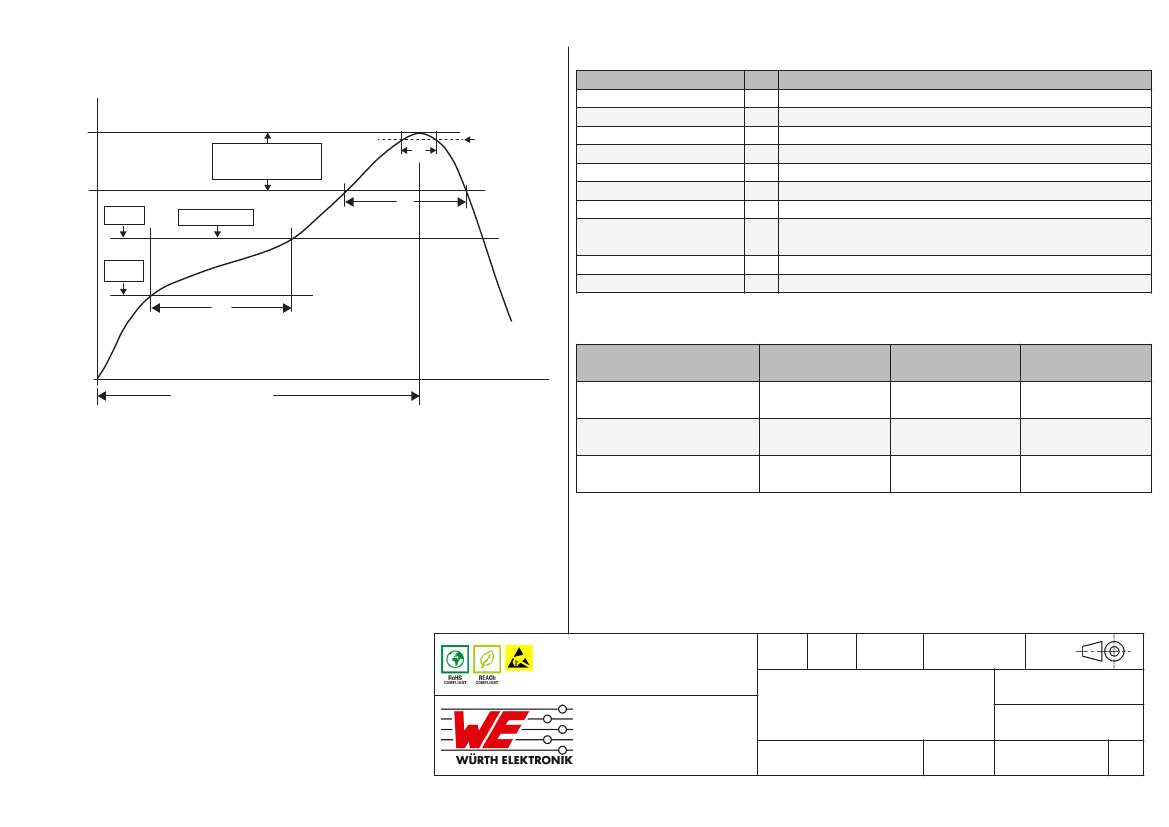

Classification Reflow Profile for SMT components:
Classification Reflow Soldering Profile:
Profile Feature
Preheat Temperature Min
Preheat Temperature Max
Value
T
s min
150 °C
T
s max
200 °C
t
s
T
L
t
L
T
p
t
p
60 - 120 seconds
3 °C/ second max.
217 °C
60 - 150 seconds
see table below
20 - 30 seconds
6 °C/ second max.
8 minutes max.
T
p
Max. Ramp Up Rate
Max. Ramp Down Rate
T
L
T
s max
t
L
t
p
T
C
–5°C
Preheat Time t
s
from T
s min
to T
s max
Ramp-up Rate (T
L
to T
P
)
Liquidous Temperature
Time t
L
maintained above T
L
Peak package body temperature
Time within 5°C of actual peak
temperature
Temperature
Preheat Area
T
s min
t
S
Ramp-down Rate (T
L
to T
P
)
Time 25°C to peak temperature
refer to IPC/ JEDEC J-STD-020E
Package Classification Reflow Temperature:
Properties
25
Time 25°C to Peak
Volume mm³
<350
Volume mm³
350-2000
260 °C
250 °C
245 °C
Volume mm³
>2000
260 °C
245 °C
245 °C
Time
PB-Free Assembly | Package Thickness
260 °C
< 1.6 mm
PB-Free Assembly | Package Thickness
260 °C
1.6 mm - 2.5 mm
PB-Free Assembly | Package Thickness
250 °C
≥ 2.5 mm
refer to IPC/ JEDEC J-STD-020E
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
RaSi
DESCRIPTION
001.000
2020-02-19
DIN ISO 2768-1m
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WIRL-POSI Elara-II GPS-GLO GNSS
module T&R
BUSINESS UNIT
ORDER CODE
2613021137000
STATUS
PAGE
eiSmart
Valid
5/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
