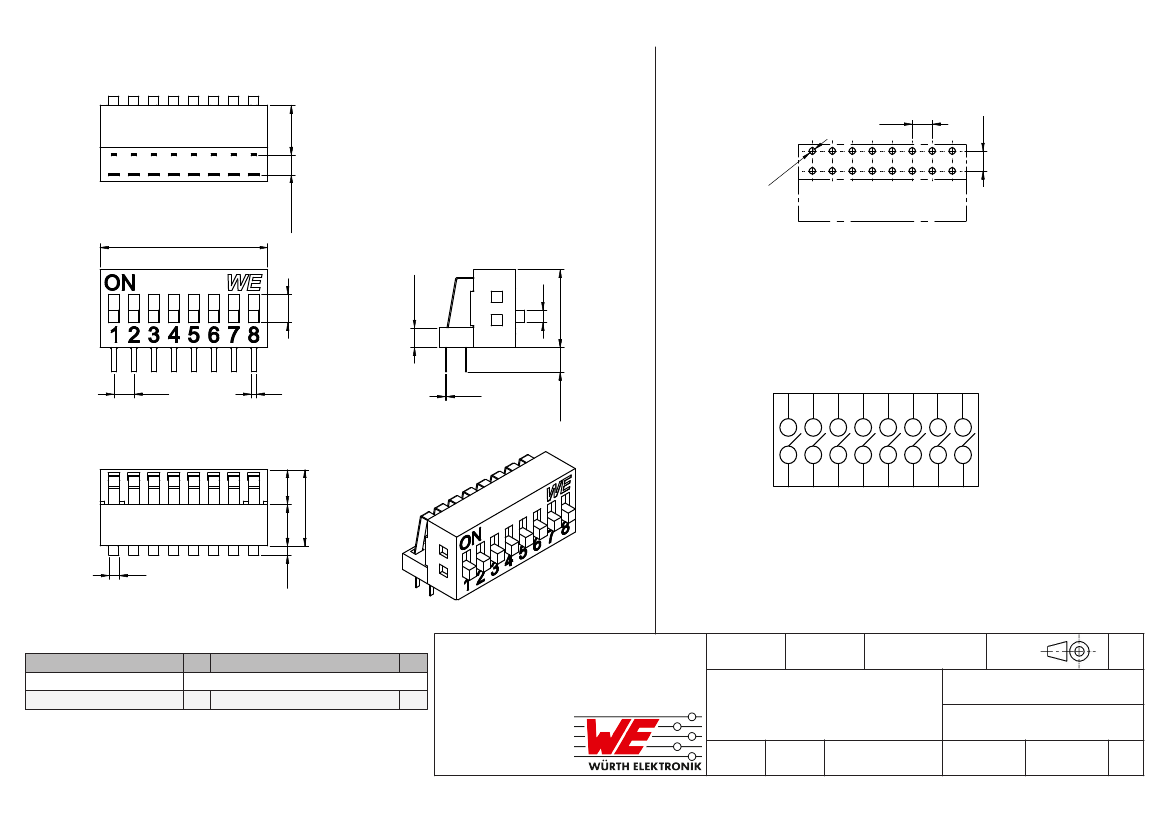

Dimensions:
Number of Poles
2
3
4
6
8
10
L
6.08 mm
8.92 mm
11.16 mm
16.24 mm
21.32 mm
26.40 mm
Order Code
418217270902A
418217270903A
418217270904A
418217270906A
418217270908A
418217270910A
Electrical Properties:
Properties
Rated Current Switching
Rated Voltage Switching
Rated Current Non-Switching
Rated Voltage Non-Switching
Contact Resistance Initial
Contact Resistance After Life
Test
Insulation Resistance
PBT
UL94 V-0
Red
PBT
UL94 V-0
Black
PBT
UL94 V-0
White
PBT
UL94 V-0
Black
Copper Alloy
Gold
Copper Alloy
Gold
Withstanding Voltage
500 V (DC)
1 min
Test conditions
I
R
U
R
I
R
U
R
R
R
R
ISO
Value
25
24
100
50
50
100
100
500
Unit
mA
V (DC)
mA
V (DC)
mΩ
mΩ
MΩ
V (AC)
max.
max.
min.
Tol.
Material Properties:
Cover Material
Cover Flammability Rating
Cover Color
Base Material
Base Flammability Rating
Base Color
Actuator Material
Actuator Flammability Rating
Actuator Color
Accessory Material
Accessory Flammability Rating
Accessory Color
Contact Material
Contact Plating
Terminal Material
Terminal Plating
Mechanical Properties:
Properties
Operation Force
Electrical Life
Mechanical Life
Actuator Type
25 mA / 24 V (DC)
min. 2000 cycles
Raise Type
Test conditions
Value
800
2000
Unit
g
Cycles
Tol.
max.
General Information:
Operating Temperature
Storage Temperature (in original
packaging)
-40 °C up to +85 °C
-40 °C up to +85 °C
Packaging Properties:
Packaging
Tube
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
DaMa
DESCRIPTION
Tig
DIN ISO 2768-1m
2.54 mm compact THT right angled
DIP Switch with raised actuator
WS-DITU
REVISION
STATUS
ORDER CODE
418217270908A
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.001
Valid
2017-02-11
eiCan
2/5
