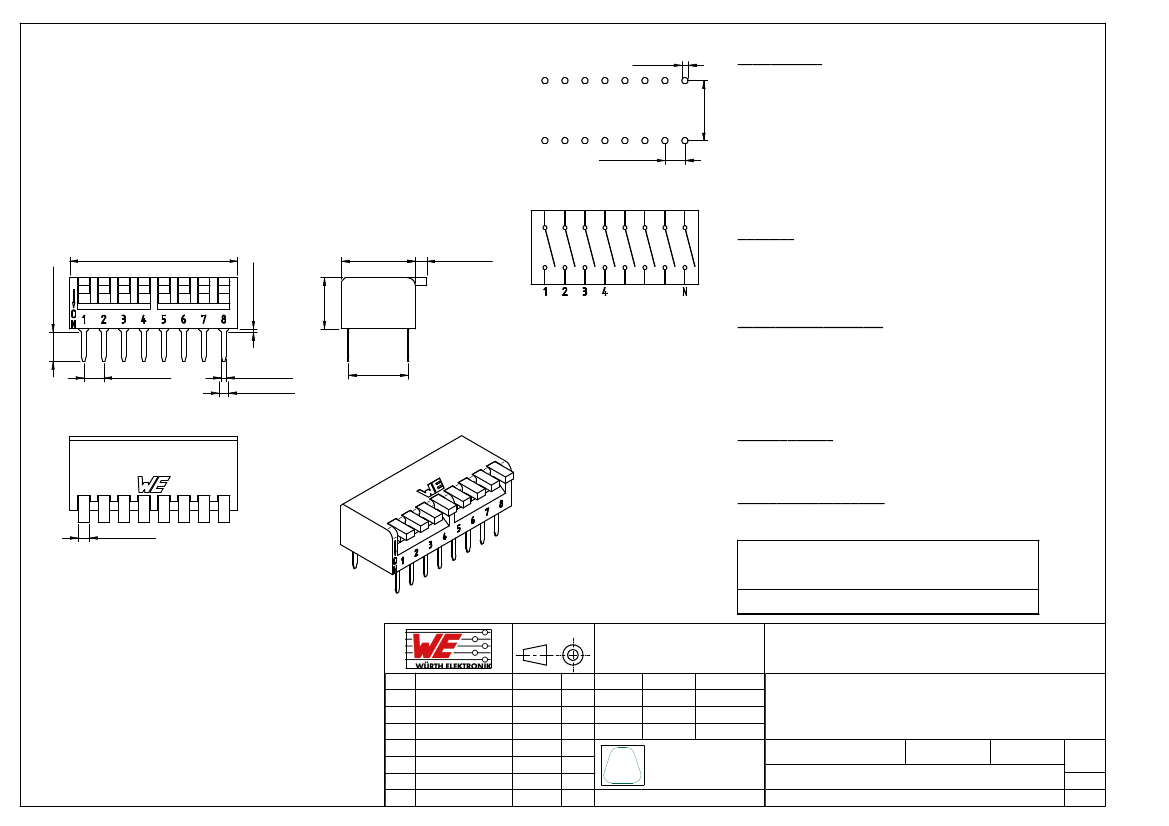

TECHNICAL CHARACTERISTICS
O
0.80
7.62 ±0.3
2.54 ±0.03
SPECIFICATION
>Contact Rating:
Switching:
25mA, 24VDC
Non-Switching:
100mA, 50VDC
>Contact Resistance:
Initial:
50mOHM max.
After Life Test:
100mOHM max.
>Insulation Resistance:
min. 100MOHM at 500VDC
>Dielectric Strength:
500VAC for 1 minute
>Operating Force:
1000g max.
>Mechanical Life:
min. 5000 cycles
>Electrical Life:
2000 cycles / 25mA, 24VDC
>Raise Actuator Type
MATERIAL
>Cover:
PPS UL 94V-0, color Black
>Base:
HTN UL 94V-0, color Black
>Actuator
: PA 46 UL 94V-0, color White
>Contact:
Gold Plated
>Terminal:
Tin Plated
A
u
0.2
3.70 ±0.20
0.40 ±0.10
6.50 ±0.10
9.40 ±0.20
1.47 ±0.05
Wiring Diagram
2.54 ±0.03
0.60 ±0.03
1.20 ±0.03
7.62 ±0.3
SOLDERING INFORMATION
>Terminal in THT version
>Wave soldering 260°C 10 sec. max
>Hand soldering with 30W or under at 350°C for 3 sec. max
or at 270°C for 5 sec. max
>Keep in "off" position during soldering
>Ultrasonic cleaning not re-commended
>Any inflow of Flux into the switch may influence the contact function
ENVIRONMENTAL
>Storage condition: -40°C ~ +85°C
>Operation condition: -40°C ~ +85°C
>Compliance: Lead Free, ROHS, Reach
PACKAGING INFORMATION
>Tube packaging only
>On delivery in "off" position
DIMENSION
No.Of Pole
2
3
4
5
Dim. A (mm) 6.08 8.62 11.16 13.70
No.Of Pole
8
10
12
Dim. A (mm) 21.32
26.40
31.48
Basic material
6
16.24
7
18.78
1.44 ±0.03
Scale - 2:1
This electronic component is designed and developed with the intention
for use in general electronics equipments.
Before incorporating the components into any equipments in the field
such as aerospace, aviation, nuclear control, submarine, transportation,
(automotive control, train control, ship control), transportation signal,
disaster prevention, medical, public information network etc. where
higher safety and reliability are especially required or if there is possibility
of direct damage or injury to human body, Wurth Elektronik must be
asked for a written approval.
In addition, even electronic component in general electronic equipments,
when used in electrical circuits that require high safety, reliability
functions or performance, the sufficient reliability evaluation-check for the
safety must be performed before by the user before usage.
b
a
REV
revised MatchCode 14-07-24 AL
warning text
FILE
11-10-26 WJ
DATE BY
Projection
GENERAL TOLERANCE
.x = +/- 0,2
.xx = +/- 0,15
Date
Drawn 09-02-24
Checked 09-02-24
Name
Jelisarow
Hsu
DESCRIPTION
WS-DITU, Piano type
THT version, raise Actuator without top tape sealed
Scale
2:1
Position
SIZE
A4
System :Solid Edge V20
CAD
EDV NO
WE
RDX
Würth Elektronik
RDX
4183172709xx.dft
Drawing.- No.
4183172709xx
