TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 66
FLAMMABILITY RATING: UL94-V0
COLOR: GRAY
METAL HOUSING: PhBz
SOLDER TAIL PLATING: TIN
ENVIRONMENTAL
OPERATING TEMPERATURE: -40°C UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS

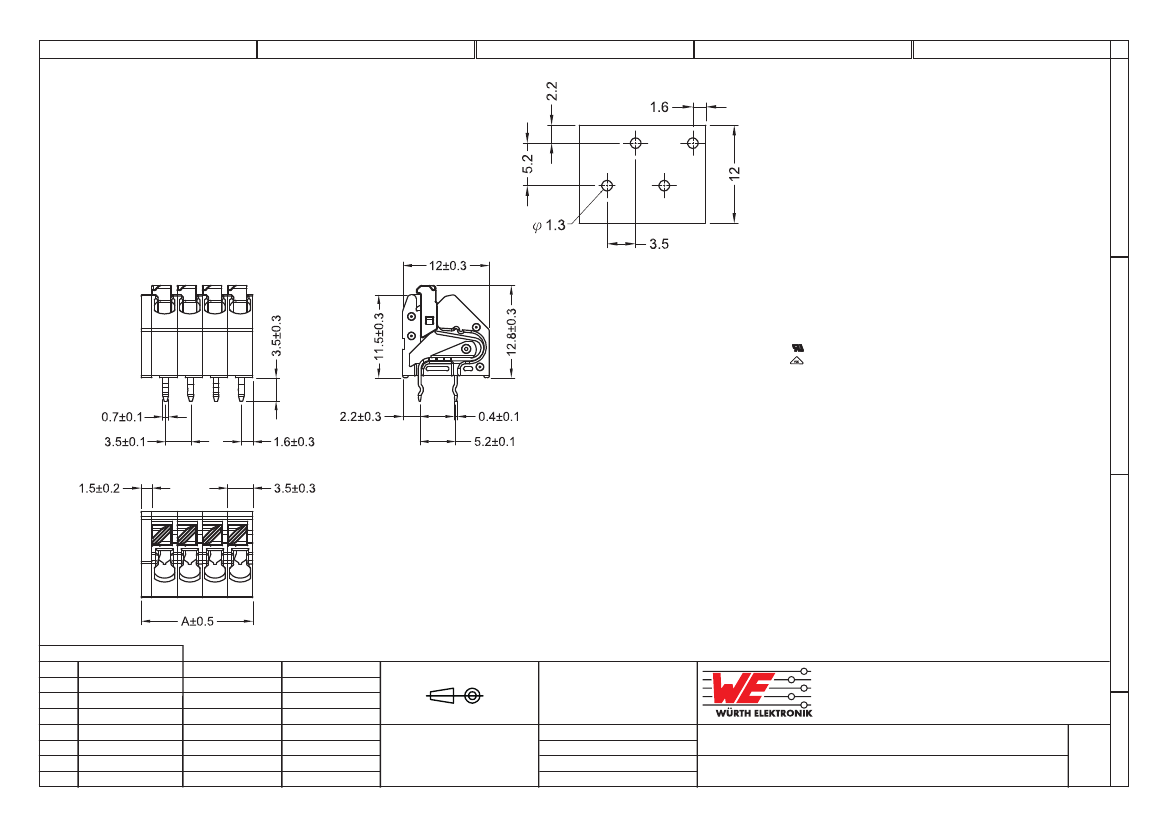

PCB LAYOUT - COMPONENT VIEW
A
WARNING: START ON THE BOTTOM LEFT
CORNER
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
STANDARD
c
us
CERTIFIED E315414
CERTIFIED 40036145
MECHANICAL
SOLID WIRE:
STRANDED WIRE :
cULus
VDE
6A
2A
300 VAC 250 VAC
1.6 KV
2.5 KV
20 mΩ MAX
B
20-14 AWG / 0.518-2.08 MM²
20-14 AWG / 0.518-2.08MM²
WIRE STRIPE LENGTH: 7.5-8.5 MM
PITCH: 3.5 MM
SOLDERING
JEDEC LEAD FREE WAVE SOLDERING PROCESS
PACKAGING
BOX
DIMENSION
A = (3.5 x NB PINS) + 1.5
C
RoHS Compliant
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
APPROVAL: FBr
I
H
REV
01-DEC-15
10-AUG-15
DATE
VDE CERTIFIED
STRANDED WIRE
FILE
AK
AK
BY
UNIT: MM
SCALE:
SHEET: 1/2
DRAW: AS
DESCRIPTION: SERIE 412 B - 3.5MM SCREWLESS 45° ENTRY GREY
- WR-TBL
WERI PART NO: 691 412 120 0xx B
SIZE
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
10-SEP-14
DATE
PDF
FILE
QL
BY
APPROVAL: JC
SCALE:
SHEET:
2/2
DRAW: QL
WERI PART NO: DISCLAIMER
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
