830207044109 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 830207044109

830207044109: DescriptionXO, Clock,; CategoryPassive components oscillator; File Size554KB，2 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric View All

830207044109 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	830207044109	-	-	View	Buy Now

830207044109 Overview

XO, Clock,

830207044109 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
Reach Compliance Code	unknown
JESD-609 code	e4
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

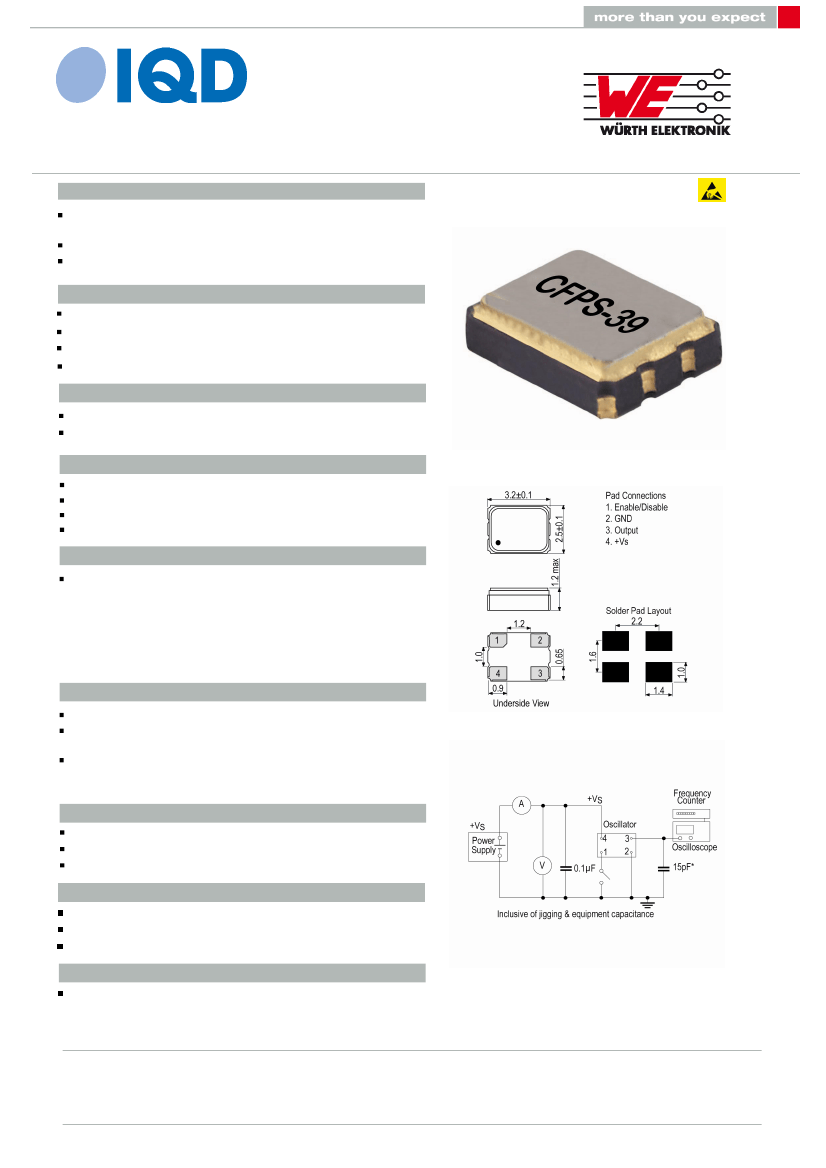

Crystal Clock Oscillator Specification

IQD Part No. + Packaging: LFSPXO070441RL3K

Wurth Part No.

830207044109

Description

Surface mount 3.2 x 2.5mm crystal oscillator in a hermetically

sealed ceramic package with a seam sealed metal lid.

Model

CFPS-39

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

100.0MHz

±25.00ppm

-40.00 to 85.00°C

±3ppm max per year @ 25°C

Supply Voltage

Current Draw

Output Details

3.3V ±10%

30.000mA

Output Compatibility

Drive Capability

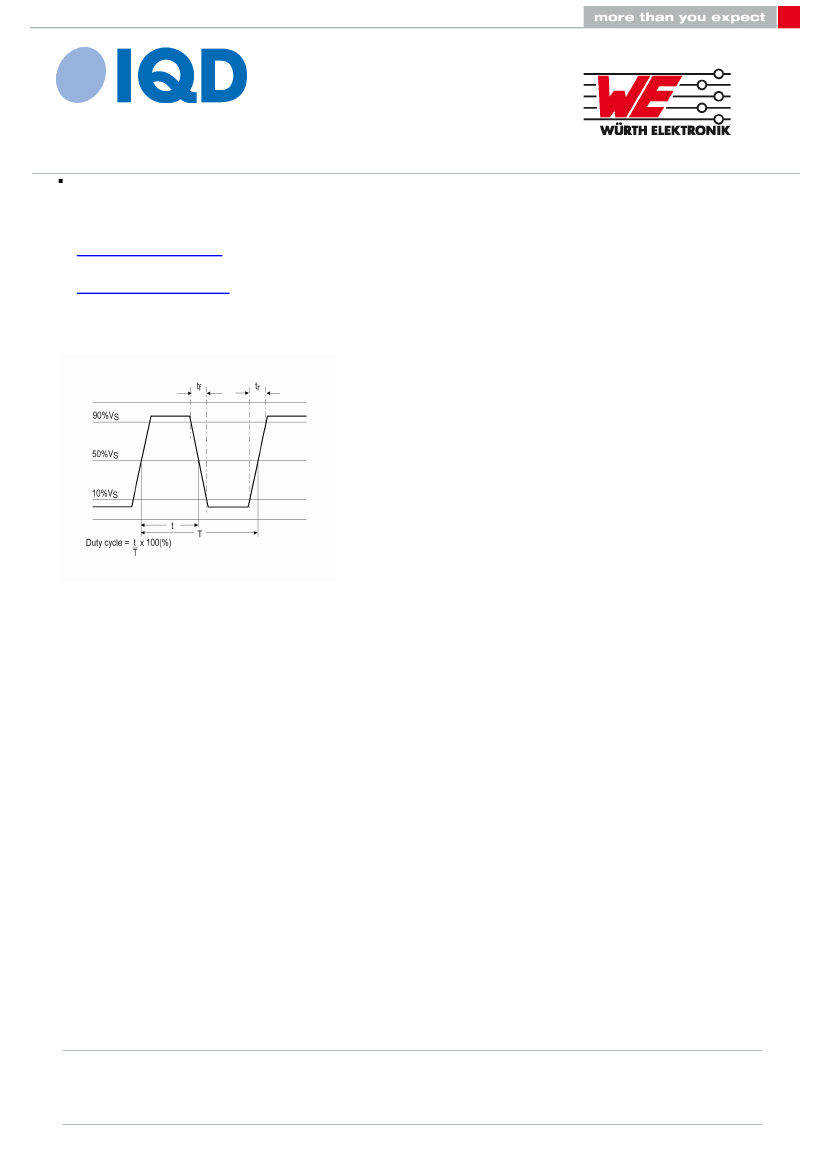

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

5.0ns max

40/60%

Outline (mm)

Standby Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10μA max

Start-Up Time: 10ms max

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

wave

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes

(total 12hrs)

Manufacturing Details

Test Circuit

Maximum Process Temperature: 260°C (10secs max)

RoHS Terminations

NiAu

RoHS Reflow Temp

260degC 10s

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: RL3K

Pack Size: 3,000

Tape & reel in accordance with EIA-481-D

CONTACT INFORMATION:

Würth Elektronik eiSos GmbH & Co. KG

Max-Eyth-Str. 1, 74638 Waldenburg, Germany

Tel: +49(0) 7942 945-0

Printed on 27 Jun 19 9:57 using WE Part Data Sheet V1.00019

Email: eiSos@we-online.de

Web: www.we-online.com

Page 1 of 2
