830208215409: DescriptionXO, Clock,; CategoryPassive components oscillator; File Size477KB，2 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric View All

830208215409 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	830208215409	-	-	View	Buy Now

830208215409 Overview

XO, Clock,

830208215409 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
package instruction	SOLCC4,.06
Reach Compliance Code	unknown
Other features	STANDBY; ENABLE/DISABLE FUNCTION
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	27 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	SOLCC4,.06
physical size	2mm x 1.6mm x 0.7mm
longest rise time	5 ns
Maximum slew rate	7 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

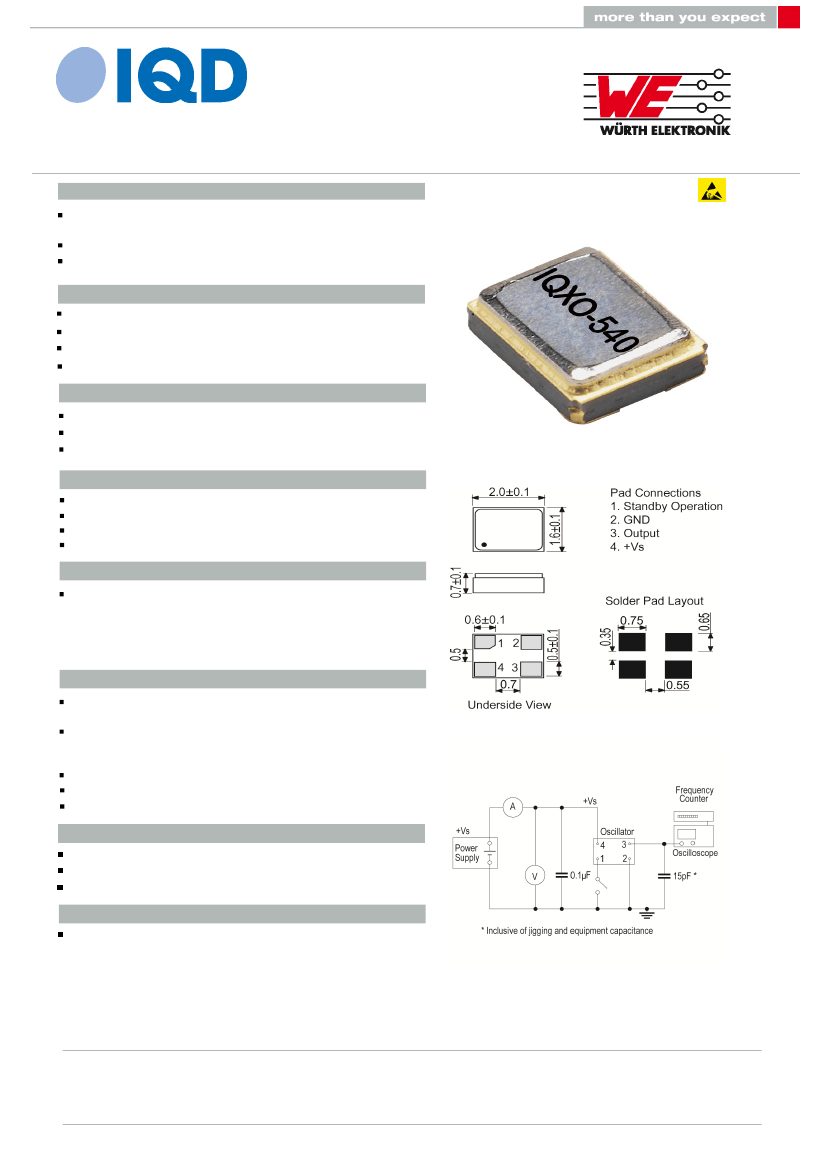

Crystal Clock Oscillator Specification

IQD Part No. + Packaging: LFSPXO082154RL3K

Wurth Part No.

830208215409

Description

Standard 2 x 1.6 crystal oscillator in a ceramic package with a

seam sealed metal lid, hermetically sealed

Model

IQXO-540

Model Issue number

2

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

27.0MHz

±25.00ppm

-20.00 to 70.00°C

±5ppm

3.3V ±10%

Supply Voltage

Current Draw

7.000mA

Standby Current: 10μA max (pad 1 at logic '0')

Output Details

Outline (mm)

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

5.0ns max

45/55%

Standby Operation: Logic ‘1’ (≥70%VS) to pad 1 enables

oscillator output

Logic ‘0’ (≤30%VS) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Environmental Parameters

Impact: Weight of 10G dropped to centre of part from a height

of 6mm

Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min

in 3 mutually perpendicular planes, duration 2hrs each plane

(total 6hrs)

Storage Temperature Range: –40 to 85°C

RoHS Terminations

RoHS Reflow Temp

250°C 10S max

Compliance

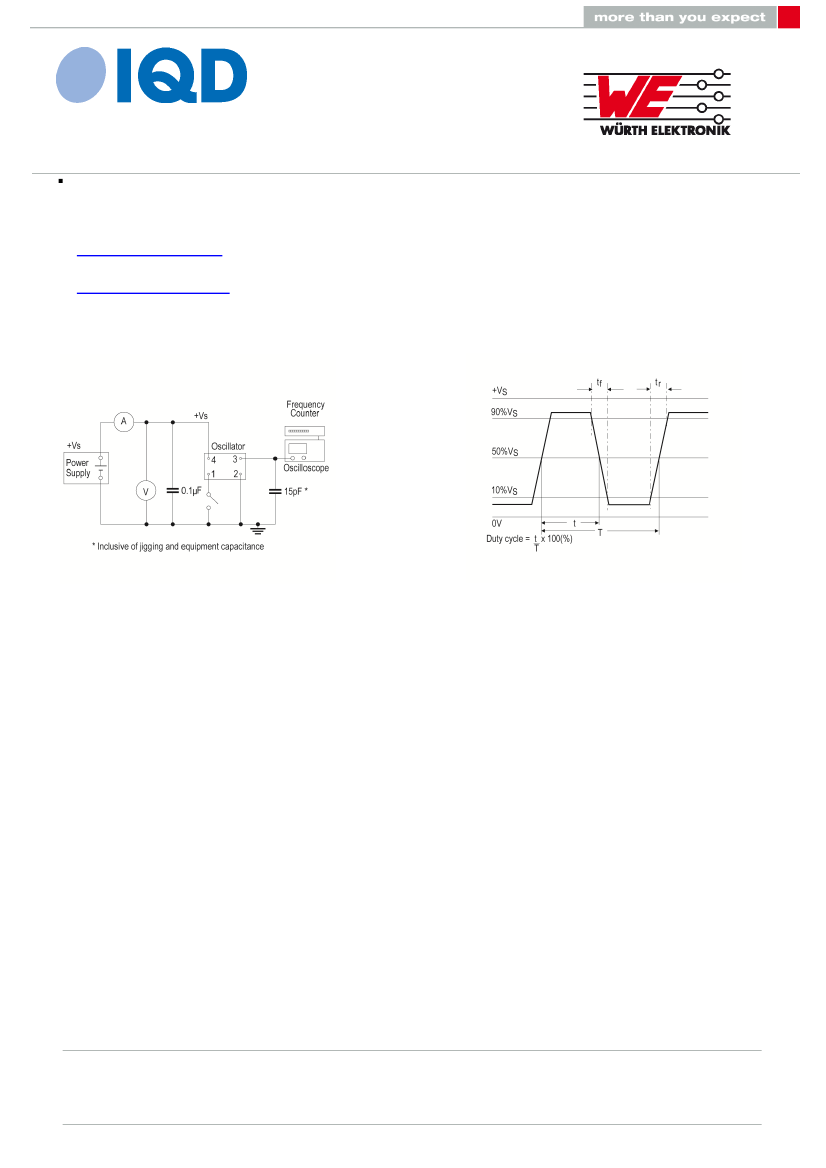

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: RL3K

Pack Size: 3,000

Tape & reel in accordance with EIA-481-D

CONTACT INFORMATION:

Würth Elektronik eiSos GmbH & Co. KG

Max-Eyth-Str. 1, 74638 Waldenburg, Germany

Tel: +49(0) 7942 945-0

Printed on 27 Jun 19 12:26 using WE Part Data Sheet V1.00019

Email: eiSos@we-online.de

Web: www.we-online.com

Page 1 of 2
