2.45 GHz Ceramic Chip Antenna
ACAG0301-2450-T
Features
•
•
•
•
•
Low VSWR
High gain of 5.19 dBi
Bandwidth of 100MHz
Omnidirectional pattern
Linear polarization
Pb
3.2 x 1.6 x 1.2 mm
R
o
HS/RoHS
II
Compliant
MSL = N/A
Applications
•
•
•
•
•
•
•
WiFi
Bluetooth
ISM
Wearables
IoT
AR/VR
Drones
Electrical Specifications
Parameters
Center Frequency (No matching)
Center Frequency (After matching)
Bandwidth
VSWR
Impedance
Gain
Azimuthal Beam width
Polarization
Min.
Typ.
Max. Units
MHz
MHz
MHz
Ω
dBi
2875
2450
100
≤ 2.0
50
5.19
Omni-directional
Linear
Environmental Characteristics
Parameters
Operating Temperature
Relative Humidity
Description
-40ºC to +85ºC
55 ~ 75 %
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED:
05.03.2019
ISO9001-2015
CERTIFIED
2.45 GHz Ceramic Chip Antenna
ACAG0301-2450-T

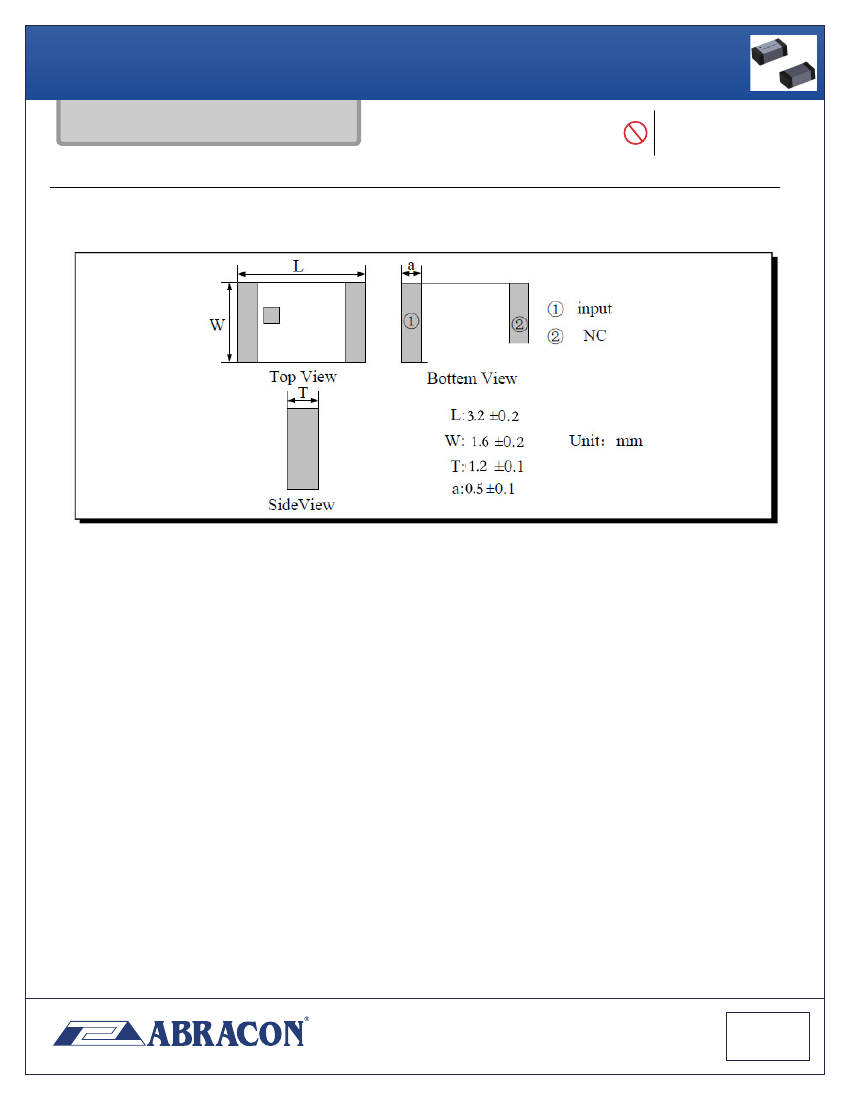

Product Dimensions (Unit: mm)
Pb
3.2 x 1.6 x 1.2 mm
R
o
HS/RoHS
II
Compliant
MSL = N/A
Bottom View
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED:
05.03.2019
ISO9001-2015
CERTIFIED
2.45 GHz Ceramic Chip Antenna
ACAG0301-2450-T

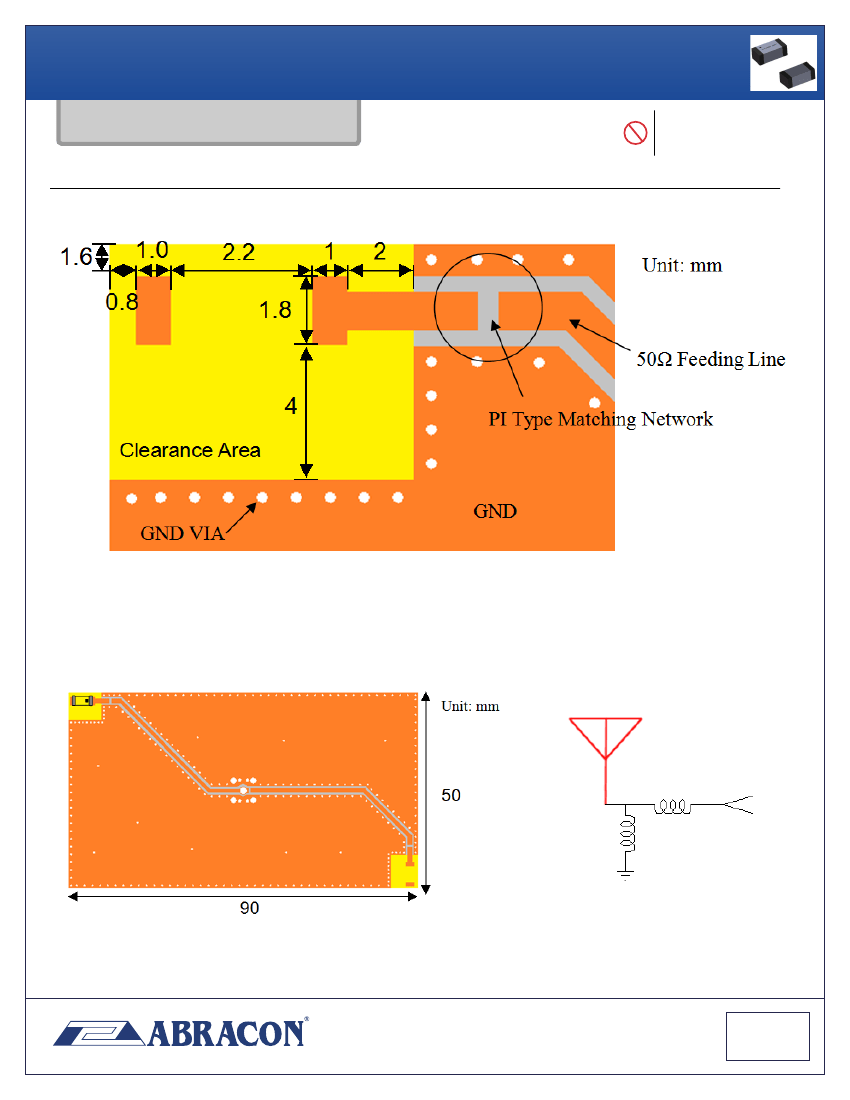

Evaluation Board and Matching Circuits
Pb
3.2 x 1.6 x 1.2 mm
R
o
HS/RoHS
II
Compliant
MSL = N/A
1.8nH
6.2nH
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED:
05.03.2019
ISO9001-2015
CERTIFIED
2.45 GHz Ceramic Chip Antenna
ACAG0301-2450-T
Pb
3.2 x 1.6 x 1.2 mm
R
o
HS/RoHS
II
Compliant
MSL = N/A

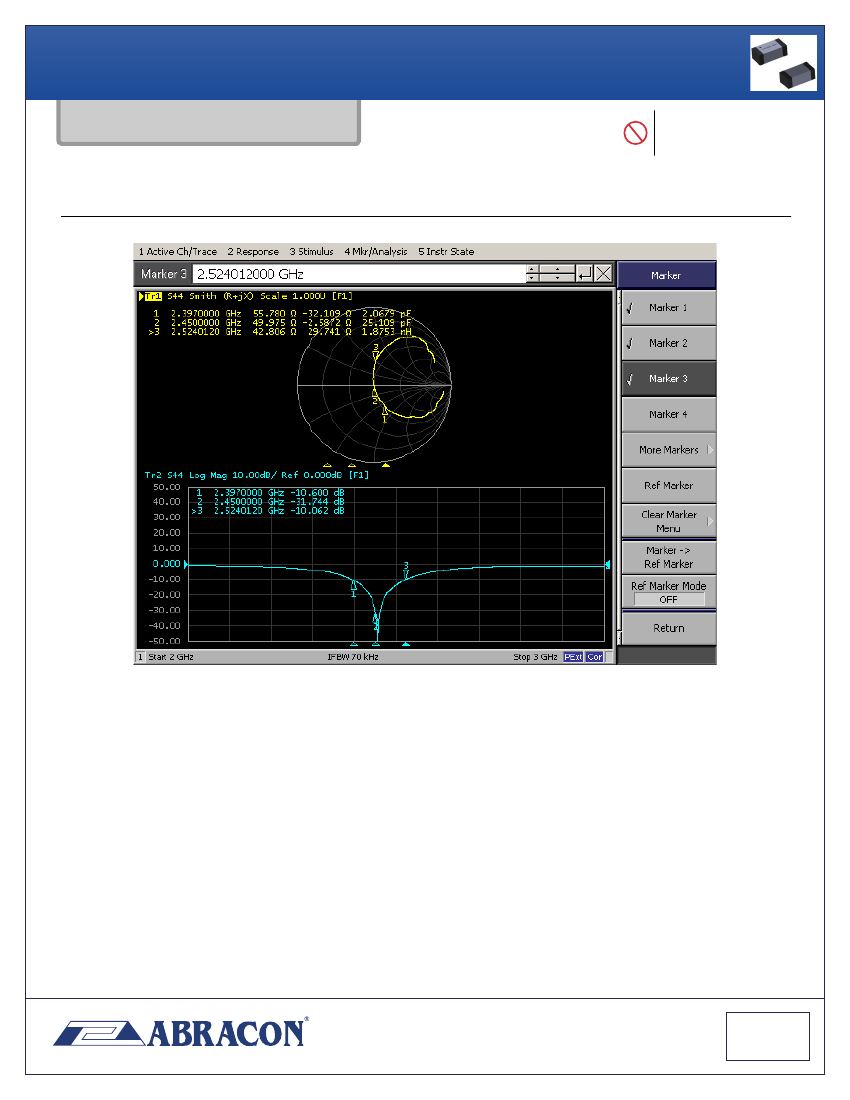

Return Loss and Impedance Characteristics
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED:
05.03.2019
ISO9001-2015
CERTIFIED
2.45 GHz Ceramic Chip Antenna
ACAG0301-2450-T
Radiation Pattern
Pb
3.2 x 1.6 x 1.2 mm
R
o
HS/RoHS
II
Compliant
MSL = N/A
Y
X
Z
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED:
05.03.2019
ISO9001-2015
CERTIFIED
