Features
48 mm travel
Carbon resistive element
Smooth sliding feel
Non-standard options available upon request
This model is
not
recommended for new designs.
*R
oH
S
CO
M

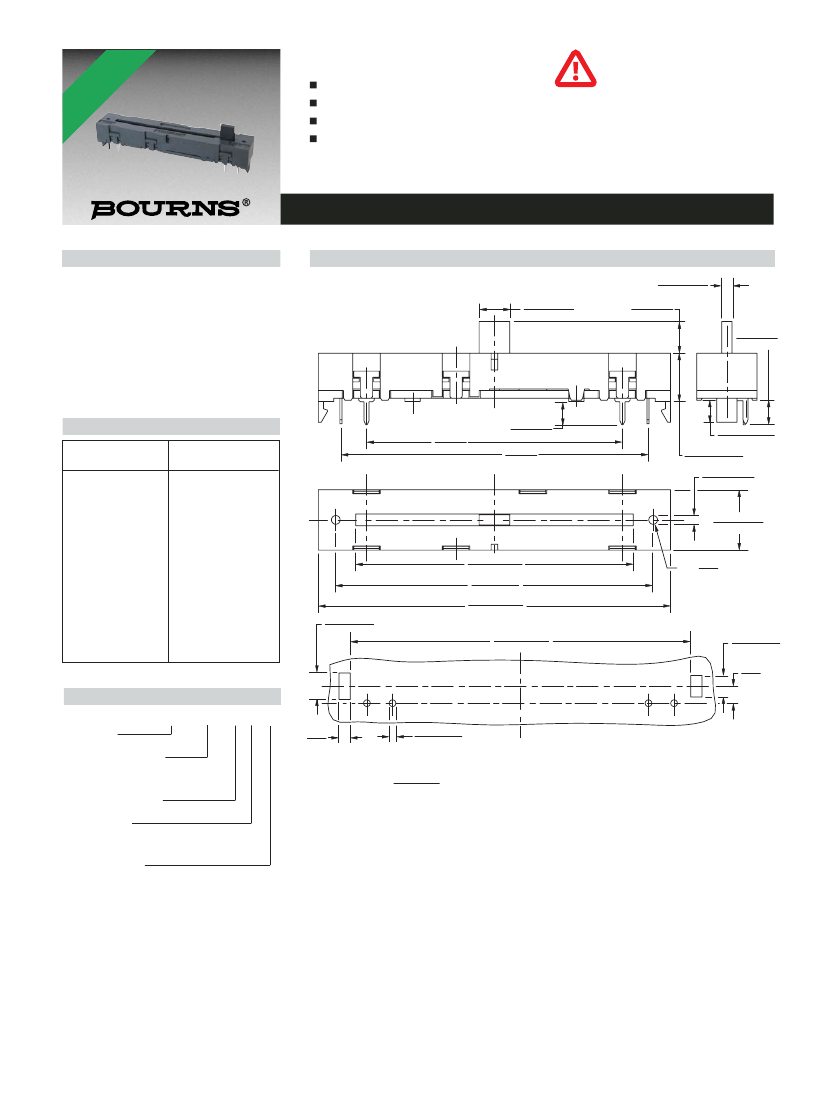

1027 - Slide Potentiometer
Stroke Length...............................48 mm
Standard Resistance Range
...................100 ohms to 4.7 megohms
Resistance Taper...........................Linear
Power Rating ...............................0.40 W
Operating Force ...................0.8 to 2.4 N
End Stop Force.......................50 N max.
Temperature Range ......-25 °C to +70 °C
Slide Life ...........................10,000 cycles
Standard Resistance Table
Resistance
(Ohms)
100
220
470
1,000
2,200
4,700
10,000
22,000
47,000
100,000
220,000
470,000
1,000,000
2,200,000
4,700,000
Characteristics
Product Dimensions
1027-602
6.0 +0/-0.05
(.236 +0/-.002)
2.0 +0/-0.05
(.079 +0/-.002)
6.2 ± 0.3
(.244 ± .012)
4.5 ± 0.4
(.177 ± .016)
2
1
50.0
(1.969)
Resistance
Code
101
221
471
102
222
472
103
223
473
104
224
474
105
225
475
How to Order
Model Type
• 1027
Terminal & Lever Style
• 602
Other styles available
upon request.
Independent Linearity
A = ±5 %
Element Taper
B = Linear Carbon ±20 %
E = Linear Carbon ±10 %
M = Linear Carbon ±30 %
Resistance Code
Other versions available upon request.
1027 - 602 - A B 103
E
T
E
L
O
S
B
O
60.0
(2.362)
5.2 +0.1/-0
(.205 +.004/-0)
54.2 +0.2/-0
(2.134 +.008/-0)
62.0 ± 0.1
(2.441 ± .004)
69.0 +0/-0.3
(2.717 +0/-.012)
66.5 +0/-0.1
(2.618 +0/-.004)
2
1
2.2
(.087)
1.3 +0.1/-0
DIA.
(.051 +.004/-0)
4.5 ± 0.4
(.177 ± .016)
3
2
4.3 +0.1/-0.3
(.169 +.004/-.012
9.5 +0.1/-0.2
(.374 +.004/-.008)
1.7 +0/-0.05
DIA.
(.067 +0/-.002)
12.0 +0/-0.3
(.472 +0/-.012)
2.5
(.098)
SCREW-IN DEPTH
FOR SELF-TAPPING SCREW
(V 2.2)
MAX.
4.2 +0.1/-0
(.165 +.004/-0)
3.3
(.130)
3
2
DIMENSIONS ARE:
MM
(INCHES)
REV. 11/12
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
