Features
n
Shielded construction
n
Metal alloy powder core
n
High saturation current
n
Low buzz noise
n
Inductance range: 0.47 to 47 µH
n
RoHS compliant* and halogen free**
220 06H
19

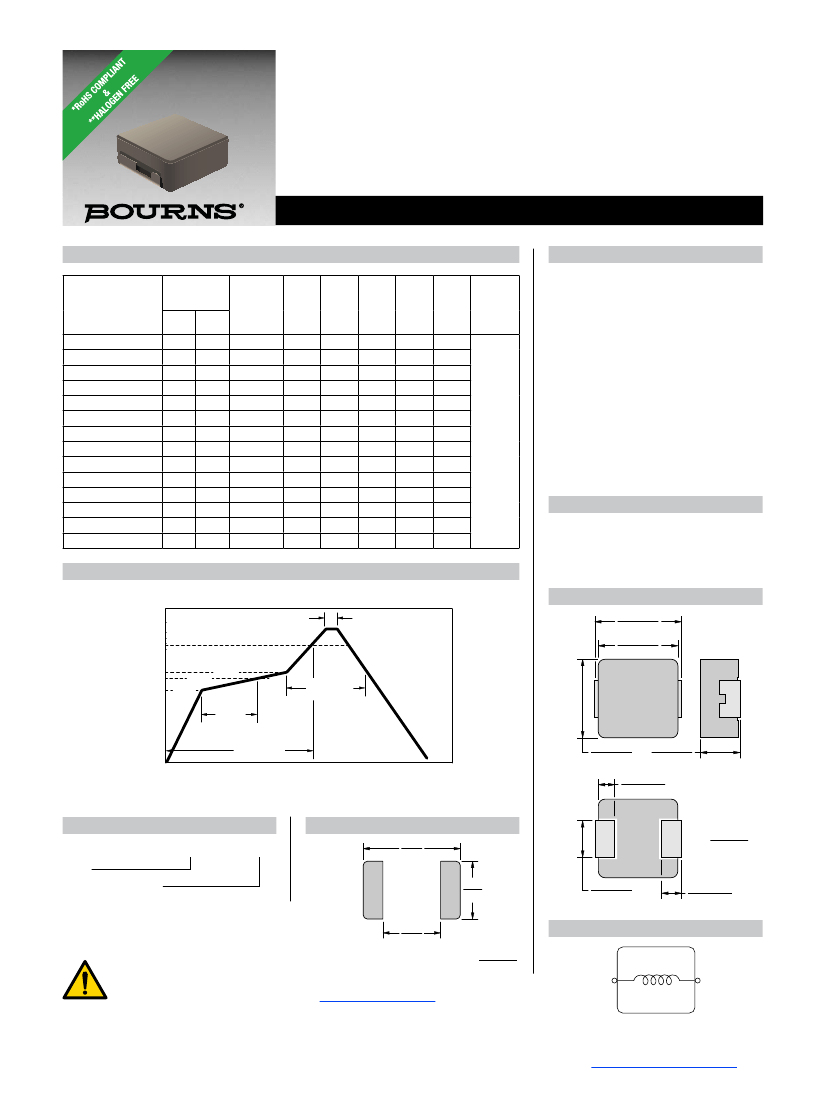

SRP1770C Series - Shielded Power Inductors
Electrical Specifications @ 25 °C
Inductance
@ 100 kHz
/1V
Tol.
L (µH) (%)
General Specifications
Operating Temperature
................................-40 °C to +125 °C
(Temperature rise included)
Storage Temperature (Component)
................................-40 °C to +125 °C
Rated Current
............ Inductance drops 30 % at Isat
Temperature Rise .....40 °C at rated Irms
Moisture Sensitivity Level .....................1
ESD Classification (HBM).................N/A
1
Circuit design, component, PCB trace
SRP1770C-R47M
SRP1770C-1R0M
SRP1770C-1R5M
SRP1770C-2R2M
SRP1770C-3R3M
SRP1770C-4R7M
SRP1770C-5R6M
SRP1770C-6R8M
SRP1770C-8R2M
SRP1770C-100M
SRP1770C-150M
SRP1770C-220M
SRP1770C-330M
SRP1770C-470M
Bourns
Part Number
@100 kHz
Q (Min.)
/1V
0.47
1.0
1.5
2.2
3.3
4.7
5.6
6.8
8.2
10.0
15.0
22.0
33.0
47.0
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
10
20
20
20
20
20
20
20
20
20
20
20
20
20
SRF
(MHz)
Typ.
28
24
22
21
19
17
15
14
13
12
10
8
6
7
0.75
1.30
1.80
2.50
3.50
4.80
5.90
8.40
9.60
11.60
16.50
24.00
36.00
46.00
DCR
(mW)
Typ.
0.83
1.50
2.10
2.80
3.90
5.50
6.80
9.20
10.80
13.00
19.50
27.60
42.00
53.00
DCR
(mW)
Max.
Irms
(A)
Typ.
60.0
48.0
42.0
40.0
28.0
26.0
24.0
22.0
18.0
17.0
14.0
12.0
10.7
8.7
Isat
(A)
Typ.
115
68
55
45
40
37
35
30
28
25
23
19
15
13
Terminal
Type
Lead
Frame
size and thickness, airflow and other
cooling provisions all affect the part
temperature. Part temperature should be
verified in the end application.
Materials
Soldering Profile
Peak Temperature 260
max.
Max. Peak Temperature 260
10 sec. max.
Max. Time Above 217 : 60~150 sec. max.
Preheating
Soldering
Natural Cooling
TP (260 °C / 10 Sec. Max.)
Core ..........................Metal alloy powder
Wire ............................Enameled copper
Terminal Finish .............................. Sn/Ni

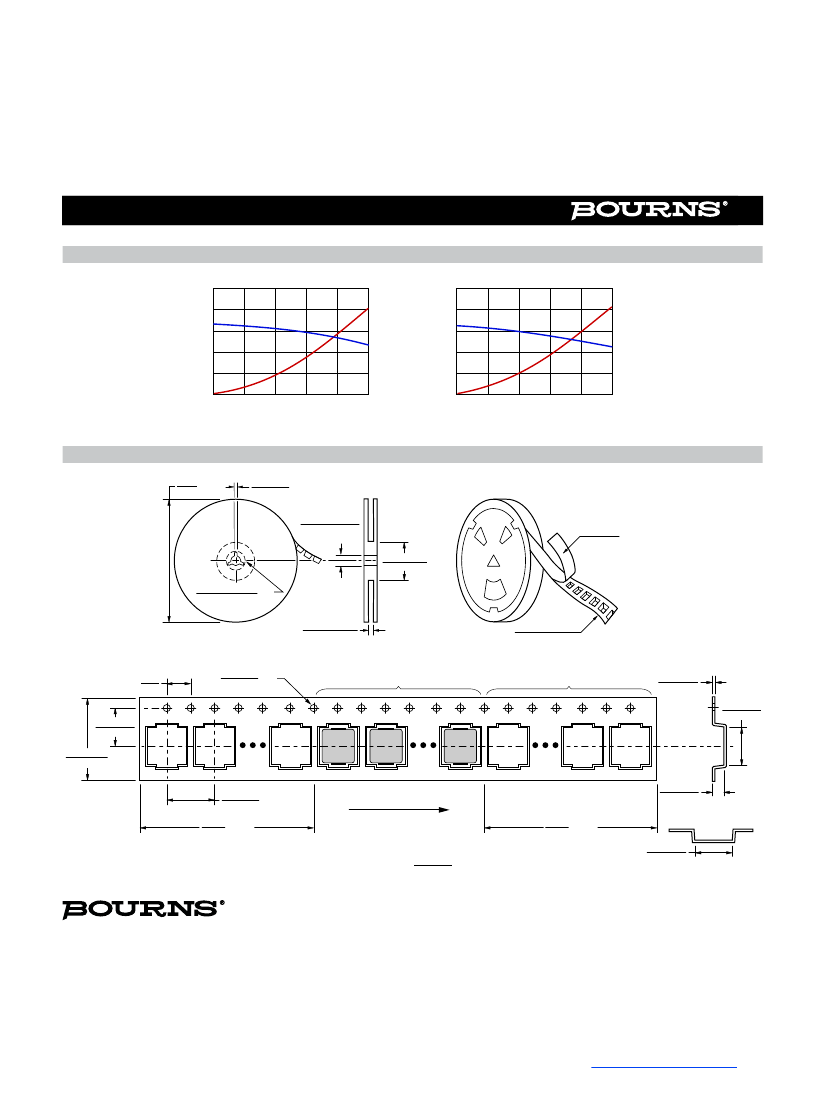

Packaging ....... 200 pcs. per 13-inch reel
Product Dimensions
17.8 ± 0.50
(.701 ± .020)
16.9 ± 0.30
(.665 ± .012)
Temperature (°C)
tp (245 °C, 20~40 Sec.)
217 °C
60~150 Sec.
60~180
Sec.
480 Sec. Max.
200 °C
150°C
100
1907H
16.9 ± 0.30
(.665 ± .012)
6.7 ± 0.30
(.264 ± .012)
25
Time (Seconds)
Reflow Times: 3 Times Max.
How to Order
Recommended Layout
2.3 ± 0.30
(.091 ± .012)
SRP1770C - 220M
Model
Value Code (see table)
18.5
(.728)
DIMENSIONS:
MM
(INCHES)
12.5
(.492)
11.9 ± 0.30
(.469 ± .012)
2.5 ± 0.30
(.098 ± .012)
11.0
(.433)
Schematic
