SSF2301
DESCRIPTION
The SSF2301 uses advanced trench technology to
provide excellent R
DS(ON)
, low gate charge and operation
with gate voltages as low as 2.5V. This device is suitable
for use as a load switch or in PWM applications.
D
G
GENERAL FEATURES
●
V
DS
= -20V,I
D
= -3A
R
DS(ON)
< 115mΩ @ V
GS
=-2.5V
R
DS(ON)
< 90mΩ @ V
GS
=-4.5V
●
High Power and current handing capability
●
Lead free product is acquired
●
Surface Mount Package
S
Schematic diagram
Marking and pin Assignment
Application
●PWM
applications
●Load
switch
●Power
management
SOT23 top view
PACKAGE MARKING AND ORDERING INFORMATION
Device Marking
Device
Device Package
Reel Size
2301
SSF2301
SOT23
Ø180mm
Tape width
8 mm
Quantity
3000 units
ABSOLUTE MAXIMUM RATINGS(TA=25℃unless otherwise noted)
Parameter
Symbol
Drain-Source Voltage
Gate-Source Voltage
Drain Current-Continuous@ Current-Pulsed (Note 1)
Maximum Power Dissipation
Operating Junction and Storage Temperature Range
Limit
-20
±12
-3
-10
1.25
-55 To 150
Unit
V
V
A
A
W
℃
V
DS
V
GS
I
D
I
DM
P
D
T
J
,T
STG
THERMAL CHARACTERISTICS
Thermal Resistance,Junction-to-Ambient (Note 2)
R
θJA
100
℃
/W
ELECTRICAL CHARACTERISTICS (TA=25℃unless otherwise noted)
Parameter
Symbol
Condition
OFF CHARACTERISTICS
Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current
Gate-Body Leakage Current
BV
DSS
I
DSS
I
GSS
V
GS
=0V I
D
=-250μA
V
DS
=-20V,V
GS
=0V
V
GS
=±12V,V
DS
=0V
Min
-20
Typ
Max
Unit
V
-1
±100
μA
nA
©Silikron Semiconductor CO.,LTD.
1
http://www.silikron.com
v1.0
SSF2301
ON CHARACTERISTICS (Note 3)
Gate Threshold Voltage
Drain-Source On-State Resistance
Forward Transconductance
DYNAMIC CHARACTERISTICS (Note4)
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
SWITCHING CHARACTERISTICS (Note 4)
Turn-on Delay Time
Turn-on Rise Time
Turn-Off Delay Time
Turn-Off Fall Time
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
DRAIN-SOURCE DIODE CHARACTERISTICS
Diode Forward Voltage (Note 3)
V
SD
V
GS
=0V,I
S
=-1A
-1.2
V
t
d(on)
t
r
t
d(off)
t
f
Q
g
Q
gs
Q
gd
V
DS
=-10V,I
D
=-3A,V
GS
=-4.5V
V
DD
=-10V,I
D
=-3A
V
GS
=-4.5V,R
GEN
=3Ω
13.6
8.6
73.6
34.6
9.6
1.1
2.6
27.2
17.2
147.2
69.2
12.7
nS
nS
nS
nS
nC
nC
nC
C
lss
C
oss
C
rss
V
DS
=-10V,V
GS
=0V,
F=1.0MHz
1160
210
125
PF
PF
PF
V
GS(th)
R
DS(ON)
g
FS
V
DS
=V
GS
,I
D
=-250μA
V
GS
=-4.5V, I
D
=-3A
V
GS
=-2.5V, I
D
=-2A
V
DS
=-5V,I
D
=-3A
-0.5
65
90
7
-1
90
115
V
mΩ
S
NOTES:
1.
Repetitive Rating: Pulse width limited by maximum junction temperature.
2.
Surface Mounted on FR4 Board, t
≤
10 sec.
3.
Pulse Test: Pulse Width
≤
300μs, Duty Cycle
≤
2%.
4.
Guaranteed by design, not subject to production testing.
©Silikron Semiconductor CO.,LTD.
2
http://www.silikron.com
v1.0

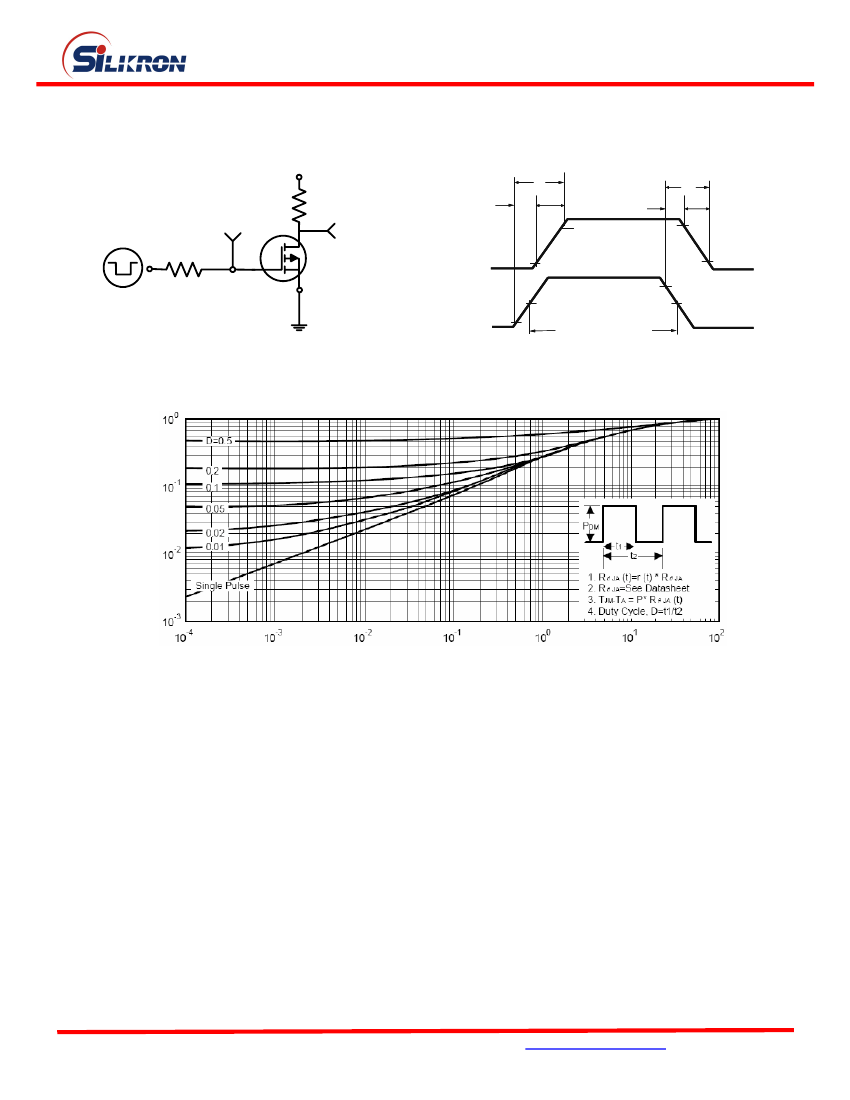

SSF2301

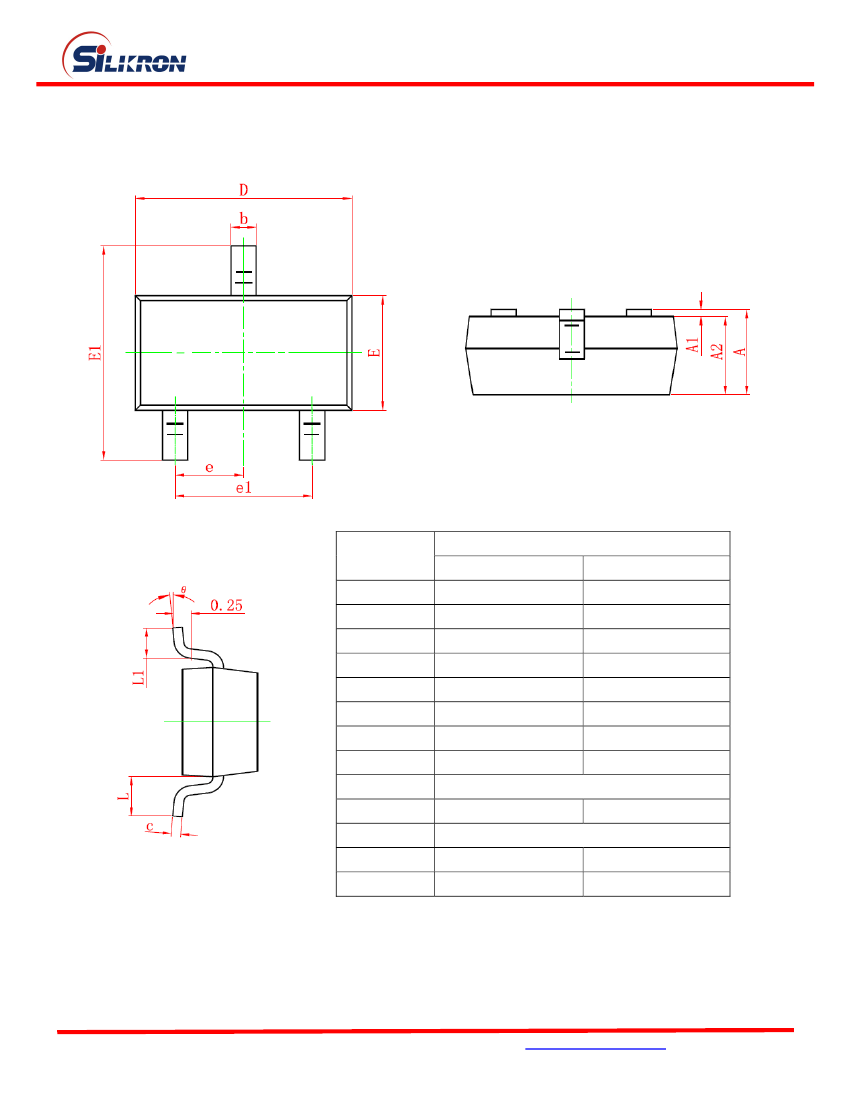

SOT-23 PACKAGE INFORMATION
Dimensions in Millimeters (UNIT:mm)
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
NOTES
Dimensions in Millimeters
MIN.
MAX.
0.900
1.150
0.000
0.100
0.900
1.050
0.300
0.500
0.080
0.150
2.800
3.000
1.200
1.400
2.250
2.550
0.950TYP
1.800
2.000
0.550REF
0.300
0.500
0°
8°
1. All dimensions are in millimeters.
2. Tolerance ±0.10mm (4 mil) unless otherwise specified
3. Package body sizes exclude mold flash and gate burrs. Mold flash at the non-lead sides should be less than 5 mils.
4. Dimension L is measured in gauge plane.
5. Controlling dimension is millimeter, converted inch dimensions are not necessarily exact.
