DTA-080A2-1Y15AP: DescriptionWith Active PFC 80 Watt Single Output AC/DC Desktop Adapter; File Size128KB，2 Pages; ManufacturerWall Industries,Inc.; Websitehttps://www.wallindustries.com/

Download Datasheet Compare View All

DTA-080A2-1Y15AP Overview

With Active PFC 80 Watt Single Output AC/DC Desktop Adapter

Preview

Download Datasheet

View All

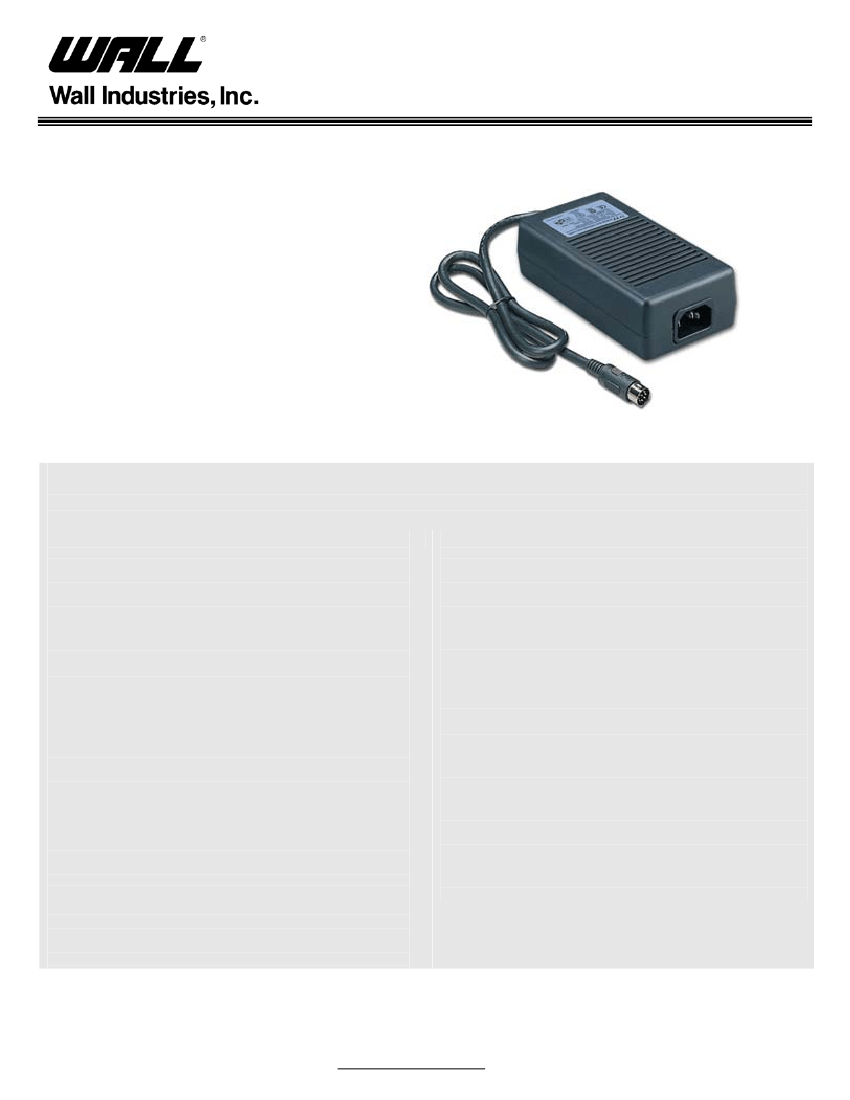

DTA-080 Series

With Active PFC

80 Watt Single Output

AC/DC Desktop Adapter

FEATURES:

●

Single Output

●

High Reliability

●

With Active PFC

●

RoHS / Lead Free

●

Input: 90~264 VAC

●

100% Hi-Pot Tested

●

100% Burn-In Tested

●

Total Power: 72~80 Watts

●

AC Input: IEC 320-C14 Inlet

●

Safety Approvals, EMC Compliance

●

Dimensions: 132(L) x 69(W) x 40(H) mm

●

Over Voltage and Short Circuit Protected

SPECIFICATIONS:

DTA-080 Series

All specifications apply @ ±25°C ambient unless otherwise noted

INPUT SPECIFICATIONS

Input Voltage Range ............................. 90 – 264 VAC (full range)

Input Frequency ............................................................. 47 - 63Hz

Input Current (rms) ................ 2A @ 90VAC; 1A @ 264VAC max.

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature ............................................. 0°C to +40°C

Storage Temperature............................................... -10°C to+70°C

MTBF ................ >80,000 hrs at FL and 25°C ambient temperature

OUTPUT SPECIFICATIONS

Output Current ................................................................ see table

Output Voltage ................................................................ see table

Voltage Regulation................................................................. ±5%

Maximum Power .................................................................... 80W

Ripple/Noise (20 MHz BW) ...................................................... 1%

Hold Up Time .................... >16ms typical at full load and 115VAC

PHYSICAL SPECIFICATIONS

Weight ....................................................................................12 oz

Dimensions ..........................................132(L) x 69(W) x 40(H) mm

AC Inlet .......................................................................IEC 320-C14

SAFETY & EMI

Safety Standards ..............................................................UL60950

......................................................................CSA C22.2-No.60950

................................................................................. TUV EN60950

................................................................................. CB IEC 60950

EMI Standards ............................................................FCC Class B

............................................................................ CISPR22 Class B

........................................................................... EN 55022 Class B

.................................................................................. EN 61000-3-2

................................................................................................... CE

PROTECTION

Short Circuit Protection ........................................... Auto-recovery

Over Voltage Protection ..............................................AC Recycle

GENERAL SPECIFICATIONS

Efficiency............................................. >80% @ full load, 115VAC

Power Factor......................................... >0.9 (20% to 100% Load)

Due to advances in technology, specifications subject to change without notice

Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833

603-778-2300 www.wallindustries.com Fax 603-778-9797
