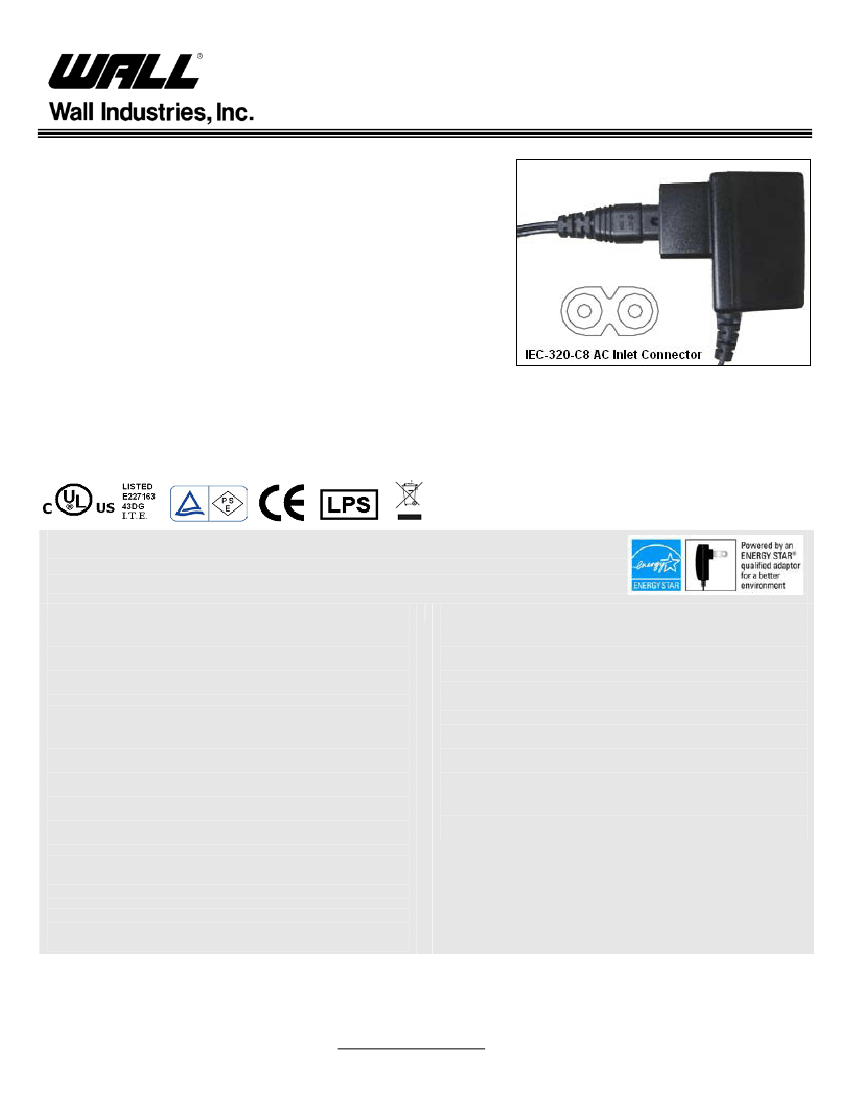

DTA12-Y Series
Rev. B
10-12 Watts
Single Output
AC/DC Desktop Power Supply
FEATURES
●
Single Output
●
Energy Star Compliant
●
Short Circuit Protected
●
Output Current from 0.8~2A
●
IEC-320-C8 AC Inlet Connector
●
Output Voltages from 5~15VDC
DESCRIPTION
The DTA12-Y Series offers 10 to 12 Watts in a universal input single output desktop power supply. Output
voltages are available from 5VDC to 15VDC. This series is Energy Star Compliant and also has short circuit
protection. All models come with an IEC-320-C8 AC inlet connector.
SPECIFICATIONS:
DTA12-Y Series
All specifications apply @ ±25°C ambient unless otherwise noted
INPUT SPECIFICATIONS
Input Range ............................................................ 100 - 240VAC
Input Frequency ............................................................... 50-60Hz
Leakage Current ....................................................... 0.25mA max
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature .................................................. 0 ~ +40°C
Storage Temperature................................................... -25 ~ +85°C
PHYSICAL SPECIFICATIONS
Weight ................................................................................... 84.2g
Dimensions ..............................................2.36 x 1.48 x 1.02 inches
60 x 37.5 x 26 mm
AC Inlet ........................................................................ IEC-320-C8
OUTPUT SPECIFICATIONS
Output Current ................................................................ see table
Line Regulation ...................................................................... ±1%
Load Regulation ..................................................................... ±5%
Ripple/Noise (20 MHz BW) ..................................................... 1%
Hold Up Time ..................................................... 10ms @ 115VAC
SAFETY
EMI Conduction ................................................... CISPR22 class B
PROTECTION
Short Circuit Protection ............................................... Continuous
Over Voltage Protection ...................................................... Option
Due to advances in technology, specifications subject to change without notice
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
DTA12-Y Series
Rev. B
10-12 Watts
Single Output
AC/DC Desktop Power Supply
OUTPUT VOLTAGE / CURRENT RATING CHART
Model
DTAF1205-Y
DTAF1206-Y
DTAF1207-Y
DTAF1275-Y
DTAF1208-Y
DTAG1209-Y
DTAG1210-Y
DTAG1211-Y
DTAH1212-Y
DTAH1213-Y
DTAH1214-Y
DTAH1215-Y
Output Voltage
5 VDC
6 VDC
7 VDC
7.5 VDC
8 VDC
9 VDC
10 VDC
11 VDC
12 VDC
13 VDC
14 VDC
15 VDC
Output Current
0 ~ 2.00A
0 ~ 1.66A
0 ~ 1.42A
0 ~ 1.50A
0 ~ 1.25A
0 ~ 1.30A
0 ~ 1.20A
0 ~ 1.09A
0 ~ 1.00A
0 ~ 0.92A
0 ~ 0.85A
0 ~ 0.80A
Ripple & Noise
50mV
60mV
70mV
70mV
80mV
90mV
100mV
110mV
120mV
130mV
140mV
150mV
Line Regulation Load Regulation
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
NOTES
1. The DTA12-Y Series is designated as DTAx12z-Y where
x
represents the different output voltage sections:
F (5-8V), G (9-11V), H (12-15V).
Z
can be 05, 06, 07, 75, 08, 09, 10, 11, 12, 13, 14, or 15 for output voltage and
Y
represents the AC inlet connector (IEC-320-C8).
2. Powered by an ENERGY STAR
®
qualified adaptor for a better environment.
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
