DTSPU40 Series
Rev A
40 Watt
Single Output
AC/DC Desktop Power Supply
FEATURES
●
Splash Proof
●
2 Year Warranty
●
Class I Insulation
●
IEC-320-C14 Input Inlet
●
Optional Output Connector
●
CEC and Energy Star Compliant
●
Approved as Limited Power Source (LPS)
●
Wide Input Voltage 90 to 264VAC, 47~63Hz
●
Output Voltage Protection (Crowbar Design)
●
Output Voltages Available from 5VDC thru 50VDC
SPECIFICATIONS:
DTSPU40 Series
All specifications are based on 25
o
C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
TEST CONDITIONS
Min
Nom
Max
INPUT (V
in
)
Operating Voltage Range
Input Frequency
Input Current (Low Line)
Input Current (High Line)
Inrush Current (Low Line)
Inrush Current (High Line)
Safety Ground Leakage Current
Start-Up Time
OUTPUT (V
o
)
Output Voltage Range
Load Regulation
Line Regulation
Output Power
Output Current Range
Ripple & Noise (peak to peak)
Transient Response
Hold-Up Time
PROTECTION
Over Voltage Protection
Over Current Protection
GENERAL
Efficiency
Dielectric Withstanding Voltage
For Primary to Secondary
Dielectric Withstanding Voltage
For Primary to Ground
Isolation Resistance
Power Consumption (No Load)
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Relative Humidity
Temperature Coefficient
MTBF
PHYSICAL
Weight
Dimensions
Warranty
SAFETY
EMI Requirements for CISPR-22
EMI Requirements for FCC PART-15
90
47
Io = Full Load, Vin = 115VAC
Io = Full Load, Vin = 230VAC
Io = Full Load, 25°C, Cool Start, Vin = 115VAC
Io = Full Load, 25°C, Cool Start, Vin = 230VAC
Io = Full Load, Vin = 240VAC
Io = Full Load, Vin = 100VAC
12
26
0.5
0.3
264
63
1
0.5
15
30
0.75
0.5
Unit
VAC
Hz
A
A
A
A
mA
s
VDC
%
%
W
A
%
ms
ms
%
%
%
VDC
VDC
Vin = 230VAC
Io = Full Load
Vin = 90 to 264VAC
Full Load, Vin = 90VAC
Io = Full Load to Half Load, Vin = 100VAC
Io = Full Load, Vin = 110VAC
See Rating Chart
3
7
0.5
1
0
40
See Rating Chart
0.5
1
4
16
112
110
132
150
83
90
Io = Full Load, Vin = 230VAC
Primary to Secondary
Primary to Ground
Test Voltage = 500VDC
No load, Vin = 240VAC
Derate linearly from 100% Load at 40°C to 50% load at 70°C
All Outputs
Operating temperature at 25°C, Calculated per MIL-HDBK-217F
78
4242
2121
50
0.3
0
-40
5
-0.04
100,000
0.5
+70
+85
95
+0.04
MΩ
W
°C
°C
%
%/°C
hours
grams
inches
years
Class
Class
Approximately 275
4.65 x 2.05 x 1.36
2
Vin = 220VAC
Vin = 110VAC
B
B
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
DTSPU40 Series
Rev A
40 Watt
Single Output
AC/DC Desktop Power Supply
OUTPUT VOLTAGE / CURRENT RATING CHART
Model Number
DTSPU40-102
DTSPU40-103
DTSPU40-104
DTSPU40-105
DTSPU40-106
DTSPU40-107
DTSPU40-108
DTSPU40-109
DTSPU40-110
DTSPU40-111
Preset Voltage
5 VDC
6 VDC
8 VDC
11 VDC
13 VDC
16 VDC
21 VDC
27 VDC
33 VDC
40 VDC
Output
Voltage Range
5 ~ 6 VDC
6 ~ 8 VDC
8 ~ 11 VDC
11 ~ 13 VDC
13 ~ 16 VDC
16 ~ 21 VDC
21 ~ 27 VDC
27 ~ 33 VDC
33 ~ 40 VDC
40 ~ 50 VDC
Output Current
5.00 ~ 4.16 A
4.00 ~ 3.75 A
4.37 ~ 3.18 A
3.63 ~ 3.07 A
3.07 ~ 2.50 A
2.50 ~ 1.90 A
1.90 ~ 1.48 A
1.48 ~ 1.21 A
1.21 ~ 1.00 A
1.00 ~ 0.80 A
Total Regulation
5%
5%
4%
3%
3%
3%
2%
2%
2%
2%
Maximum
Output Power
25W
30W
35W
40W
40W
40W
40W
40W
40W
40W
NOTES
1. The output voltage is specified as a range (Ex: 40 ~ 50VDC); the preset voltage will be set as standard models if nothing
different is requested. Please contact factory for ordering details.
2. Models DTSPU40-102 ~ DTSPU40-105 need to use “AWG#16, 4FT long” to meet CEC requirements and models
DTSPU40-106 ~ DTSPU40-111 need to use “AWG#18, 4FT long” to meet CEC requirements.
3. The regulation will change by modifying the output cable.
4. Optional output connectors are available (see “DC Output Plug Selector List” link located at the bottom of the “Desktop”
category page). Please call factory for ordering details.
DERATING CURVE
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
DTSPU40 Series
Rev A
40 Watt
Single Output
AC/DC Desktop Power Supply

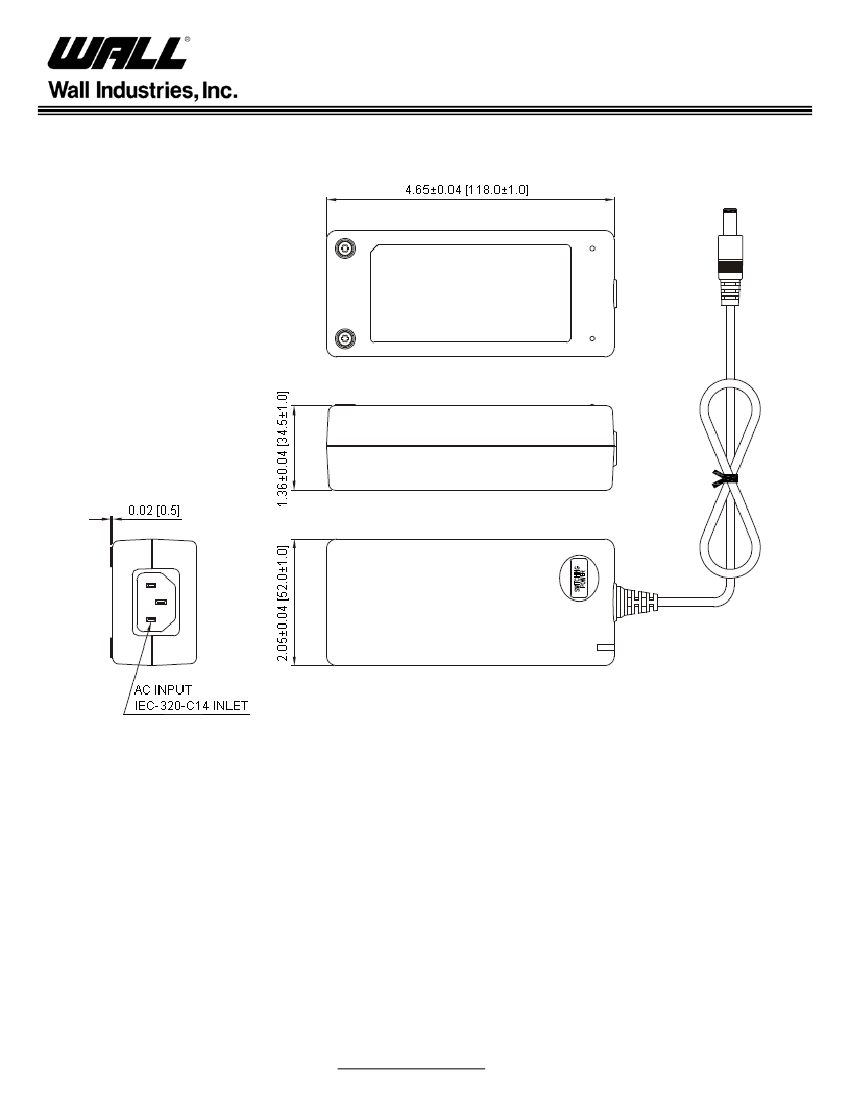

MECHANICAL DRAWING
Unit: inches [mm]
NOTES
1. Dimensions are shown in inches [mm]
2. Weight: Approximately 275 grams.
3. Optional output connectors available:
(
“DC Output Plug Selector List”)
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
