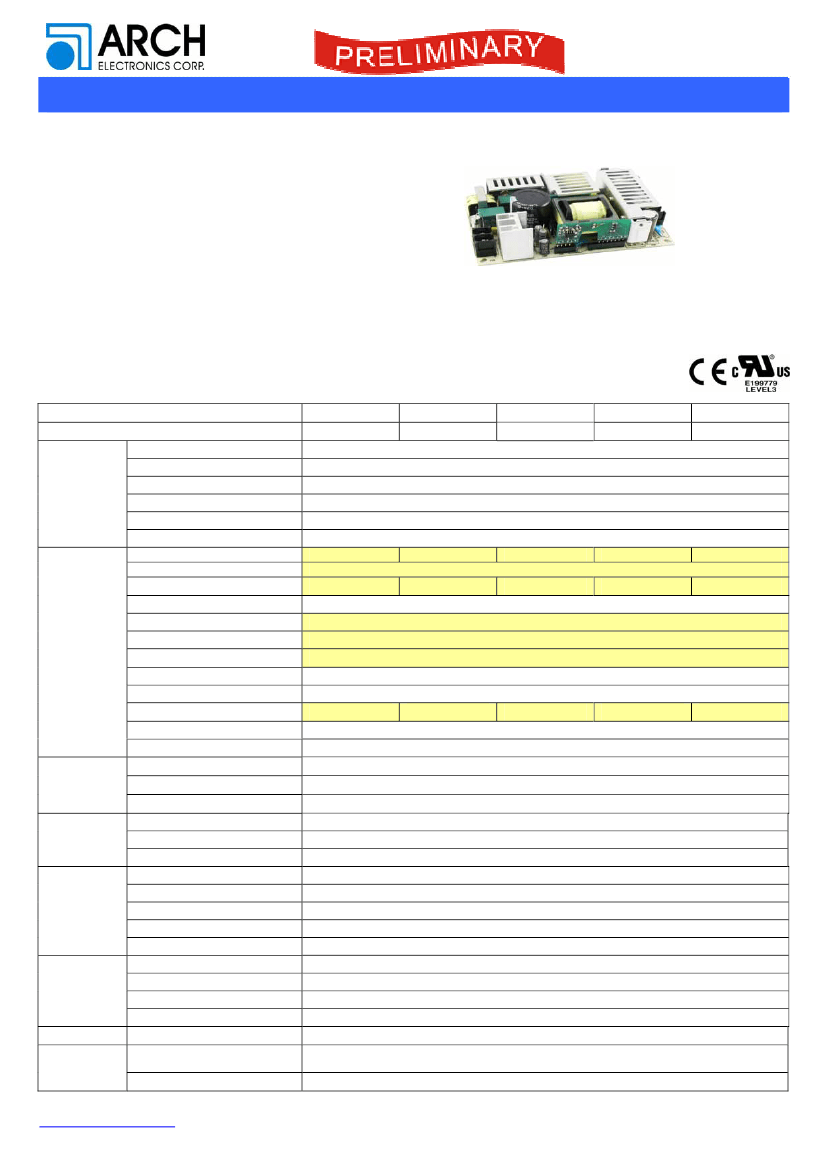

AC-DC Switching Power Supply

ZQF100 SERIES

KEY FEATURES

Low Cost But High Reliability

With Constant Current

Isolation Class II

With P.F.C Function

Open Frame Switching Power Supply

Universal Input: 90-264 VAC

Single and Dual Output

3000 VAC Input to Output Isolation

2-Years Product Warranty

100 Watts

ELECTRICAL SPECIFICATIONS

Model No.

( Single Output )

ZQF100-5S

ZQF100-12S

ZQF100-15S

100W

ZQF100-24S

100W

ZQF100-48S

100W

Max output wattage ( W )

Voltage

Frequency (Hz)

Input

Current (Full load)

Inrush current (<2ms)

Leakage Current

External fuse (recommend)

Voltage (V.DC.)

Voltage set accuracy

Current (mA) max

Maximum capacitive load

Line regulation (Typ.)

Load regulation (10-100%)(Typ.)

Output

Minimum load

Maximum capacitive load

Ripple & Noise

Efficiency (Typ)

Hold-up time

Switching frequency

Over current protection

Protection

Over voltage protection

Short circuit protection

Input-Output (V.AC)

Isolation

Input-FG

(V.AC)

Output-FG

.(V.AC)

Operating temperature

Storage temperature

Environment

Temperature coefficient

Humidity

MTBF

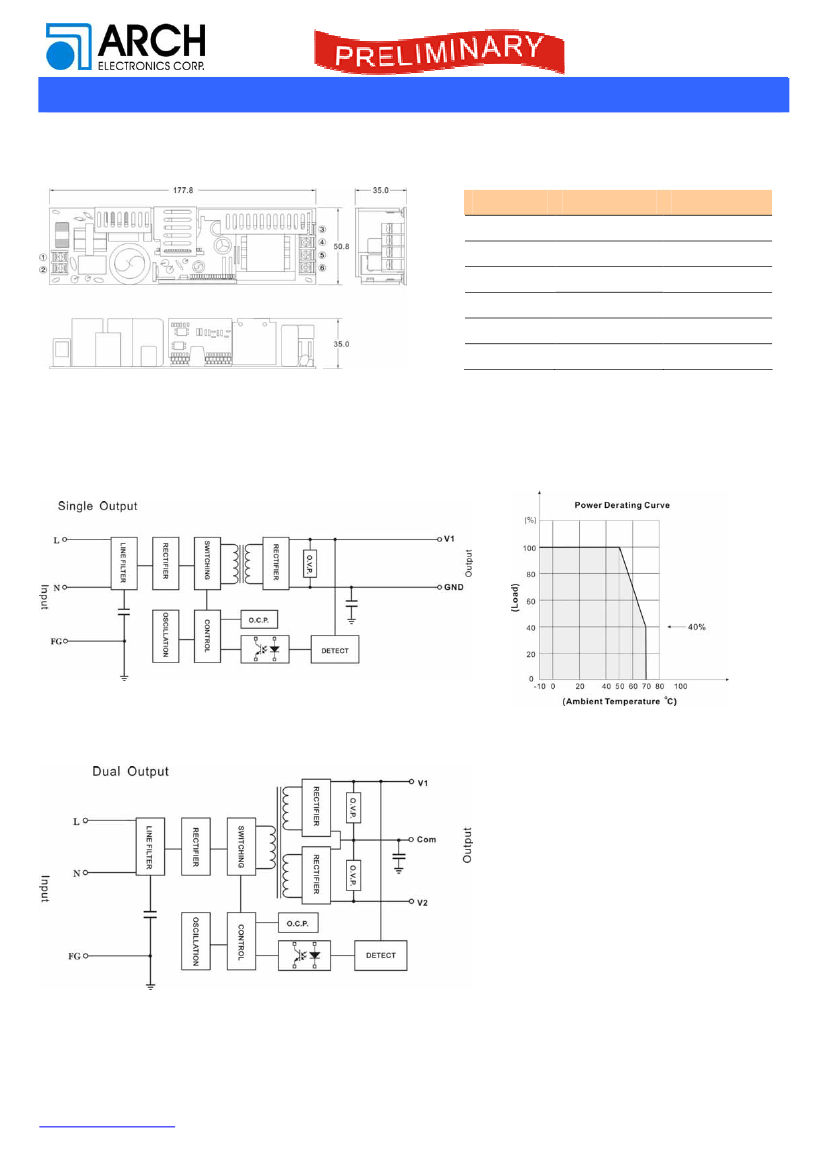

Dimension (L x W x H)

Physical

Case Material

Weight

Cooling method

Safety

EMC

Agency Approvals

EMI (Conducted & Radiated

Emission)

EMS (Noise Immunity)

100W

90-264 VAC or 100-375 VDC

47-440 Hz

2.0A max. (115 VAC) / 1.0A max. (230 VAC)

30 A max. (115 VAC) / 60 A max. (230 VAC)

< 0.5 mA max

3.15 A slow blow type

12V

±2%

20,000

8333

470-23,000µF depending on model

0.5%

470-23,000µF depending on model

< 1% Vout

78%

18 ms min.

65 KHz

Above 105% rated output power

Zener diode clamp

Hiccup mode, indefinite (automatic recovery)

3000V

1500V

500V

-10°C…+70°C (with derating)

-40°C…+100°C

0.01%/°C

95% RH

>200,000 h @ 25°C (MIL-HDBK-217F)

7.0 x 2.0 x 1.38 Inches

322

(Pending)

( 177.8 x 50.8 x 35.0 mm ) Tolerance

±0.5

Plastic resin + Fiberglass (flammability to UL 94V-0)

Free air convection

UL , cUL , CE

80%

81%

83%

15V

6666

24V

4166

48V

2083

EN 55022 class B

(Pending)

EN 55024

(Pending)

All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.

http://www.archcorp.com.tw

TEL: +886-2-26989508 FAX: +886-2-26981319

-1-
