125303U025AD1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 125303U025AD1A

125303U025AD1A: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 30000uF, Chassis Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size173KB，5 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

125303U025AD1A Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 30000uF, Chassis Mount, CAN, ROHS COMPLIANT

125303U025AD1A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	30000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	35.54 mm
dielectric materials	ALUMINUM (WET)
ESR	8 mΩ
leakage current	2.25 mA
length	118.242 mm
Manufacturer's serial number	125
Installation features	CHASSIS MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	75%
Rated (DC) voltage (URdc)	25 V
ripple current	24800 mA
series	125
surface mount	NO
Terminal shape	BINDING POST

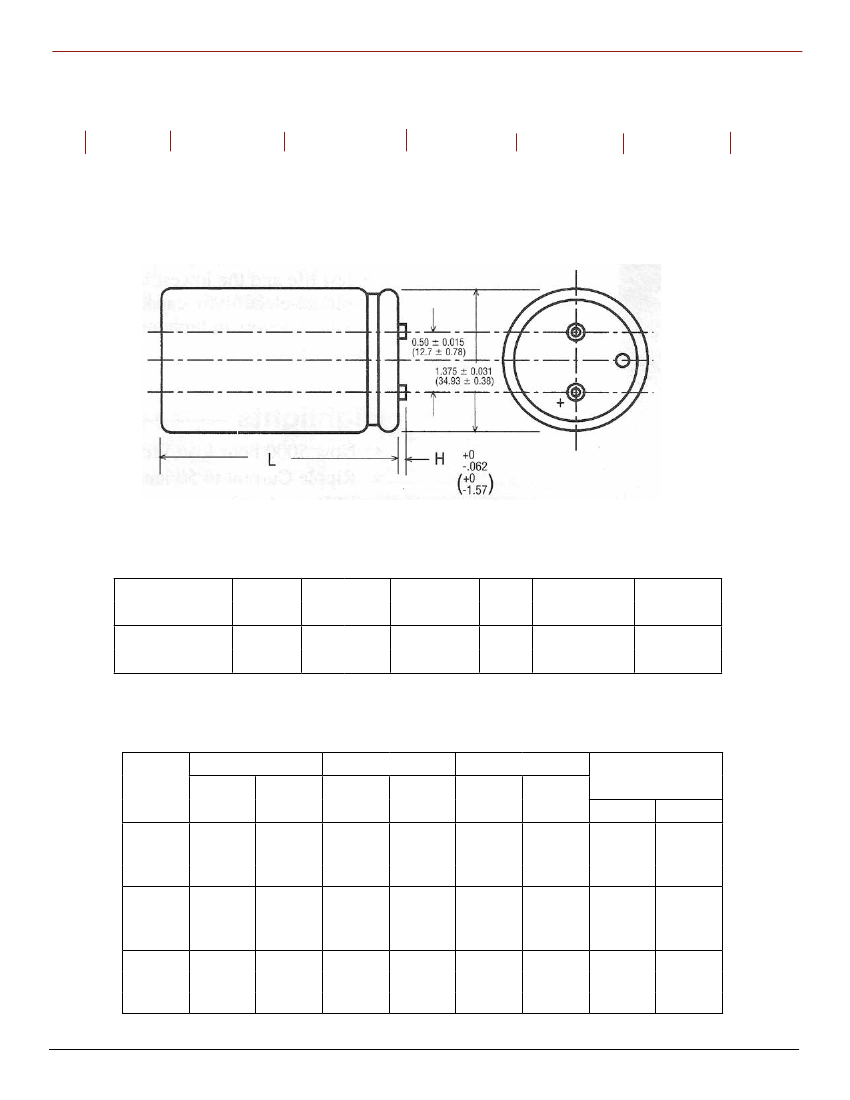

Preview

Download Datasheet

View All

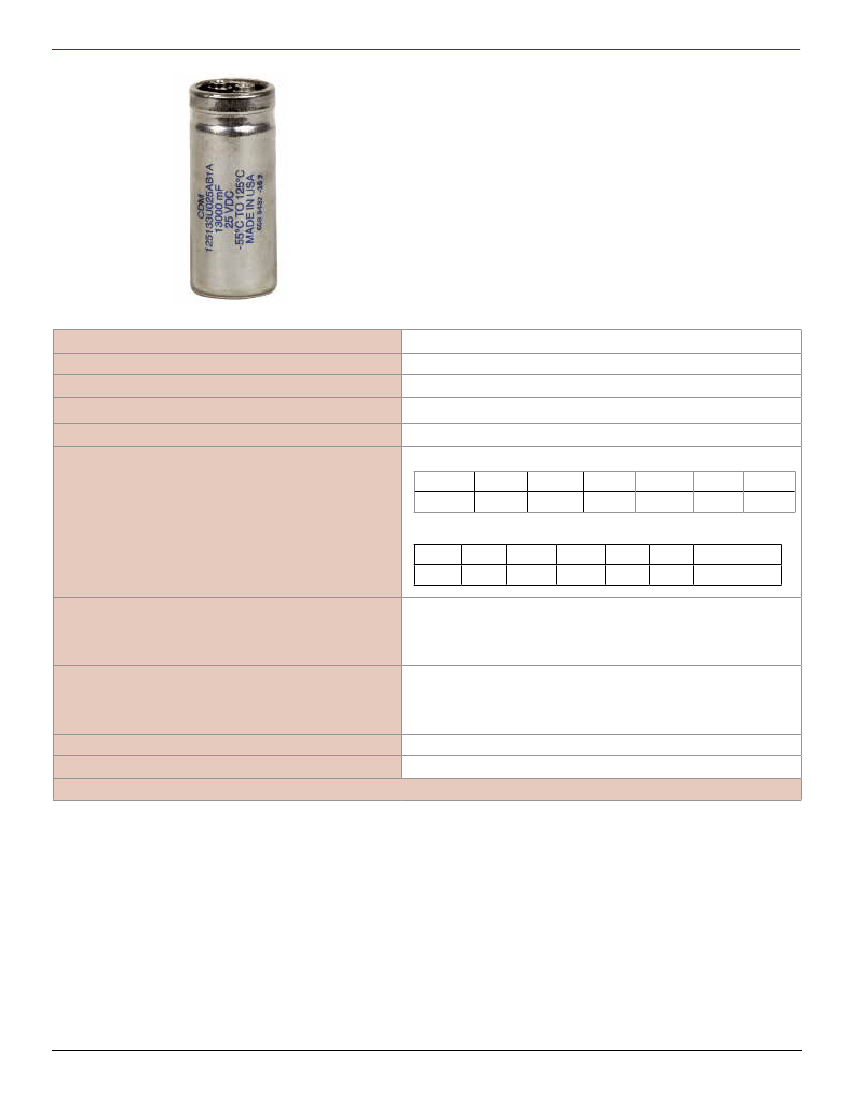

Type 125 –55 ºC to +125 ºC, Ultra-High Temperature, Military Grade

The Pace-Setter for Long Life and High Temperature

Exceeding the requirements of military aluminum electrolytic large

can capacitors, the Type 125 performs in the most demanding filter

applications delivering the longest life and the lowest leakage in low-

voltage, aluminum-electrolytic capacitors. It’s the choice for output

capacitors in high temperature and military power supplies.

Highlights

- 5000 hour load life

- Ripple Current to 50 amps

- ESRs to 4mΩ

- >90% capacitance at –40 ºC

- Operates at +125 ºC

–55 ºC to +125 ºC

5 to 40 Vdc

2600 µF to 190,000 µF

–10 +75%

≤0.003 CV µA @ +25 ºC; ≤0.009 CV @ +125 ºC

Ambient Temperature

45 ºC

1.80

Frequency

50 Hz

0.85

EIA Ripple Life

60 Hz

0.87

120 Hz 360 Hz 1 kHz

1.00

1.10

1.22

5 kHz

1.32

10 kHz & Up

1.33

55 ºC

1.63

65 ºC

1.45

75 ºC

1.25

85 ºC

1.00

95 ºC

0.87

105 ºC

0.71

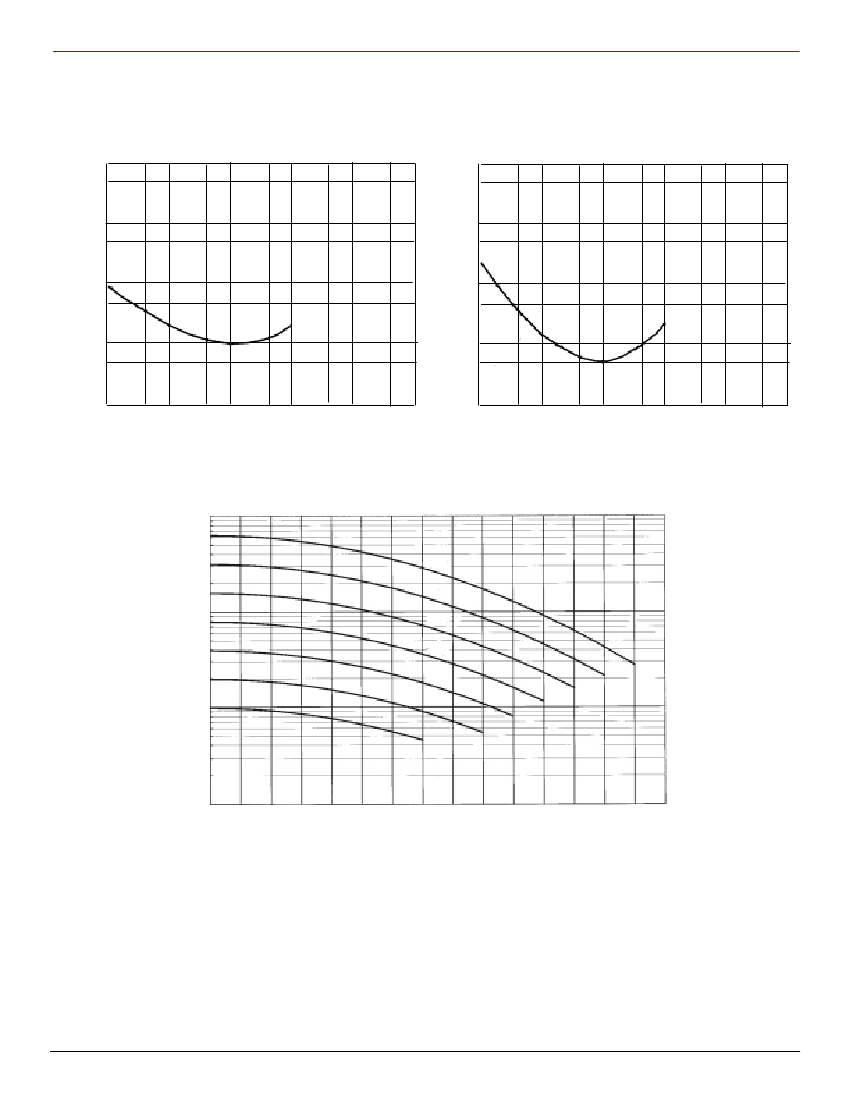

Specifications

Temperature Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Leakage Current

Ripple Current Multipliers

5,000 h at full load @ 85 ºC per EIA IS-749

∆ Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

5,000 h at +125 ºC and rated voltage

∆ Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

500 h @ 105 VC, capacitance, ESR and DCL, initial requirements

10 to 55 Hz, 0.06” and 10 g max, 1.5 h each of 2 axis

RoHS Compliant

Endurance Life Test

Shelf Life Test

Vibration

CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and

data (collectively, the “Information”) in this datasheet or other publication are subject to change. The

customer is responsible for checking, confirming and verifying the extent to which the Information con-

tained in this datasheet or other publication is applicable to an order at the time the order is placed. All

Information given herein is believed to be accurate and reliable, but it is presented without any guaran-

tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability

for certain applications are based on the knowledge that the Cornell Dubilier company providing such

statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards

as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-

tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,

warranty or representation concerning the suitability for a specific customer application, use, storage,

transportation, or operating environment. The Information is intended for use only by customers who

have the requisite experience and capability to determine the correct products for their application. Any

technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference

to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),

and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although

Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design

and manufacturing of its products, in light of the current state of the art, isolated component failures may

still occur. Accordingly, customer applications which require a high degree of reliability or safety should

employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies

or other appropriate protective measures) in order to ensure that the failure of an electrical component

does not result in a risk of personal injury or property damage. Although all product-related warnings,

cautions and notes must be observed, the customer should not assume that all safety measures are indi-

cated in such warnings, cautions and notes, or that other safety measures may not be required.
