167224J100C: DescriptionFilm Capacitor, Polyester, 100V, 5% +Tol, 5% -Tol, 0.22uF, Through Hole Mount, 4120, RADIAL LEADED; CategoryPassive components capacitor; File Size89KB，5 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

167224J100C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	167224J100C	-	-	View	Buy Now

167224J100C Overview

Film Capacitor, Polyester, 100V, 5% +Tol, 5% -Tol, 0.22uF, Through Hole Mount, 4120, RADIAL LEADED

167224J100C Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	, 4120
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.22 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
high	11 mm
JESD-609 code	e0
length	10.5 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	BULK
positive tolerance	5%
Rated (AC) voltage (URac)	63 V
Rated (DC) voltage (URdc)	100 V
size code	4120
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	7.5 mm
Terminal shape	WIRE
width	5 mm

Preview

Download Datasheet

View All

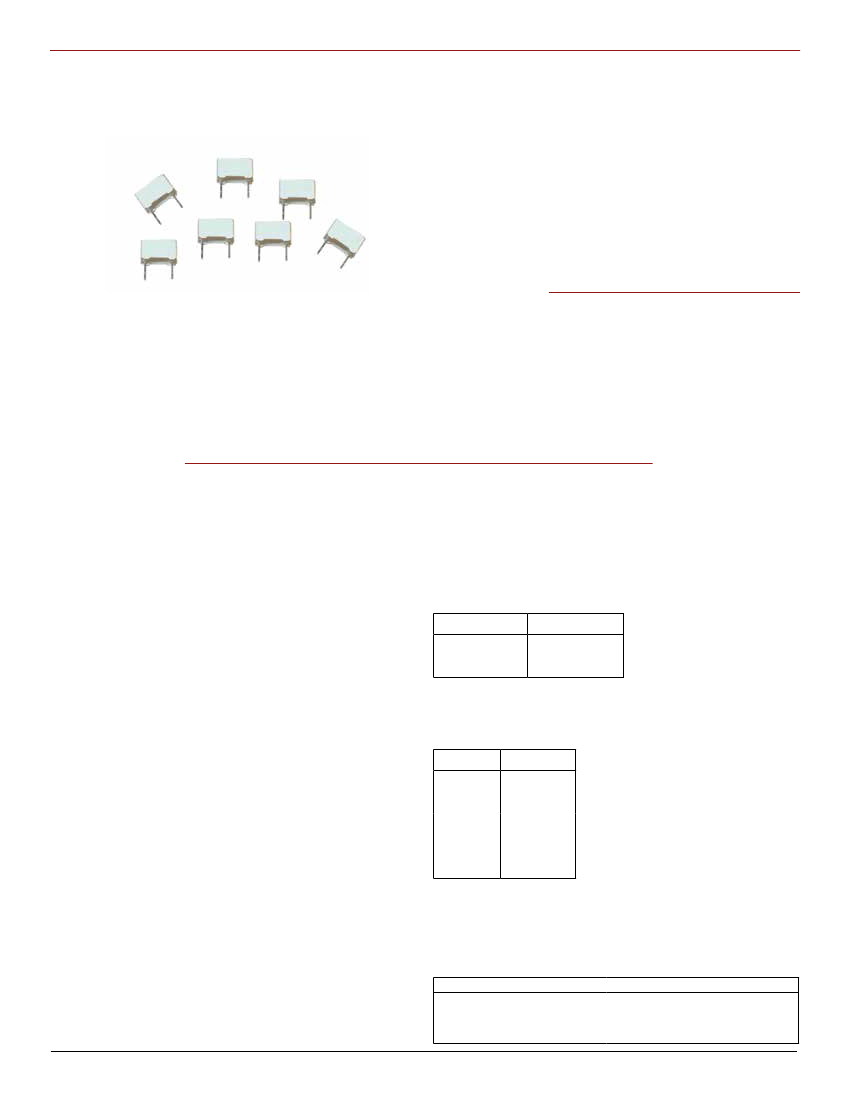

Radial Box Metallized Polyester Capacitors for Automatic Insertion

Type 167/184

Metallized Polyester Radial Lead Capacitors

The Type 167/184 series radial lead metallized polyes-

ter box capacitors are available in bulk (Type 167) or on

ammo pack or radial tape and reel (Type 184). These

capacitors are constructed in rugged rectangular plas-

tic cases and all come with 7.5 mm (0.3

”

) lead spacing.

They are good for general purpose applications such

as bypass, decoupling, energy storage/discharge and

arc suppression.

Highlights

•

Rugged plastic case

Case and epoxy fill meets UL94V0

7.5 mm (0.3

”

) lead spacing

Bulk, tape and reel or ammo pack

Non-inductively wound

Non-polar

Specifications

Capacitance Range:

Voltage Range:

Capacitance Tolerance:

Operating Temperature Range:

Dielectric Withstand Voltage:

Dissipation Factor (DF):

RoHS Compliant

0.001 µF to 1.0 µF

63 Vdc to 630 Vdc

±5%, ±10%, ±20%

–55 ºC to +125 ºC (with 50% Vdc derating >85 ºC)

1.6 x rated voltage for 2 sec @ +25 ºC ±5 ºC

tanδ x 10

–4

at 25 ºC ±5 ºC

kHz

tanδ x 10

–4

≤100

≤150

Total Self Inductance (L):

Approximately 8 nH

Maximum Pulse Rise Time (dv/dt):

100

250

400

630

V/µs

If the working voltage (V) is less than the nominal voltage (Vn),

the capacitor can work at higher dv/dt. In this case, the maximum

value allowed is obtained by multiplying the above value with

the ratio Vn/V.

Long Term Stability (after two years)

Storage

Performance

Capacitance Change ∆C/C

Standard Environmental Conditions

≤

±3%

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

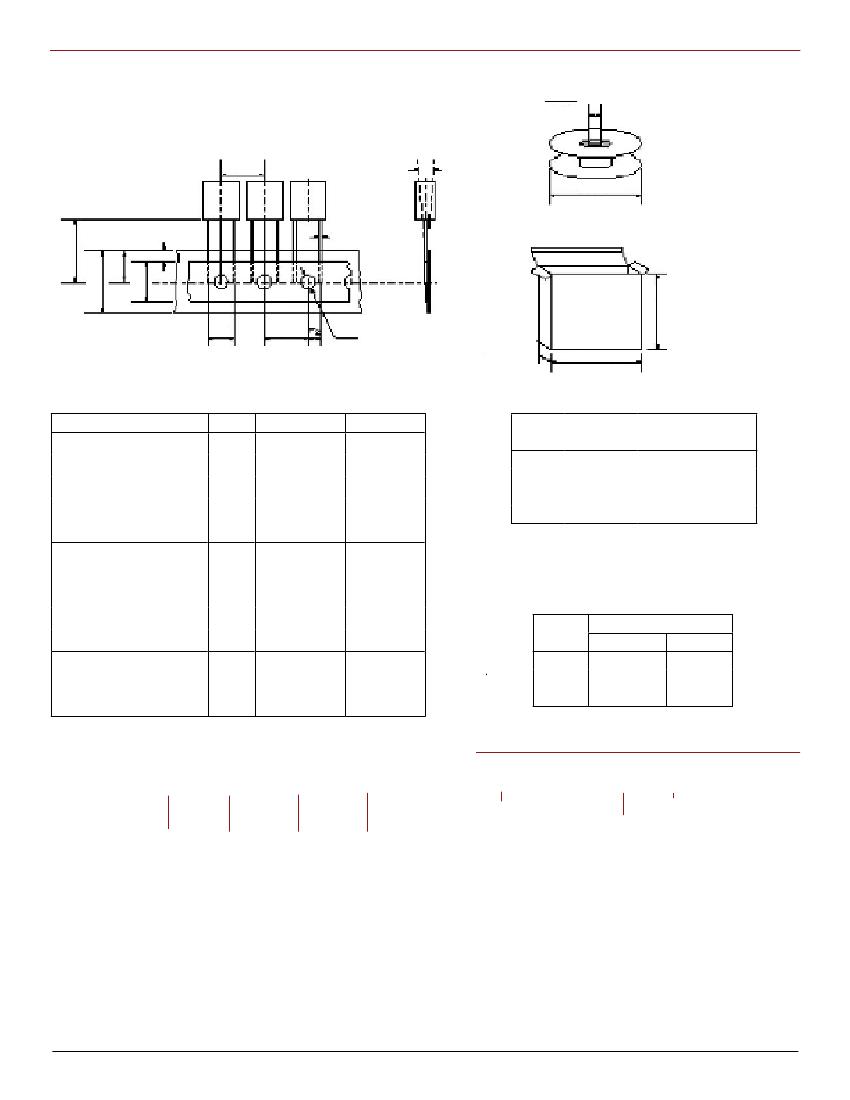

Type 167/184

Metallized Polyester Radial Lead Capacitors

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and

data (collectively, the “Information”) in this datasheet or other publication are subject to change. The

customer is responsible for checking, confirming and verifying the extent to which the Information con-

tained in this datasheet or other publication is applicable to an order at the time the order is placed. All

Information given herein is believed to be accurate and reliable, but it is presented without any guaran-

tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability

for certain applications are based on the knowledge that the Cornell Dubilier company providing such

statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards

as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-

tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,

warranty or representation concerning the suitability for a specific customer application, use, storage,

transportation, or operating environment. The Information is intended for use only by customers who

have the requisite experience and capability to determine the correct products for their application. Any

technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference

to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),

and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although

Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design

and manufacturing of its products, in light of the current state of the art, isolated component failures may

still occur. Accordingly, customer applications which require a high degree of reliability or safety should

employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies

or other appropriate protective measures) in order to ensure that the failure of an electrical component

does not result in a risk of personal injury or property damage. Although all product-related warnings,

cautions and notes must be observed, the customer should not assume that all safety measures are indi-

cated in such warnings, cautions and notes, or that other safety measures may not be required.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
