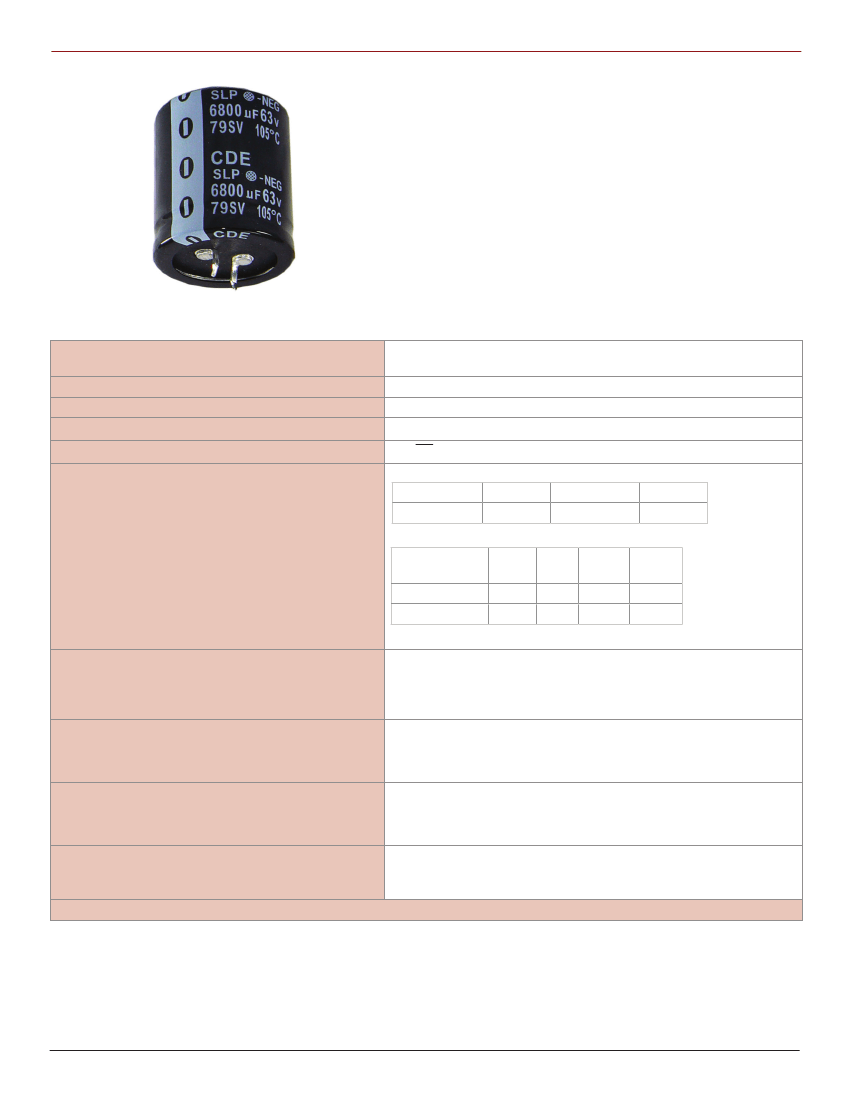

Type SLP 105 °C Snap-In Aluminum Electrolytic
Best Value 105 °C Snap-In Type
Type SLP is the best value package snap-in series for 105 ºC, 3000 h
operation. This series is the most cost-effective choice for DC fltering
and power supply applications where high temperature, long life and
high ripple capability are needed.
Highlights
- 3000 h ripple load life at rated voltage
- 105 ºC rated
- Small case size with high capacitance
- Best for switching power supplies
- 22 mm to 35 mm diameter, 10 mm lead spacing
- Best value snap-in type
- High ripple current
–40 ºC to +105 ºC ≤ 100 Vdc
–25 ºC to +105 ºC ≥ 160 Vdc
10 Vdc to 450 Vdc
47 µF to 56,000 µF
±20%
≤ 3 √CV µA at 5 minutes
Ambient Temperature
20 ºC - 45 ºC
2.00
Frequency
Voltage
10 - 100 Vdc
160 - 450 Vdc
Low Temperature Characteristics
60 Hz 120 Hz 1 kHz
0.90
0.80
1.00
1.00
1.15
1.25
10 kHz &
Up
1.25
1.47
65 ºC
1.89
85 ºC
1.52
105 ºC
1.00
Specifcations
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
To apply multipliers, see ratings tables for ripple current values
Impedance ratio: Z
–20⁰C
∕ Z
+25⁰C
≤ 10 (10 Vdc)
≤ 8 (16–50 Vdc)
≤ 4 (63–100 Vdc)
≤ 3 (150–450 Vdc)
3,000 h @ full load @105 ºC
Δ Capacitance ±20%
ESR ≤200% of limit
DCL 100 % of limit
1,000 h @ 105 ºC
Δ Capacitance ±20%
ESR ≤150% of limit
DCL 100 % of limit
10 Hz to 55 Hz , 0.06” and 10g max
2 h for each plane
RoHS Compliant
Endurance Life
Shelf Life
Vibration
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Best Value 105 °C Snap-In Type
Part Numbering System
SLP
562
M
Type SLP 105 °C Snap-In Aluminum Electrolytic
025
A3
Case
P
3
Insulating
A
Type
SLP
Cap
821
= 820 µF
332
= 3300 µF
103
= 10,000 µF
Tolerance
M =
±20%
Voltage
025
= 25 Vdc
250
= 250 Vdc
Code
Polarity
P
= Polarized
Sleeve
3
= PVC
mm
40
A7
C7
E7
H7
(in)
45
A4
C4
E4
H4
50
A9
C9
E9
H9
Pin Style
Blank
= 2 pins
snap-in 6.3 mm L
A
= 2 pins snap-in
4.0 mm L
Diameter
25
mm
22
25
(in)
(0.87)
(1.00)
(1.18)
(1.38)
A1
C1
E1
H1
30
A3
C3
E3
H3
Length
35
A5
C5
E5
H5
(1.00) (1.18) (1.38)
(1.57) (1.77) (2.00)
Outline Drawing
10.0
30
35
1.5 +0.2/-0.1
Vent
0.8 +0.2/-0.1
0.8 +0.2/-0.1
6.3
3.5
L±2
6.3±1
D+1 max.
2 x
Ø2.0±0.1
PC Board Mounting Holes
3000 h @ 105 ºC
Cap
(μF)
10000
12000
12000
15000
15000
15000
18000
18000
18000
22000
22000
22000
27000
27000
27000
33000
33000
39000
39000
47000
47000
Catalog
Part Number
SLP103M016C1P3
SLP123M016A5P3
SLP123M016C3P3
SLP153M016A7P3
SLP153M016C5P3
SLP153M016E1P3
SLP183M016A4P3
SLP183M016C7P3
SLP183M016E3P3
SLP223M016C4P3
SLP223M016E3P3
SLP223M016H3P3
SLP273M016C9P3
SLP273M016E5P3
SLP273M016H3P3
SLP333M016E7P3
SLP333M016H5P3
SLP393M016E4P3
SLP393M016H7P3
SLP473M016E9P3
SLP473M016H4P3
4.0 mm pin length option
(add “A” to end of part #)
Ratings
3000 h @ 105 ºC
Cap
(μF)
10000
12000
12000
15000
15000
18000
18000
22000
22000
27000
27000
33000
33000
39000
39000
47000
47000
56000
6800
8200
10000
Catalog
Part Number
SLP103M010A1P3
SLP123M010A3P3
SLP123M010C1P3
SLP153M010A5P3
SLP153M010C1P3
SLP183M010A7P3
SLP183M010C3P3
SLP223M010A4P3
SLP223M010C5P3
SLP273M010A9P3
SLP273M010C7P3
SLP333M010C4P3
SLP333M010H3P3
SLP393M010E7P3
SLP393M010H3P3
SLP473M010E4P3
SLP473M010H5P3
SLP563M010H7P3
SLP682M016A1P3
SLP822M016A3P3
SLP103M016A3P3
Max 25 °C ESR Max 105 °C Ripple Nominal
(Ω)
120 Hz 20kHz
0.073
0.061
0.061
0.049
0.049
0.041
0.041
0.033
0.033
0.027
0.027
0.022
0.022
0.019
0.019
0.016
0.016
0.013
0.098
0.081
0.066
0.055
0.046
0.046
0.037
0.037
0.031
0.031
0.025
0.025
0.020
0.020
0.017
0.017
0.014
0.014
0.012
0.012
0.010
0.074
0.061
0.050
10 Vdc (13 Vdc Surge)
1.80
2.20
2.20
2.30
2.30
2.52
2.40
2.60
2.60
3.19
3.10
3.40
3.40
3.79
3.70
4.26
4.20
5.00
2.20
2.40
2.60
2.25
2.75
2.75
2.88
2.88
3.15
3.00
3.25
3.25
3.99
3.88
4.25
4.25
4.74
4.63
5.33
5.25
6.25
2.75
3.00
3.25
22 x 25
22 x 30
25 x 25
22 x 35
25 x 25
22 x 40
25 x 30
22 x 45
25 x 35
22 x 50
25 x 40
25 x 45
35 x 30
30 x 40
35 x 30
30 x 45
35 x 35
35 x 40
22 x 25
22 x 30
22 x 30
(A
rms
)
120 Hz
20kHz
Size (DxL)
(mm)
Additional Voltages and Sizes available at www.cde.com/catalogs/SLP.pdf
