SPECIFICATIONS
Current rating:
Operating voltage:
Insulator material:
Contact material:
Contact plating:
Contact resistance:
Insulator resistance:
Withstanding:
Operating temperature:
5 amps
250 VAC
PBT, glass reinforced, UL94V-0
Phosphor bronze
Tin, gold or duplex
10 milliohms max.
5,000 megohms min
1,000 VAC
-55˚C to +125˚C
C
D
A
A
B
E
C
B
C
D
C=0.100 X No. of Positions
D=C-0.100
D
E
Series
CDPH
No. of Rows
X
Type
XX
No. of Pins
XX
Pin Length (Inches)
(A/B/E)
Plating
XX
XX=Flash if
GDXX=Gold
blank, 03, 05, TN=Tin
10, 15, 30µ” SGXX=Selective
Gold
E
Pin header, 2=Dual rows Blank=Straight
1-40 (single row) See diagram for A,B and E Dimensions
dual insulator 1=Single row SM=Surface mount 2-80 (double row)
.100m pitch
RA=Right Angle
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
F
Date
08/10/99
08/10/99
08/10/99 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
CDPH-2-XX-XX-(1.9/1.9/10.16)-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

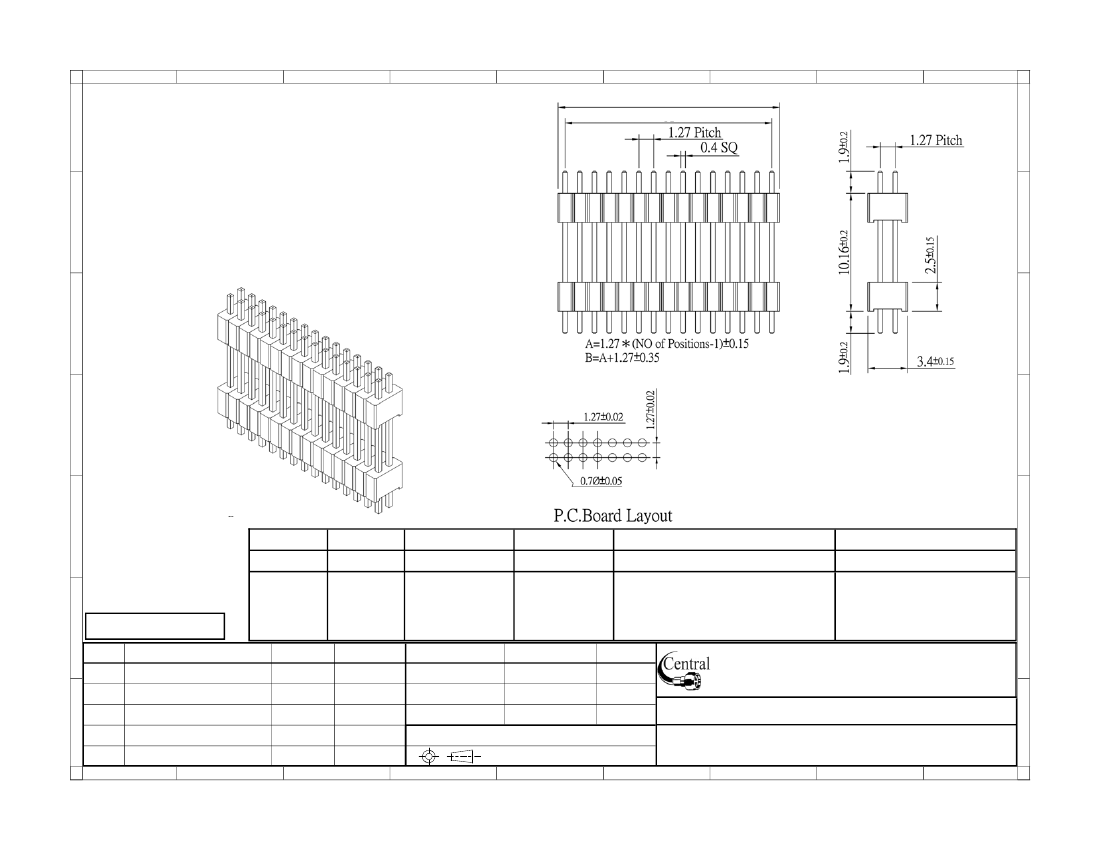

Description: Dual insulator pin header
