DTD123: DescriptionDigital transistors (built-in resistor); File Size46KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet View All

DTD123 Overview

Digital transistors (built-in resistor)

Preview

Download Datasheet

View All

Transistors

Digital transistors (built-in resistor)

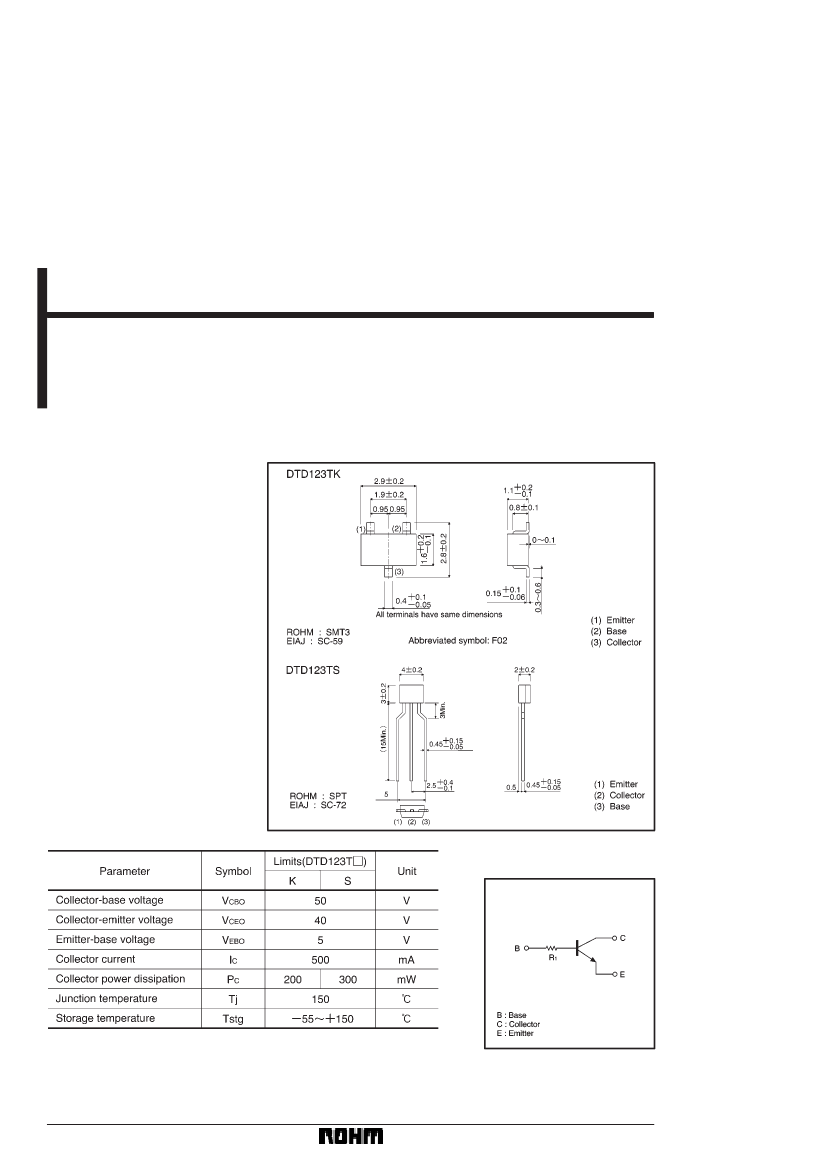

DTD123TK / DTD123TS

FFeatures

1) Built-in bias resistors enable the

configuration of an inverter circuit

without connecting external input

resistors (see equivalent circuit).

2) The bias resistors consist of thin-

film resistors with complete isola-

tion to allow negative biasing of the

input. They also have the advan-

tage of almost completely eliminat-

ing parasitic effects.

3) Only the on / off conditions need to

be set for operation, making device

design easy.

FExternal

dimensions (Units: mm)

FStructure

NPN digital transistor

(Built-in resistor type)

FAbsolute

maximum ratings (Ta = 25_C)

FEquivalent

circuit

(96-368-D123T)

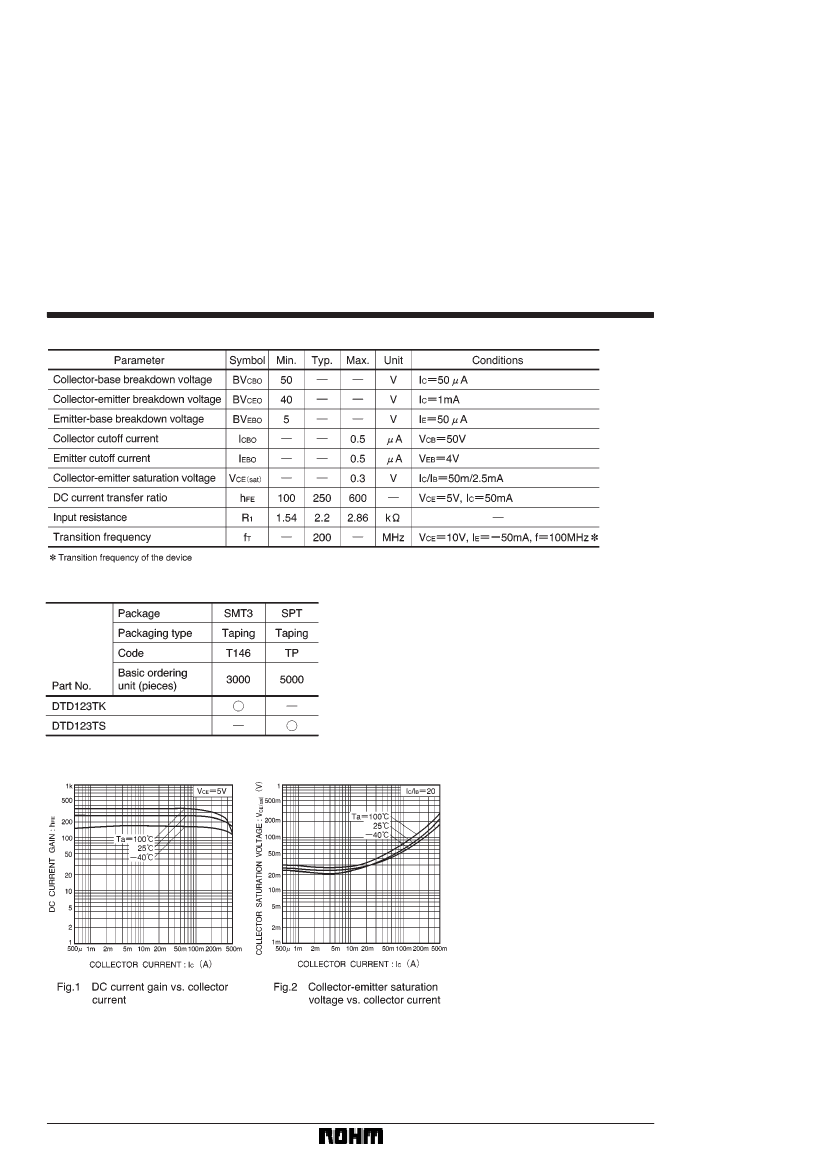

456
