THICK FILM CHIP RESISTORS
The content of this specification may change without notification 10/04/07
Tin / Tin Lead / Silver Palladium Non-Magnetic / Gold Terminations Available

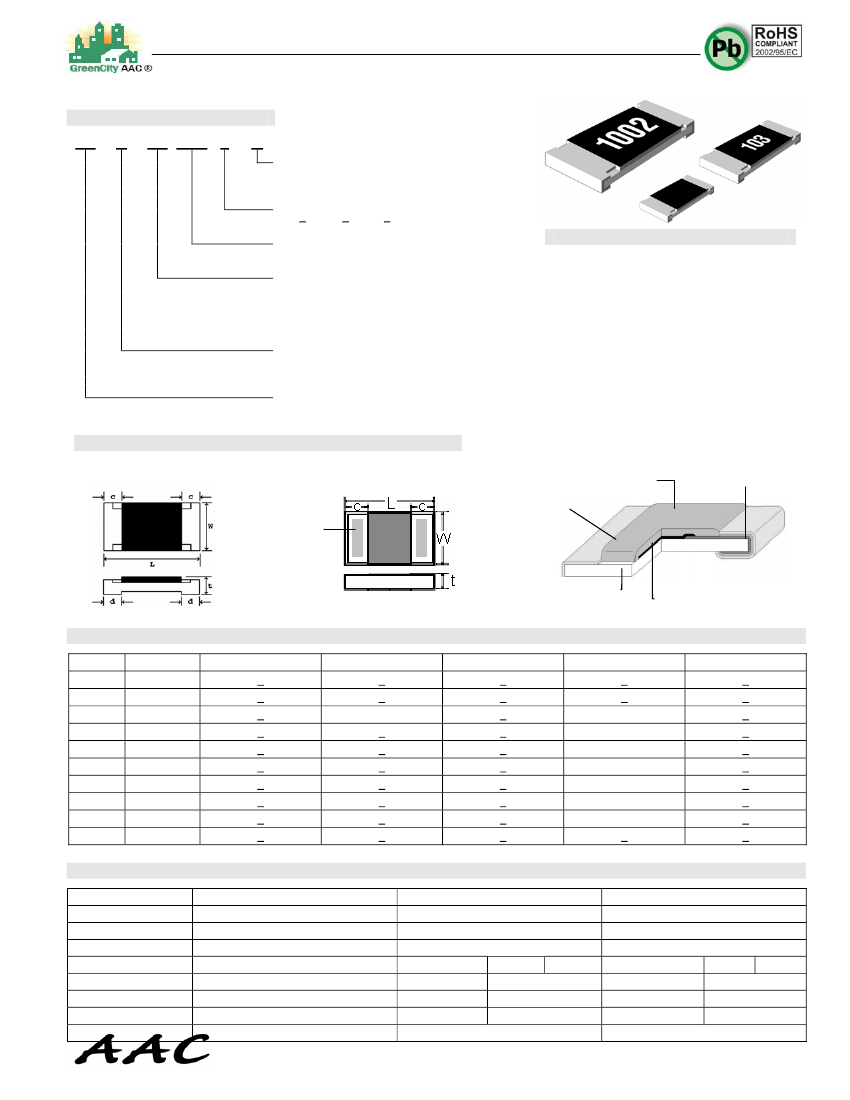

HOW TO ORDER
CR
G
10- 1003 F
M
Packaging
M = 7” Reel
V = 13” Reel
B = Bulk
Custom solutions are available.
Tolerance (%)
J = +5 G = +2 F = +1
EIA Resistance Value
Standard Decade Values
Size
00 = 01005
20 = 0201
05 = 0402
16 = 0603
10 = 0805
18 = 1206
14 = 1210
12 = 2010
01 = 2512
01P = 2512-P
FEATURES
Excellent stability over a wide range of
environmental conditions
CR and CJ types in compliance with RoHs
CRP and CJP non-magnetic types
constructed with AgPd
Terminals, Epoxy Bondable
CRG and CJG types constructed top side
terminations, wire bond pads, with Au
termination material.
Operating temperature -55°C ~ +125°C
Appl. Specifications: EIA 575, IEC 60115-1,
JIS 5201-1, and MIL-R-55342G
Termination Material
Sn = Leave Blank
Au = G
SnPb = T
AgPd = P
Series
CJ = Jumper
CR = Resistor
SCHEMATIC
Wrap Around Terminal
CR, CJ, CRP, CJP type
Top Side Termination, Bottom Isolated
CRG, CJG type
Wrap Around
Termination Material:
Sn
or SnPb
or AgPd
SO/ S
Overcoat
C
f
Conductor
Wire Bond Pads
Terminal
Material: Au
Ceramic Substrate
Resistive Element
DIMENSIONS (mm)
Size
01005
0201
0402
0603
0805
1206
1210
2010
2512
2512-P
Size Code
00
20
05
16
10
18
14
12
01
01P
L
0.40 + 0.02
0.60 + 0.03
1.00 + 0.05
1.60 + 0.10
2.00 + 0.15
3.20 + 0.15
3.20 + 0.20
5.00 + 0.20
6.30 + 0.20
6.50 + 0.30
W
0.20 + 0.02
0.30 + 0.03
0.5+0.1-0.05
0.80 + 0.10
1.25 + 0.15
1.60 + 0.15
2.60 + 0.20
2.50 + 0.20
3.10 + 0.20
3.20 + 0.20
c
0.08 + 0.03
0.10 + 0.05
0.20 + 0.10
0.20 + 0.10
0.40 + 0.25
0.45 + 0.25
0.50 + 0.30
0.50 + 0.30
0.50 + 0.30
0.60 + 0.30
d
0.10 + 0.03
0.15 + 0.05
0.25+0.05-0.10
0.30+0.20-0.10
0.30+0.20-0.10
0.40+0.20-0.10
0.40+0.20-0.10
0.50+0.20-0.10
0.50+0.20-0.10
1.50 + 0.30
t
0.12 + 0.02
0.25 + 0.05
0.35 + 0.05
0.50 + 0.10
0.50 + 0.15
0.60 + 0.15
0.60 + 0.10
0.60 + 0.10
0.60 + 0.15
0.60 + 0.10
ELECTRICAL SPECIFICATIONS for CHIP RESISTORS
Size
Power Rating
(EIA 575)
Working Voltage*
Overload Voltage
Tolerance (%)
EIA Values
Resistance
TCR (ppm/°C)
Operating Temp.
01005
0.031 (1/32) W
15V
30V
±5
E-24
10 ~ 1.0M
±
250
-55°C ~ +125°C
±1
E-96
10 ~ 1M
±
200
0201
0.05 (1/20) W
25V
50V
±2
E-24
1.0~9.1, 10~10M
+600
-200
0402
0.063(1/16) W
50V
100V
±5
±1
E-96
1.0~9.1, 10~10M
+500
-200
±2
E-24
±5
1.0~9.1, 10~10M
+500
-200
,
±
200
,
±
200
,
±
200
-55°C ~ +125°C
-55°C ~ +125°C
American Accurate Components, Inc.
188 Technology Drive Unit H, Irvine, CA 92618
TEL: 949-453-9888 FAX: 949-453-8889 Email: sales@aacix.com
1
THICK FILM CHIP RESISTORS
The content of this specification may change without notification 10/04/07
Size
Power Rating
(EIA 575)
Working Voltage*
Overload Voltage
Tolerance (%)
EIA Values
Resistance
TCR (ppm/°C)
Operating Temp.
Size
Power Rating
(EIA 575)
Working Voltage*
Overload Voltage
Tolerance (%)
EIA Values
Resistance
TCR (ppm/°C)
Operating Temp.
* Rated Voltage:
√
PxR
±1
±1
E-96
10 ~ 1 M
±100
0603
0.100 (1/10) W
50V
100V
±2
±5
E-24
1.0~9.1,
10~10M
±400, ±200
±1
E-96
10 ~ 1 M
±100
0805
0.125 (1/8) W
100V
200V
±2
±5
E-24
1.0~9.1,
10~10M
±400, ±200
±1
E-96
10 ~ 1 M
±100
1206
0.250 (1/4) W
200V
400V
±2
±5
E-24
1.0~9.1,
10~10M
±400, ±200
±1
E-96
10 ~ 1 M
±100
1210
0.33 (1/3) W
200V
400V
±2
±5
E-24
1.0~9.1,
10~10M
±400, ±200
-55°C ~ +125°C
2010
0.500 (1/2) W
200V
400V
±2
E-24
-55°C ~ +125°C
2512
1.0 W
200V
400V
±5
±1
E-96
10 ~ 1 M
±100
-55°C ~ +125°C
-55°C ~ +125°C
2512-P
2.0 W
200V
400V
±2
E-24
±5
±1
E-96
1.0 ~ 1.0M
±100
±2
E-24
±5
1.0 ~ 1.0M
±100
E-96
10 ~ 1 M
±100
1.0~9.1, 10~10M
±400, ±200
1.0~9.1, 10~10M
±400, ±200
-55°C ~ +125°C
-55°C ~ +125°C
-55°C ~ +155°C
ELECTRICAL SPECIFICATIONS for ZERO OHM JUMPERS
Series
Rated Current
Resistance
(Max)
Max. Overload Current
Working Temp.
* Rated Voltage:
√
PxR
CJ20 (0201)
0.5A (70
°C
)
50 m
Ω
1A
-55°C ~ +125°C
CJ05 (0402)
1A (70
°C
)
50 m
Ω
2.5A
-55°C ~ +125°C
CJ06 (0603)
1A (70
°C
)
50 m
Ω
2.5A
-55°C ~ +125°C
CJ10 (0805)
2A (70
°C
)
50 m
Ω
5A
-55°C ~ +125°C
CJ18 (1206)
2A (70
°C
)
50 m
Ω
5A
-55°C ~ +125°C
CJ14 (1210)
2A (70
°C
)
50 m
Ω
5A
-55°C ~ +125°C
CJ12 (2010)
2A (70
°C
)
50 m
Ω
5A
-55°C ~ +125°C
CJ01 (2512)
2A (70
°C
)
50 m
Ω
5A
-55°C ~ +125°C

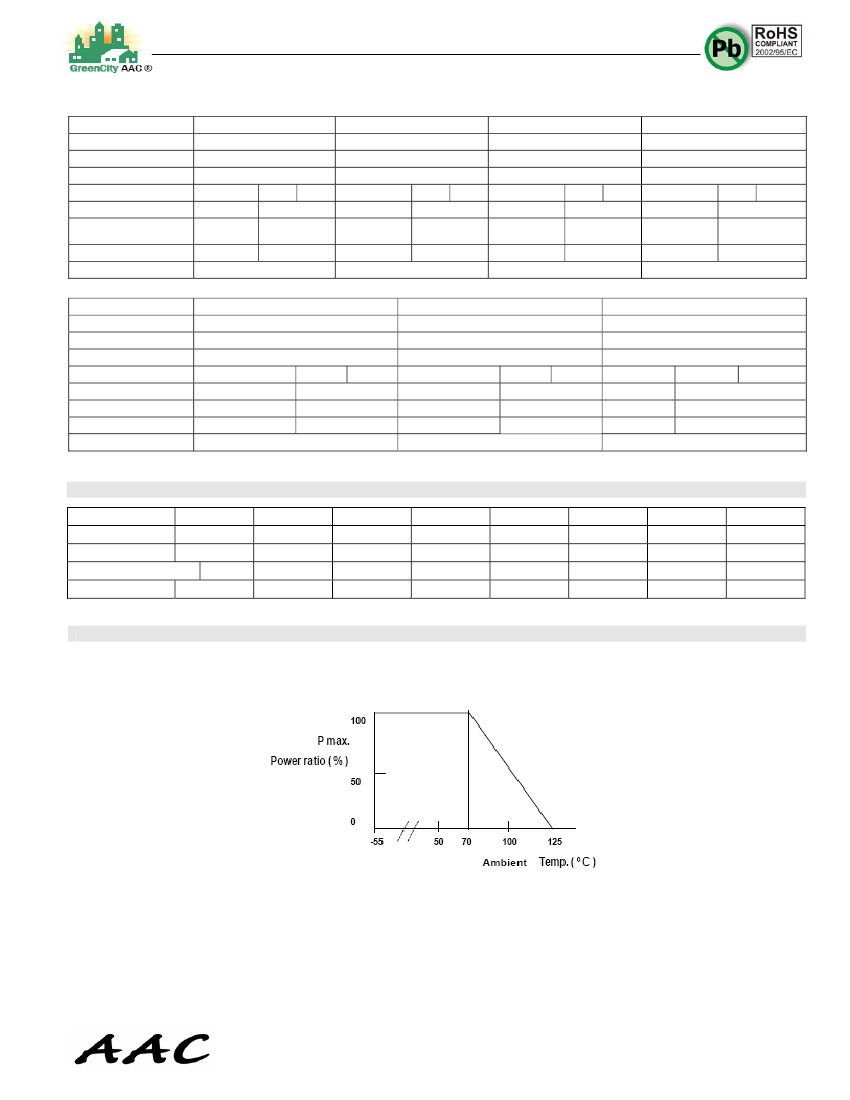

DERATING CURVE
For resistors operated at ambient temperature over 70°, power rating shall be derated in accordance with figure 1.
Figure 1
The rated voltage is calculated by the following formula:
E=
√
P * R
E=
Rated Voltage(V)
P=
Rated Power(W)
R=
Resistance Value
(Ω)
188 Technology Drive Unit H, Irvine, CA 92618
TEL: 949-453-9888 FAX: 949-453-8889 Email: sales@aacix.com
2
American Accurate Components, Inc.
THICK FILM CHIP RESISTORS
The content of this specification may change without notification 10/04/07

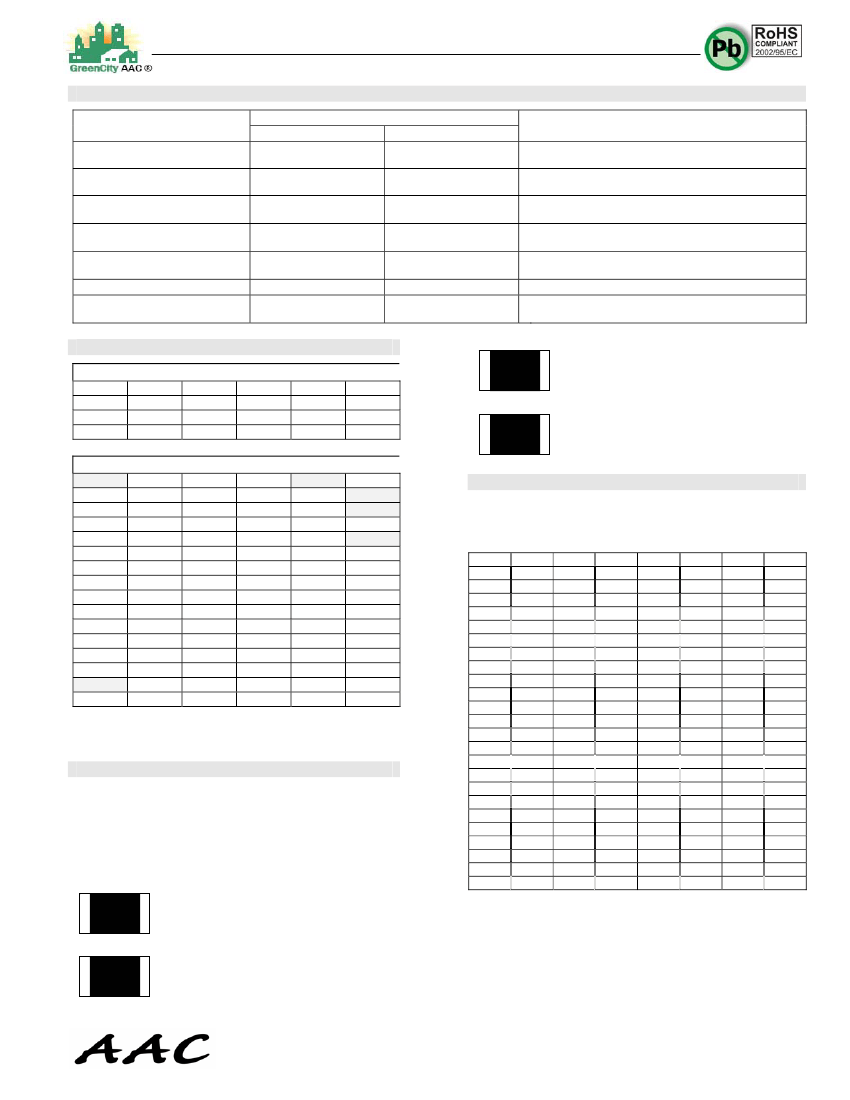

CHARACTERISTICS
Test Item
Short Time Overload
Load Life
Thermal Shock
High Temperature Exposure
Terminal Strength
Moisture Resistance
Solderability
Maximum
∆ Ω
+0.05Ω
± 2% & ± 5% Tolerance ± 1% & ± 0.5% Tolerance
± 0.75%
± 1.50%
± 0.25%
± 0.50%
± 0.50%
± 1.00%
95% minimum coverage
± 0.50%
± 1.00%
± 0.50%
± 1.25%
± 0.50%
± 0.50%
95% minimum coverage
Test Conditions
EIA Standard 575,
π
3.6
2.5 x rated voltage for 5 seconds
EIA Standard 575,
π
3.14
90 minutes on; 30 minutes off for 1000 hours
EIA Standard 575,
π
3.5
-55°C ~ +150°C for 5 cycles
EIA Standard 575,
π
3.7
125°C ± 5°C continuous for 100 hours
EIA Standard 575,
π
3.9
20gms @ 90° angle for 30 seconds
EIA Standard 575,
π
3.10
EIA Standard 575,
π
3.12
3 seconds of immersion @ +215°C
EIA Standard Values
Decade Values in the EIA Standard E-24 Series:
1.0
1.1
1.2
1.3
1.5
1.6
1.8
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
Decade Values in the EIA Standard E-96 Series:
1.00
1.02
1.05
1.07
1.10
1.13
1.15
1.18
1.21
1.24
1.27
1.30
1.33
1.37
1.40
1.43
1.47
1.50
1.54
1.58
1.62
1.65
1.69
1.74
1.78
1.82
1.87
1.91
1.96
2.00
2.05
2.10
2.15
2.21
2.26
2.32
2.37
2.43
2.49
2.55
2.61
2.67
2.74
2.80
2.87
2.94
3.01
3.09
3.16
3.24
3.32
3.40
3.48
3.57
3.65
3.74
3.83
3.92
4.02
4.12
4.22
4.32
4.42
4.53
4.64
4.75
4.87
4.99
5.11
5.23
5.36
5.49
5.62
5.76
5.90
6.04
6.19
6.34
6.49
6.65
6.81
6.98
7.15
7.32
7.50
7.68
7.87
8.06
8.25
8.45
8.66
8.87
9.09
9.31
9.53
9.76
Those items in a shaded box are also E-24 values and will be
marked with the EIA 3 Digit Code.
103
0603, 0805, 1206, 1210, 2010, 2512 Sizes
EIA 3 Digit Code of 10K ohm resistor
E-24 Values, E-96 Values
0805, 1206, 1210, 2010, 2512 Sizes
EIA 4 Digit Code of 121K ohm resistor
E-96 Values
1213
0603 MARKING CODE for E96 VALUES
By combining a specific two digit number and a letter code, you
have a series of numeric/alpha digits that give you the complete
(E96) resistance value codes for 0603 size part marking.
Value
Code
Value
Code
Value
Code
Value
Code
VALUE MARKING
For those parts ordered with an E-24 value, the product will be
marked with a 3 digit code. For those products ordered with an
E-96 value, the product will be marked with a 4 digit code. For
those parts which fall under E-96 and E-24 values (e.g. 1K ohm
is both an E-96 and E-24 value), the part will be marked with a 3
digit code; 4 digit markings for this type is available upon special
request.
01005, 0201, and 0402 Size
No marking
E-24 & E-96 Values
0603 Size
EIA 96 Digit Code of 3.32K ohm
E-96 Values
10.0
10.2
10.5
10.7
11.0
11.3
11.5
11.8
12.1
12.4
12.7
13.0
13.3
13.7
14.0
14.3
14.7
15.0
15.4
15.8
16.2
16.5
16.9
17.4
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
17.8
18.2
18.7
19.1
19.6
20.0
20.5
21.0
21.5
22.1
22.6
23.3
23.7
24.3
24.9
25.5
26.1
26.7
27.4
28.0
28.7
29.4
30.1
30.9
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
31.6
32.4
33.2
34.0
34.8
35.7
36.5
37.4
38.3
39.2
40.2
41.2
42.2
43.2
44.2
45.3
46.4
47.5
48.7
49.9
51.1
52.3
53.6
54.9
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
56.2
57.6
59.0
60.4
61.9
63.4
64.9
66.5
68.1
69.8
71.5
73.2
75.0
76.8
78.7
80.6
82.5
84.5
86.6
88.7
90.9
93.1
95.3
97.6
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
Letter Multiplier Cross Reference
A =10
C = 1,000
E = 100,000
B = 100
D = 10,000
F = 1,000,000
0603 Code
01B
25C
93D
Explanation
01 = 10.0 & B = 100
25 = 17.8 & C = 1,000
93 = 90.9 & D = 10,000
X=1
Y = 0.1
51B
Value
10.0x100 = 1K
Ω
17.8x1,000 = 17.8K
Ω
90.9 x 10,000 = 909K
Ω
American Accurate Components, Inc.
188 Technology Drive Unit H, Irvine, CA 92618
TEL: 949-453-9888 FAX: 949-453-8889 Email: sales@aacix.com
3
THICK FILM CHIP RESISTORS
The content of this specification may change without notification 10/04/07

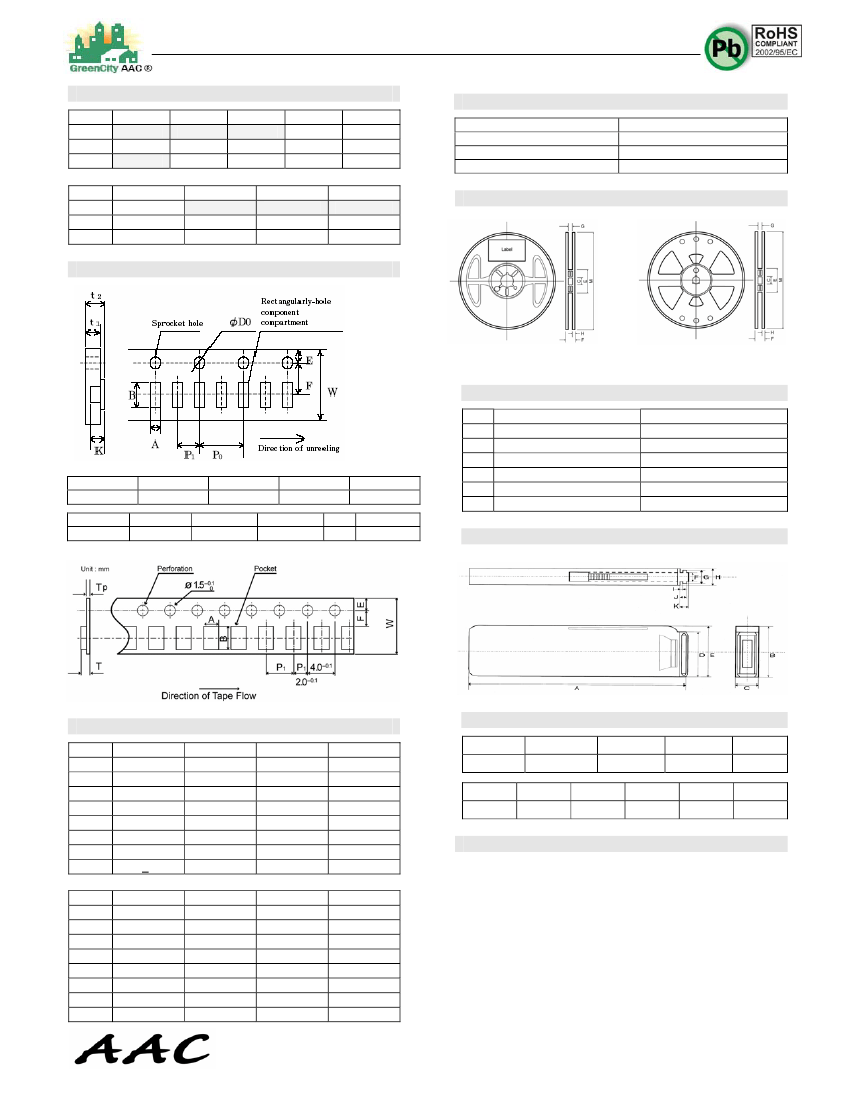

PACKAGE QUANTITY
Type
B
M
V
Type
B
M
V
01005
15,000
0201
10,000
40,000
1210
5,000
20,000
0402
10,000
40,000
0603
25,000
5,000
20,000
2010
4,000
20,000
0805
10,000
5,000
20,000
2512
4,000
20,000
TAPE
Type
Press Pocket Carrier Tape
Rect. Punching Carrier Paper Tape
Plastic (Embossed Tape)
Resistor Size
01005
0201, 0402, 0603, 0805, 1206, 1210
2010 & 2512
1206
5,000
5,000
20,000
REEL DRAWINGS
TAPE SCHEMATIC
7” Reel (M)
13” Reel (V)
PACKAGE DIMENSIONS (mm)
M
H
C
G
E
F
7” Reel (M)
180
±
3.0
1.20
13.0
±
0.2
9.0
±
0.3
60
±
1.0
11.4
±
1.0
13” Reel (V)
330±2.5
2.3± 0.5
13.0
±
0.2
9.5
±
0.5
80.0
±
1.0
14.4
01005 Size
A
0.38±0.02
P1
2.0±0.05
B
0.68±0.02
P0
4.0±0.10
W
8.0±0.10
D0
1.55±0.03
F
3.5±0.05
t1
0.42±0.05
t2
0.5
E
1.75±0.05
K
0.27±0.02
BULK CASE SCHEMATIC
0201 ~ 2512 Size
TAPE DIMENSIONS (mm)
A
B
W
E
F
P
1
T
T
p
0201
0.41±0.1
0.71±0.1
8.0±0.2
1.75±0.10
3.5±0.05
2.0±0.05
0.5
max
0.4+0.05
1206
2.0±0.15
3.6±0.15
8.0±0.2
1.75±0.1
3.5±0.05
4.0±0.1
0.90±0.1
0.75±0.1
0402
0.65±0.1
1.15±0.1
8.0±0.2
1.75±0.10
3.5±0.05
2.0±0.05
0.55±0.1
0.40±0.05
1210
2.9±0.1
3.5±0.1
8.0±0.2
1.75±0.1
3.5±0.05
4.0±0.1
0.90±0.1
0.75±0.1
0603
1.1±0.2
1.9±0.2
8.0±0.2
1.75±0.1
3.5±0.05
4.0±0.1
0.70±0.1
0.60±0.1
2010
2.9±0.1
5.3±0.1
12.0±0.2
1.75±0.1
5.5±0.05
4.0±0.1
1.0±0.1
0.25±0.1
0805
1.65±0.2
2.4±0.2
8.0±0.2
1.75±0.1
3.5±0.05
4.0±0.1
0.90±0.1
0.75±0.1
2512
3.4±0.1
6.6±0.1
12.0±0.2
1.75±0.1
5.5±0.05
4.0±0.1
1.0±0.1
0.25±0.1
BULK CASE DIMENSIONS (mm)
A
110. 0± 0.7
F
6.8
±0.1
B
36.0
±
0.2
G
H
C
12.0
±
0.1
I
D
31.5
±0.2
J
2.0± 0.1
E
36.0
±0.2
K
4.7± 0.1
8.8
±0.1
12.0
±
0.1 1.5
±
0.1
LABEL DESCRIPTION
One side surface of a reel is marked with a label with the
following items of information.
1. Chip Resistor
2. Part Number
3. Tolerance
4. Quantity
5. Lot number for production month/year/suffix L*
6. Manufacturer’s name or symbol
* The suffix “L” indicates that this item is lead free. As of September
2004, all new production items of the series CR and CJ are no
longer containing tin/lead (SnPb) terminals; they are lead free and in
compliance with Lead Free/RoHS.
A
B
W
E
F
P
1
T
T
p
American Accurate Components, Inc.
188 Technology Drive Unit H, Irvine, CA 92618
TEL: 949-453-9888 FAX: 949-453-8889 Email: sales@aacix.com
4
THICK FILM CHIP RESISTORS
The content of this specification may change without notification 10/04/07
CR-KITS Series, Thick Film Chip Resistor Engineering Kits
This engineering and design kit is a great sales tool, allowing for application testing before ordering minimum
quantities. AAC offers a wide assortment of popular chip resistors sizes and tolerances, in addition to a large quantity
of each value. The kits are convenient with easy-to-use packaging.
PACKAGE CONSTRUCTION
3 Ring Binder Case Holder
Plastic pages with slip holders for each value
Each value is individually identified in a slip holder
Resistors are packaged on paper tape strips
E-24 KIT VALUES
2.2
2.7
3.9
4.7
6.8
8.2
10
18
22
27
33
39
47
68
75
100
120
150
180
220
270
330
390
470
560
680
850
1.0K
1.2K
1.5K
1.8K
2.2K
2.7K
3.3K
3.9K
4.7K
5.6K
6.8K
8.2K
10K
12K
15K
18K
22K
27K
33K
39K
47K
56K
82K
100K
120K
150K
220K
270K
390K
470K
560K
1.0M
2.2M
E-96 KIT VALUES
10.0
11.3
12.1
13.3
15.0
16.5
18.2
20.0
22.1
24.3
26.1
28.7
33.2
35.7
39.2
42.2
46.4
51.1
56.2
61.9
68.1
75.0
82.5
90.9
100
107
118
133
150
162
174
200
215
237
261
287
301
332
348
383
422
475
511
549
604
681
750
825
909
1.00K
1.10K
1.21K
1.33K
1.50K
1.62K
1.82K
2.00K
2.21K
2.37K
2.67K
3.01K
3.32K
3.92K
4.22K
4.75K
5.11K
5.62K
6.19K
6.81K
7.50K
8.25K
9.09K
10.0K
11.0K
12.1K
13.0K
15.0K
16.2K
18.2K
20.0K
22.1K
23.7K
27.4K
30.1K
33.2K
39.2K
41.2K
47.5K
49.9K
56.2K
60.4K
68.1K
75.0K
82.5K
90.9K
100K
110K
121K
130K
150K
162K
178K
200K
221K
237K
255K
274K
301K
332K
365K
392K
422K
464K
511K
536K
562K
619K
649K
681K
732K
750K
825K
866K
909K
953K
1.0M
Engineering Kits J Type
FEATURES
EIA Standard E-24 Values
Full range from 1
Ω
~ 1M
Ω
Resistance Tolerance of +5%
3,000 Pieces: 50 pieces of 60 different values
ISO 9002 Quality Certified products
Engineering Kits F Type
FEATURES
EIA Standard E-24 Values
Full range from 10
Ω
~ 1M
Ω
Resistance Tolerance of +1%
3,150 Pieces: 25 pieces of 126 different values
ISO 9002 Quality Certified products
Part Number for +5% Sample Kit
Part Number
CR05-J-KITS
Description
0402, 1/16w, 5%, E-24 values
(1Ω through 2.2M
Ω)
0603, 1/16w, 5%, E-24 values
(1Ω through 2.2M
Ω)
0805, 1/10w, 5%, E-24 values
(1Ω through 2.2M
Ω)
1206, 1/8w, 5%, E-24 values
(1Ω through 2.2M
Ω)
Part Number for +1% Sample Kit
Part Number
CR05-F-KITS
Description
0402, 1/16w, 1%, E-96 values
(10
Ω
through 1M
Ω)
0603, 1/16w, 1%, E-96 values
(10
Ω
through 1M
Ω)
0805, 1/10w, 1%, E-96 values
(10
Ω
through 1M
Ω)
1206, 1/8w, 1%, E-96 values
(10
Ω
through 1M
Ω)
CR16-J-KITS
CR16-F-KITS
CR10-J-KITS
CR10-F-KITS
CR18-J-KITS
CR18-F-KITS
American Accurate Components, Inc.
188 Technology Drive, Unit H, Irvine, CA 92618
TEL: 949-453-9888 FAX: 949-453-8889
Embedded System
京公网安备 11010802033920号
EEWORLD
