TSOP16C1003BS: DescriptionTSOP Series Ultra Precision Molded Resistor Networks; File Size174KB，2 Pages; ManufacturerAAC [American Accurate Components]; Websitehttp://www.aacix.com/

Download Datasheet View All

TSOP16C1003BS Overview

TSOP Series Ultra Precision Molded Resistor Networks

Preview

Download Datasheet

View All

TSOP Series Ultra Precision Molded Resistor Networks

The content of this specification may change without notification 1/01/06

Custom solutions are available.

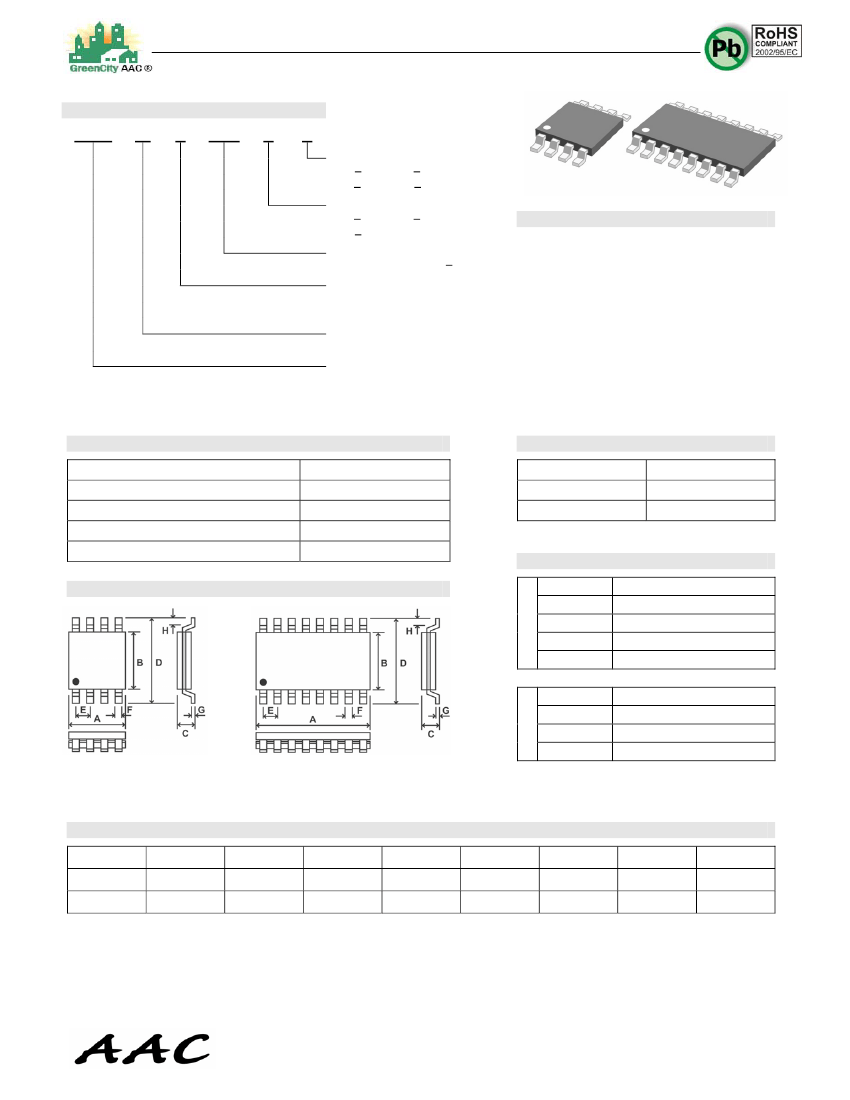

HOW TO ORDER

TSOP

1003

TCR (PPM/°C)

R = +5

S = +10

E = +25

C = +50

Resistance Tolerance

A = +.05

B = +.10

C = +.25

Resistance Value

3 sig. fig & 1 multiplier +1%

Circuit Type/Pattern

Refer to Circuit Schematic

A, B, C, D, E

Pins

8, 14,16, 20

Series

Ultra Precision Molded Resistor

FEATURES

TSOP High Precision NiCr Thin Film Resistor

Networks with tight ratio and tracking

10 Standard Circuits

Excellent to relative Tolerance and TCR

High Stability Thin Film

2.3mm High from PC Board, most fit for

high density compacted instruments.

Custom Circuit Configuration is Available

ELECTRICAL SPECIFACTIONS

Rated Power per Resistor at 70ºC

Maximum Working Voltage

Maximum Overload Voltage

Absolute TCR ppm/ºC

Absolute Tolerance %

60mW

75V

150V

50, 25,10, 5

0.25, 0.1, 0.05

MECHANICAL SPECIFACTIONS

Mechanical Protection

Resistive Element

Terminal Leads

Epoxy Molded

NiCr Film

Tinned

TYPICAL PERFORMANCE

ABS

± 5ppm

± 10ppm

± 25ppm

± 50ppm

ABS

± 0.05%

± 0.10%

± 0.25%

TRACKING

1, 2, 3, 5

1, 2, 3, 5, 10

RATIO

0.025, 0.05, 0.1

0.025, 0.05, 0.1, 0.2

0.025, 0.05, 0.1, 0.25, 0.5

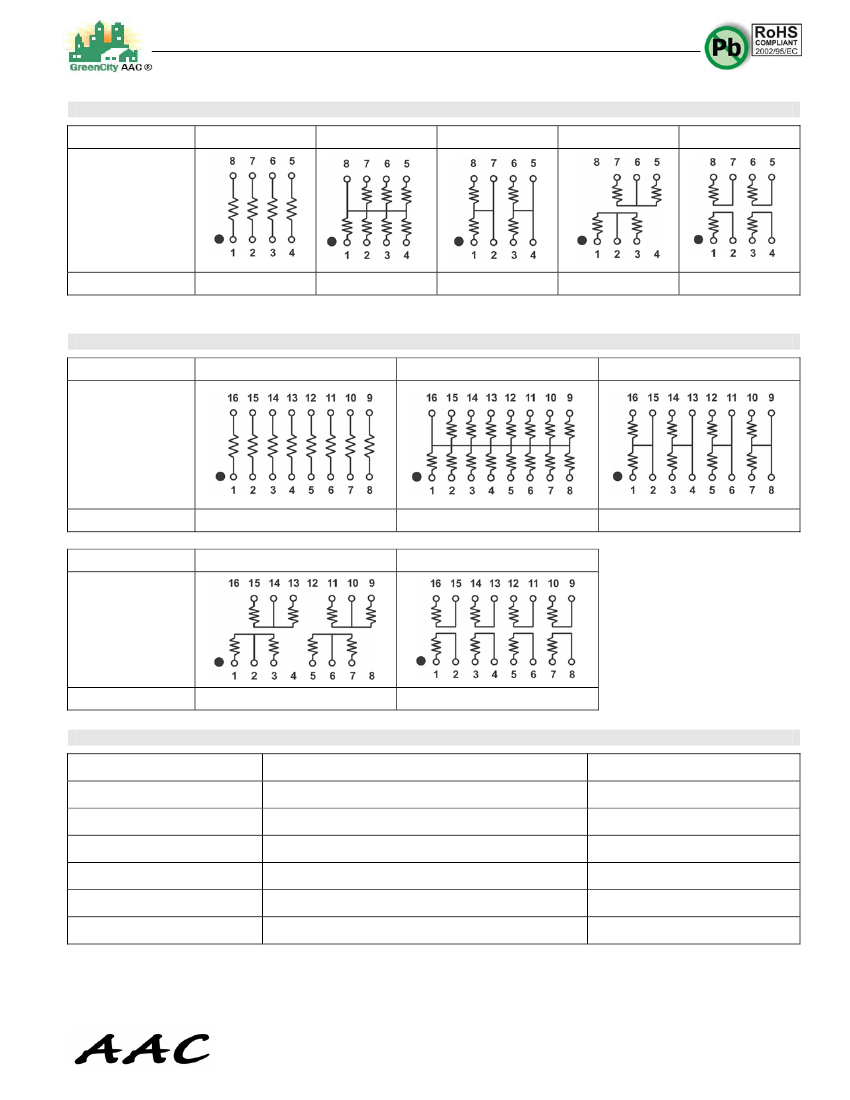

TSOP 08 SCHEMATIC

TSOP 08

TSOP 16

DIMENSIONS (mm)

Model

TSOP 08

TSOP 16

5.5

0.3

10.5

0.5

5.3

0.3

5.3

0.3

2.3 max

8.0

0.2

8.0

0.2

1.27

0.2

1.27

0.2

0.4

0.05

0.4

0.05

0.2

0.1

0.2

0.1

0.3 min

American Accurate Components, Inc.

188 Technology Drive, Unit H, Irvine, CA 92618

TEL: 949-453-9888 FAX: 949-453-8889
