JXWBGF-T-3-800-2500: Description3-Way Power Divider; File Size77KB，1 Pages; ManufacturerAAC [American Accurate Components]; Websitehttp://www.aacix.com/

Download Datasheet View All

JXWBGF-T-3-800-2500 Overview

3-Way Power Divider

Preview

Download Datasheet

View All

Power Divider

The content of this specification may change without notification 7/01/09

3-Way Power Divider

P/N: JXWBGF-T-3-800-2500

Frequency Range(MHz)

Insertion Loss(dB)

Isolation(dB)

Power Forward(W)

Power Reverse(W)

Phase Unbalance(º)

Amplitude Unbalance(dB)

VSWR

Connector

Operating Temperature(ºC)

Storage Temperature(ºC)

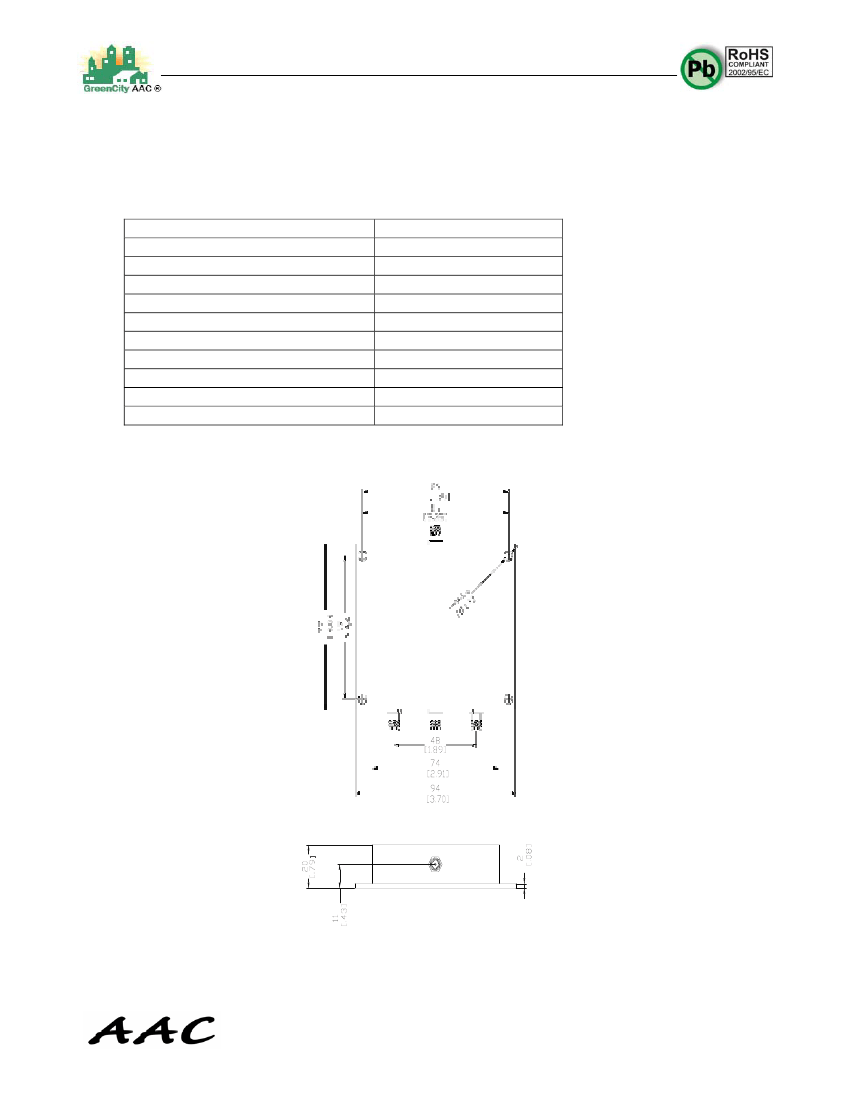

Outline Drawing (Size: mm)

800-2500

0.6 max

22 min

20

3

5

0.35 max

1.25 max

SMA-Female

-40 ~ +60

-45 ~ +80

For current data sheets, please contact: sales@aacix.com

American Accurate Components, Inc.

188 Technology Drive, Unit H, Irvine, CA 92618

Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
