6-Way Power Combiner

P/N: JXWBHC-T-6-800-2000

Frequency Range(GHz)

Insertion Loss(dB)

Isolation(dB)

Power Handling(W)

Phase Balance(º)

Amplitude Balance(dB)

Input VSWR

Output VSWR

Impedance(Ohm)

Connector

Operating Temperature(ºC)

Storage Temperature(ºC)

Relative Humidity

Net Weight(Kg)

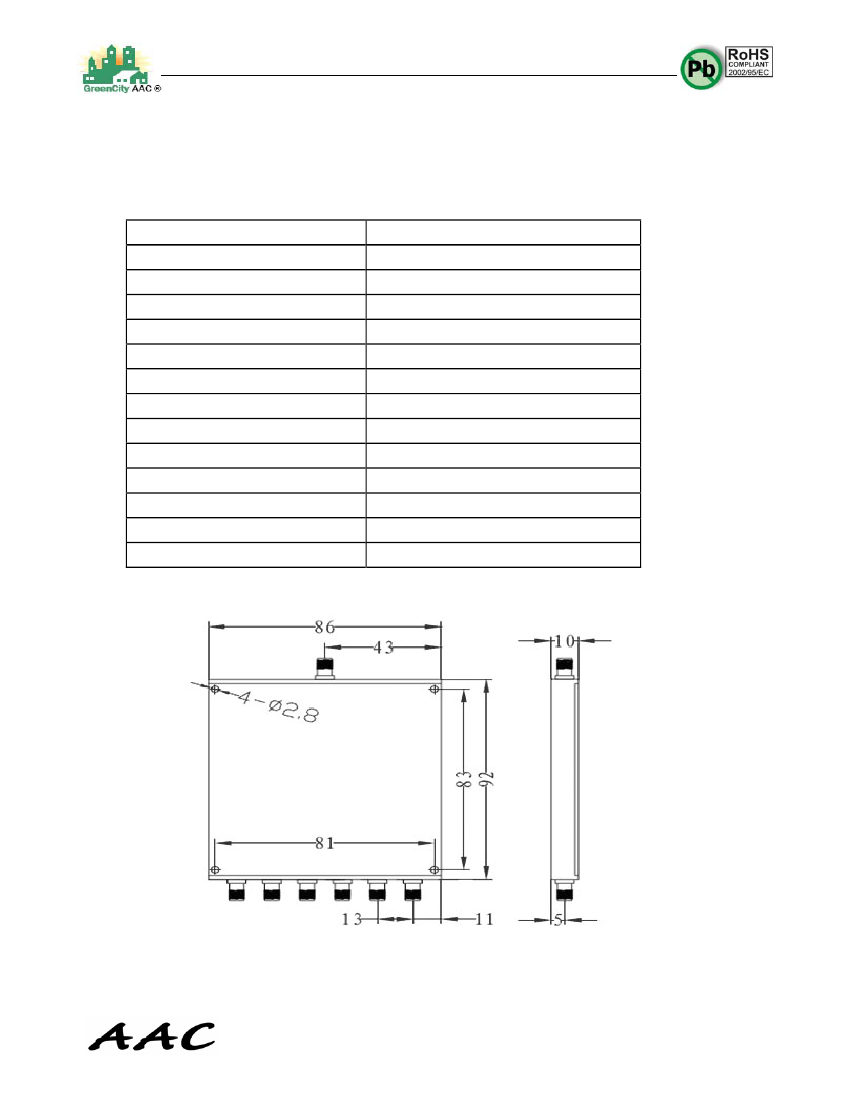

Outline Drawing (Size: mm)

0.8-2

1.6 max

18 min

10 CW (output VSWR <1.5)

8 max

0.5 max

1.6:1 max

1.5:1 max

50

SMA-Female

-55 ~ +85

-60 ~ +90

0~90%

0.17 Around
