Mounting Hole
Dimensions : Millimetres (Inches)
This data sheet and its contents (the "Information") belong to the Premier Farnell Group
(the "Group") or are licensed to it. No licence is granted for the use of it other than for
information purposes in connection with the products to which it relates. No licence
of any intellectual property rights is granted. The Information is subject to change with-
out notice and replaces all data sheets previously supplied. The Information supplied is
believed to be accurate but the Group assumes no responsibility for its accuracy or
completeness, any error in or omission from it or for any use made of it. Users of this
data sheet should check for themselves the Information and the suitability of the prod-
ucts for their purpose and not make any assumptions based on information included or
omitted. Liability for loss or damage resulting from any reliance on the Information or
use of it (including liability resulting from negligence or where the Group was aware of
the possibility of such loss or damage arising) is excluded. This will not operate to limit
or restrict the Group's liability for death or personal injury resulting from its negligence.
SPC MULTICOMP is the registered trademark of the Group. © Premier Farnell plc 2008.
Scale 3:1
DRAWING TITLE:
SIZE
DWG NO.
TOLERANCES:
UNLESS OTHERWISE
SPECIFIED,
DIMENSIONS ARE
FOR REFERENCE
PURPOSES ONLY.
DRAWN BY:
Sumana
CHECKED BY:
Suresh
APPROVED BY:
G.Cook
DATE:
22/02/08
DATE:
22/02/08
DATE:
07/03/08

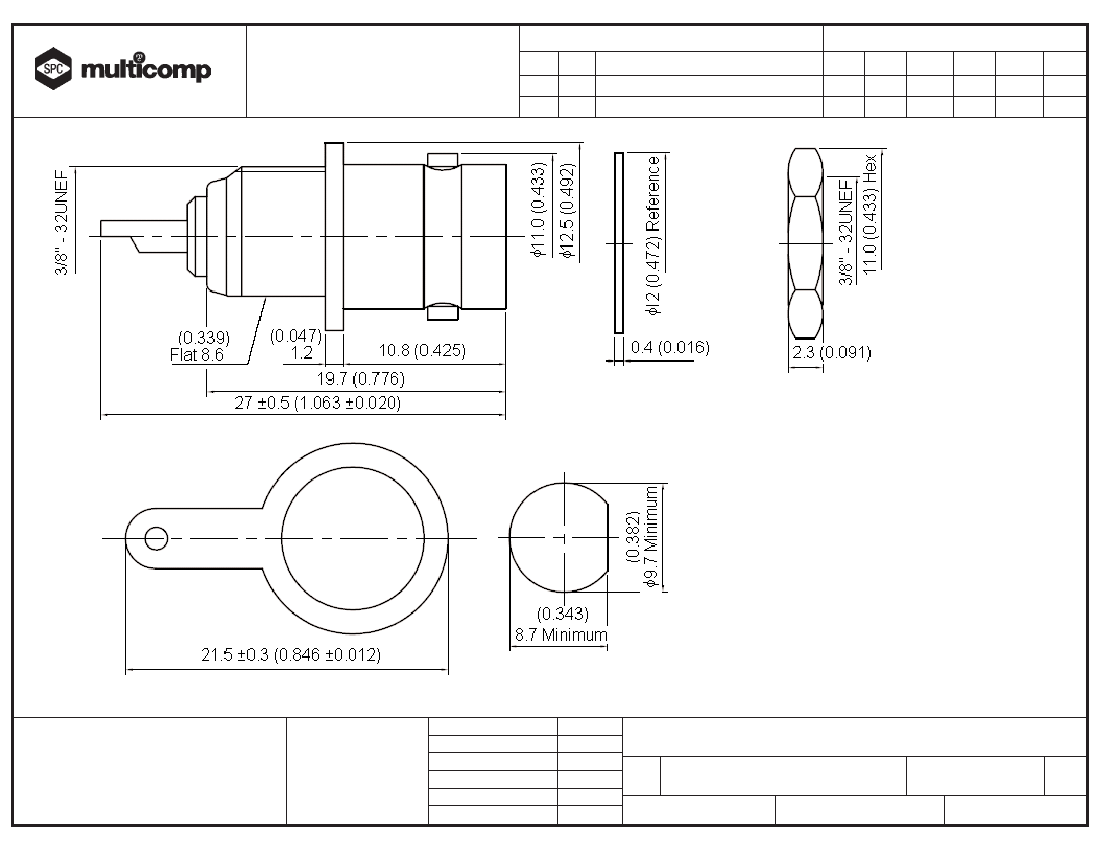

BNC Bulkhead Socket - 50R
A
M10000780
U.O.M.: mm (Inches)
ELECTRONIC FILE
REV
1169583_DWG
SHEET:
1
OF
A
SCALE: NTS
2
PART NO.
ECN #
REV
A
REVISIONS
DESCRIPTION
RELEASED
DRAWN
DATE
CHECKD
Suresh
DATE
22/2/08
APPRVD
G. C
DATE
07/3/08
13-25
-
Sumana 22/2/08
Specifications:
Bodies
: Brass per JIS-C3604.
Centre Contact : Beryllium Copper per ASTM B196 UNS C17300.
Insulation
:
PTFE
per ASTM D1457 and ASTM D1710.
Connector interface per MIL-STD-348A.
Part to be clean and free of burrs.
Specification Table
Number
1
2
3
4
5
6
7
Description
Washer
Nut
Washer
Insulation
Centre Contact
Body
Insulation
PTFE
Beryllium Copper
Brass
PTFE
None
Silver 70µ” Minimum
None
13-25
Brass
Silver 70µ” Minimum
Material
Finish
Part Number
