RF SAW Filter
Part Number
Package
Application
Last Modified
861-RF1842.5M-C
.
TYPE :
2.5 x 2.0 SMD
PCN
Mar. 2, 2007
PCN, Balanced RF SAW Filter
PART NUMBER :
861-RF1842.5M-C
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Attenuation:
Condition
-
1805.0~ 1880.0 MHz
D.C.~ 1200.0 MHz
1200.0~1705.0 MHz
1705.0~ 1785.0MHz
1920.0~ 1980.0 MHz
1980.0~ 2000.0 MHz
2200.0~ 3000.0 MHz
3000.0~ 6000.0 MHz
Symmetry in Band
Output Amplitude Balance (l S31/S21 l)
Output Phase Balance (φ(S31)-φ(S21)+180º)
Source Impedence (single ended)*
Load Impendance (Balanced ended)*
Input/Output VSWR
Amplitude Ripple
Maximum DC Voltage
Maximum Input Power
Operating Temperature
*With Matching Network
1805.0~ 1880.0 MHz
-
-
-
-
1805.0~ 1880.0 MHz
1805.0~ 1880.0 MHz
-
-
-
-1.8
-12
-
-
-
-
-
-
-20
0
0
50
200//18nH
2.0
0.7
-
-
-
Minimum
-
-
40
30
9
10
20
30
40
Typical
1842.5
2.8
48
33
14.5
22.5
23.5
36
44
-
1.4
12
-
-
2.5
1.5
5
12
+75
dB
degree
ohm
ohm
-
dBp-p
V
dBm
ºC
Maximum
-
4.0
-
-
-
-
-
-
-
dB
Units
MHz
dB
.
PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
G
In
Out
Out
Ground
-
-
Ground

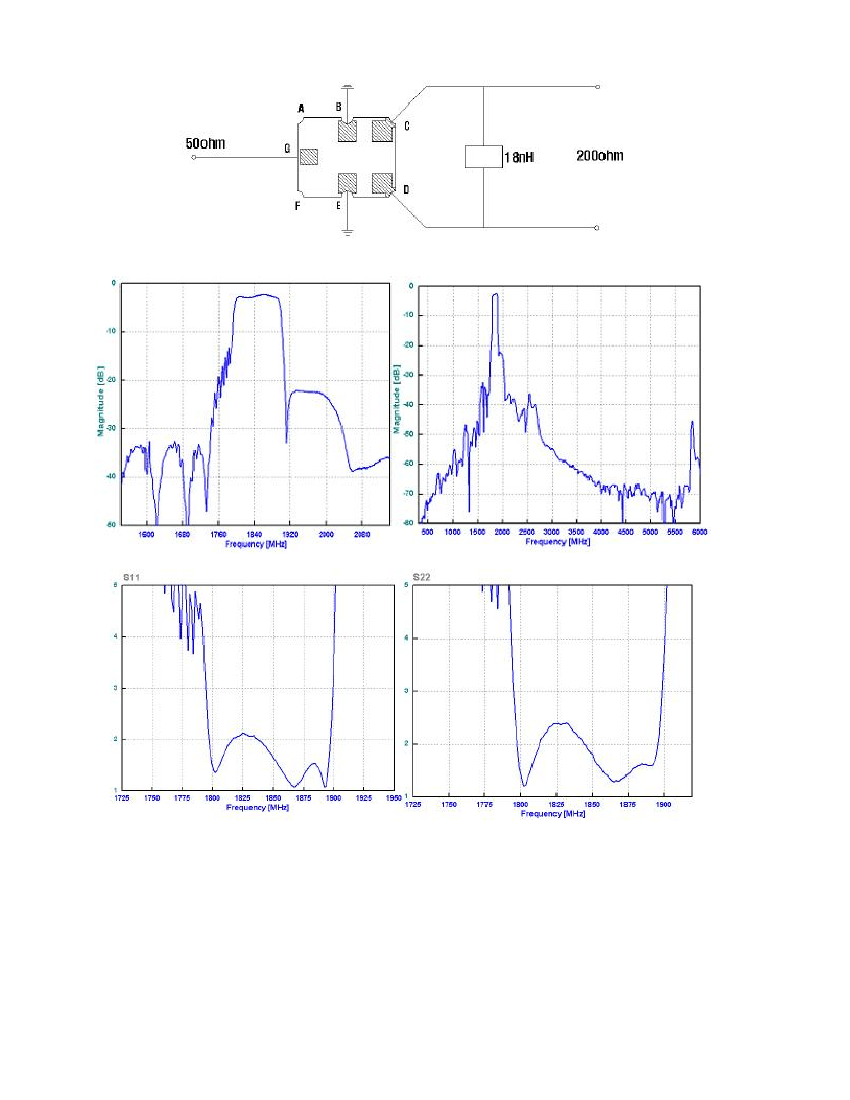

TEST FIXTURE
