RF SAW Filter
Part Number
Package
Application
Last Modified
861-RF881.5M-F
.
TYPE :
2.5 x 2.0 SMD
CDMA
Mar. 2, 2007
CDMA, Balanced RF-Rx SAW Filter
PART NUMBER :
861-RF881.5M-F
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Attenuation:
Condition
-
869.0~ 894.0 MHz
100~ 824.0 MHz
824.0~849.0 MHz
914.0~ 970.0MHz
970.0~ 3000.0 MHz
3000~ 6000.0 MHz
Output Amplitude Balance (l S31/S21 l)
Output Phase Balance (φ(S31)-φ(S21)+180º)
Source Impedence (single ended)*
Load Impendance (single ended)*
VSWR
Maximum DC Voltage
Maximum Input Power (CDMA Signal)
Operating Temperature
-
869.0~ 894.0 MHz
-
-
869.0~ 894.0 MHz
-
(Source Imp. 50ohms)
-
Minimum
-
-
40
35
20
40
35
-1.0
-10
-
-
-
-
-
-30
Typical
881.5
2.3
45
44
25
55
50
+/-0.3
+/-0.9
50
200/18nH
1.7
-
-
-
Maximum
-
3.0
-
-
-
-
-
1.0
10
-
-
2.2
5
0
+85
dB
degree
ohm
ohm
dBp-p
V
dBm
ºC
dB
Units
MHz
dB
* No Matching Network(Ref. Testing Enviroment Circut as shown below)
.
PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
G
In
-
Ground
Balance Out
Balance Out
Ground
-

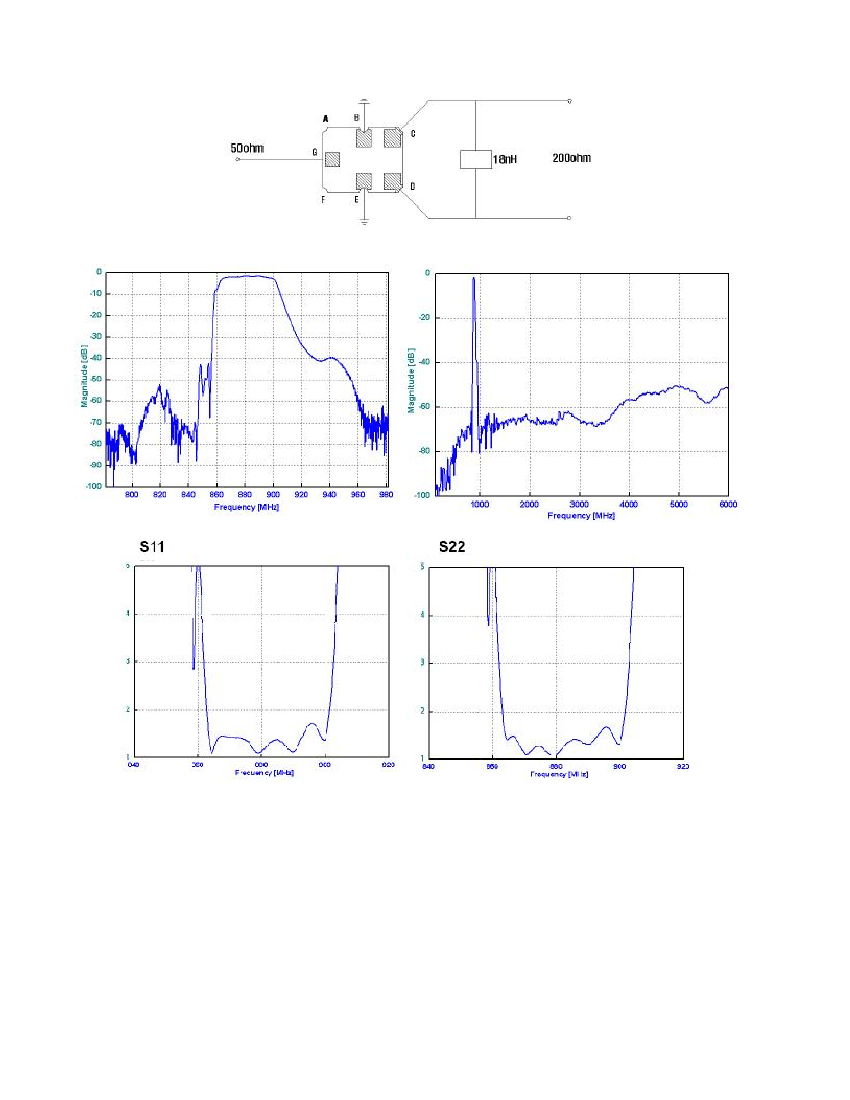

TEST FIXTURE
