864-RF881.5M-H

Description
CDMA, Balanced RF-Rx SAW Filter
File Size195KB,3 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet View All

864-RF881.5M-H Overview

CDMA, Balanced RF-Rx SAW Filter

RF SAW Filter
Part Number
Package
Application
Last Modified
864-RF881.5M-H
.
TYPE :
1.4 x 2.0 SMD
CDMA
Mar. 10, 2007
CDMA, Balanced RF-Rx SAW Filter
PART NUMBER :
864-RF881.5M-H
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss
Attenuation:
Condition
-
869.0~ 894.0 MHz
D.C.~ 824.0 MHz
824.0~849.0 MHz
915.0~ 960.0MHz
960.0~ 6000.0 MHz
Output Amplitude Balance (l S31/S21 l)
Output Phase Balance (φ(S31)-φ(S21)+180º)
Source Impedence (single ended)*
Load Impendance (balanced ended)*
VSWR within
Amplitude Ripple
Maximum DC Voltage
Maximum Input Power
Operating Temperature
*Matching Network
-
-
-
-
869.0~ 894.0 MHz
869.0~ 894.0 MHz
-
-
-
Minimum
-
-
50
45
23
14
-1.0
-5.0
-
-
-
-
-
-
-30
Typical
881.5
2.3
64
60
29
18
0
0
50
100/56
1.8
0.8
-
-
-
Maximum
-
2.9
-
-
-
-
1.0
5.0
-
-
2.3
1.5
5
15
+80
dB
degree
ohm
ohm//nH
-
dBp-p
V
dBm
ºC
dB
Units
MHz
dB
.

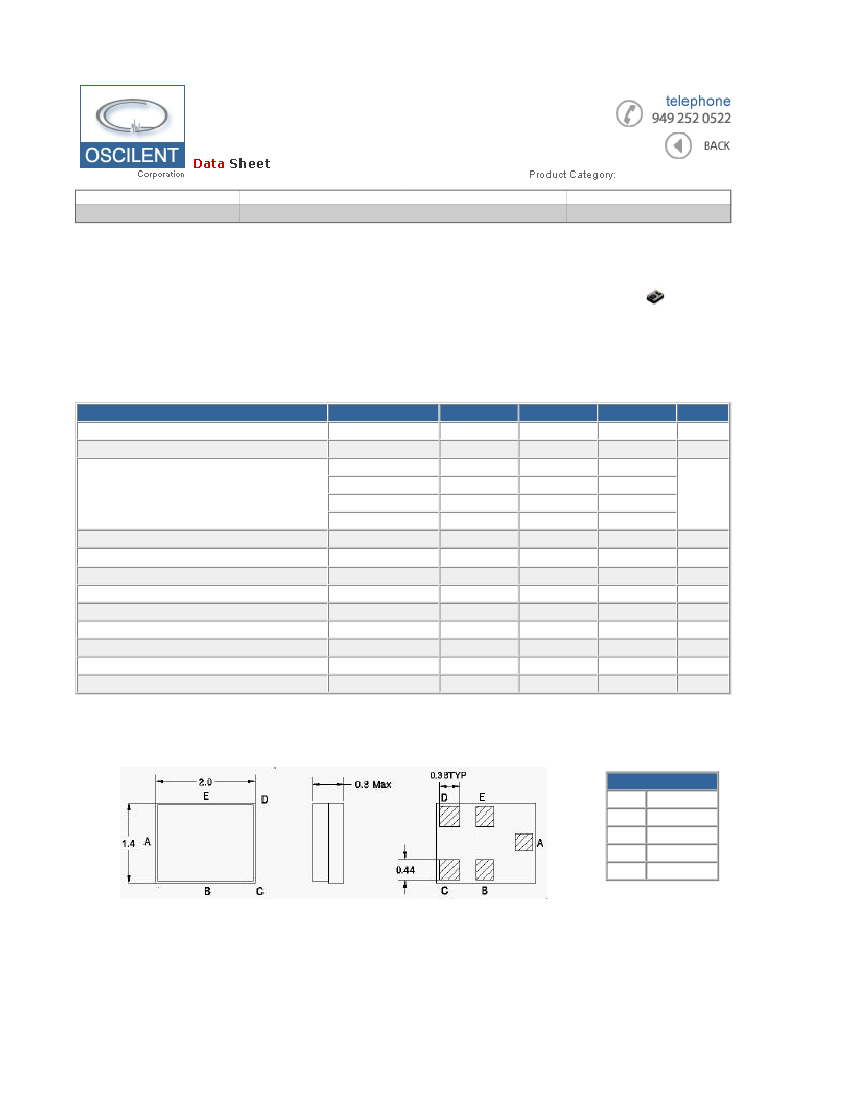

PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
In
Ground
Balance Out
Balance Out
Ground

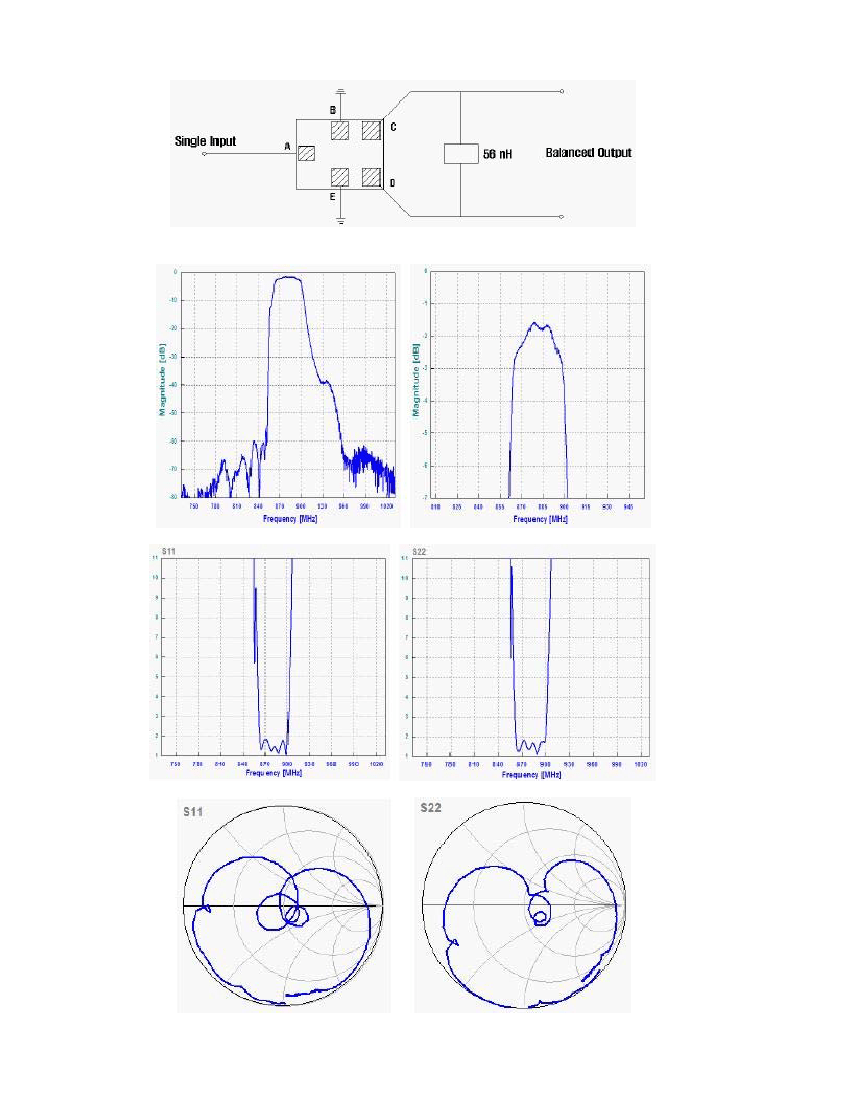

TEST FIXTURE
