BM-07257ND-AA
●
1.
2.
3.
4.
5.
6.
7.
8.
9.
Features :
0.7 inch (17.70mm) matrix height.
Dot size 2.0mm.
Low power requirement.
Excellent characters appearance.
Solid state reliability.
Multiplex drive , column cathode com.
and row anode com.
Single color available.
Categorized for luminous intensity.
Stackable vertically and horizontally.
●

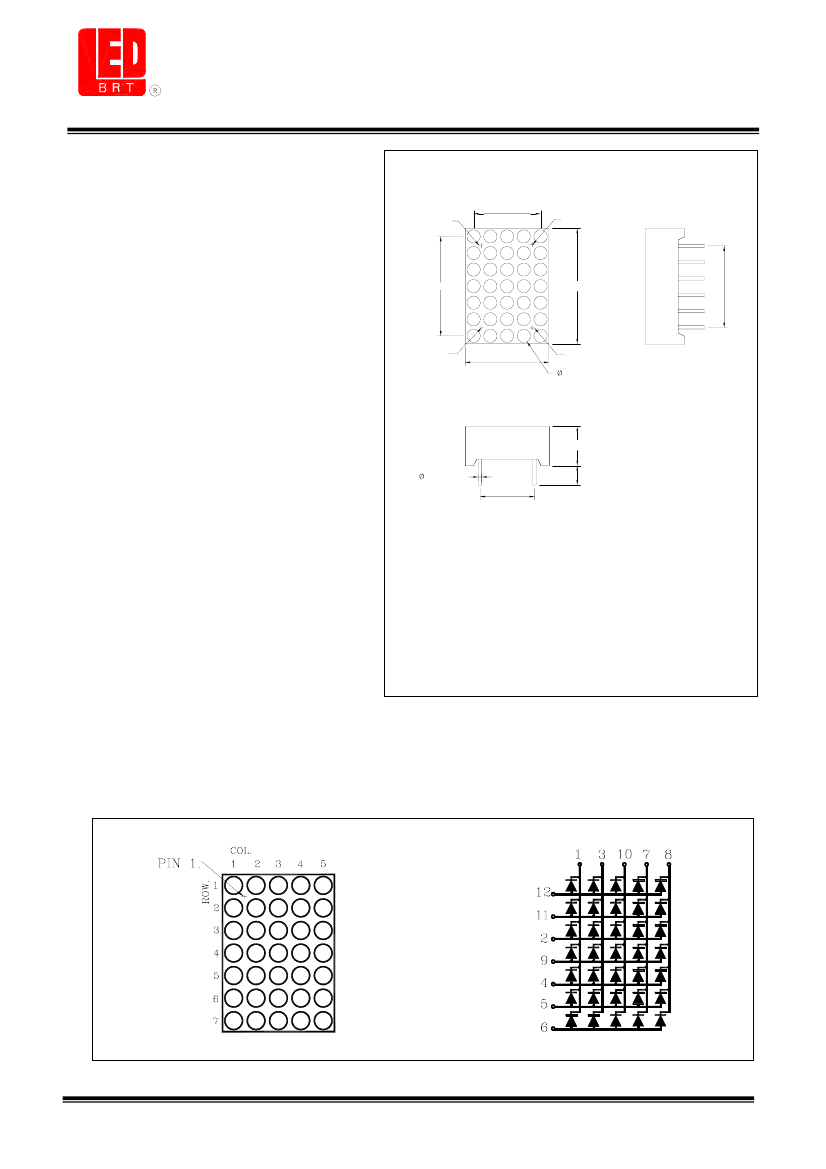

Package Dimensions :
2.54*4
PIN1
PIN12
2.54*6
17.70(.697)
PIN6
12.70(.500)
PIN7
2.0(.079)
6.10(.240)
0.50(.020)
3.00(.118) MIN.
7.62(.300)
●
1.
2.
3.
4.
Description :
The BM-07257ND is a 17.70mm(0.7")
matrix height 5×7 dot matrix display.
This product use green chips, which
are made from GaP on GaP substrate.
This product have a black face and
white dots.
This product doesn't contain restriction
substance, comply ROHS standard.
Notes:
1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(.01")unless otherwise
specified.
3. Specifications are subject to change without
notice.
●
Internal Circuit Diagram :
½鴻工業股½有限公司
http://www.brtled.com
Ver.2.0 Page 1 of 3
2.54x5=12.70(.500)
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BM-07257ND-AA
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation Per Dot
Forward Current Per Dot
Peak Forward Current Per Dot
Reverse Voltage Per Dot
Operating Temperature
Storage Temperature
Soldering Temperature
(1/16" From Body)
Symbol
Pd
I
F
I
FP
(Duty 1/10, 1KHZ)
V
R
Topr
Tstg
Tsol
Rating
80
30
150
5
-40℃~80℃
-40℃~85℃
260℃ For 5 Seconds
Unit
mW
mA
mA
V
-
-
-
●
Electrical And Optical Characteristics(Ta=25℃)
Parameter
Forward Voltage Per Dot
Luminous Intensity Per Dot
Reverse Current Per Dot
Peak Wave Length
Symbol Condition
V
F
Iv
I
R
I
F
=10mA
I
F
=10mA
V
R
=5V
Min.
-
-
-
Typ.
2.1
8.0
-
Max.
2.5
-
100
-
Unit
V
mcd
µA
nm
nm
nm
Dominant Wave Length
½鴻工業股½有限公司
http://www.brtled.com
λp
I
F
=10mA
-
568
-
λd
I
F
=10mA
569
-
∆λ
I
F
=10mA
30
-
574
Spectral Line Half-width
Ver.2.0 Page 2 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BM-07257ND-AA
●
Typical Electro-Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
Fig.1 Relative Radiant Intensity VS. Wavelength
1.0
Relative Radiant Intensity
0.5
0
460
490
520
Wavelength(nm)
550
580
610
640
Relative Luminous Intensity
(@20mA)
1
2
3
4
5
50
Fig.2 Forward Current VS.
Forward Voltage
3.0
2.5
2.0
1.5
1.0
0.5
Fig.3 Relative Luminous
Intensity VS.
Ambient Temperature
Forward Current (mA)
40
30
20
10
0
Forward Voltage (V)
Fig.4 Relative Luminous
Intensity VS.
Forward Current
0
-40
Ambient Temperature Ta( C)
Fig.5 Forward Current
Derating Curve VS.
Ambient Temperature
-20
0
20
40
60
Relative Luminous Intensity
(@20mA)
3.0
50
40
2.0
Forward Current(mA)
1.0
½鴻工業股½有限公司
http://www.brtled.com
30
20
10
0
10
20
30
40
50
20
40
60
80
100 120
0.0
0
Forward Current(mA)
Ambient Temperature Ta( C)
Ver.2.0 Page 3 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BM-07257ND-AA
●
Bin Limits
1. Intensity Bin Limits (At I
F
= 10mA)
Bin Code
P
Q
R
Min. (mcd)
5.84
7.6
9.88
Max. (mcd)
7.89
10.26
13.34
2. Colour Bin Limits (At I
F
= 10mA):Dominant Wave Length
λd
(nm)
Bin Code
1
2
3
Min. (nm)
569
570.6
572.1
Max. (nm)
570.5
572.0
574
●
Bin
：
x
x
Colour bin code
Intensity bin code
½鴻工業股½有限公司
http://www.brtled.com
Ver.2.0 Page 4 of 3
