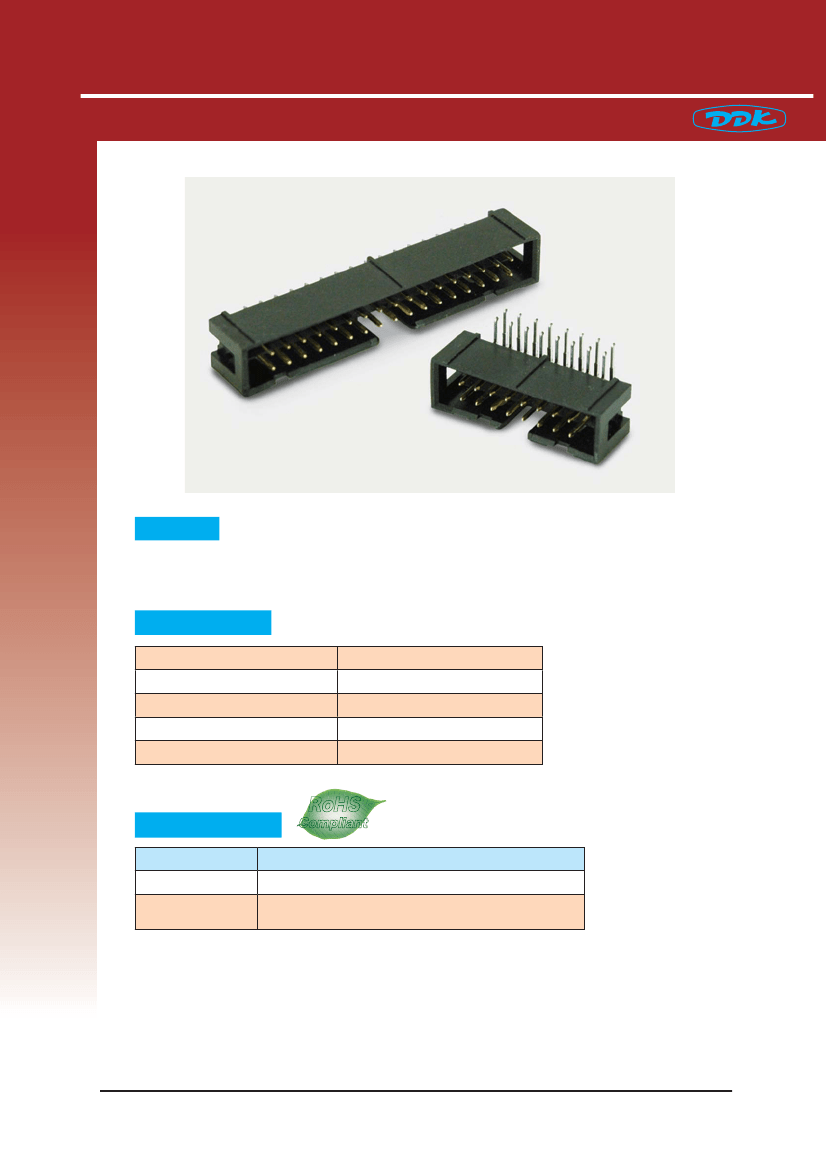

2.54㎜ Pitch Low Profile Pin Header Connectors
HU5 Series
FEATURE
・ HU5 series is a 2.54mm pitch contacts grid double rows low profile connectors
・ Intermatable with FRC2,FRC5 series flat cable connectors.
SPECIFICATIONS
Rated Voltage
Rated Current
Dielectric Withstanding Voltage
Insulation Resistance
Contact Resistance
250V AC (r.m.s.)
1A / Contact
500V AC (r.m.s.) / 1 minute
1000M Ω min. at 500V DC
15m Ω max.
RoHS
MATERIAL/FINISH
Item
Housing
Contact
Compliant
Compliant
Material / Finish
PBT Resin (UL94V-0) / Black
Copper Alloy / Contact Area: Au over Ni Plating
Tail Area: Sn-Ag over Ni Plating
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
090703
http://www.ddknet.co.jp
HU5 Series
Unit：mm
○ 2.54mm Pitch Grid Connectors
HU5 -400 PN A-R53T D20- FA
Number of Contact
10, 14, 16, 20, 26, 30, 34, 40, 50
Key Slot
0： 10・・・No Key
14,16,20,30,34,34,40・・・1 Key
50・・・2 Keys（※ H=22.86）
A：50・・・1 Key
D：10・・・1 Key
Contact Style
P: Pin Contacrt
Housing Style
N: Standard
Color of Housing
A: Black
Tail Style
R: Right Angle DIP Termination
S: Straight DIP Termination
FA：Lead Free
Deviation
D20 ：4 Surfaces Gold Plating
No Digit： 1 Surface Gold Plating
Contact Tail Area Plating
T：Sn-Ag Plating
Contact Area Plating
1：Au(0.76 μ m) over Ni Plating
2：Au(0.4 μ m) over Ni Plating
3：Au(Flash) over Ni Plating
5：Sn-Ag Plating（above 40 pins）
Contact Tail Length
5：2.9
A 0.25
+0.25
B -0.05
C
0.3
2.54
1 Surface Au Plating
6.2
2.54
□6.4 0.05
※H
6.1
(6.2)
0.5
Series
Contact No.
Section G - G
D
F
Key Slot
E
G
0.5 0.64
2.9
40
(8.5)
HU5
8.3
DDK Mark
3
6.3
9.3
G
2.54
0.6
2.9
2.54 0.1
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
DDK
C 0.1
2.54 0.1
+0.08
φ0.9 DIA
0
50 Contcts 2 Key
2.54
0.5 0.64
10 Contacts Less Key
Right Angle DIP Termination
Straight DIP Termination
Note: Straight style 26,30,34,40,50 number of
contacts items are availavle anti-flux migration
treatment.
10 Contacts 1 Key
PCB Mounting Dimensions
Please contact our sales office or distributor.
Part Number
HU5-100PNA- □ 5 □ T □□□ -FA
HU5-10DPNA- □ 5 □ T □□□ -FA
HU5-140PNA- □ 5 □ T □□□ -FA
HU5-160PNA- □ 5 □ T □□□ -FA
HU5-200PNA- □ 5 □ T □□□ -FA
HU5-260PNA- □ 5 □ T □□□ -FA
HU5-300PNA- □ 5 □ T □□□ -FA
HU5-340PNA- □ 5 □ T □□□ -FA
HU5-400PNA- □ 5 □ T □□□ -FA
HU5-50 □ PNA- □ 5 □ T □□□ -FA
Number of
Contact
10
14
16
20
26
30
34
40
50
A
20.0
25.1
27.6
32.7
40.3
45.4
50.5
58.1
70.8
B
17.52
22.60
25.14
30.22
37.84
42.92
48.00
55.62
68.32
C
10.16
15.24
17.78
22.86
30.48
35.56
40.64
48.26
60.96
D
-
-
-
5.08
7.62
11.43
13.97
16.51
20.32
26.67
E
3.81
-
6.35
7.62
10.16
13.97
16.51
19.05
22.86
29.21
F
5.2
5.2
5.2
4.1
5.2
5.2
5.2
5.2
5.2
5.2
2
