2SK2437 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SK2437

2SK2437: DescriptionPower Field-Effect Transistor, 2A I(D), 30V, 0.25ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, PCP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size69KB，1 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

2SK2437 Overview

Power Field-Effect Transistor, 2A I(D), 30V, 0.25ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, PCP, 3 PIN

2SK2437 Parametric

Parameter Name	Attribute value
Objectid	1445017333
package instruction	SMALL OUTLINE, R-PSSO-F3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Configuration	SINGLE
Minimum drain-source breakdown voltage	30 V
Maximum drain current (ID)	2 A
Maximum drain-source on-resistance	0.25 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSSO-F3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	3.5 W
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	SINGLE
Transistor component materials	SILICON

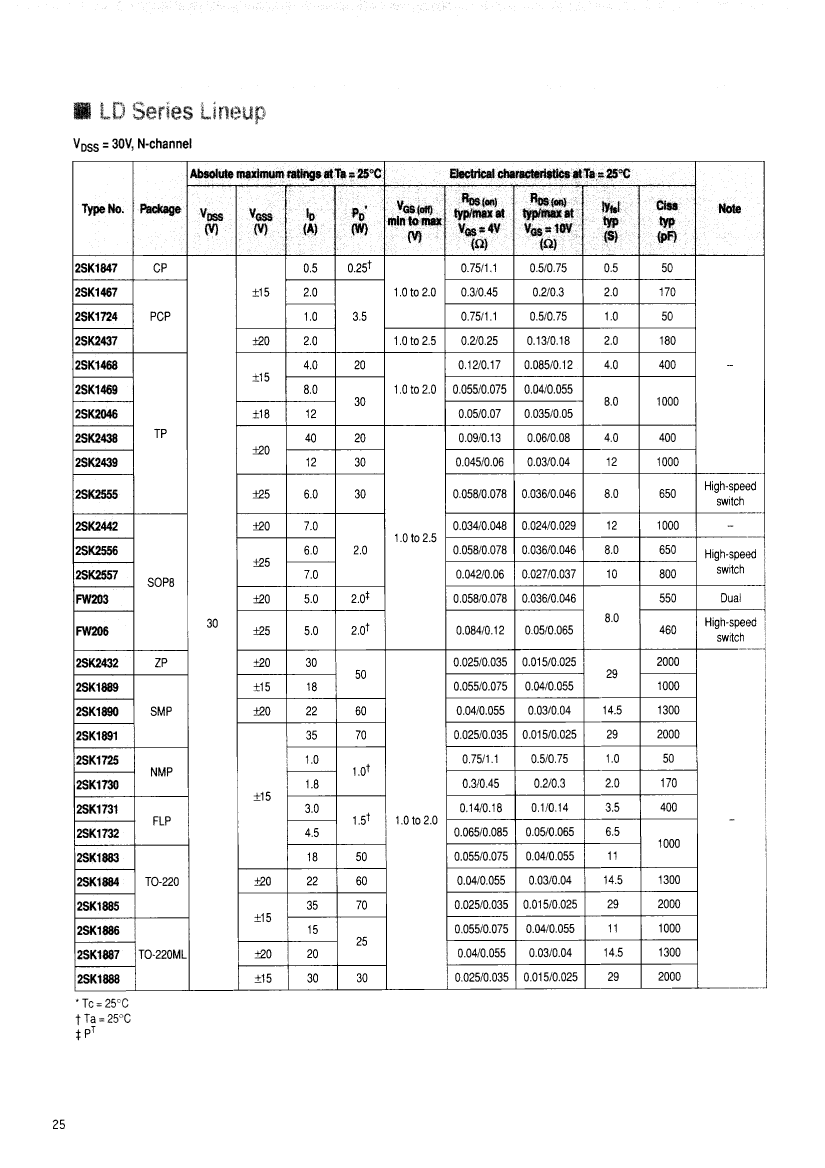

Preview

Download Datasheet

View All

2SK2437 Related Products

	2SK2437	2SK2438	2SK2439	2SK1883	2SK1884	2SK1885	2SK2555	FW206
Description	Power Field-Effect Transistor, 2A I(D), 30V, 0.25ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, PCP, 3 PIN	Power Field-Effect Transistor, 40A I(D), 30V, 0.13ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TP, 3 PIN	Power Field-Effect Transistor, 12A I(D), 30V, 0.06ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TP, 3 PIN	Power Field-Effect Transistor, 18A I(D), 30V, 0.075ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220, 3 PIN	Power Field-Effect Transistor, 22A I(D), 30V, 0.055ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220, 3 PIN	Power Field-Effect Transistor, 35A I(D), 30V, 0.035ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220, 3 PIN	Power Field-Effect Transistor, 6A I(D), 30V, 0.078ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TP, 3 PIN	Power Field-Effect Transistor, 5A I(D), 30V, 0.12ohm, N-Channel, Silicon, Metal-oxide Semiconductor FET, SOP-8
package instruction	SMALL OUTLINE, R-PSSO-F3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	IN-LINE, R-PSIP-T3	SMALL OUTLINE, R-PDSO-G8
Contacts	3	3	3	3	3	3	3	8
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Minimum drain-source breakdown voltage	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Maximum drain current (ID)	2 A	40 A	12 A	18 A	22 A	35 A	6 A	5 A
Maximum drain-source on-resistance	0.25 Ω	0.13 Ω	0.06 Ω	0.075 Ω	0.055 Ω	0.035 Ω	0.078 Ω	0.12 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSSO-F3	R-PSIP-T3	R-PSIP-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSIP-T3	R-PDSO-G8
Number of terminals	3	3	3	3	3	3	3	8
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	IN-LINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	3.5 W	20 W	30 W	50 W	60 W	70 W	30 W	2 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	NO	NO	NO	NO	NO	YES
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	DUAL
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Number of components	1	1	1	1	1	1	1	-
Maximum operating temperature	150 °C	150 °C	150 °C	-	-	-	150 °C	150 °C
Maximum drain current (Abs) (ID)	-	4 A	12 A	18 A	22 A	35 A	6 A	5 A
Base Number Matches	-	1	1	1	1	1	1	-
