MZ5010 Overview

Triple-Balanced Mixer

MZ5010 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MACOM
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=26DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum frequency conversion loss	13.5 dB
Maximum operating frequency	26000 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	TRIPLE BALANCED

Preview

Download Datasheet

View All

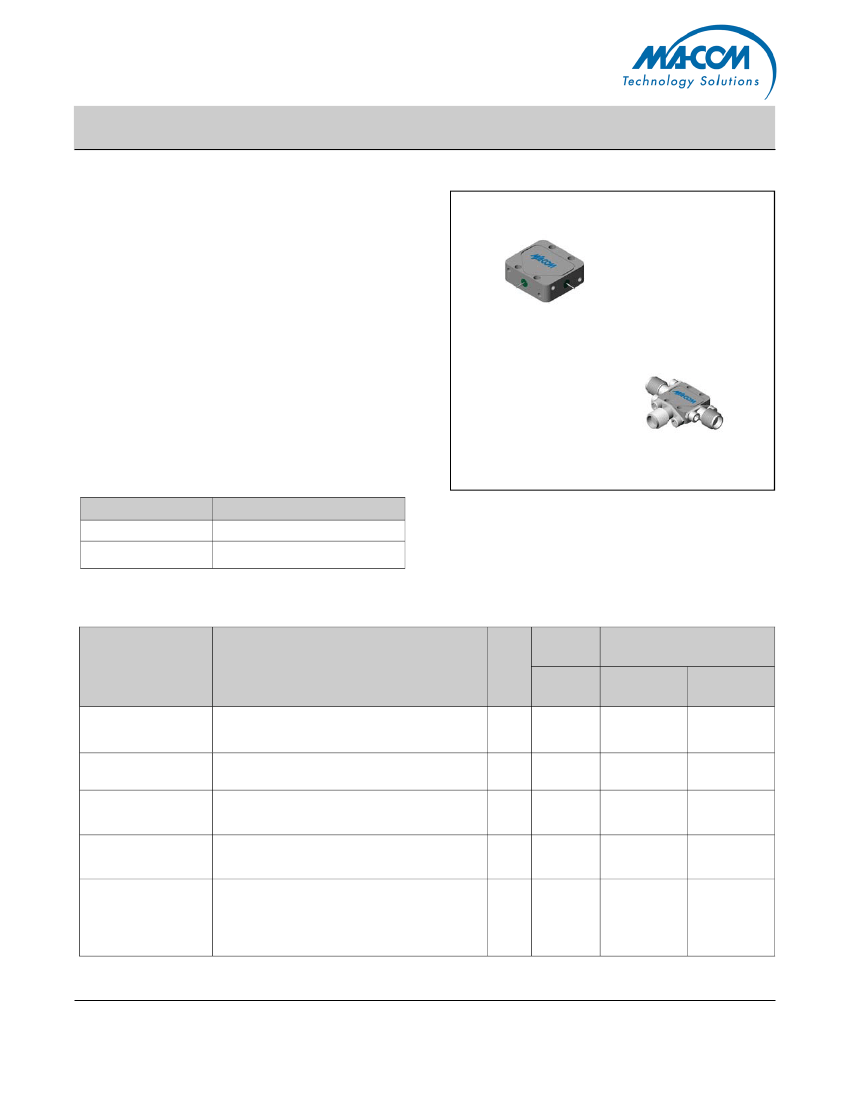

MZ5010 / MZ5010C

Triple-Balanced Mixer

Rev. V3

Features

•

LO 2 TO 26 GHz

RF 2 TO 26 GHz

IF 1 TO 15 GHz

LO DRIVE +10 dBm (nominal)

MINIATURE PACKAGE

VERY WIDE BANDWIDTH

AVAILABLE WITH FIELD REPLACEABLE

CONNECTORS

Product Image

Description

The MZ5010 is a triple balanced mixer, designed for use in

military, commercial and test equipment applications. The design

utilizes Schottky ring quad diodes and broadband soft dielectric

baluns to attain excellent performance.

The use of high

temperature solder and welded assembly processes used

internally makes it ideal for use in manual, semi-automated

assembly. Environmental screening available to MIL-STD-883,

MIL-STD-202 or MIL-DTL-28837, consult factory.

Ordering Information

Part Number

MZ5010

MZ5010C

Package

Versapac

SMA Connectorized

Electrical Specifications: Z

= 50Ω Lo = +10 dBm (Downconverter application only)

Typical

Parameter

Test Conditions

Units

+25ºC

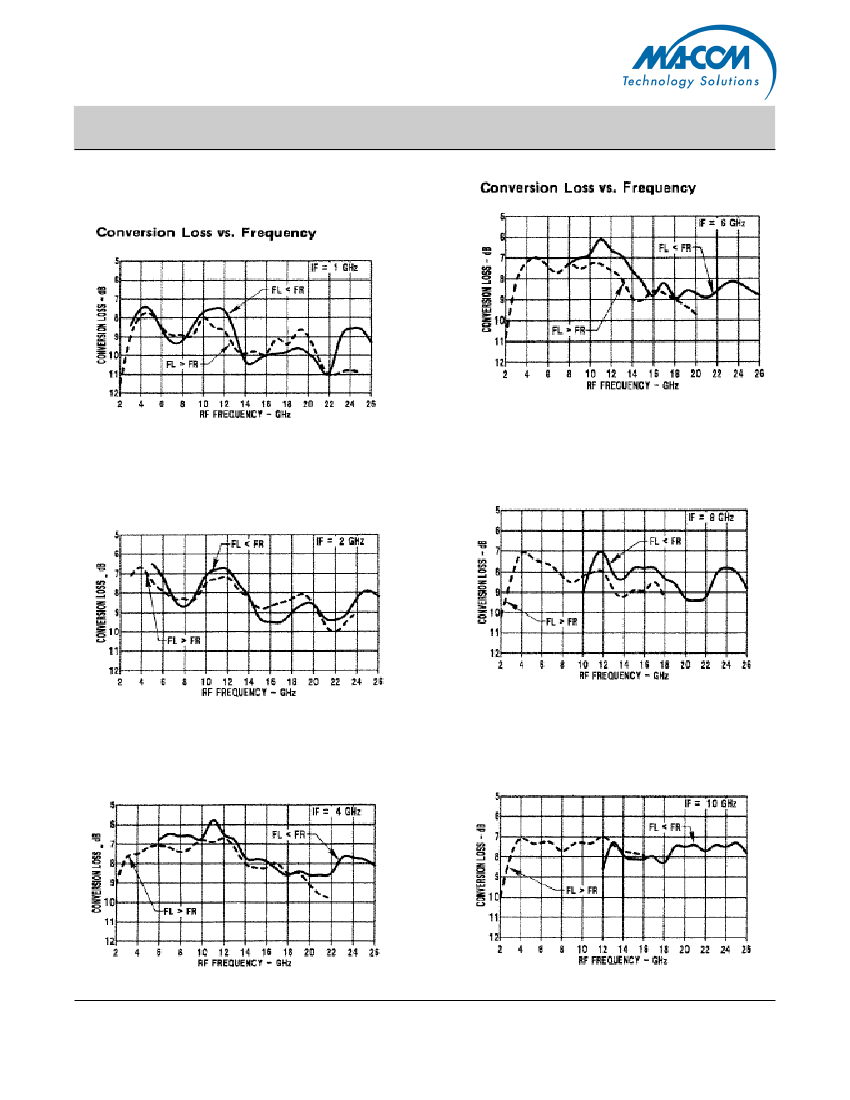

SSB Conversion Loss

(max) & SSB Noise

Figure (max)

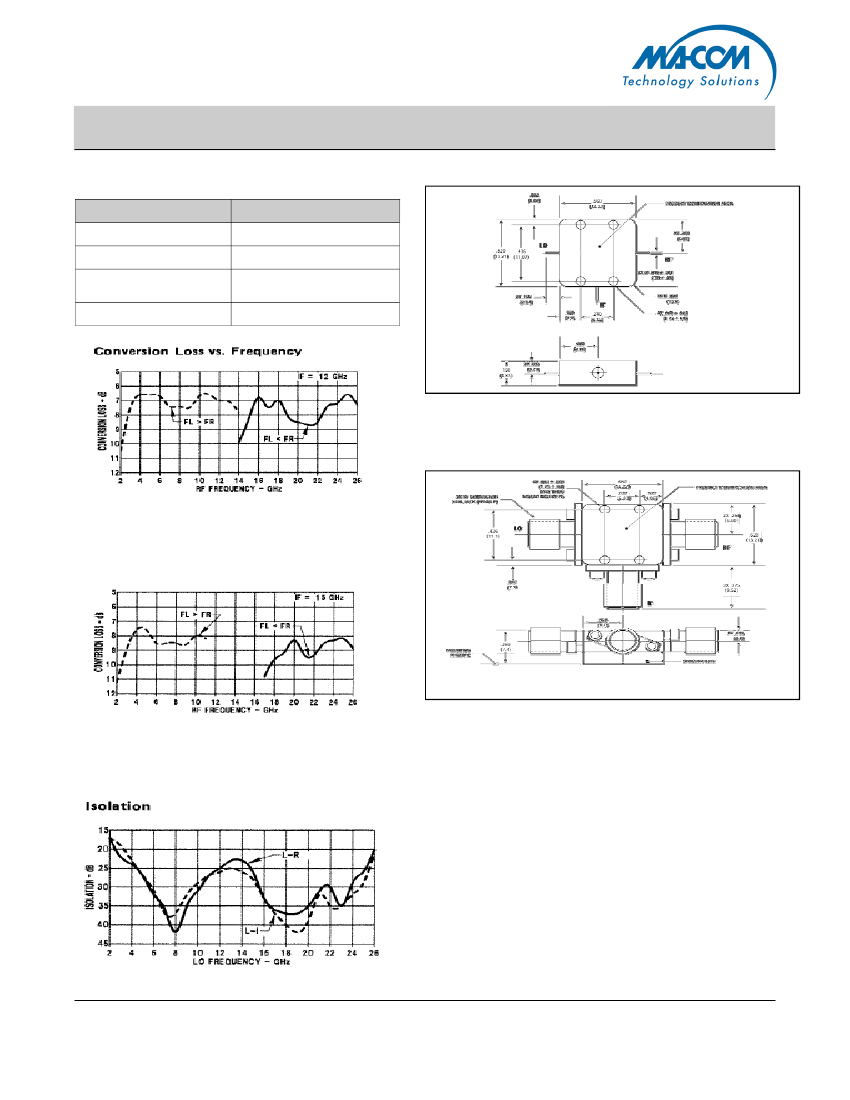

Isolation, L to R (min)

fR = 3 to 18 GHz, fL = 3.5 to 18 GHz, fI = 4 to 12 GHz

fR = 2.5 to 26 GHz, fL = 2.5 to 24 GHz, fI=4 to12 GHz

fR = 2 to 26 GHz, fL = 2 to 26 GHz, fI =1 to 15 GHz

fL = 2 to 4 GHz

fL = 4 to 26 GHz

fL = 2 to 4 GHz

fL = 4 to 26 GHz

7.5

8.5

10.5

9.5

10.5

13.0

Guaranteed

-54º to +85ºC

10.0

11.0

13.5

Isolation, L to I (min)

1 dB Conversion Comp.

fL = +10 dBm

dBm

Input IP3

fR1 = 18 GHz at –10 dBm, fR2 = 18.01 GHz at –10 dBm,

fL = 14 GHz at +10 dBm

fR1 = 5 GHz at –5 dBm, fR2 = 5.01 GHz at –5 dBm,

fL = 7 GHz at +10 dBm

dBm

+16

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.
