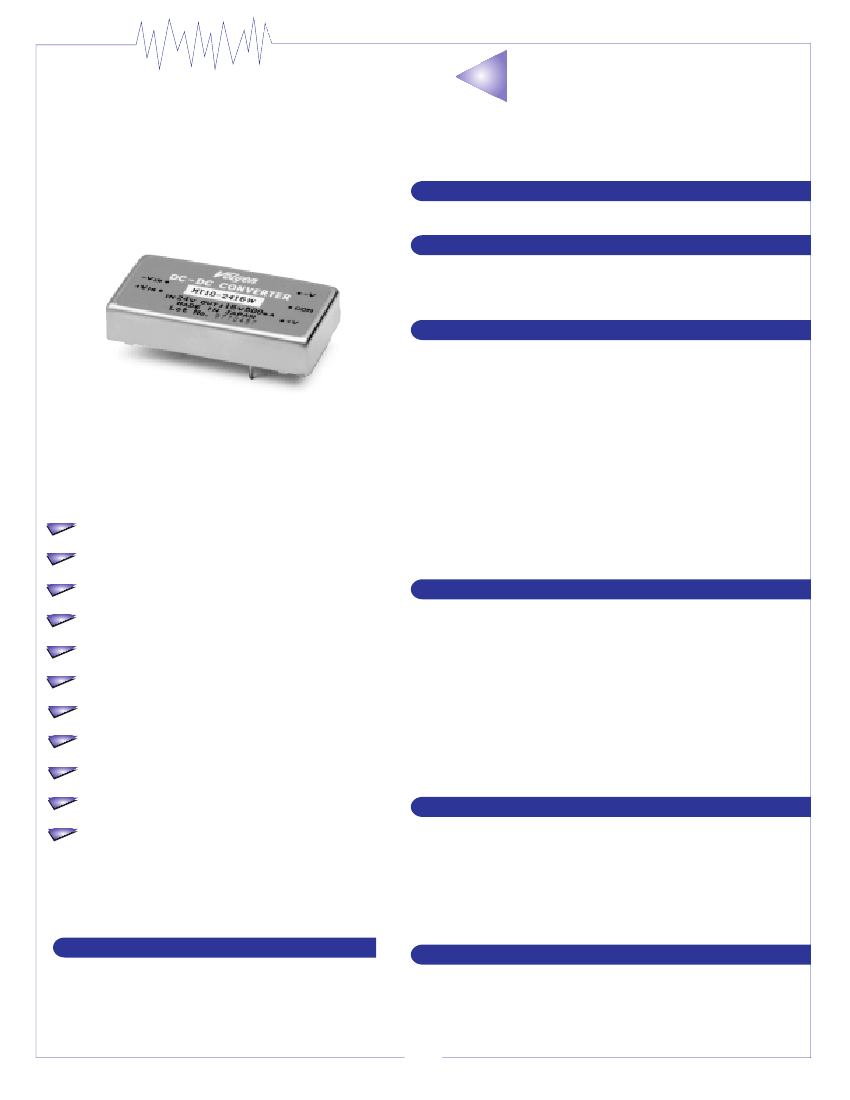

MT10
10 WATT DC/DC CONVER TER,
SINGLE & MULTIPLE OUTPUTS
ELECTRICAL SPECIFICATIONS
All specifications are typical at nominal input, full load
INPUT SPECIFICATIONS
Input Voltage Range ........................9-18 VDC MT10 - 12
18-36 VDC MT10 - 24
36-72 VDC MT10 - 48
OUTPUT SPECIFICATIONS
Output Voltage Accuracy................. ±0.5%
Over-Current Protection...................Built-in
Ripple Noise ................................... 150 mVp-p (DC to 20MHZ)
Line Regulation................................ ±0.5% max.
±10% max. (MT10 - **03S)
Line Filter......................................... Built-in
Load Regulation...............................±1.0% max.
(min-max load) MT10 Single
±3.0% max.
(min-max load) MT10 Dual
±5.0% max.
(min-max load) MT10***03S
FEATURES
RATED 15W AT 24VDC & 48VDC INPUT
SINGLE AND DUAL OUTPUTS
HIGH EFFICIENCY AND RELIABILITY
HIGH I/O ISOLATION 1500VDC
INTERNAL EMI FILTER
LOW OUTPUT RIPPLE AND NOISE
SHORT CIRCUIT PROTECTION
DIRECT PCB-SOLDERING
INDUSTRY STANDARD PINOUT (IC-24P)
LOW PROFILE, 10mm (0.39”) HEIGHT
TWO YEAR WARRANTY
GENERAL SPECIFICATIONS
Isolation Voltage
Input-Output..............................
Input-Output..............................
MTBF..............................................
Isolation Resistance........................
DC 1500V/ 1min.
MT10-48
DC 750V/ 1min.
MT10-12, MT10-24
>1.2 million hours
Input-Output-Case1000M-ohms
max.
(Measured at 500 VDC)
Short-Circuit Protection....................20mS max.
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature ................... -25˚C ~ +75˚C
(Case not to exceed 100˚C)
Temperature Coefficient...................0.05%/°C
Humidity........................................... 30%-95% RH
Storage Temperature....................... -30°C~+100°C
EMI
Complys with:
CISPR CLASS A

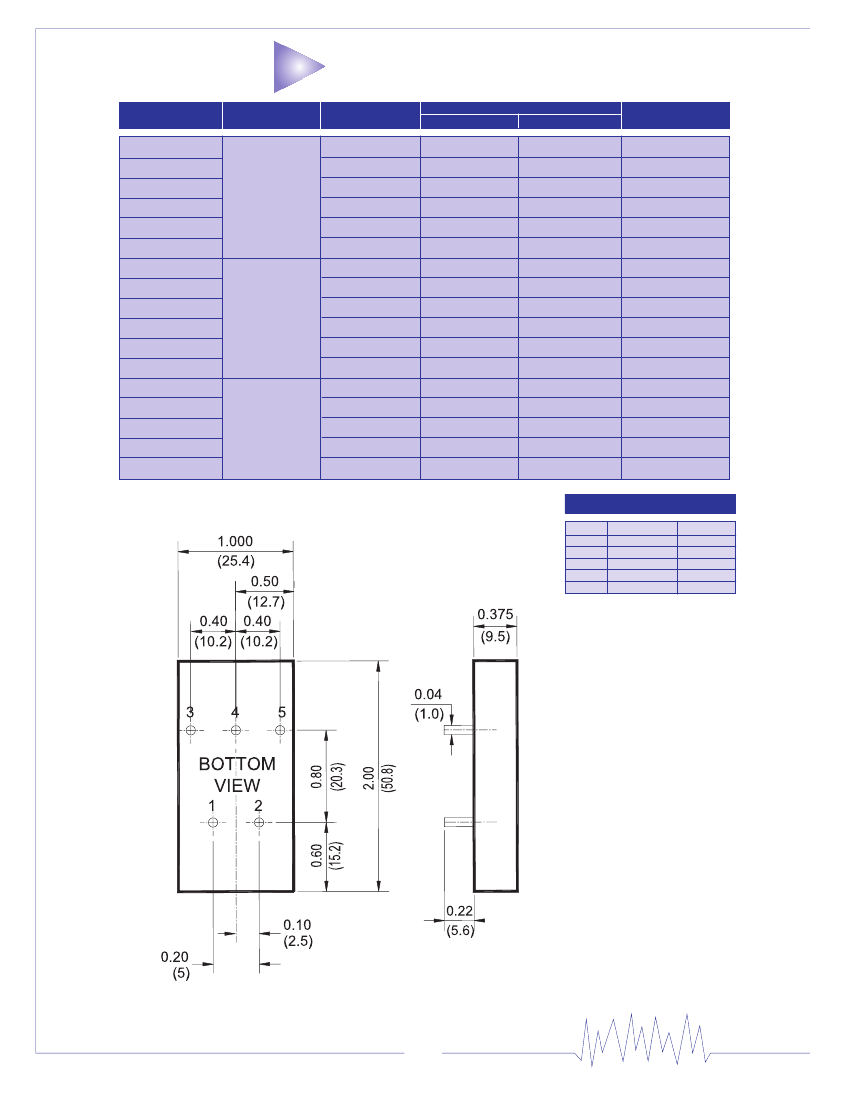

PHYSICAL SPECIFICATIONS
Case Material.....................................Nickel-Plated Steel
Dual In-Line Pin Configuration
12
