311200HDP26.5: DescriptionPower/Signal Relay, DPDT, Momentary, 0.038A (Coil), 26.5VDC (Coil), 1007mW (Coil), 2A (Contact), 28VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size322KB，4 Pages; ManufacturerSTPI Siege Social

Download Datasheet Parametric Compare View All

311200HDP26.5 Overview

Power/Signal Relay, DPDT, Momentary, 0.038A (Coil), 26.5VDC (Coil), 1007mW (Coil), 2A (Contact), 28VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount,

311200HDP26.5 Parametric

Parameter Name	Attribute value
Maker	STPI Siege Social
Reach Compliance Code	unknown
ECCN code	EAR99
body width	10.5 mm
body height	10.4 mm
Body length or diameter	20.6 mm
Maximum coil current (DC)	0.038 A
Coil operating voltage (DC)	19.8 V
Coil power	1007 mW
Coil release voltage (DC)	1 V
Coil resistance	700 Ω
Maximum coil voltage (DC)	26.5 V
Coil/Input Power Type	DC
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@28VDC
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	DC
Electrical life	100000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	6.5 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
physical size	20.6mm x 10.5mm x 10.4mm
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	6.5 ms
seal	HERMETICALLY SEALED
surface mount	NO
Terminal surface	GOLD
Termination type	SOLDER

Preview

Download Datasheet

View All

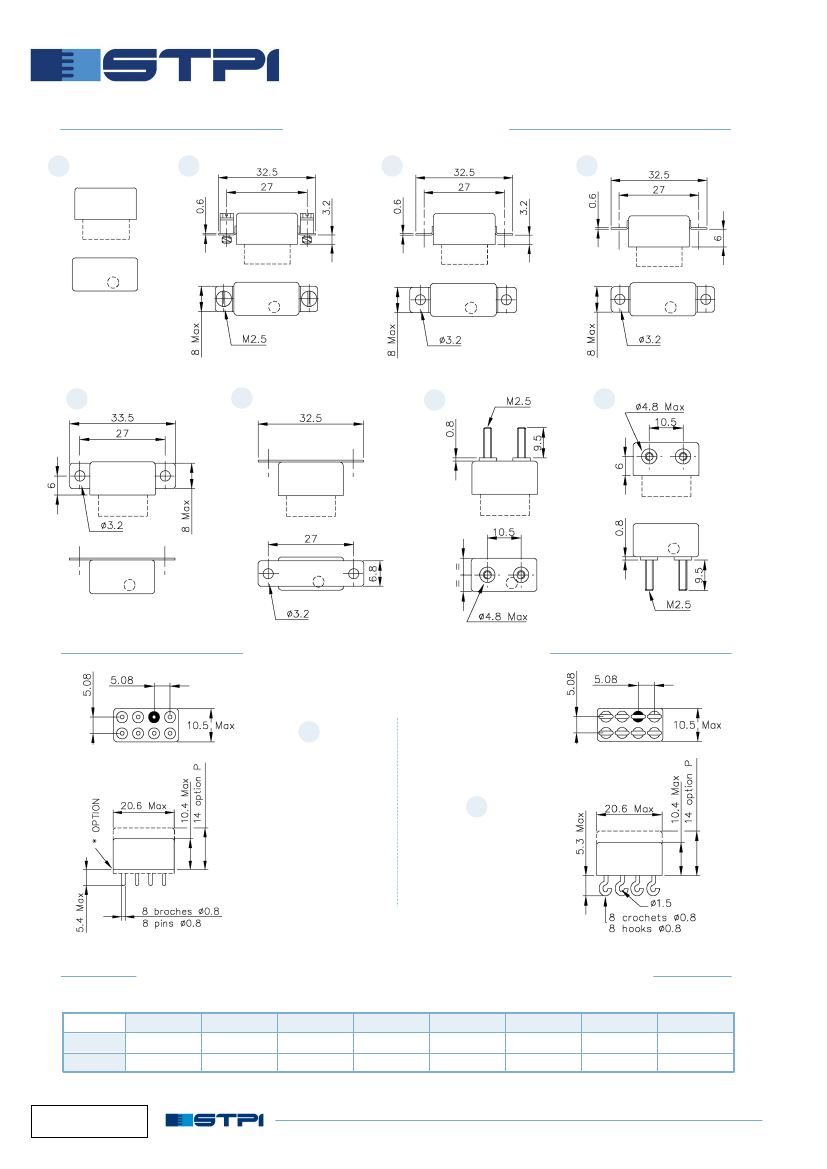

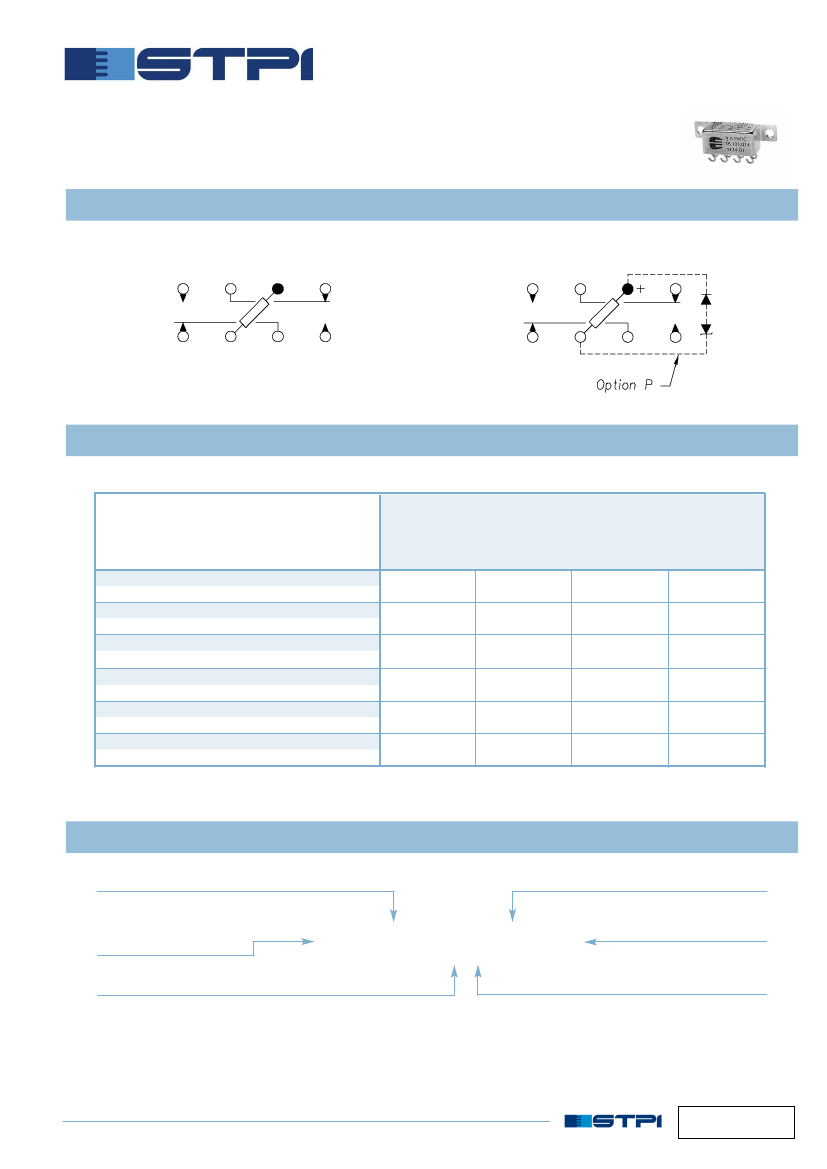

311 H 2

RT - DPDT

RELAIS HERMETIQUES

MONOSTABLES

HERMETICALLY SEALED

NON LATCHING

RELAY

CARACTERISTIQUES GENERALES

GENERAL CHARACTERICS

Combinaison des contacts

Contact arrangement

2 RT

DPDT

Pouvoir de coupure 28 Vcc

Contact rating 28 Vdc

Circuit résistif

Resistive load

2 Amps

Circuit inductif (L/R = 5 ms)

Inductive load (L/R = 5 ms)

0,75 A

0,75 Amps

Circuit moteur

Motor load

n/a

Circuit lampe

Lamp load

0,2 A

Alimentation

Supply

Courant continu (polarisé avec option P)

Direct current (polarised with P option)

Masse

Weight

1 g

11 g

Normes applicables en annexe

See appendice for applicable specifications

ENVIRONNEMENT

Température de fonctionnement

Temperature range

ENVIRONMENT

- 65° à + 1

25°C

- 65° to + 125°C

Position de fonctionnement

Operating position

Indifférente

Any

Tenue aux vibrations

Resistance against vibrations

30 g sin de 20 à 2 000 Hz

30 g sin from 20 to 2 000 Hz

Tenue aux chocs

Shocks resistance

100 g - 1 ms

100 g - 11 ms

Tenue aux secousses

Shake resistance

40 g

Accélération

Acceleration

100 g

Taux de fuite

Leak rate

1.10

-8

/sec

1.10

-8

/sec

58 Av. Claude VELLEFAUX - 75010 PARIS - FRANCE

311 1/4

Tel : 33.(0)1.42.03.94.20 - Fax : 33.(0)1.42.03.52.85 - www.stpigroup.com

311200HDP26.5 Related Products

	311200HDP26.5	311201HDP26.5	311203HDP26.5	311250HDP26.5	311200HDP12
Description	Power/Signal Relay, DPDT, Momentary, 0.038A (Coil), 26.5VDC (Coil), 1007mW (Coil), 2A (Contact), 28VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount,	Power/Signal Relay, DPDT, Momentary, 0.038A (Coil), 26.5VDC (Coil), 1007mW (Coil), 2A (Contact), 28VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount,	Power/Signal Relay, DPDT, Momentary, 0.038A (Coil), 26.5VDC (Coil), 1007mW (Coil), 2A (Contact), 28VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount,	Power/Signal Relay, DPDT, Momentary, 0.038A (Coil), 26.5VDC (Coil), 1007mW (Coil), 2A (Contact), 28VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount,	Power/Signal Relay, DPDT, Momentary, 0.08A (Coil), 12VDC (Coil), 960mW (Coil), 2A (Contact), 28VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	10.5 mm	10.5 mm	10.5 mm	10.5 mm	10.5 mm
body height	10.4 mm	10.4 mm	10.4 mm	10.4 mm	10.4 mm
Body length or diameter	20.6 mm	20.6 mm	20.6 mm	20.6 mm	20.6 mm
Maximum coil current (DC)	0.038 A	0.038 A	0.038 A	0.038 A	0.08 A
Coil operating voltage (DC)	19.8 V	19.8 V	19.8 V	19.8 V	10 V
Coil power	1007 mW	1007 mW	1007 mW	1007 mW	960 mW
Coil release voltage (DC)	1 V	1 V	1 V	1 V	0.5 V
Coil resistance	700 Ω	700 Ω	700 Ω	700 Ω	150 Ω
Maximum coil voltage (DC)	26.5 V	26.5 V	26.5 V	26.5 V	12 V
Coil/Input Power Type	DC	DC	DC	DC	DC
Maximum contact current (DC)	2 A	2 A	2 A	2 A	2 A
Contact (DC) maximum rated R load	2A@28VDC	2A@28VDC	2A@28VDC	2A@28VDC	2A@28VDC
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V	28 V
Contact/Output Power Type	DC	DC	DC	DC	DC
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
JESD-609 code	e4	e4	e4	e4	e4
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	6.5 ms	6.5 ms	6.5 ms	6.5 ms	6.5 ms
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
physical size	20.6mm x 10.5mm x 10.4mm	20.6mm x 10.5mm x 10.4mm	20.6mm x 10.5mm x 10.4mm	20.6mm x 10.5mm x 10.4mm	20.6mm x 10.5mm x 10.4mm
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	DPDT	DPDT	DPDT	DPDT	DPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	6.5 ms	6.5 ms	6.5 ms	6.5 ms	6.5 ms
seal	HERMETICALLY SEALED	HERMETICALLY SEALED	HERMETICALLY SEALED	HERMETICALLY SEALED	HERMETICALLY SEALED
surface mount	NO	NO	NO	NO	NO
Terminal surface	GOLD	GOLD	GOLD	GOLD	GOLD
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	STPI Siege Social	STPI Siege Social	STPI Siege Social	STPI Siege Social	-
Other features	-	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	-
