Clock OSC
SG-310SEF
SG-310SEF 24.576000 MHz C
Product name
Product Number / Ordering code
Q33310FE00186xx
Please refer to the 8.Packing information about xx (last 2 digits)
Output waveform CMOS
Pb free / Complies with EU RoHS directive
Reference weight Typ. 26 mg
1.Absolute maximum ratings
Parameter
Symbol
Maximum supply voltage
Storage temperature
Input voltage
Min.
-0.3
-40
-0.3
Typ.
-
-
-
Max.
4.2
125
Vcc+0.3
Unit
V
ºC
V
Conditions / Remarks
-
Storage as single product
ST terminal
Vcc-GND
T_stg
Vin
2.Specifications(characteristics)
Parameter
Symbol
Output frequency
Supply voltage
Operating temperature
Frequency tolerance
Current consumption
Stand-by current
Symmetry
Output voltage
Output load condition
Input voltage
Rise time
Fall time
Start-up time
Jitter
Min.
1.6
-20
-100
-
-
40
0.9Vcc
-
-
0.8Vcc
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-5
-
Typ.
24.5760
1.8
-
-
-
-
-
-
-
-
-
-
-
-
-
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
-
-
Max.
2.2
70
100
2
0.7
60
-
0.1Vcc
15
-
0.2Vcc
4
4
10
-
-
-
-
-
-
-
-
-
-
-
-
-
5
-
Unit
MHz
V
ºC
x10
-6
mA
µA
%
Conditions / Remarks
-
-
T_use
No load condition
ST = GND
50% Vcc Level L_CMOS=<15pF
IOH=-3mA
IOL=3mA
f0
Vcc
T_use
f_tol
Icc
I_std
SYM
V
OH
V
OL
L_CMOS
V
IH
V
IL
t
r
tf
t_str
t
DJ
T
RJ
t
RMS
t
p-p
t
acc
pF
CMOS Load
ST terminal
ST terminal
ns
ns
ms
ps
ps
ps
ps
ps
ps
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
x10
-6
0.2Vcc to 0.8Vcc Level, L_CMOS=15pF
0.2Vcc to 0.8Vcc Level, L_CMOS=15pF
t = 0 at 0.9Vcc
Deterministic Jitter
Random Jitter
δ(RMS of total distribution)
Peak to Peak
Accumulated Jitter(δ) n=2 to 50000
cycles
Off set Frequency: 12kHz to 20MHz
Off set 1Hz
Off set 10Hz
Off set 100Hz
Off set 1kHz
Off set 10kHz
Off set 100kHz
Off set 1MHz
@+25ºC first year
-
Phase jitter
Phase noise
t
PJ
L(f)
Frequency aging
f_age
1 Page
tr
tf
3.Timing chart
V
CC
80 %V
CC
50 %V
CC
20 %V
CC
GND
tw
t
4.Test circuit
1) Waveform observation
V
CC
ST
swich
by-pass
capacitor
supply
GND
OUT
Test Point
L_CMOS
2) Current consumption
swich
ST
V
CC
A
by-pass
capacitor
supply
GND
OUT
Test
Point
*Current consumption under the
disable function should be
= GND.
3) Condition
(1) Oscilloscope
· Band width should be minimum 5 times higher (wider) than measurement frequency.
· Probe earth should be placed closely from test point and lead length should be as short as possible
* Recommendable to use miniature socket. (Don’t use earth lead.)
(2) L_CMOS also includes probe capacitance.
(3) By-pass capacitor (0.01 mF to 0.1 mF) is placed closely between VCC and GND.
(4) Use the current meter whose internal impedance value is small.
(5) Power supply
· Start up time (0 %VCC ® 90 %VCC) of power source should be more than 150 ms.
· Impedance of power supply should be as lowest as possible.
2 Page

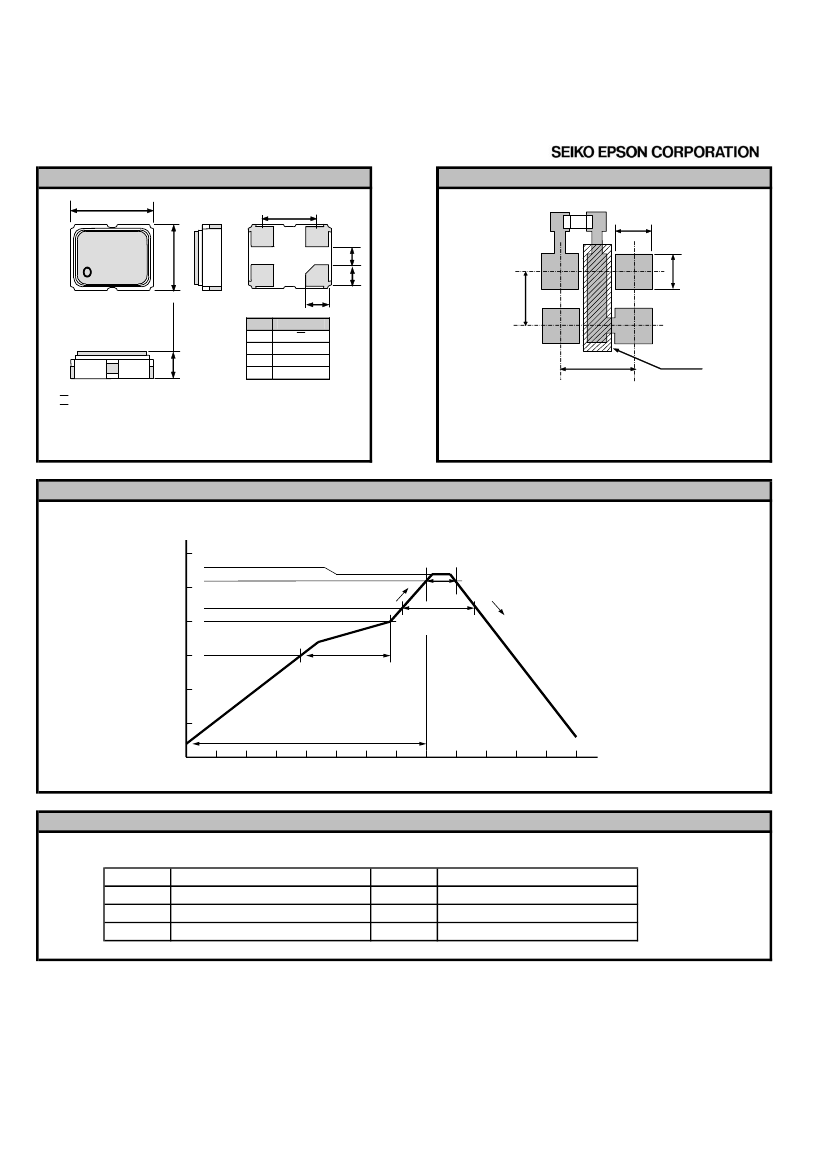

5.External dimensions
3.2
0.2
#4
#3
#3
(Unit: mm)
2.2
#4
6.Footprint(Recommended)
C (ex.0.01 µF)
1.4
(Unit: mm)
0.7 0.9
E25.00B
EF241A
#1
#2
2.5
0.2
#4
#3
0.9
Connection
ST
1.05
0.15
Pin map
Pin
1
2
3
4
1.9
#2
#1
GND
OUT
V
CC
#1
2.4
#2
Resist
Note.
ST
pin = HIGH or "open" : Specified frequency output.
ST
pin = LOW : Output is high impedance, oscillation stops.
To maintain stable operation, provide a 0.01uF to 0.1uF
by-pass capacitor at a location as near as possible to the
power source terminal of the crystal product (between Vcc
7.Reflow profile
Reflow condition (Follow of JEDEC STD-020D.01)
Temperature[C]
300
250
200
150
100
50
Time
+25CtoPeak
0
60
120 180 240 300 360 420 480 540 600 660 720 780
Time[s]
;+217C
Tsmax;+200C
TL
TP
;+260C
+255C
Avg.
Ramp-up
3
C/sMax.
tp
;20sto40s
tL
60sto150s
(+217Cover)
Ramp-down
6C/sMax.
Tsmin;+150C
ts
60sto180s
(+150Cto+200C)
8.Packing information
[ 1 ]Product number last 2 digits code(xx) description
The recommended code is "00"
Code
13
14
00
Condition
500pcs / Reel
1000pcs / Reel
2000pcs / Reel
Q33310FE00186xx
Code
01
11
12
Condition
Any Q'ty vinyl bag(Tape cut)
Any Q'ty / Reel
250pcs / Reel
3 Page
1.2

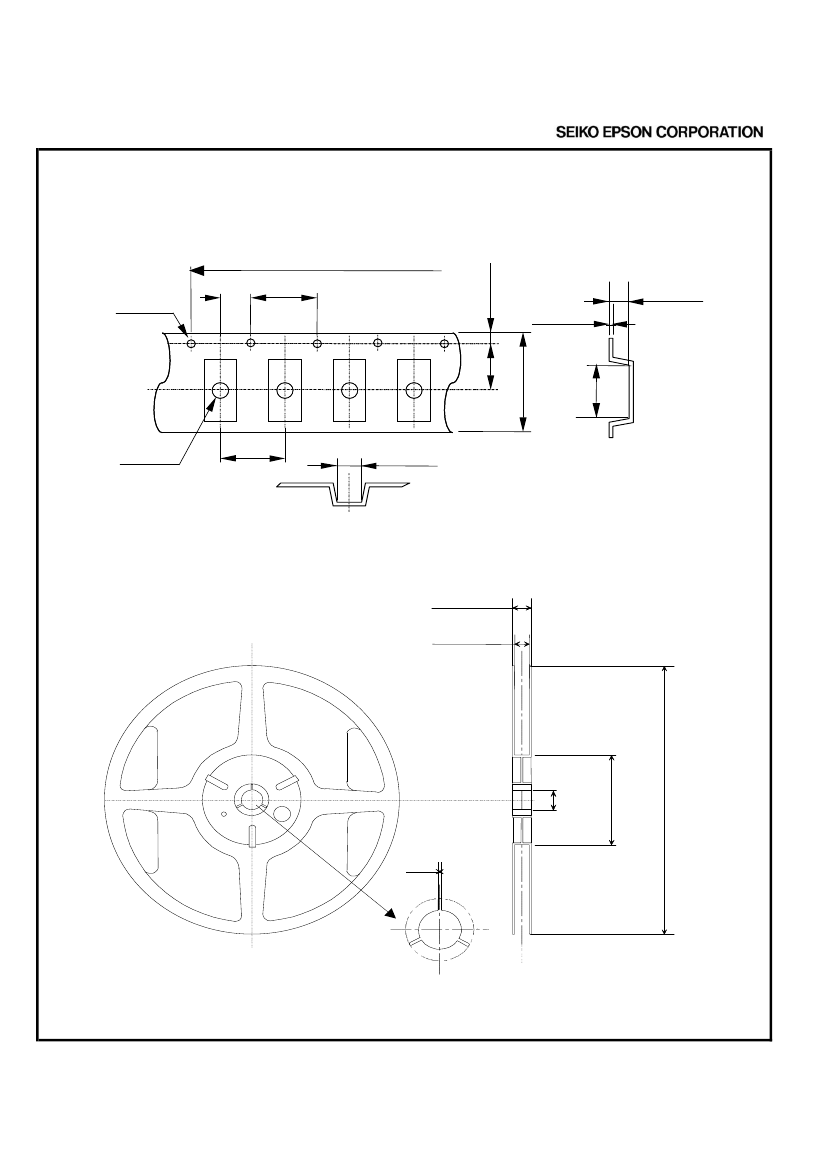

[ 2 ] Taping specification
Subject to EIA-481 & IEC-60286
(1) Tape dimensions
Material
of the Carrier Tape : PS
Material
of the Top Tape : PET+PE
10 P: 400.1
+0.1
φ1.55
-0
Unit: mm
1.750.1
1.40.1
0.250.05
2.00.1
4.00.1
3.50.1
8.00.2
φ1.00.1
4.00.1
2.80.1
(2) Reel dimensions
Center material
: PS
Material of the Reel : PS
11.41.0
9.00.3
Unit: mm
φ
13.00.2
3.50.1
2.0
-0
+0.3
4 Page
φ
180.0
-3.0
φ
60.0
+0
9.Notice
· This material is subject to change without notice.
· Any part of this material may not be reproduced or duplicated in any form or any means without the written
permission of Seiko Epson.
· The information about applied data,circuitry, software, usage, etc. written in this material is intended for
reference only.
Seiko Epson does not assume any liability for the occurrence of customer damage or infringing on any patent
or copyright of a third party.
This material does not authorize the licensing for any patent or intellectual copyrights.
· When exporting the products or technology described in this material, you should comply with the applicable
export control laws and regulations and follow the procedures required by such laws and regulations.
· You are requested not to use the products (and any technical information furnished, if any) for the development
and/or manufacture of weapon of mass destruction or for other military purposes. You are also requested that
you
would not make the products available to any third party who may use the products for such prohibited
purposes.
· These products are intended for general use in electronic equipment. When using them in specific applications
that require
extremely high reliability, such as the applications stated below, you must obtain permission from Seiko Epson
in advance.
/ Space equipment (artificial satellites, rockets, etc.)
/ Transportation vehicles and related (automobiles, aircraft, trains, vessels, etc.)
/ Medical instruments to sustain life
/ Submarine transmitters
/ Power stations and related
/ Fire work equipment and security equipment
/ Traffic control equipment
/ And others requiring equivalent reliability.
10.Contact us
http://www5.epsondevice.com/en/contact/
5 Page
