VCXO/VCSO
Product name
VG7050EBN
Product code / Ordering code
VG7050EBN
693.482990MHz CJGHBZ
X1G0045510007xx
Please refer to the 8.Packing information about xx (last 2 digits)
Output waveform
LV-PECL
Pb free / Complies with EU RoHS directive
Reference weight Typ.166mg
1.Absolute maximum ratings
Parameter
Symbol
Maximum supply voltage
Storage temperature
Input voltage
Min.
-0.3
-55
-0.3
Typ.
-
-
-
Max.
+4
+125
Vcc+0.3
Unit
V
ºC
V
Conditions / Remarks
-
-
Vc pin
Vcc-GND
T_stg
Vin
2.Specifications(characteristics)
Parameter
Symbol
Output frequency
Supply voltage
Control voltage
Operating temperature
Frequency tolerance
Current consumption
Disable current
Frequency control range
Absolute pull range
Modulation characteristics
Input resistance
Frequency change polarity
Symmetry
Output voltage
Output load condition
Input voltage
Rise time
Fall time
Start-up time
Jitter
Min.
2.97
0.3
-40
-50
-
-
-
+/-50
10
5000
45
Vcc-1.025
-
-
70%Vcc
-
-
-
-
-
-
-
-
-
-
-
Typ.
693.4830
3.3
1.65
-
-
-
-
-
-
-
-
-
-
50
-
-
-
-
-
0.1
2.5
2.5
20
2.5
0.2
-
Max.
3.63
3
+85
+50
90
-
-
-
-
55
-
Vcc-1.62
-
-
30%Vcc
0.4
0.4
10
-
-
-
-
-
-
-
Unit
MHz
V
V
ºC
x10
-6
mA
mA
x10
-6
x10-6
kHz
kΩ
%
V
V
Ω
V
V
ns
ns
ms
ps
ps
ps
ps
ps
ps
x10
-6
Conditions / Remarks
-
Vc=1.65V+/-1.35V
-
includes 10 years aging
L_ECL = 50Ω
-
-
-
+/-3 dB
DC Level
Positive polarity
at outputs crossing point
-
-
Outputs terminated to Vcc-2.0V
OE pin
OE pin
20 % to 80 % of amplitude
20 % to 80 % of amplitude
-
Deterministic Jitter
Random Jitter
δ(RMS of total distribution)
Peak to Peak
Accumulated Jitter(δ) n=2 to 50000
cycles
Off set Frequency: 12kHz to 20MHz
Included in frequency tolerance
f0
Vcc
Vc
T_use
f_tol
Icc
I_dis
f_cont
APR
BW
Rin
-
SYM
VOH
VOL
ECL
VIH
VIL
tr
tf
t_str
t
DJ
T
RJ
t
RMS
t
p-p
t
acc
Phase jitter
Frequency aging
tPJ
f_aging
1 Page
3.Timing chart
Output wave form
Vcc
80 % of amplitude
OUT
tr
tf
20 % of amplitude
Vcc-2 V
OUT
GND
tw
SYM = tw / t
t

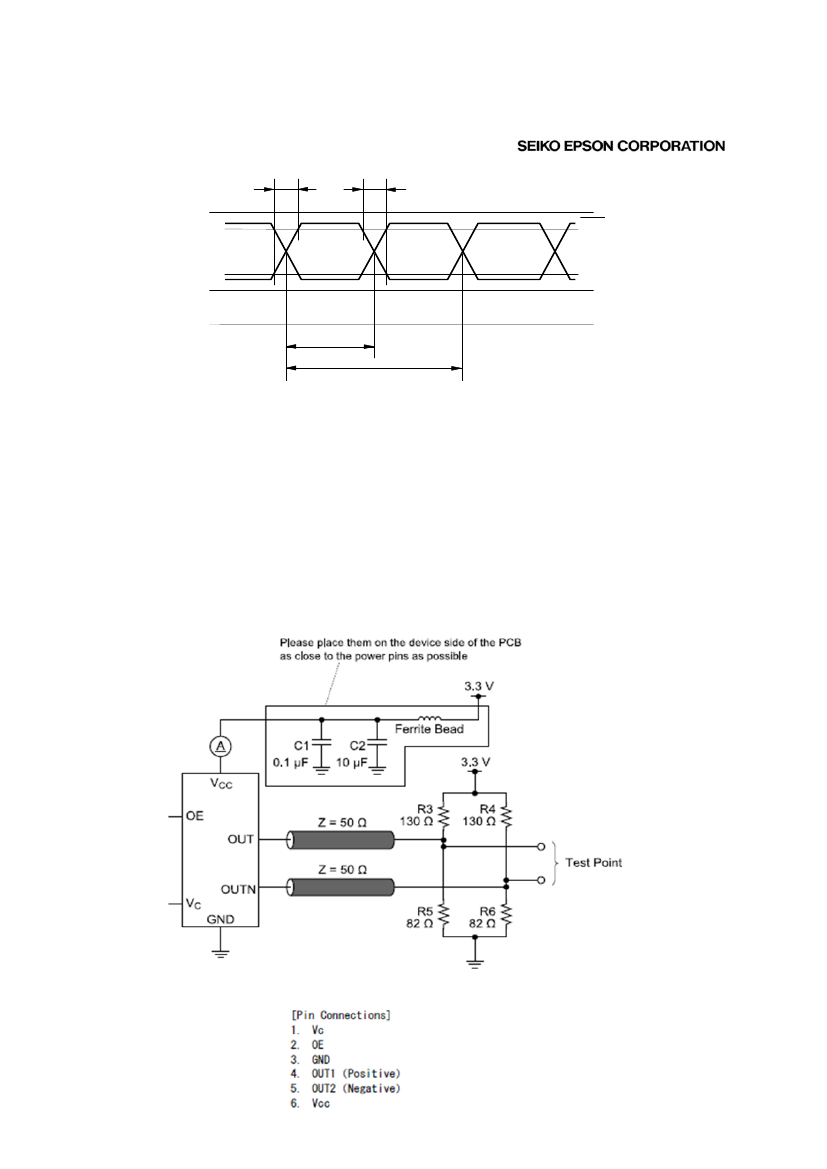

4.Test circuit
1) Condition
(1) Oscilloscope
• Bandwidth should be 5 times higher than DUT’s output frequency.
• Probe ground should be placed closely from test point and lead length should be as short
as possible.
(2) By-pass capacitor (approx. 0.01mF½0.1 mF) should be placed closely between Vcc and GND.
(3) Use the current meter whose internal impedance value is small.
(4) Power supply
• Start up time(0 V→90 %Vcc)of power source should be more than 150us.
• Impedance of power supply should be as low as possible.
2) Vcc = 3.3V
2 Page
5.External dimensions
(Unit: mm)
6.Footprint(Recommended)
C(ex. 0.01 µF)
#6
#5
1.8
#4
(Unit: mm)
C
4.2
Resist
#1
#2
5.08
#3
To maintain stable operation, provide a 0.01uF to 0.1uF
by-pass capacitor at a location as near as possible to the
power source terminal of the crystal product (between Vcc
- GND).
7.Reflow profile
Reflow condition (Follow of JEDEC STD-020D.01)
Temperature[C]
300
250
200
150
100
50
Time
+25CtoPeak
0
60
120 180 240 300 360 420 480 540 600 660 720 780
Time[s]
;+217C
Tsmax;+200C
TL
TP
;+260C
+255C
Avg.
Ramp-up
3
C/sMax.
tp
;20sto40s
tL
60sto150s
(+217Cover)
Ramp-down
6C/sMax.
Tsmin;+150C
ts
60sto180s
(+150Cto+200C)
8.Packing information
[ 1 ]Product number last 2 digits code(xx) description
The recommended code is "00"
Code
12
13
Condition
250pcs / Reel
500pcs / Reel
X1G0045510007xx
Code
00
01
11
Condition
1000pcs / Reel
Any Q'ty vinyl bag(Tape cut)
Any Q'ty / Reel
4 Page
2.0
[ 2 ] Taping specification
Subject to EIA-481 & IEC-60286
(1) Tape dimensions
Material
of the Carrier Tape : PS
Material
of the Top Tape : PET+PE
A
B
Carrier tape
Unit: mm
D
E
Top tape
C
F
Symbol
Value
A
Φ1.5
B
4
C
8
D
9.25
E
16
F
2.3
(2) Reel dimensions
Center material
: PS
Material of the Reel : PS
