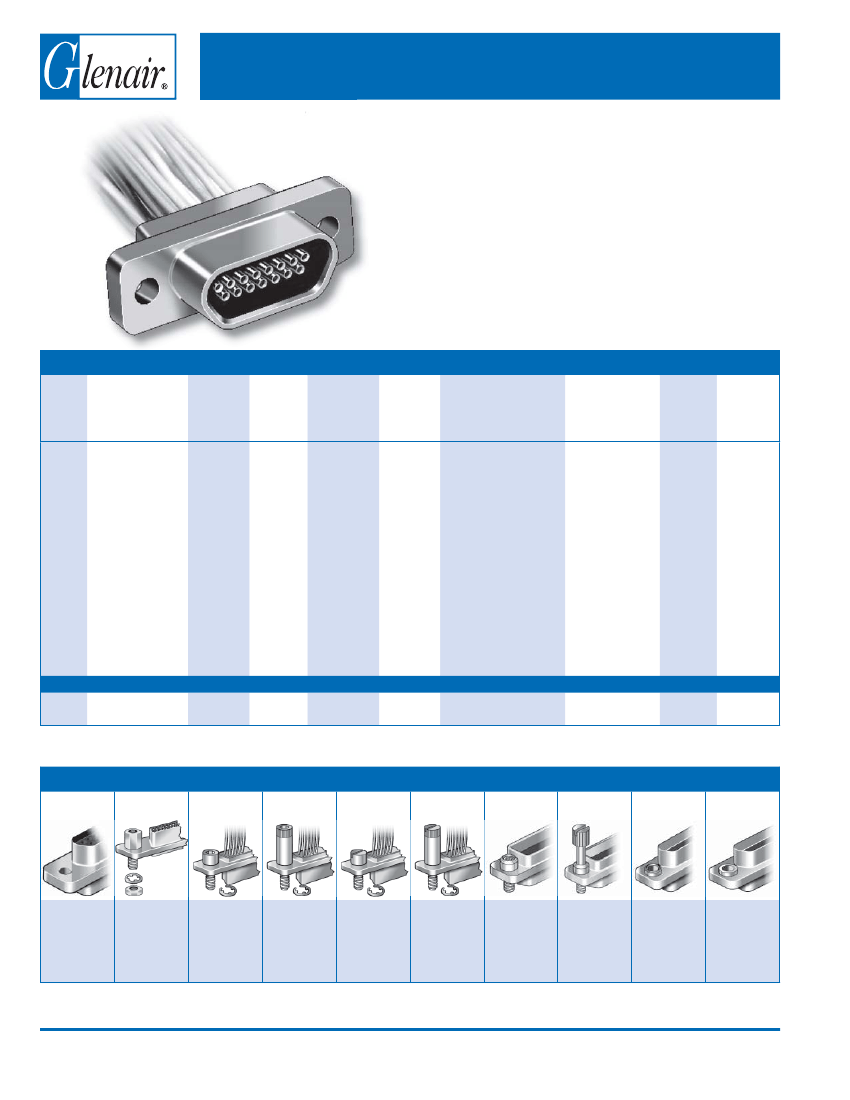

MWDM2L-9P-6J: DescriptionMicro-D Metal Shell MWDM Pre-Wired with Insulated Wire; File Size177KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

MWDM2L-9P-6J Overview

Micro-D Metal Shell MWDM Pre-Wired with Insulated Wire

Preview

Download Datasheet

View All

Micro-D Metal Shell

MWDM Pre-Wired with Insulated Wire

Micro-D Pre-Wired Pigtails–These

connectors feature

gold-plated TwistPin contacts and mil spec crimp

termination. Specify nickel-plated shells or cadmium

plated shells for best availability. 100% tested and

backpotted, ready for use.

Choose the Wire Type and Size To Fit Your Application–

If on-hand availability is most important, choose #26

AWG Type K mil spec Teﬂon

wire. Select M22759/33

Type J for space applications.

HOW TO ORDER METAL SHELL PRE-WIRED MICRO-D CONNECTORS

Shell Material

and Finish

Insulator Contact

Material Layout

– LCP

30% Glass-

Filled Liquid

Crystal

Polymer

Series

Contact

Type

– Pin

– Socket

Wire

Gage

(AWG)

– #24

– #26

– #28

–

#30

Wire Type

–

M22759/11

600 Vrms Teﬂon

(TFE)

Wire Color

–

White

–

Yellow

–

Color-Coded

Stripes Per

MIL-STD-

681

(Striped wire not

available on 67,

69 or 100 pin

connectors or for

#28, #30 AWG)

Wire

Length

Inches Hardware

Wire Length

In Inches. “18”

Speciﬁes 18

Inches.

MWDM

Aluminum Shell

– Cadmium

– Nickel

– Black Anodize

– Gold

– Chem Film

Stainless Steel

Shell

–

Passivated

51-2

100

–

M22759/33

600 Vrms Modiﬁed

Cross-Linked

Tefzel® (ETFE)

–

NEMA HP3-EB

600 VrmsType E

M16878/4 (TFE)

(replaced by

M22759/11 for mil

spec applications)

–

Ten Color

Repeating

Sample Part Number

MWDM

L –

S –

7 –

MICRO-D MOUNTING HARDWARE

Thru-Hole Jackpost Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Float Mount Float Mount

Order

Hardware

Separately

Removable

Includes Nut

and Washer

Hex Head

Removable

E-ring

Hex Head

Removable

E-ring

Extended

Slot Head

Removable

E-ring

Slot Head

Removable

E-ring

Extended

Hex Head

Non-

Removable

Slot Head

Non-

Removable

Extended

For Front

Panel

Mounting

For Rear

Panel

Mounting

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

B-4

E-Mail: sales@glenair.com
