BD040-40-A-E-1800-0200-L-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BD040-40-A-E-1800-0200-L-D

BD040-40-A-E-1800-0200-L-D: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking,; CategoryThe connector The connector; File Size167KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD040-40-A-E-1800-0200-L-D Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking,

BD040-40-A-E-1800-0200-L-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
body width	0.134 inch
subject depth	0.709 inch
body length	1 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	BD040
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9878 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	40

Preview

Download Datasheet

View All

1.27

0.40 sq. Pin

1.27

Number of

Contacts

Dimension

2.54

3.81

5.08

6.35

7.62

8.89

10.16

11.43

12.70

13.97

15.24

16.51

17.78

19.05

20.32

21.59

22.86

24.13

25.40

26.67

27.94

29.21

30.48

31.75

33.02

34.29

35.56

36.83

38.10

39.37

40.64

3.81

5.08

6.35

7.62

8.89

10.16

11.43

12.70

13.97

15.24

16.51

17.78

19.05

20.32

21.59

22.86

24.13

25.40

26.67

27.94

29.21

30.48

31.75

33.02

34.29

35.56

36.83

38.10

39.37

40.64

41.91

B±0.38

A±0.25

0.65

Recommended PCB Layout

1.27

C±0.2

'H'

5.5

Specifications

规格

Material

物料

Insulator Material

绝缘½物料

Option

可选物料

: Polyester

聚酯

LCP, UL 94V-0

(where Insulator Height H = A, B, L, E)

Option

可选物料

: Polyamide

聚醯胺

Nylon 6T, UL 94V-0

(where Insulator Height H = K)

Contact Terminal

接触端子

: Copper Alloy

Plating

电镀

See Ordering Grid

Electrical

电气

Current Rating

电流额定值

: 1A

Contact Resistance

接触电阻值

: 20 mΩ max.

Insulating Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstand Voltage

耐电压

: 300V AC

Mechanical & Environmental

机械

环境

Operating Temperature

工½温度

: -40°C to +105°C

Mates with

配套之母座

Ordering Grid

D±0.2

BD040

No. of Contacts

06 to 66

6.50

3.4

1.5

XXXX

Request Samples

and Quotation

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/ Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Dimension H

(Insulator Height)

E = 2.54mm

(Standard)

K = 1.00mm

A = 1.50mm

B = 2.00mm

L = 2.50mm

Packing Options

B = Tape and Reel with Cap

(Standard)

D = Tube

(Standard - where total height exceeds 25mm)

E = Tube with Cap

Insulator Material

L = LCP

(where Insulator Height H = A, B, L, E)

N = Nylon 6T

(where Insulator Height H = K)

Dimension C

(1/100mm) (Post Height)

0200 = 2.00mm

(Standard)

or specify Custom Post Height

eg. 2.50mm = 0250

Dimension D

(1/100mm) (Stack Height)

Minimum = (2 x 'H') + 0.5mm

Maximum = 18mm

Specify Custom Stack Height

eg. 0250 = 2.5mm

Part Number

Product Description

BD040

Drawing Date

(Subject to pin length

在端子长度适合的条件下

)

BD050

BD065

BD055

BD067

BD060

BD091

BD064

BD092

21st December 2007

Detail

Revision

Date

AJO

Dimension

Removed

05/05/15

Length

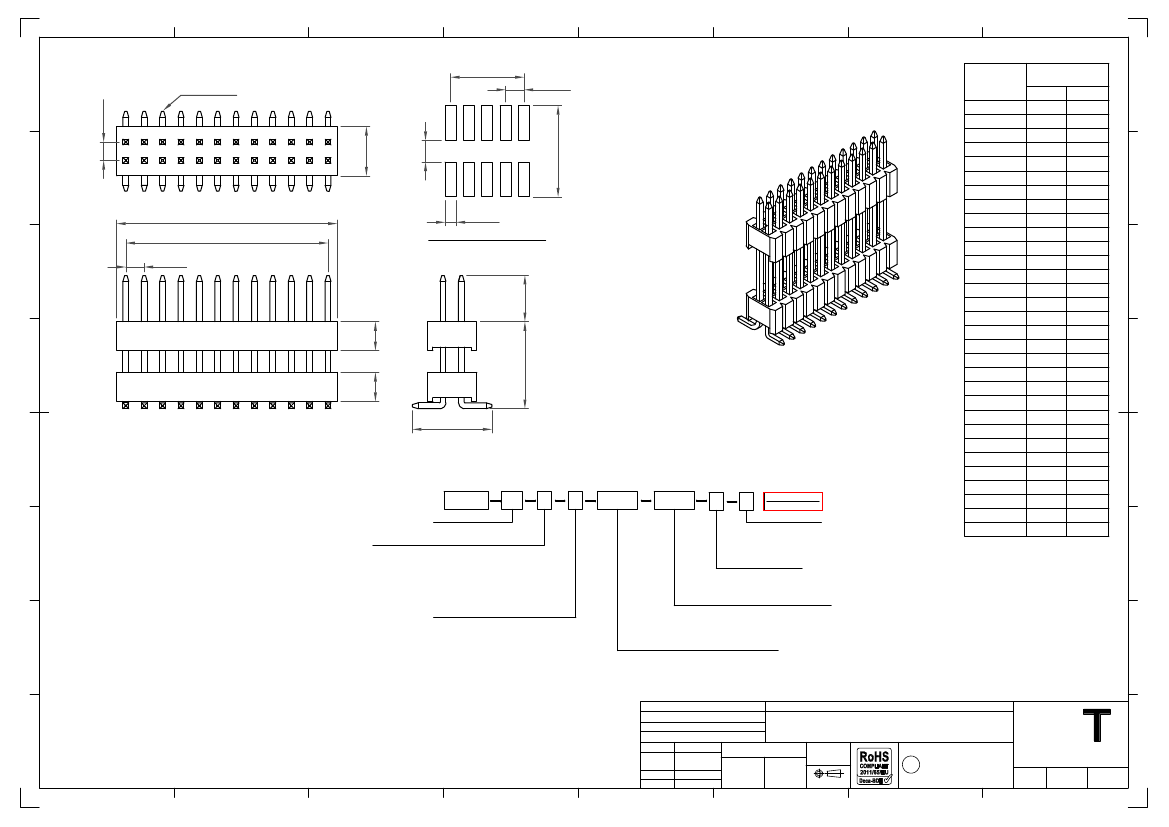

1.27mm Pitch Elevated Pin Header

Dual Row, Surface Mount, Vertical

Tolerances

(Except as Noted)

Angle

X.° ± 5°

X. ± 0.30

X.X° ± 2°

X.X ± 0.20

X.XX° ± 1°

X.XX ± 0.15

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

AJO

www.gct.co

Not to

Scale

Sheet No.

1/1
