DSS-327PIN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DSS-327PIN

DSS-327PIN: Description5 MHz - 1000 MHz RF/MICROWAVE SPLITTER, 1 dB INSERTION LOSS; CategoryWireless rf/communication Radio frequency and microwave; File Size94KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

DSS-327PIN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DSS-327PIN	-	-	View	Buy Now

DSS-327PIN Overview

5 MHz - 1000 MHz RF/MICROWAVE SPLITTER, 1 dB INSERTION LOSS

DSS-327PIN Parametric

Parameter Name	Attribute value
Maker	MACOM
Reach Compliance Code	compli
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	30 dBm
Maximum insertion loss	1 dB
Maximum operating frequency	1000 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	1.6

Preview

Download Datasheet

View All

DSS-327

Surface Mount Two-Way Power Divider,

5 - 1000 MHz

Features

•

Fully Hermetic Package

Low Loss: 0.3 dB Typical

Amplitude Balance: 0.05 dB Typical

Impedance: 50 Ohms Nominal

Maximum Power Rating or Input Power: 1 Watt Max.

Internal Load Dissipation: 0.05 Watts Max.

MIL-STD-202 Screening Available

Rev. V4

SF-1

Description

A Power Divider is ideally a lossless reciprocal

device which can also perform vector summation of two

or more signals and thus is sometimes called a power

combiner or summer.

Pin Configuration

Pin No.

Function

Output C

Pin No.

Function

GND

Output D

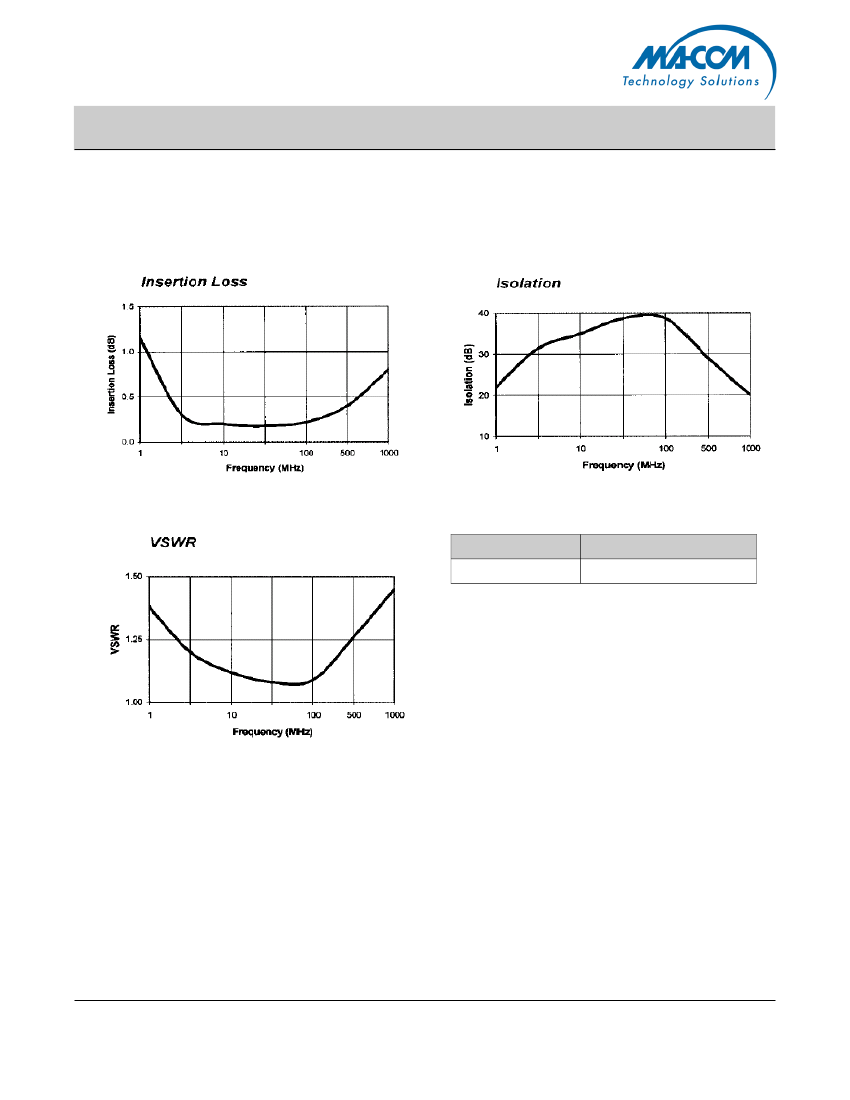

Electrical Specifications

: T

= -55°C to +85°C

Parameter

Insertion Loss

Isolation

Test Conditions

Less Coupling

—

Frequency

5 - 500 MHz

500 - 1000 MHz

5 - 500 MHz

500 - 1000 MHz

5 - 1000 MHz

5 - 500 MHz

500 - 1000 MHz

10 - 500 MHz

5 - 1000 MHz

Units

Ratio

Min

—

Typ

—

Max

0.5

1.0

—

0.3

1.4:1

1.6:1

Amplitude Balance

Phase Balance

VSWR

—

All Ports

1. All specifications apply with 50 ohm source and load impedance.

This product contains elements protected by United States Patent Number 3,428,920.

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.

DSS-327PIN Related Products

	DSS-327PIN	DSS-327
Description	5 MHz - 1000 MHz RF/MICROWAVE SPLITTER, 1 dB INSERTION LOSS	5 MHz - 1000 MHz RF/MICROWAVE SPLITTER, 1 dB INSERTION LOSS
Maker	MACOM	MACOM
Reach Compliance Code	compli	compli
Characteristic impedance	50 Ω	50 Ω
structure	MODULE	COMPONENT
Maximum input power (CW)	30 dBm	30 dBm
Maximum insertion loss	1 dB	1 dB
Maximum operating frequency	1000 MHz	1000 MHz
Minimum operating frequency	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	SPLITTER	SPLITTER
Maximum voltage standing wave ratio	1.6	1.6
