D38999 QPL
Hermetics
Shell Style
MS27475
-
Wall Mount, Series II
MS27475
Wall Mount Hermetic Receptacle
MIL-DTL-38999 Series II
How To Order:
MS
Connector Material / Finish
D
- Carbon Steel - Fused Tin Finish
E
- Stainless Steel - Passivate Finish
N
- Stainless Steel - Nickel Finish
Contact Termination
P
- Pin, Solder Cup
S
- Socket, Solder Cup
H
X
- Pin, Eyelet
A
Z
- Socket, Eyelet
B
D
- Socket, PCB
C
- Pin, PCB
K J
G
Flex Feedthrough
Flex Feedthrough
C
F
D
E
B
MS27475
Class
Y-
Hermetic
Y
10
N
35
P
A
ø G Holes
J
Shell Size
8,10,12,14,16,18,20,22,24
Insert Arrangement
MIL-DTL-38999 Series II
Hermetic Inserts Per
MIL-STD-1560;
See Pages B-2 - B4
Alternate Key
Position
A, B, C, D
(Omit for Normal)
J
ø H Min
Front Panel
Mounting
BSQ
FP Max (Pin)
FS Max (Socket)
.344 (8.7) Max
.094 (2.39) Min Full Thread
Marking Location
(Either Location)

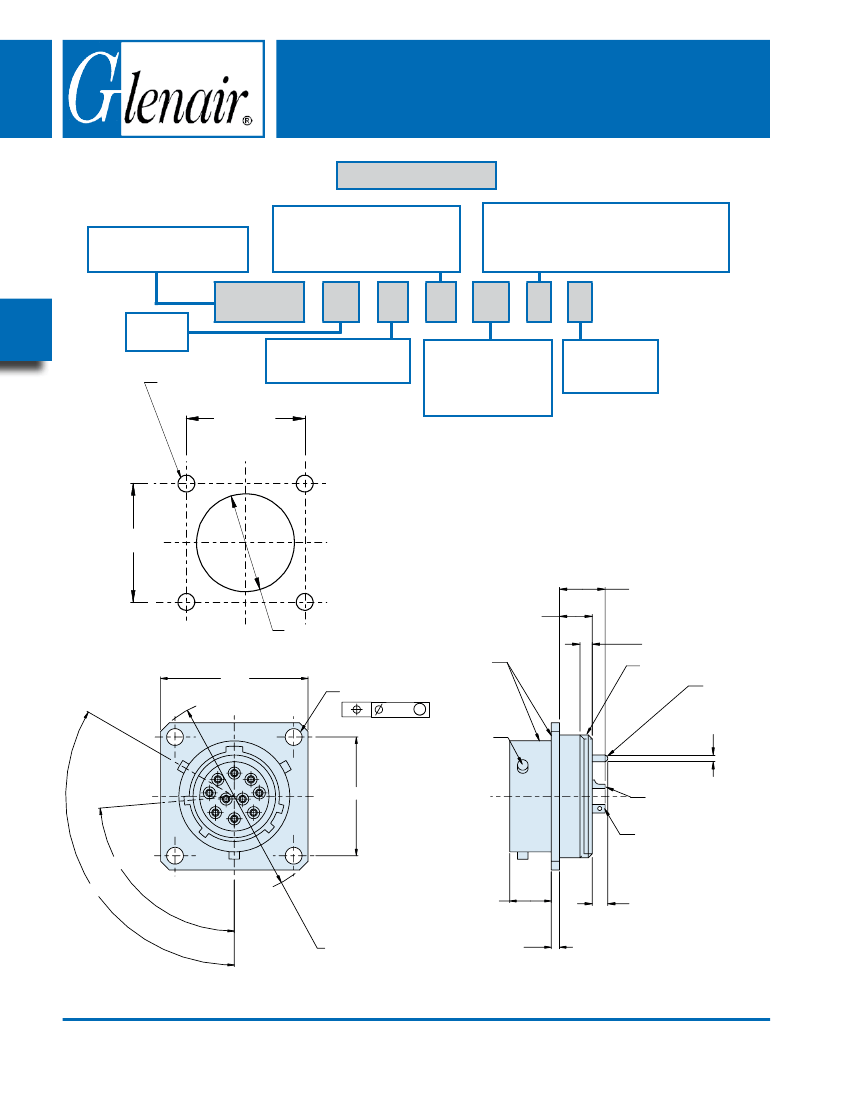

4 x Ø C Holes
.005
M
.005
M
Contrasting Color
Pin Ends 3 Pl
D Thread
Feedthrough
Contact (C)
P (See Table II)
A
H
B
C
G
K
J
2 x A BSC
F
E
D
Solder Cup
Contact (P)
Eyelet
Contact (X)
85° BSC
2 x 120° BSC
.322 (8.2)
.312 (7.9)
Ø E Max
.069 (1.8)
.058 (1.5)
.175 (4.5)
.125 (3.2)
© 2008 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
B-12
MS27475
Wall Mount Hermetic Receptacle
MIL-DTL-38999 Series II
How To Order:
Commercial
Connector Series
232
-
Series II Type
Shell Style
H0
- Hermetic Wall Mount
Shell Size
08,10,12,14,16,18,20,22,24
Contact Termination
P
- Pin, Solder Cup
S
- Socket, Solder Cup
X
- Pin, Eyelet
Z
- Socket, Eyelet
C
- Pin, PCB
D
- Socket, PCB
232
-
100
-
H0
Connector Type
100
-
Hermetic
Receptacle
Z1
10
-
35
P
N
Alternate Key Position
A, B, C, D,
(N = Normal)
Connector Material / Finish
ZL
- CRES, Nickel
Z1
- CRES, Passivated
FT
- Carbon Steel, Fused Tin
Insert Arrangement
Per MIL-STD-1560;
See Pages B-2 - B-4
TABLE I: CONNECTOR DIMENSIONS
SHELL
SIZE
8/08
10
12
14
16
18
20
22
24
A
BSC
.594(15.1)
.719(18.3)
.812(20.6)
.906(23.0)
.969(24.6)
1.062(27.0)
1.156(29.4)
1.250(31.8)
1.375(34.9)
B
SQ MAX
.828(21.0)
.954(24.2)
1.047(26.6)
1.141(29.0)
1.234(31.3)
1.328(33.7)
1.453(36.9)
1.578(40.1)
1.703(43.3)
.157(4.0)
.142(3.6)
.130(3.3)
.115(2.9)
øC
HOLES
D Threads
(UNEF-2A)
.5625-24
.6875-24
.8125-20
.9375-20
1.0625-18
1.1875-18
1.3125-18
1.4375-10
1.5625-18
øE
MAX
1.078(27.4)
1.256(31.9)
1.391(35.3)
1.516(38.5)
1.641(41.7)
1.766(44.9)
1.891(48.0)
2.016(51.2)
2.204(56.0)
.375
(9.53)
.406
(10.3)
.250
(6.35)
.375
(9.5)
FP
MAX
FS
MAX
TABLE ll: CONTACT SIZE
PRINTED CIRCUIT TAIL CONFIGURATIONS
CONTACT STYLE C AND D
P
SIZE 12 AND SIZE 16
.050 ± .015
(1.27 ± 0.38)
SIZE 22D AND SIZE 20
Contact
Size
22D
20
16
12
P
ø P
.011 (0.28)
.015 (0.38)
.024 (0.61)
.028 (0.71)
.0635 (1.61)
.0615 (1.56)
.095 (2.41)
.093 (2.36)
TABLE I (CONTINUED):
CONNECTOR DIMENSIONS
SHELL
SIZE
8
10
12
14
16
18
20
22
24
.159(4.0)
.149(3.8)
.133(3.4)
.123(3.1)
øG
HOLES
øH
MIN
.570(14.5)
.690(17.5)
.820(20.8)
.940(23.9)
1.070(27.2)
1.190(30.2)
1.320(33.5)
1.440(36.6)
1.570(39.9)
øJ
BSC
.594(15.1)
.719(18.3)
.812(20.6)
.906(23.0)
.969(24.6)
1.062(27.0)
1.156(29.4)
1.250(31.8)
1.375(34.9)
© 2008 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
B-13
D38999 QPL
