10-63-3023: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.295 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size93KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

10-63-3023 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.295 inch Pitch, Solder Terminal, Receptacle

10-63-3023 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SPOX, POLARIZED
body width	0.25 inch
subject depth	0.126 inch
body length	0.421 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	9.7856 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	5287
Plug contact pitch	0.295 inch
Plug information	10-63-3024
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	5 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-2
Evacuation force-minimum value	.973 N
Base Number Matches	1

Preview

Download Datasheet

View All

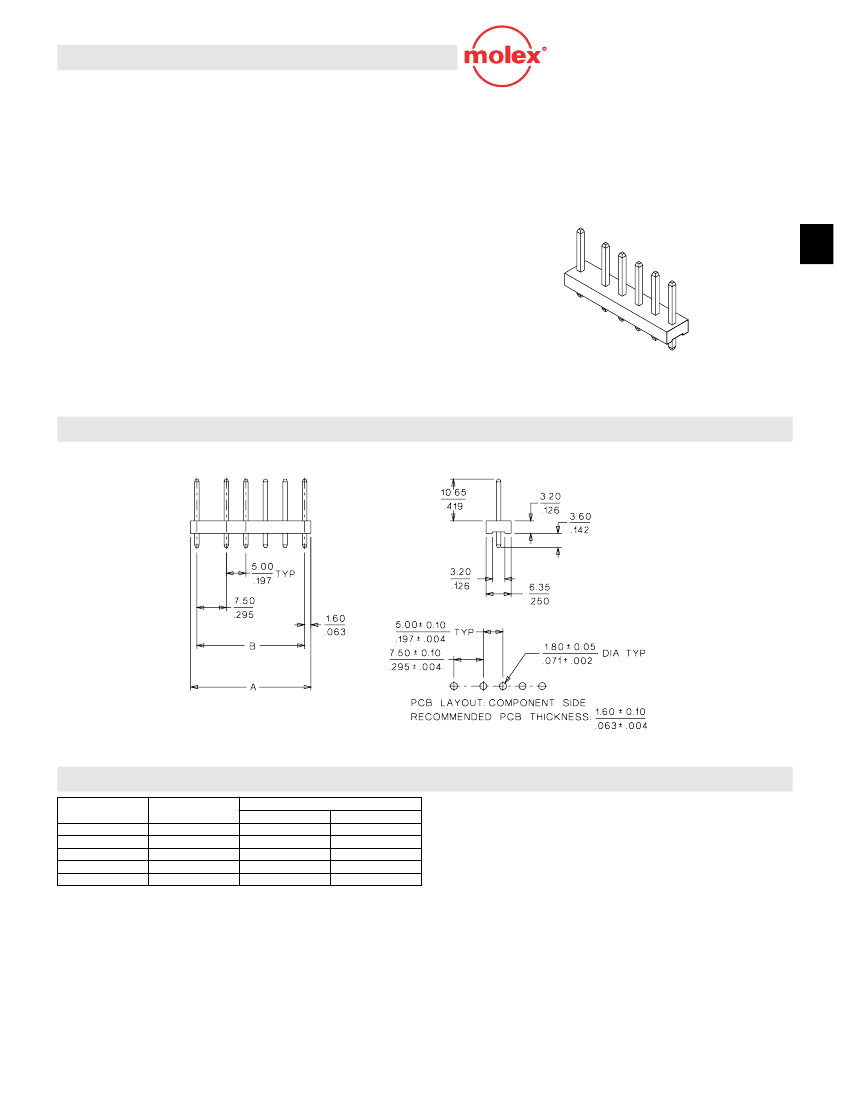

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 6 circuits

Polarization through varied center spacing between

circuits 1 and 2

Reference Information

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

Mates With: 5199-N housings

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 7.0A

Contact Resistance: 10m

Ω

max.

Dielectric Withstanding Voltage: 1500V AC/1 min.

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: 6/6 nylon, UL 94V-2

Contact: Brass, 1.14mm (.045") square

Plating: Tin

Operating Temperature: -40 to +105˚C

5.00mm (.197") Pitch

SPOX

™

Header

5287-NA

Vertical

3.00 to 7.92mm (.118 to .312") Pitch

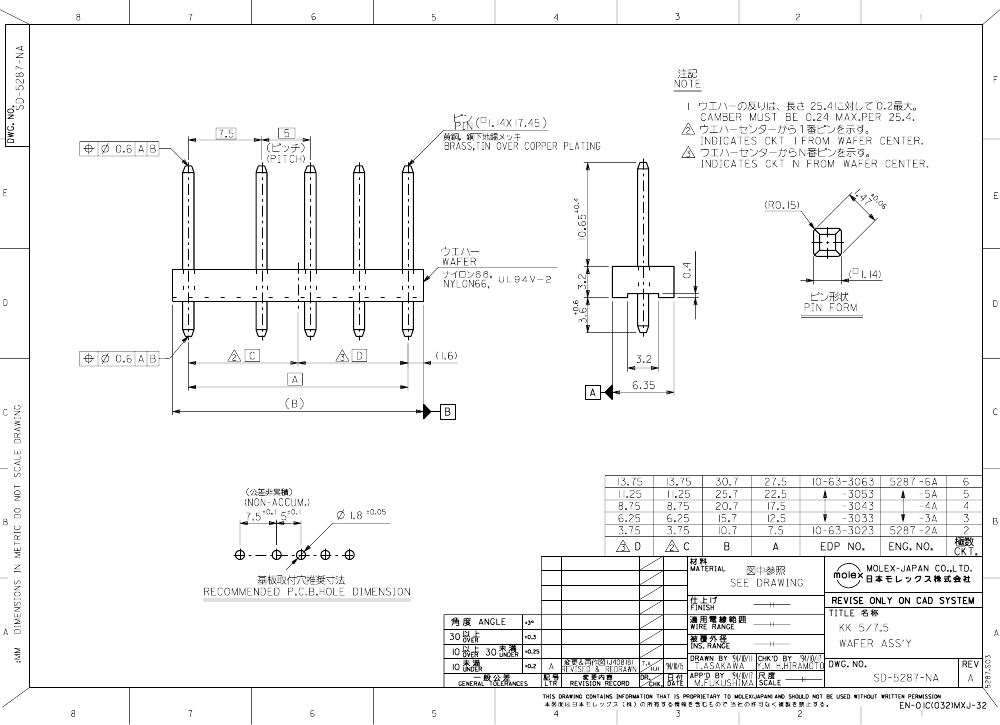

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

10-63-3023

10-63-3033

10-63-3043

10-63-3053

10-63-3063

10.70

15.70

20.70

25.70

30.70

Dimension

(.421)

(.618)

(.815)

(1.012)

(1.209)

7.50

12.50

17.50

22.50

27.50

(.295)

(.492)

(.689)

(.886)

(1.083)

MX01

D-51
