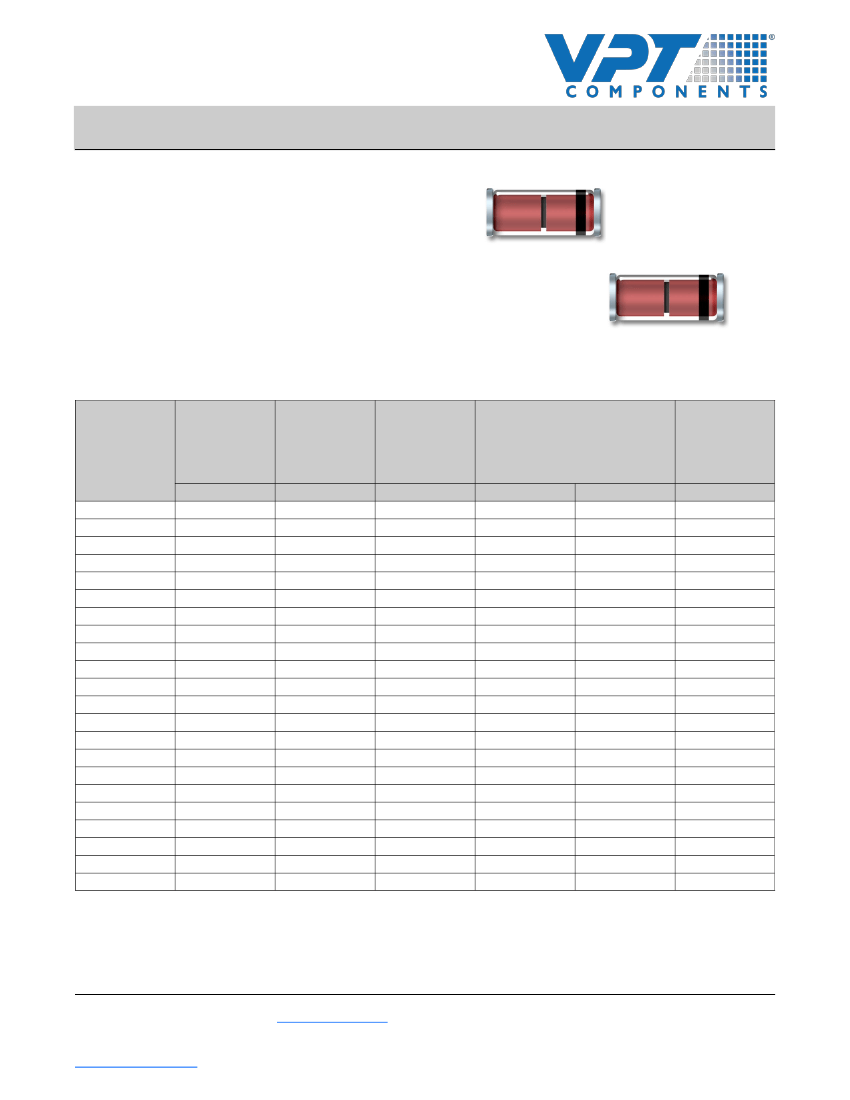

1N4678UR-1 thru 1N4717UR-1
Low Noise Zener Diode Series
Rev. V1
Features
•
•
•
•
50 mA Low Operating Current
Double Plug Construction
Metallurgically Bonded
Hermetically Sealed DO-213AA Package
Electrical Specifications: T
A
= +25°C (unless otherwise specified)
TYPE
NUMBER
(Note 1)
1N4678UR-1
1N4679UR-1
1N4680UR-1
1N4681UR-1
1N4682UR-1
1N4683UR-1
1N4684UR-1
1N4685UR-1
1N4686UR-1
1N4687UR-1
1N4688UR-1
1N4689UR-1
1N4690UR-1
1N4691UR-1
1N4692UR-1
1N4693UR-1
1N4694UR-1
1N4695UR-1
1N4696UR-1
1N4697UR-1
1N4698UR-1
1N4699UR-1
NOMINAL
ZENER
VOLTAGE
VZ
VOLTS
1.8
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
8.7
9.1
10.0
11.0
12.0
ZENER
TEST
CURRENT
lZT
μA
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
MAXIMUM
VOLTAGE
REGULATION
ΔVZ
(Note 2)
VOLTS
0.70
0.70
0.80
0.80
0.85
0.90
0.95
0.95
0.97
0.99
0.99
0.97
0.96
0.95
0.90
0.75
0.50
0.10
0.08
0.10
0.11
0.12
MAXIMUM
REVERSE LEAKAGE
CURRENT
lR @ VR
μA
7.5
5.0
4.0
2.0
1.0
0.8
7.5
7.5
5.0
4.0
10.0
10.0
10.0
10.0
10.0
10.0
1.0
1.0
1.0
1.0
0.05
0.05
VOLTS
1.0
1.0
1.0
1.0
1.0
1.0
1.5
2.0
2.0
2.0
3.0
3.0
4.0
5.0
5.1
5.7
6.2
6.6
6.9
7.6
8.4
9.1
MAXIMUM
DC ZENER
CURRENT
IZM
mA
120.0
110.0
100.0
95.0
90.0
85.0
80.0
75.0
70.0
65.0
60.0
55.0
50.0
45.0
35.0
31.8
29.0
27.4
26.2
24.8
21.6
20.4
(Continued next page)
1
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
1N4678UR-1 thru 1N4717UR-1
Low Noise Zener Diode Series
Rev. V1
Electrical Specifications: T
A
= +25°C (unless otherwise specified)
TYPE
NUMBER
(Note 1)
1N4700UR-1
1N4701UR-1
1N4702UR-1
1N4703UR-1
1N4704UR-1
1N4705UR-1
1N4706UR-1
1N4707UR-1
1N4708UR-1
1N4709UR-1
1N4710UR-1
1N4711UR-1
1N4712UR-1
1N4713UR-1
1N4714UR-1
1N4715UR-1
1N4716UR-1
1N4717UR-1
NOMINAL
ZENER
VOLTAGE
VZ
VOLTS
13.0
14.0
15.0
16.0
17.0
18.0
19.0
20.0
22.0
24.0
25.0
27.0
28.0
30.0
33.0
36.0
39.0
43.0
ZENER
TEST
CURRENT
lZT
μA
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
MAXIMUM
VOLTAGE
REGULATION
ΔVZ
(Note 2)
VOLTS
0.13
0.14
0.15
0.16
0.17
0.18
0.19
0.20
0.22
0.24
0.25
0.27
0.28
0.30
0.33
0.36
0.39
0.43
MAXIMUM
REVERSE LEAKAGE
CURRENT
lR @ VR
μA
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
VOLTS
9.8
10.6
11.4
12.1
12.9
13.6
14.4
15.2
16.7
18.2
19.0
20.4
21.2
22.8
25.0
27.3
29.6
32.6
MAXIMUM
DC ZENER
CURRENT
IZM
mA
19.0
17.5
16.3
15.4
14.5
13.2
12.5
11.9
10.8
9.9
9.5
8.8
8.5
7.9
7.2
6.6
6.1
5.5
1. The JEDEC type numbers shown above have a standard tolerance of +5 % of the nominal Zener volume. VZ is measured with the diode in
thermal equilibrium at 25°C + 3°C.
2. Vz @ 100 µA minus Vz @ 10 µA.
Absolute Maximum Ratings
Symbol
Steady State Power Dissipation
(3)
Forward Voltage
DC Power Derating
Junction & Storage Temperature
Thermal Resistance Junction to End Cap
(4)
Thermal Resistance Junction to Ambient
(4)
Solder Temperature @ 10 s
T
J
, T
STG
R
ᶿ
JEC
R
ᶿ
JA
T
SP
P
D
V
F
500 mW @ +50°C
1.1 V @ 200 mA
4 mW /
°C
above +50°C
-65°C to +175°C
100
o
C/W
250
o
C/W
260
o
C/W
3. At T
EC
< 125
o
C or at ambient T
A
< 50
o
C when mounted on FR4 PC board.
4. When mounted on FR4 PC board (1 oz Cu) with recommended footprint.
2
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
1N4678UR-1 thru 1N4717UR-1
Low Noise Zener Diode Series
Rev. V1

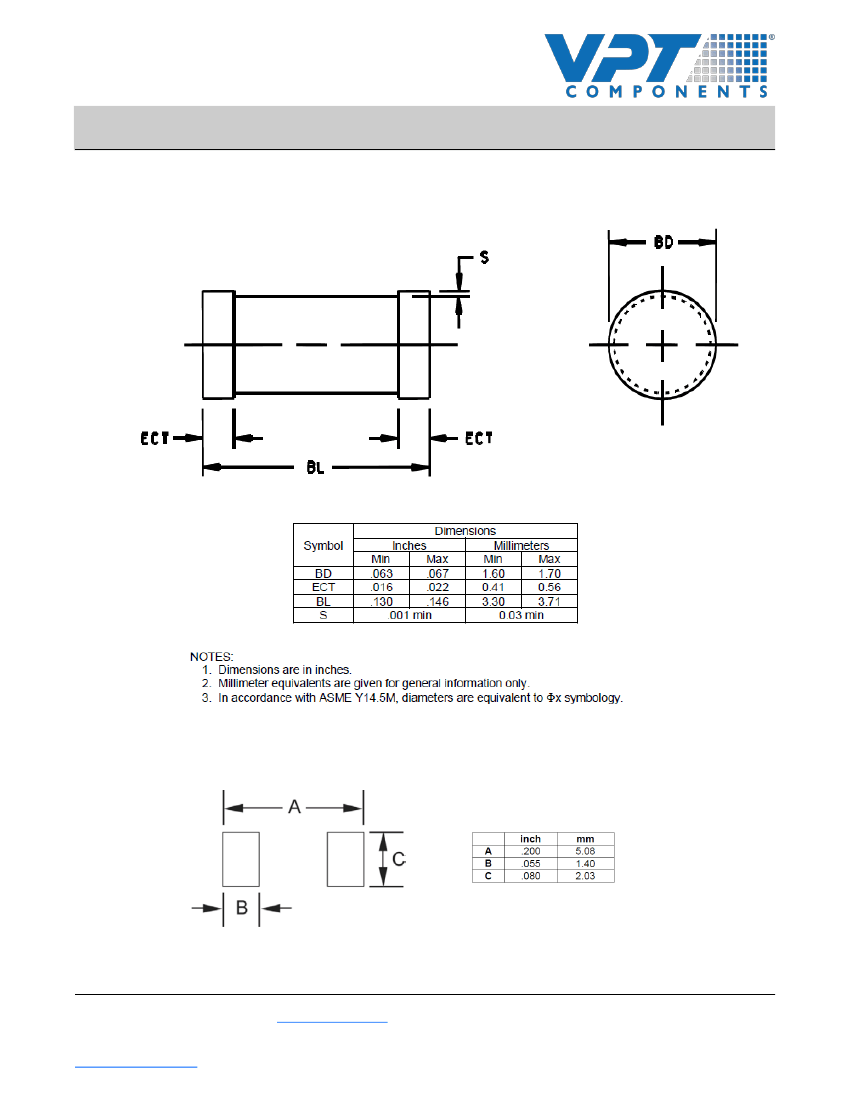

Outline Drawing (DO-213AA)
Pad Layout
3
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
1N4678UR-1 thru 1N4717UR-1
Low Noise Zener Diode Series
Rev. V1
VPT COMPONENTS. ALL RIGHTS RESERVED.
Information in this document is provided in connection with VPT Components products. These materials are provided by
VPT Components as a service to its customers and may be used for informational purposes only. Except as provided in VPT
Components Terms and Conditions of Sale for such products or in any separate agreement related to this document, VPT
Components assumes no liability whatsoever. VPT Components assumes no responsibility for errors or omissions in these
materials. VPT Components may make changes to specifications and product descriptions at any time, without notice. VPT
Components makes no commitment to update the information and shall have no responsibility whatsoever for conflicts or
incompatibilities arising from future changes to its specifications and product descriptions. No license, express or implied,
by estoppels or otherwise, to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, RELATING TO
SALE AND/OR USE OF VPT COMPONENTS PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A
PARTICULAR PURPOSE, CONSEQUENTIAL OR INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PA-
TENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. VPT COMPONENTS FURTHER DOES NOT WARRANT THE
ACCURACY OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CON-TAINED WITHIN THESE
MATERIALS. VPT COMPONENTS SHALL NOT BE LIABLE FOR ANY SPECIAL, IN-DIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVE-NUES OR LOST PROFITS, WHICH MAY RESULT FROM THE USE
OF THESE MATERIALS.
VPT Components products are not intended for use in medical, lifesaving or life sustaining applications. VPT Components
customers using or selling VPT Components products for use in such applications do so at their own risk and agree to fully
indemnify VPT Components for any damages resulting from such improper use or sale.
4
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
