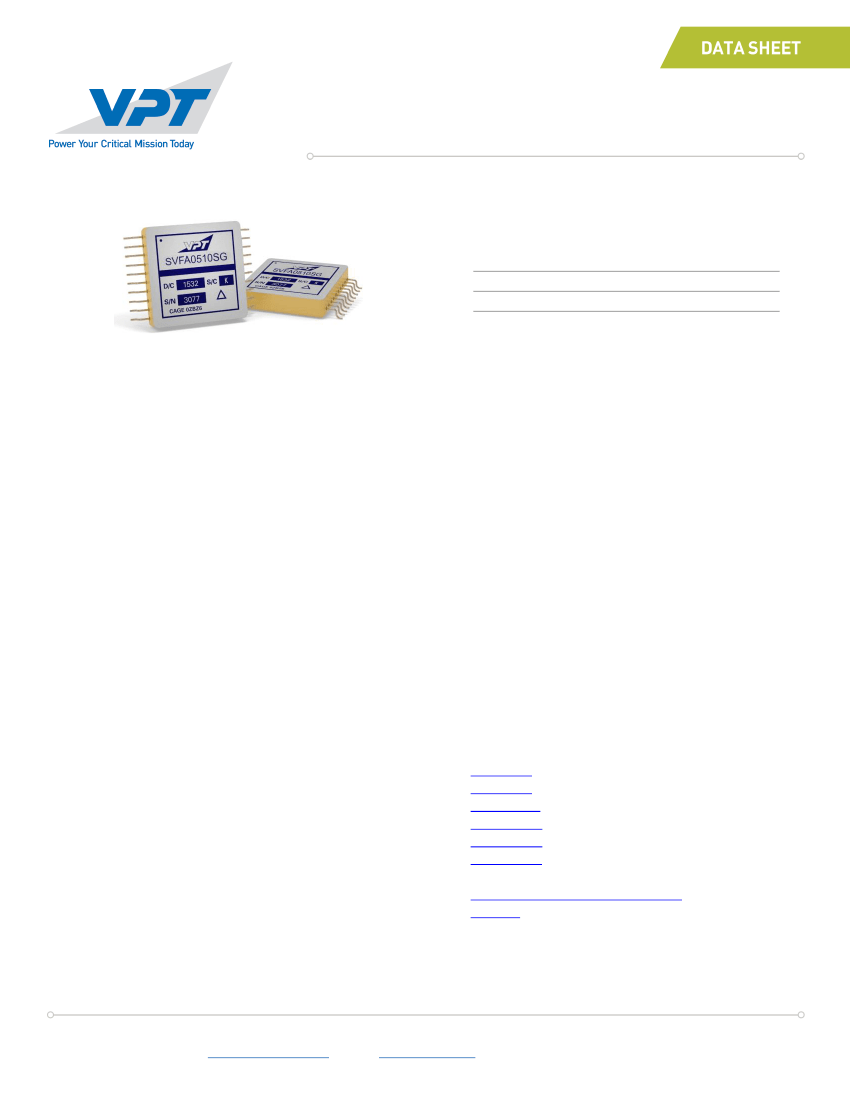

SVFA0510SG
SERIES
SPACE QUALIFIED POINT OF LOAD CONVERTERS
Models Available
Input: 5V Nominal
10 A output
Qualified to MIL-PRF-38534 Class H and Class K
SVFA Series DC-DC Converter
1.0 DESCRIPTION
The SVFA Series of space qualified point of load DC-DC
converters is specifically designed for the harsh radiation
environment of space applications. Performance is guaranteed
through the use of hardened semiconductor components,
radiation lot acceptance testing (RLAT) of non-hardened
components, and analysis. The SVFA Series has been
characterized for Total Ionizing Dose (TID) performance
including Enhanced Low Dose Rate Sensitivity (ELDRS) and for
Single Event Effects (SEE) according to VPT’s DLA-approved
Radiation Hardness Assurance (RHA) plan per MIL-PRF-38534,
Appendix G, Level P. Characterization is performed at both the
component level and at the SVFA hybrid converter level.
The SVFA Series of point of load DC-DC converters is radiation
tolerant and suited for use in low Earth orbit (LEO), medium
Earth orbit (MEO), geostationary orbit (GEO), deep space, and
launch vehicle programs.
1.2 SPACE LEVEL CHARACTERIZATIONS
•
•
•
Guaranteed TID performance to 40 krad(Si) including ELDRS.
SEE performance to 85 MeV/mg/cm
2
. Transients are fully
characterized for cross section and magnitude.
Worst-case analysis, stress, radiation, reliability reports available
1.3 MANUFACTURING AND COMPLIANCE
•
•
•
•
•
Qualified to MIL-PRF-38534 Class H and Class K,
DLA SMD # 5962-17203
MIL-PRF-38534 element evaluated components
Manufactured in a MIL-PRF-38534 Class H and Class K facility
MIL-STD-883
ISO-9001
1.4 PACKAGING
•
•
•
Low-profile: 1.110” x 1.110” x 0.276”
Max weight: 22 g
Precision seam-sealed hermetic metal case
1.1 FEATURES
•
•
•
•
•
•
•
•
•
Operates from 5 V input
Adjustable Output from 0.8 to 3.4V
Up to 10 Amps Output
High Efficiency, up to 94%
High Power Density, up to 100 W/in
3
Output Inhibit Control
Low Output Noise
No Use of Optoisolators
Short Circuit Protection
1.5 SIMILAR PRODUCTS AND ACCESSORIES
•
•
•
•
•
•
•
•
•
SVFA0510S
10 A space qualified point of load DC-DC converter
SVFA0515S
15 A space qualified point of load DC-DC converter
SVFA0515SG
15 A space qualified point of load DC-DC converter
SVGA0510SG
10 A space qualified point of load DC-DC converter
SVGA0515SG
15 A space qualified point of load DC-DC converter
SVRGA0508S
8 A space qualified point of load DC-DC converter
Custom versions available
Space qualified isolated DC-DC converters,
6 - 100 W
EMI filters
Sales Information
Phone:(425) 353-3010
E-mail:
vptsales@vptpower.com
Fax: (425) 353-4030
Web:
www.vptpower.com
SVFA0510SG – 3.0
Page 1
SVFA0510SG Series
2.0 DIAGRAMS

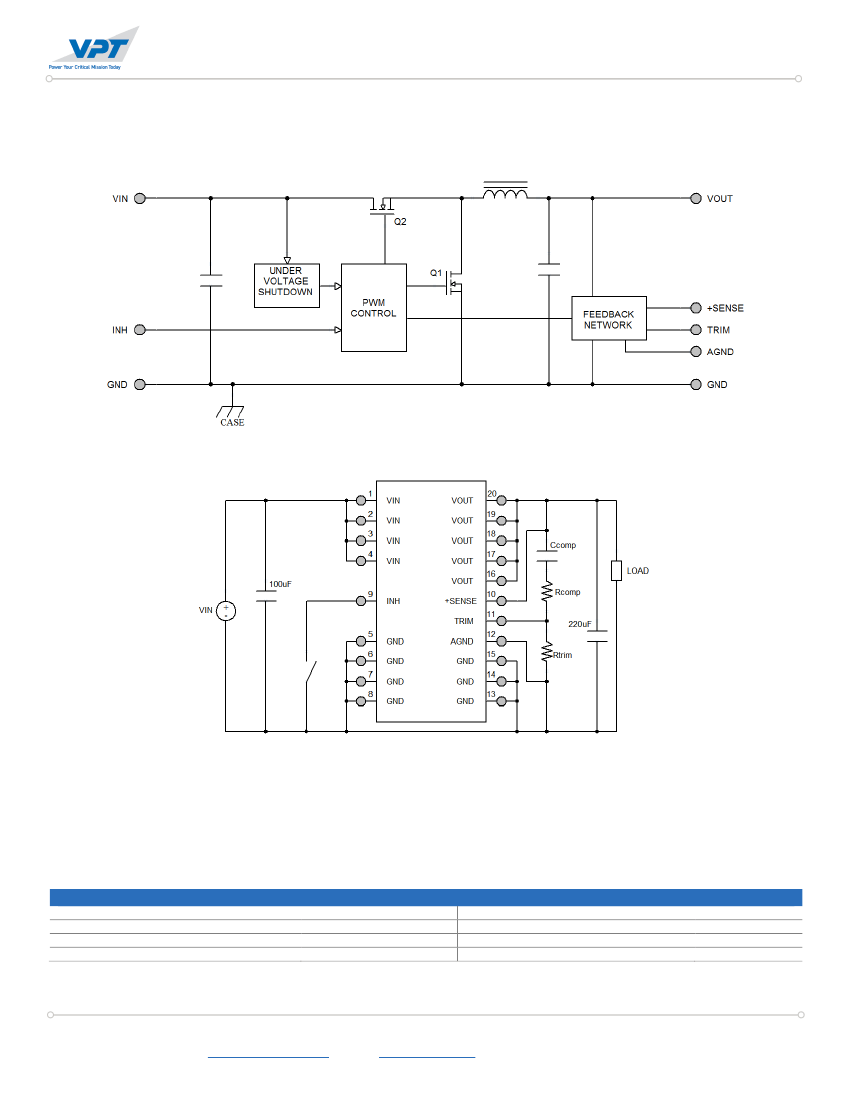

2.1 BLOCK DIAGRAM
2.2 CONNECTION DIAGRAM
1. Rtrim should be connected directly across pins 11 and 12 as close as possible to the SVFA.
2. AGND should be connected to GND close to the SVFA. Voltage difference between the AGND and the GND pins greater than 0.3 V may result in regulation error
and/or damage to the SVFA.
3. If not using INH, leave pin 9 open.
4. Rcomp and Ccomp are optional components that can be used to optimize the SVFA transient response.
3.0 SPECIFICATIONS
3.1 ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Ratings
Input Voltage (Continuous):
Input Voltage (Transient, 1 second):
AGND
ESD Rating per MIL-PRF-38534:
-0.3 V to 7 V
-0.3 V to 7.5 V
-0.3 V to 0.3 V
1C
Operating Temperature (Full Load):
Storage Temperature:
Lead Solder Temperature (10 seconds):
Solder Reflow Temperature (30 seconds):
-55 ° to +125 °
C
C
-65 ° to +150 °
C
C
270 °
C
220 °
C
Sales Information
Phone:(425) 353-3010
E-mail:
vptsales@vptpower.com
Fax: (425) 353-4030
Web:
www.vptpower.com
SVFA0510SG - 3.0
Page 2
SVFA0510SG Series
3.2 PERFORMANCE SPECIFICATIONS
1
T
CASE
= -55 ° to +125 ° Vin = +5 V ± 1%, Full Load, Unless Otherwise Specified
C
C,
SVFA0510SG
Parameter
INPUT
Voltage Range2
Current
Undervoltage Lockout2,3
OUTPUT STATIC
Voltage Regulation
Power4
Current
Ripple Voltage
Load Regulation
Short Circuit Power Dissipation
OUTPUT DYNAMIC
Load Step, Half to Full Load, V
OUT
= 3.3 V
Turn-On, V
IN
= 0 to 5V
FUNCTION
INH Pin Input2
INH Pin Open Circuit Voltage2
GENERAL
Efficiency
Capacitive Load2
Switching Frequency
Weight
MTBF (MIL-HDBK-217F)
POST-RAD END-OF-LIFE LIMITS6
OUTPUT Voltage
Switching Frequency
Output Inhibited
Output Enabled
Vout = 3.3 V
0
-
88
-
200
-
-
-3.0
190
185
-
4.7
93
-
250
-
7.09
-
-
-
1.5
V
IN
-
5000
315
22
-
+3.0
325
350
V
V
%
µF
kHz
g
MHr
%Vout
kHz
kHz
Conditions
1
V
OUT
= 0.8 V to 2.5 V
V
OUT
= 2.6 V to 3.3 V
INH < 1.5 V
No Load
Turn-On
Turn-off
T
CASE
= 25 °
C
T
CASE
= -55 ° to +125 °C
C
Min
3.5
4.1
-
-
-
-
-1.0
-1.5
0
0
-
-
-
-
-
-
-
Typ
-
30
100
3.0
2.7
-
-
-
-
60
0
1.5
75
30
6.5
1
Max
7
7
35
150
-
-
+1.0
+1.5
34
10
100
0.2
3
120
75
12
10
Units
V
mA
mA
V
V
%Vout
%Vout
W
A
mVpp
%
W
mV
µs
ms
mVpk
20 Hz to 10 MHz
V
OUT
= 3.3 V prior to short circuit
Output Transient
Recovery5
Delay
Overshoot
Standard package option
SF @ Tcase = 55 °
C
T
CASE
= -55 ° to +125 °
C
C
T
CASE
= -55 ° to +125 ° V
IN
= 5 V
C
C,
T
CASE
= -55 ° to +125 ° V
IN
= 3.6 to 7 V
C
C,
1.
2.
3.
4.
5.
6.
Performance specifications are guaranteed with 100µF from VIN to GND.
Verified by initial electrical design verification. Post design verification, parameter shall be guaranteed to the limits specified.
Output voltage not necessarily in regulation.
Dependent on output voltage.
Time for output voltage to settle within 1% of steady-state value.
End-of-Life performance includes aging and radiation degradation and is within standard limits except where noted.
Sales Information
Phone:(425) 353-3010
E-mail:
vptsales@vptpower.com
Fax: (425) 353-4030
Web:
www.vptpower.com
