134499: DescriptionD Subminiature Connector, 3 Contact(s), Male, Press Fit Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size228KB，2 Pages; ManufacturerProvertha Connectors Cables & Solutions GmbH; Environmental Compliance

Download Datasheet Parametric Compare View All

134499 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	134499	-	-	View	Buy Now

134499 Overview

D Subminiature Connector, 3 Contact(s), Male, Press Fit Terminal, #4-40, Plug,

134499 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Provertha Connectors Cables & Solutions GmbH
Reach Compliance Code	compliant
body width	0.492 inch
subject depth	0.248 inch
body length	1.539 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact arrangement	S0P3
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Options	GENERAL PURPOSE
Plating thickness	30u inch
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Terminal length	0.126 inch
Termination type	PRESS FIT
Total number of contacts	3
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

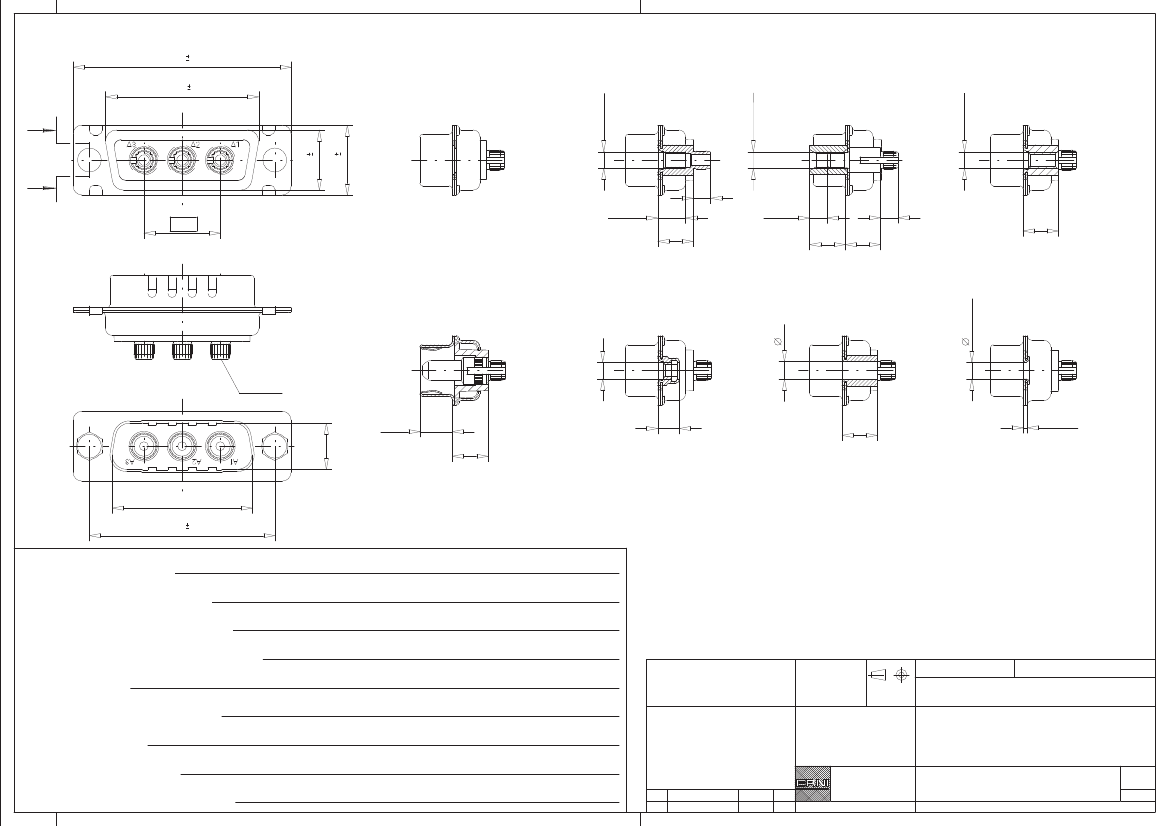

Schnitt A-A /

39,1

27,5

0,3

cross section A-A

Einpressbolzen / Gewindehülse

press-fit bolt / threaded sleeve :

riveted nut :

Nietmutter /

l = 3,7/5,6/6,0/6,3

M3 oder/ or

0,3

M3 oder/ or

Einpressbolzen

press-fit bolt :

A

0,2

A

13,72

10,8

12,5

0,3

#4-40

3,2

min. 4,5

6,3

min. 3

(min. 2.5)

6,4

(5.9)

Abstandshülse /

standoff :

+0,13

#4-40

3,2

l

6,3

#4-40

Gehäuse genietet

riveted housing :

Nietmutter mit Klemmteil

clamping thread :

M3

3,2

124642

+0,3

5,8

+0,2

3,9

6,3

3,05

6,3

max 1,5

25,1

33,3

+0,2

0,2

Ident-Nr. /

Polzahl /

Part No. :

Refer to table on page 2

Pressfit

6.3 mm

Leiterplattenbohrbild 144058 /

Board hole pattern 144058

metal plating of plated-through hole

for press-fit contact drawing 114110

for press-fit bolt drawing 114109

Scale

All Dimensions

in mm

Consider protection memo from DIN 34

No. of contacts :

Terminal Type :

8,3

Schichtaufbau im metallisierten Loch /

für Einpresskontakt Zeichnung 114110 /

für Einpressbolzen Zeichnung 114109 /

Information:

Tolerances

Anschlußart /

Anschlußlänge /

Bauart /

Type :

Terminal Length :

3W3

Class :

ERNI

2:1

Anforderungsstufe /

Aufdruck /

Zubehör /

Logo :

207=0.8µm (30

µin)

Au CONTACT, TIN/LEAD TERMINAL

Accessory :

Refer to table on page 2

Special :

Refer to table on page 2

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

TMC-P 3W3-EP36-6.3-3

www.ERNI.com

a

Index

15.05.2001

Date

M:00023004.SZN

Sonderausführung /

054955

TMCP

I

134499 Related Products

	134499
Description	D Subminiature Connector, 3 Contact(s), Male, Press Fit Terminal, #4-40, Plug,
Is it Rohs certified?	conform to
Maker	Provertha Connectors Cables & Solutions GmbH
Reach Compliance Code	compliant
body width	0.492 inch
subject depth	0.248 inch
body length	1.539 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact arrangement	S0P3
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Options	GENERAL PURPOSE
Plating thickness	30u inch
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Terminal length	0.126 inch
Termination type	PRESS FIT
Total number of contacts	3
UL Flammability Code	94V-0
