Data Sheet
FOL1435 Series
Feb. 2011
High power 1480 / 14xx-nm Pump Laser Diode Module
Applications
Pump Source for EDFA
C- and/or L-Band EDFA
Pump Source for Raman Amplifier
C-band
Product Type :
FOL1435 Series
Descriptions
The FOL1435 series has been designed for use in a wide variety of optical amplifier,
such as EDFA or Raman Amplifier used in optical transmission systems, especially in
dense wavelength-division-multiplexing (DWDM) systems.
A strained multi-quantum well laser diode chip is integrated with thermo-electric cooler
(TEC), thermistor and PIN photodiode in a hermetically sealed 14 pin butterfly package.
A 2-lens-system couples a round shape light from the laser chip efficiently to the fiber
and enables the output power up to 500 mW.
This laser module complies with telecom requirements described in Telcordia
TM
GR-
468 requirement and manufactured in an ISO
TM
9001 certified production line.
Features
Rated output power up to 500 mW (CW)
Widely deployed reliable package design with industry compatible 14 pin butterfly
footprint
Internal Thermo-electric cooler (TEC) and Thermistor for stable operation
Integrated PIN photodiode for back facet monitor
Internal optical Isolator (optional)
Single mode fiber and Polarization maintaining fiber pigtail
Wavelength stabilization available with external FBG (optional)
Epoxy free design inside the module for long term reliability
EU RoHS compliant
(Exemption 7b applied)
ODC-AC001B
1/5
Data Sheet
FOL1435 Series
Feb. 2011
Absolute Maximum Rating
Parameters
Storage Temperature
Operating Case Temperature
LD Forward Current
LD Reverse Voltage
PD Forward Current
PD Reverse Voltage
TEC Current
TEC Voltage
Sym.
Tstg
Tc
If
Vr
IfPD
VrPD
Ic
Vc
-
-
-
Min.
-40
-20
Max.
85
70
2100
2
5
20
4.5
4.5
Unit
°C
°C
mA
V
mA
V
A
V
Specifications
Parameters
Output Power
1)
Forward Current
Center Wavelength(FP)
Center Wavelength(FBG)
Spectral Width(-317 and -417)
Spectral Width(-617)
2)
Forward Voltage
Forward Current at EOL
Monitor Current
Monitor Dark Current
Extinction Ratio
Isolation
TEC Specification
Thermistor Resistance
Thermistor B Constant
Sym.
Pf
If
λ
∆λ
∆λ
Vf
IfEOL
Im
Id
Re
Iso
-
Rth
Bth
9.5
-
-
100
-
16
30
1460
λ-1.5
-
-
-
λ
-
-
Table A
-
-
-
-
-
Table A
10
3900
10.5
-
1.15xIfBOL
2000
100
-
-
1490
λ+1.5
8
3
Min.
Typ.
Table A
Max.
(
LD Temperature (Ts) = 25°C)
Unit
mW
mA
nm
RMS(-20dB), Rated
Power
λ=1420~1465nm
for FBG
RMS(-20dB), Rated
Power
Rated Power
Conditions
nm
V
mA
µA
nA
dB
dB
VrPD=5V, Rated Power
VrPD=5V
-417 or -617
-317 or -417
3)
3)
kΩ
-
Ts = 25°C
Ts = 25°C
1) Pf: Available Pf may depend upon center wavelength selected.
2)
λc:
Selected center wavelength from 1420nm to 1465nm available.
3) Design Description (See Table A and Ordering Information for detail)
Build-in
Isolator
Part Number
FOL1435Rxx-317
FOL1435Rxx-417
FOL1435Rxx-617-xxxx
External FBG
SM fiber
PM fiber
x
x
x
x
x
x
ODC-AC001B
2/5
Data Sheet
FOL1435 Series
Feb. 2011
Table A
Part Number
FOL1435R40
FOL1435R45
FOL1435R50
Pf(mW)
400
450
500
If(mA)
1400
1600
1800
Vf(V)
2.2
2.3
2.4
Tc(ºC)
70
70
70
Itec(A)
max
2.6
2.8
3.0
Vtec(V)
max
3.2
3.5
3.8
Wtotal(W)
max
12
14
16

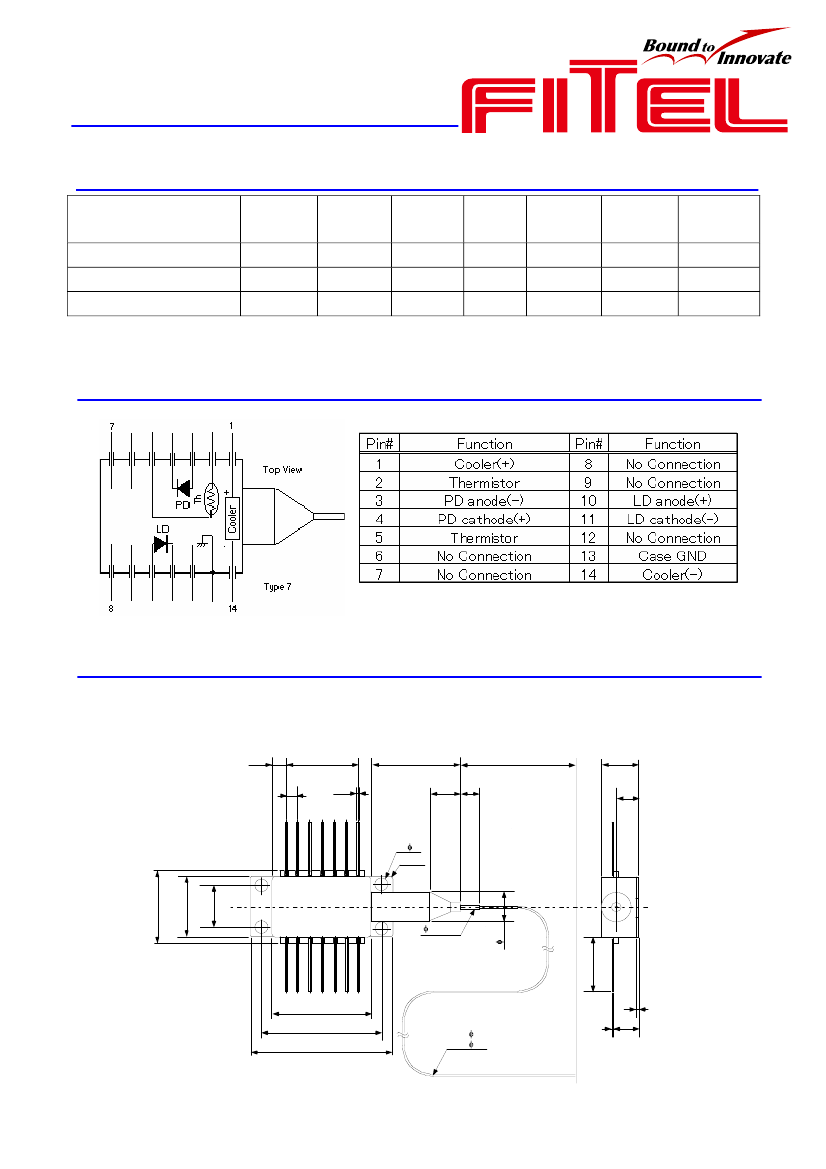

Pin Assignment
Dimensions
317 and 417 (w/isolator w/o FBG)
2.8
15.24
(2.54)
(0.5)
(19)
(6.7) 4.0+/-2.0
Fiber Length
7.8+/-0.2
4.8
4- 2.7
4-C0.3
(15.2)
12.7+/-
0.15
8.9+/-
0.15
6.2
0.9
8.0min
20.8
26.0+/-0.15
30.0+/-0.2
0.2
PMF: 0.4
SMF: 0.25
(5.3)
0.5
ODC-AC001B
3/5
Data Sheet
FOL1435 Series
Feb. 2011
617 (w/FBG)
2.8
15.24
(2.54)
(0.5)
(19)
Fiber Length
(6.7) 4.0+/-2.0
7.8+/-0.2
4.8
4- 2.7
4-C0.3
(750)
12.7+/-
0.15
(15.2)
8.9+/-
0.15
6.2
0.9
FBG
PMF:
0.45
Fusion Splice
Recoated
8.0min
20.8
26.0+/-0.15
30.0+/-0.2
PMF:
0.4
(25)
(300) (10)
0.2
(5.3)
0.5
Ordering information
FOL 1 4 3 5 R
-
1 7 -
Wavelength for 617
ex.1425
Output power
ex. 500mW : FOL1435R50
3: SMF pigtail w/isolator
4: PMF pigtail w/isolator
6: PMF pigtail w/FBG
ODC-AC001B
4/5
Data Sheet
FOL1435 Series
Feb. 2011
Safety information
This product complies with 21 CFR 1040.10 and 1040.11, Class IV laser product. Invisible laser radiation is
emitted from the end of the fiber or connector. Avoid direct exposure to the beam.
DANGER
INVISIBLE LASER RADIATION
AVOID EYE OR SKIN EXPOSURE TO DIRECT OR
SCATTERED RADIATION
ISO is a trademark of The International Organization for Standardization.
Telcordia is a trademark of Telcordia Technologies, Inc.
MAXIMUM OUTPUT POW ER: 500mW
W AVELENGTH: 1400 to 1490nm
CLASS IV LASER PRODUCT
Furukawa Electric reserves the right to improve, enhance and modify the features and specifications of
FITEL products without prior notifications.
Japan
Head Office
2-2-3, Marunouchi
Chiyoda-ku
Tokyo 100-8322, JAPAN
Tel: +81-3-3286-3253
Fax: +81-3-3286-3978
http://www.furukawa.co.jp
Email:comsales@ho.furukawa.co.jp
North America
OFS Fitel, LLC
Specialty Photonics Division
25 Schoolhouse Road
Somerset, NJ 08873 USA
Tel: +1-732-748-7402
Fax: +1-732-748-7436
http://www.SpecialtyPhotonics.com
E-mail:info@SpecialtyPhotonics.com
Europe
Furukawa Electric Europe Ltd.
3rd Floor, Newcombe House
43-45 Notting Hill Gate
London W11 3FE, UK
Tel: +44-20-7221-6000
Fax: +44-20-7313-5310
http://www.furukawa-fitel.co.uk
E-mail:sales@furukawa-fitel.co.uk
ASIA
Furukawa Electric Hong Kong Ltd.
Suite 2606, Shell Tower,
Times Square,1 Matheson Street,
Causeway Bay, Hong Kong
Tel: 852-2512-8938
Fax: 852-2512-9717
http://www.fehk.com.hk/
E-mail: guest@fehk.cn
ODC-AC001B
5/5
