QL6500-6PT280I datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> QL6500-6PT280I

QL6500-6PT280I: DescriptionField Programmable Gate Array, 3072 CLBs, 488064 Gates, 3032-Cell, CMOS, PBGA280, 17 X 17 MM, 1.50 MM HEIGHT, 0.80 MM PITCH, MO-205, LFBGA-280; CategoryProgrammable logic devices Programmable logic; File Size538KB，40 Pages; ManufacturerQuickLogic Corporation; Websitehttps://www.quicklogic.com

Download Datasheet Parametric View All

QL6500-6PT280I Overview

Field Programmable Gate Array, 3072 CLBs, 488064 Gates, 3032-Cell, CMOS, PBGA280, 17 X 17 MM, 1.50 MM HEIGHT, 0.80 MM PITCH, MO-205, LFBGA-280

QL6500-6PT280I Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	QuickLogic Corporation
Parts packaging code	BGA
package instruction	LFBGA, BGA280,19X19,32
Contacts	280
Reach Compliance Code	compliant
Combined latency of CLB-Max	1.2726 ns
JESD-30 code	S-PBGA-B280
length	17 mm
Humidity sensitivity level	3
Configurable number of logic blocks	3072
Equivalent number of gates	488064
Number of entries	444
Number of logical units	3032
Output times	444
Number of terminals	280
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	3072 CLBS, 488064 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	LFBGA
Encapsulate equivalent code	BGA280,19X19,32
Package shape	SQUARE
Package form	GRID ARRAY, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2.5,2.5/3.3 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	1.5 mm
Maximum supply voltage	2.7 V
Minimum supply voltage	2.3 V
Nominal supply voltage	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal pitch	0.8 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
width	17 mm

Preview

Download Datasheet

View All

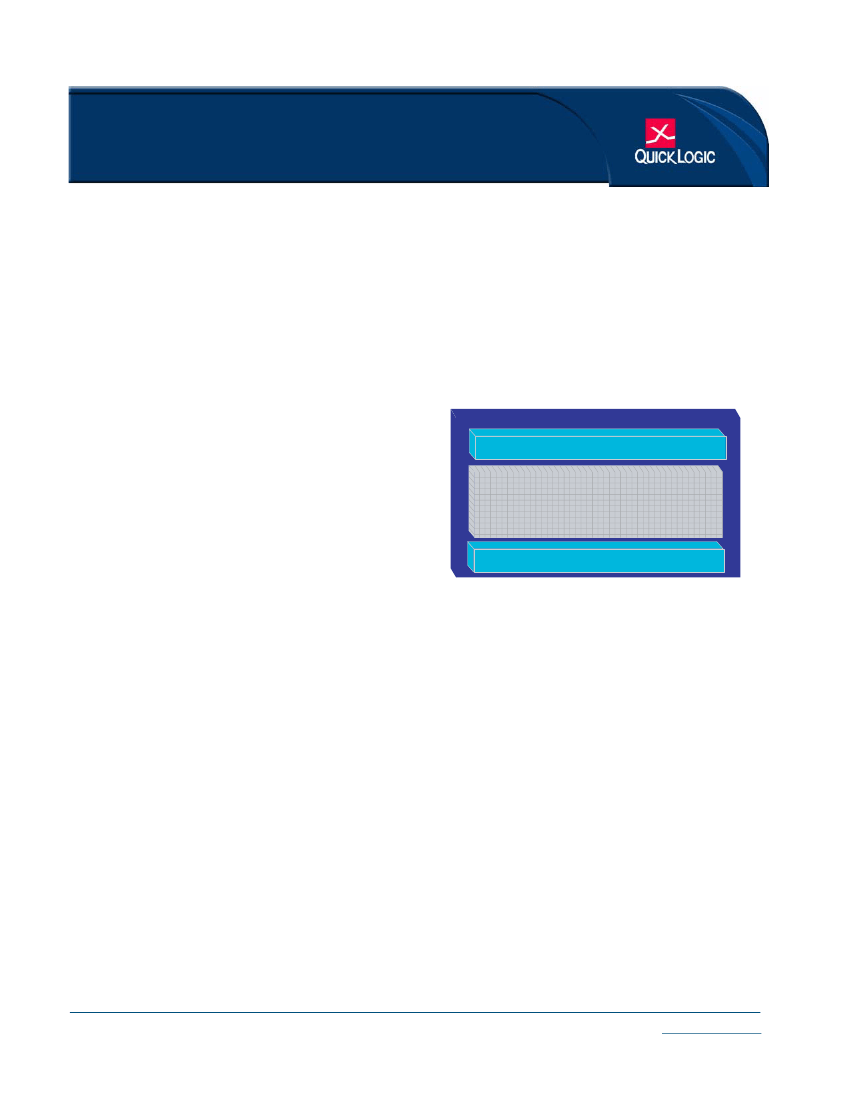

QL6500 Eclipse Data Sheet

• • • • • •

Combining Performance, Density and Embedded RAM

Device Highlights

Flexible Programmable Logic

•

.25

m, Five layer metal CMOS Process

•

2.5 V V

, 2.5 V/3.3 V Drive Capable I/O

•

3,032 Logic Cells

•

488,064 Max System Gates

•

Up to 444 I/O Pins

Advanced Clock Network

•

Nine Global Clock Networks:

•

One Dedicated

•

Eight Programmable

•

20 Quad-Net Networks: Five per Quadrant

•

16 I/O Controls: Two per I/O Bank

Embedded Dual Port SRAM

•

Thirty six 2,304-bit Dual Port High

Memory - Dual Port RAM

High Speed Logic Cells

488K Gates

Performance SRAM Blocks

•

82,900 RAM Bits

•

RAM/ROM/FIFO Wizard for Automatic

Configuration

•

Configurable and Cascadable

Memory - Dual Port RAM

Programmable I/O

•

High performance Enhanced I/O (EIO):

Figure 1: Eclipse Block Diagram

Less than 3 ns Tco

•

Programmable Slew Rate Control

•

Programmable I/O Standards:

•

LVTTL, LVCMOS, PCI, GTL+, SSTL2,

and SSTL3

•

Eight Independent I/O Banks

•

Three Register Configurations: Input,

Output, and Output Enable

www.quicklogic.com

•
