122A10319X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 122A10319X

122A10319X: DescriptionBoard Euro Connector, 32 Contact(s), 3 Row(s), Female, 0.1 inch Pitch, Solder Lug Terminal, Plug; CategoryThe connector The connector; File Size293KB，3 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric Compare View All

122A10319X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	122A10319X	-	-	View	Buy Now

122A10319X Overview

Board Euro Connector, 32 Contact(s), 3 Row(s), Female, 0.1 inch Pitch, Solder Lug Terminal, Plug

122A10319X Parametric

Parameter Name	Attribute value
Maker	CONEC
Reach Compliance Code	compliant
body width	0.417 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1550VAC V
Durability	50 Cycles
maximum insertion force	.9452 N
Insulation resistance	100000000000 Ω
insulator material	POLYESTER
Manufacturer's serial number	122
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation type	PANEL
Loaded row name	A
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
polarization key	ENDS
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.504 inch
Termination type	SOLDER LUG
Total number of contacts	32
Evacuation force-minimum value	.9452 N

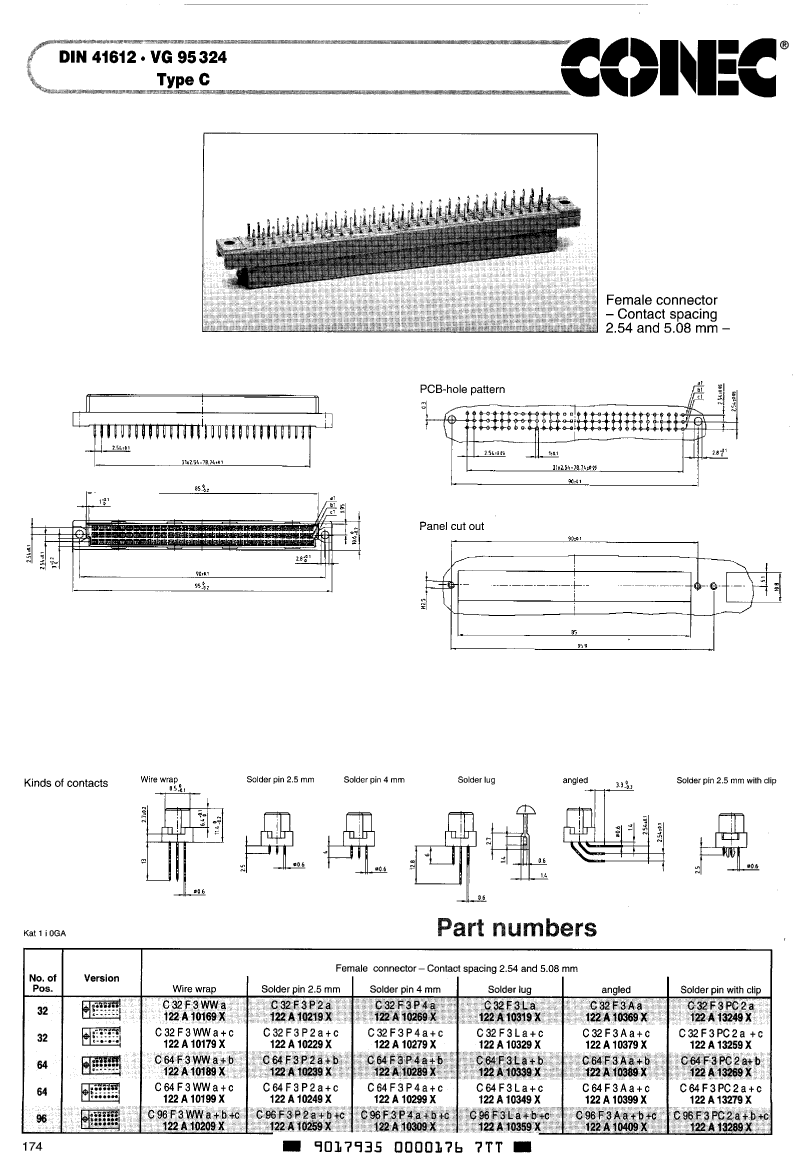

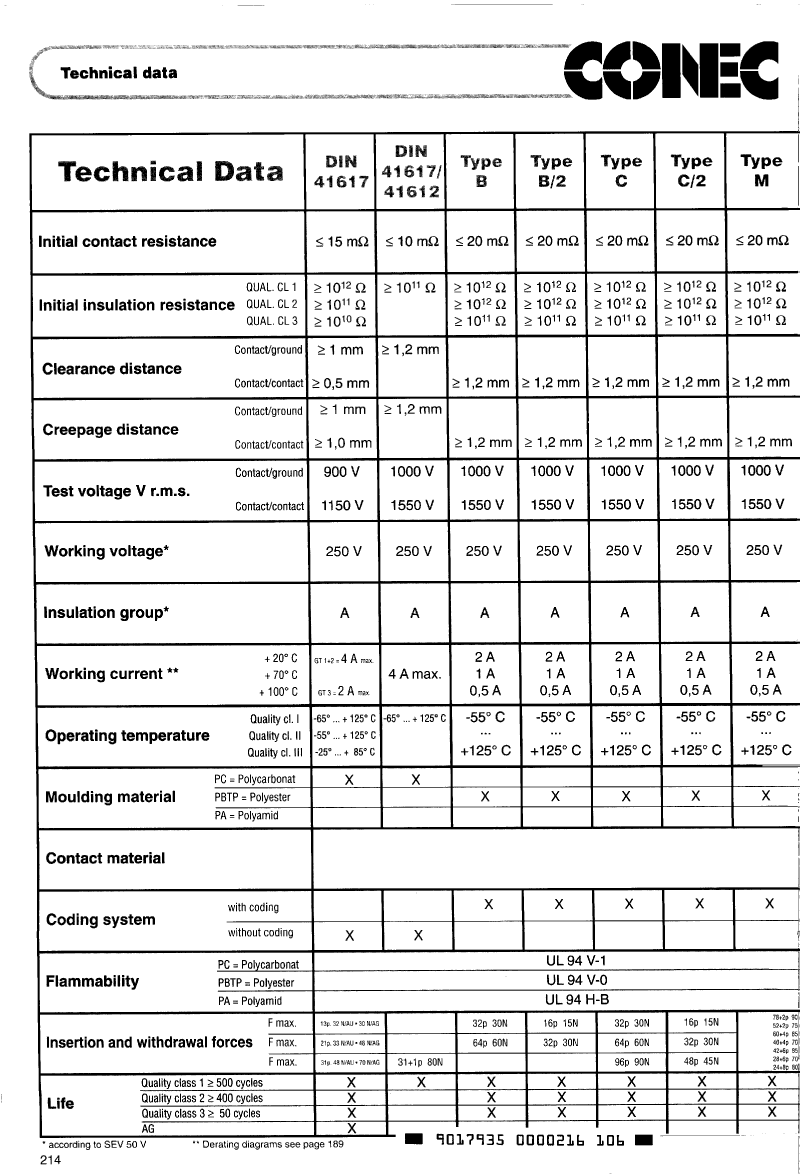

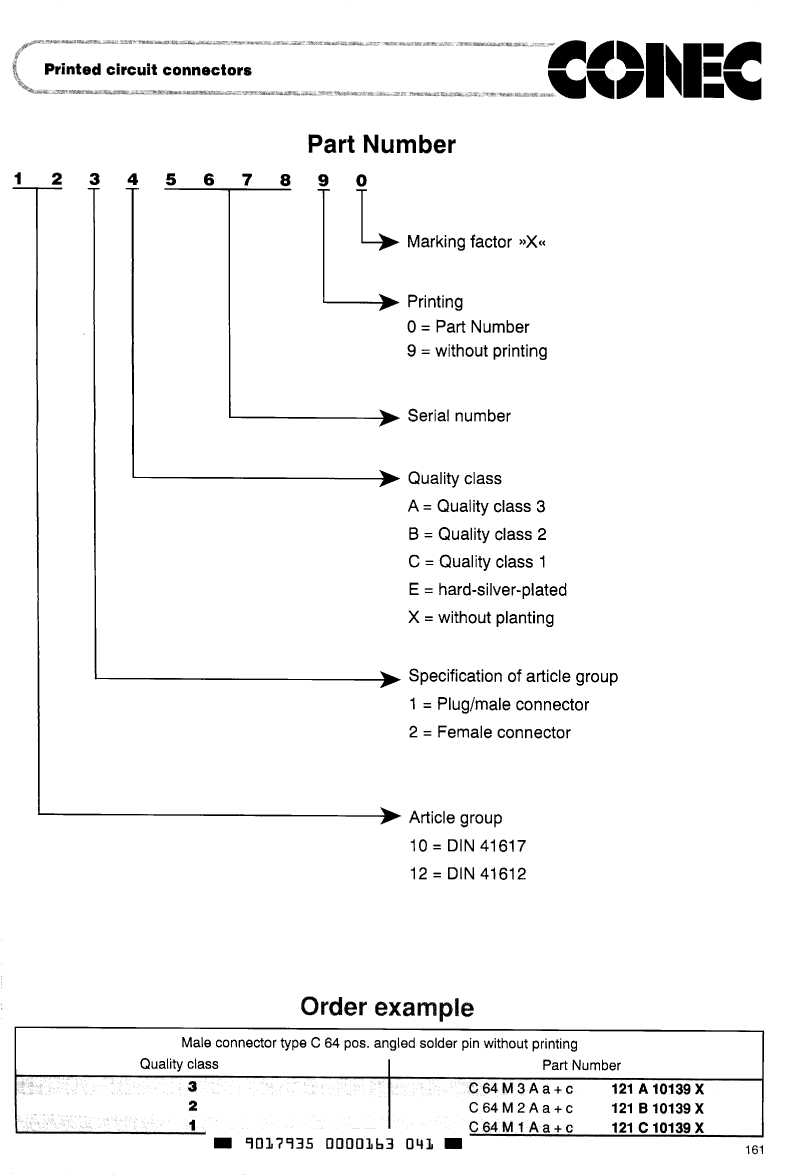

Preview

Download Datasheet

View All

122A10319X Related Products

	122A10319X	122A10329X	122A10359X	122A10239X	122A10289X	122A13269X
Description	Board Euro Connector, 32 Contact(s), 3 Row(s), Female, 0.1 inch Pitch, Solder Lug Terminal, Plug	Board Euro Connector, 32 Contact(s), 3 Row(s), Female, 0.2 inch Pitch, Solder Lug Terminal, Plug	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, 0.1 inch Pitch, Solder Lug Terminal, Plug,	Board Euro Connector, 64 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug	Board Euro Connector, 64 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug	Board Euro Connector, 64 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.417 inch	0.417 inch	0.417 inch	0.417 inch	0.417 inch	0.417 inch
body length	3.74 inch	3.74 inch	3.74 inch	3.74 inch	3.74 inch	3.74 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	YES	YES	YES	YES	YES	YES
Dielectric withstand voltage	1550VAC V	1550VAC V	1550VAC V	1550VAC V	1550VAC V	1550VAC V
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
maximum insertion force	.9452 N	.9452 N	.9452 N	.9452 N	.9452 N	.9452 N
Insulation resistance	100000000000 Ω	100000000000 Ω	100000000000 Ω	100000000000 Ω	100000000000 Ω	100000000000 Ω
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
Manufacturer's serial number	122	122	122	122	122	122
Plug contact pitch	0.1 inch	0.2 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation type	PANEL	PANEL	PANEL	BOARD	BOARD	BOARD
Loaded row name	A	A,C	A,B,C	A,B	A,B	A,B
Number of rows loaded	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
polarization key	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.504 inch	0.504 inch	0.504 inch	0.098 inch	0.157 inch	0.098 inch
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER	SOLDER	SOLDER
Total number of contacts	32	32	96	64	64	64
Evacuation force-minimum value	.9452 N	.9452 N	.9452 N	.9452 N	.9452 N	.9452 N
Maker	CONEC	CONEC	CONEC	CONEC	CONEC	-
