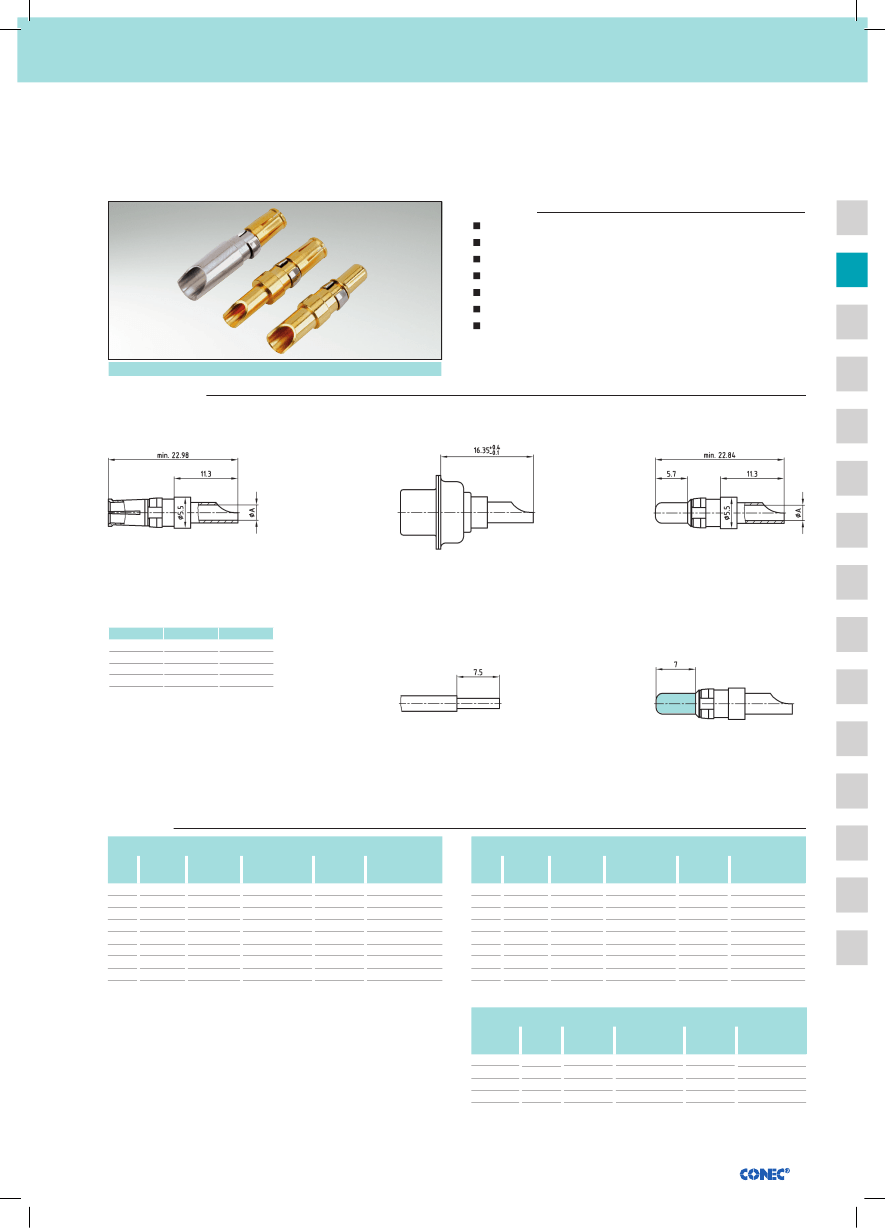

C omb inat ion D - SU B C onne c t or s

Combination D-SUB Contacts

High power contacts – Solder cup – Straight

Description

Precision machined contacts

Quality class 3: 50 mating cycles

Quality class 1: 500 mating cycles

Mating side gold plated

Termination side gold or tin plated

Other quality classes on request

To order these preassembled in the connector,

use the termination code shown below, in the

part number creator at the front of this section

RoHS compliant – CSA listed, File No.: LR 115000-1–UL listed, File No.: E 228329

Product drawing

Socket contact

Installation dimension

Plug contact

AWg

16-20

12-14

10-12

8-10

current rating

10A

20A

30A

40A

ØA

+0.15

1.80

2.70

3.50

4.80

Wire stripping

Premating contact

Order data

Socket contact

AWg

16…20

12…14

10…12

8…10

Quality

class

1

3

1

3

1

3

1

3

code*

tin plated

Plug contact

Part number

tin plated

code*

gold plated

Part number

gold plated

AWg

16…20

12…14

10…12

8…10

F1

F2

F3

F4

F5

F6

F7

F8

13-003501

13-003503

13-003511

13-003513

13-003521

13-003523

13-003531

13-003533

41

61

42

62

43

63

44

64

132C10019X

132A10019X

132C10029X

132A10029X

132C10039X

132A10039X

132C10049X

132A10049X

Quality

class

1

3

1

3

1

3

1

3

code*

tin plated

Part number

tin plated

code*

gold plated

Part number

gold plated

F1

F2

F3

F4

F5

F6

F7

F8

13-003541

13-003543

13-003551

13-003553

13-003561

13-003563

13-003571

13-003573

41

61

42

62

43

63

44

64

131C10019X

131A10019X

131C10029X

131A10029X

131C10039X

131A10039X

131C10049X

131A10049X

Premating contact

AWg

16-20

12-14

10-12

8-10

Ampere Quality

class

1

10 A

20 A

1

30 A

1

40 A

1

Part number

tin plated

13-003581

13-003591

13-003601

13-003611

Quality

class

1

Part number

gold plated

131C10119X

131C10129X

131C10139X

131C10149X

*Code use with part number creator
