Series 79 Micro-Crimp
Section H: Backshells and Accessories

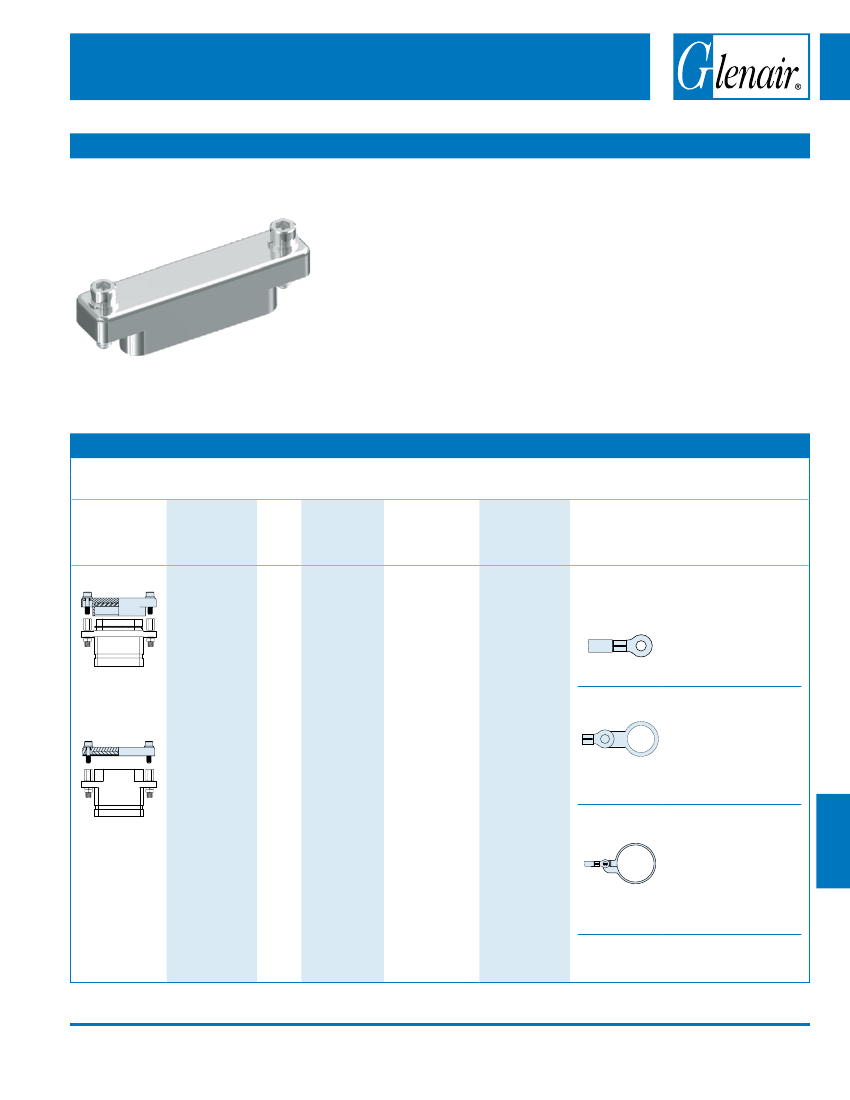

799-018 & 799-019 MEtAL PRotECtIvE CovERS FoR MICRo-CRIMP CoNNECtoRS
Protect Connectors From
Damage
– Machined aluminum
covers prevent ingress of water and
contamination. Plug covers provide
metal-to-metal bottoming for EMI
protection. Receptacle covers feature
conductive fluorosilicone gaskets.
Stainless Steel Fittings and Rings
–
Choose small diameter eye fittings
for panel attachment. Larger rings fit
over cable jackets. Split rings can be
installed on fully assembled cables.
Polyurethane-Coated SST Wire
Rope
offers high strength, excellent
abrasion resistance and good
flexibility. Or, choose Teflon
®
jacket for
high temperature exposure.
Braided Nylon Rope
provides
excellent flexibility and good abrasion
resistance, and can be ordered with
slip knot fittings for easy installation on
any size cable.
A
B
C
D
E
F
G
H
How To Order
799-018
E
E
MB
Sample Part Number
N
6
-04
Attachment Code
Omit for attachment Types
N
(No
Attachment) and
SK
(Slip knot)
01
02
04
06
14
15
16
17
18
19
20
50
52
54
56
58
60
64
68
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
.126 (3.20) I.D.
.145 (3.68) I.D.
.188 (4.78) I.D.
.197 (5.00) I.D.
.385 (9.78) I.D.
.445 (11.30) I.D.
.570 (14.48) I.D.
.635 (16.13) I.D.
.695 (17.65) I.D.
.885 (22.48) I.D.
1.070 (27.17) I.D.
.420 (10.67) I.D.
.480 (12.19) I.D.
.635 (16.13) I.D.
.745 (18.92) I.D.
.885 (22.48) I.D.
1.010 (25.65) I.D.
1.125 (28.58) I.D.
1.345 (34.16) I.D.
Attachment
Shell Jackscrew
Length in
Part Number Shell Finish Size
Option
Lanyard Type
Inches
Electroless
Nickel
M
A
B
C
D
E
F
G
H
J
K
L
general purpose
applications
Slotted
No Attachment
Fillister Head
Jackscrew
G
Nylon Rope
Hex Socket
Head
Jackscrew
Female
Jackpost
MB
N
Omit for
Attachment
Type
N
(no
attachment)
Example
"6" equals six
inch length
Plug Cover
799-018
1000 Hour
Grey™
maximum
corrosion
protection and
durability
(non-reflective
grey)
Nickel-PTFE
MT
MH
MF
Stainless Steel
Rope, Teflon
jacket
Stainless
Steel Rope,
Polyurethane
jacket
Stainless Steel
Rope, No
Jacket
Nylon Rope
with Slip knot
H
Small Ring
U
Large Ring
Receptacle
Cover
799-019
tactical
applications
(non-reflective
black)
Zinc-Nickel
with Black
Chromate
ZNU
T
SK
Split Ring
Additional
shell finishes
are listed on
page C-9.
© 2009 Glenair, Inc.
www.glenair.com
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
Rev. 04-July-2009
h-7
Accessories
INDEX
INDEX
A
B
C
D
E
F
G
H
INDEX
JACKSCREW
TYPE MH
Accessories
Series 79 Micro-Crimp
Section H: Backshells and Accessories

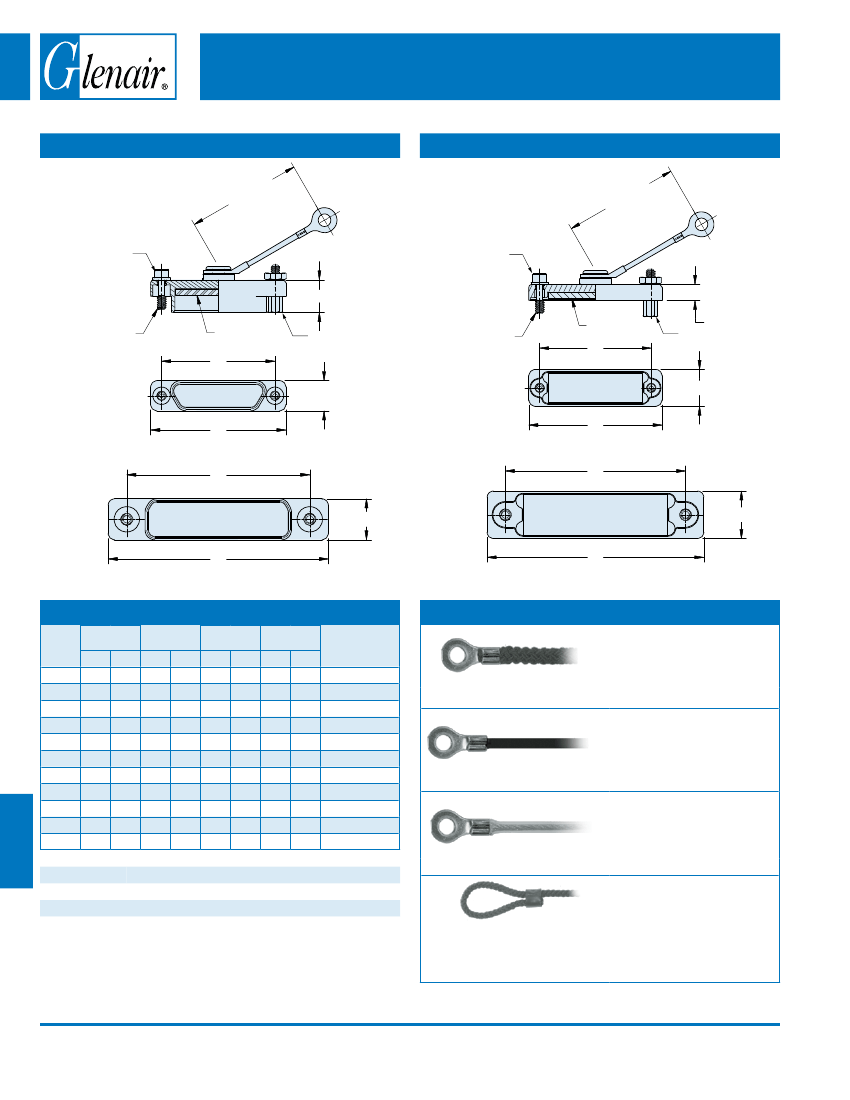

799-018 PLUG CovER
ATTACHMENT
LENGTH
799-019 RECEPtACLE CovER
ATTACHMENT
LENGTH
JACKSCREW
TYPE MH
.320
E THREAD
TYP
GASKET
C
JACKPOST
TYPE MF
E THREAD
TYP
GASKET
C
.160
JACKPOST
TYPE MF
D
A
B
SIZE A - G, J, & K
CONFIGURATION
C
B
SIZE A - G, J, & K
CONFIGURATION
C
A
B
SIZE H & L CONFIGURATION
B
SIZE H & L CONFIGURATION
A
799-018 & 799-019 DIMENSIoNS
Shell A Max.
Size In. mm.
.308 7.82
A
.308 7.82
B
.308 7.82
C
.308 7.82
D
.308 7.82
E
.308 7.82
F
.395 10.03
G
.410 10.41
H
.308 7.82
J
.308 7.82
K
.410 10.41
L
Component
Backshell
Hardware
Gasket
B Max.
C
D Max.
In . mm. In. mm. In. mm.
.785 19.94
.565 14.35
18.16
21.97
24.51
28.32
.385
.385
.385
.385
.385
9.78
9.78
9.78
9.78
9.78
.935
1.085
1.185
1.335
23.75 .715
27.56 .865
30.10 .965
33.91 1.115
Lanyard options
-55° to +100°C., black, very
flexible, very good abrasion
resistance, good resistance to
fuels, .120" (3mm) diameter
Black polyurethane over stainless
steel rope, -55° to +125°C.,
very flexible, excellent abrasion
resistance, excellent resistance to
fuels, .080" (2mm) diameter
Translucent FEP jacket over
stainless steel, -55° to +200°C.,
fair flexibility, good abrasion
resistance, .100" diameter
E Thread
2-56 UNC
2-56 UNC
2-56 UNC
2-56 UNC
2-56 UNC
2-56 UNC
2-56 UNC
4-40 UNC
2-56 UNC
2-56 UNC
4-40 UNC
Nylon Rope
1.485 37.72 1.265 32.13
1.435 36.45 1.215 30.86
2.170 55.12 1.800 45.72
1.845 46.86 1.615 41.02
2.240 56.90 2.015 51.18
2.406 61.11 2.036 51.71
.385 9.78
.470 11.94
.490 12.45
.385 9.78
.385 9.78
.490 12.45
Polyurethane Coated Wire Rope
Material
Aluminum Alloy
Stainless Steel
Conductive Fluorosilicone
Finish
See Ordering Info
Passivated
None
teflon
®
Jacketed Wire Rope
Slip Knot
(SK)
for Attaching Covers to Cable
© 2009 Glenair, Inc.
www.glenair.com
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
55° to +100°C., black, very
flexible, very good abrasion
resistance, good resistance to
fuels, .120" (3mm) diameter.
Length includes .5" (13mm)
diameter loop.
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
Rev. 04-July-2009
H-8
