512K x 32 Module nvSRAM
5.0V
High Speed SRAM with
Non-Volatile Storage
FEATURES
•
-55
o
C to 125
o
C Operation
•
True non-volatile SRAM (no batteries)
•
20 ns, 25 ns, and 45 ns access times
•
Automatic STORE on power down with only a small
•
•
•
•
•
•
•
capacitor
STORE to QuantumTrap
®
nonvolatile elements initiated by
software, device pin, or AutoStore
®
on power down
RECALL to SRAM initiated by software or power up
Infinite Read, Write, and Recall cycles
200,000 STORE cycles to QuantumTrap
20 year data retention
Single 5.0V
±10% power supply
Ceramic Hermetic 68 Quad Flatpak
-Can order with X7R CAPS on package
-Matches compatible pinout footprint of SRAM & EEPROM
Module
AS8nvC512K32
nvSRAM
AVAILABLE AS MILITARY
SPECIFICATIONS
• Military Processing (MIL-STD-883C para 1.2.2)
•
Temperature Range -55C to 125C
FUNCTIONAL DESCRIPTION
The Austin Semiconductor AS8nvC512K32 is a fast static RAM,
with a nonvolatile element in each memory cell. The memory is
organized as 512K bytes of 8 bits for each of 4 die to form 512Kx32.
The embedded nonvolatile elements incorporate QuantumTrap
technology, producing the world’s most reliable nonvolatile memory.
The SRAM provides infinite read and write cycles, while independent
nonvolatile data resides in the highly reliable QuantumTrap cell.
Data transfers from the SRAM to the nonvolatile elements (the
STORE operation) takes place automatically at power down. On
power up, data is restored to the SRAM (the RECALL operation)
from the nonvolatile memory. Both the STORE and RECALL
operations are also available under software control.

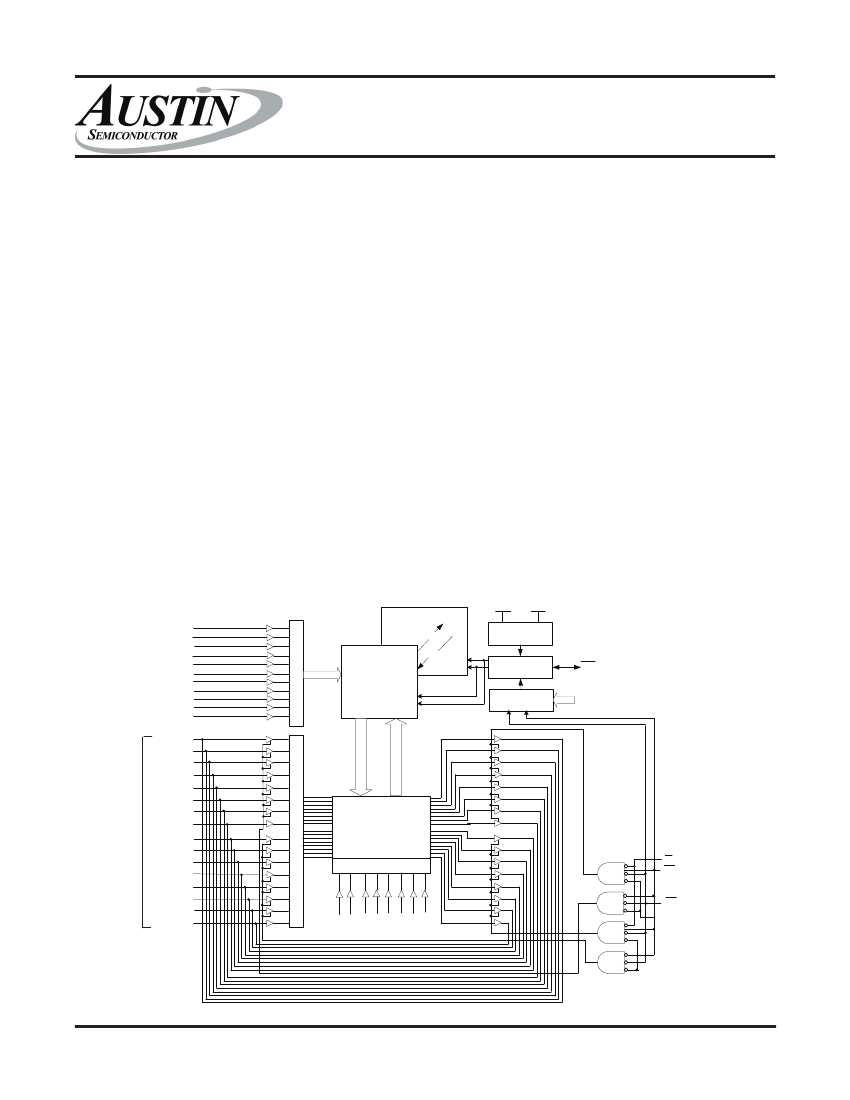

LOGIC BLOCK DIAGRAM
m
[1, 2, 3]
4x
4x
DQ0-DQ31
(1-4)
28
29
30
31
(1-4)
AS8nvC512K32
Rev. 0.0 08/09
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
1
AUSTIN SEMICONDUCTOR, INC.
ADVANCE INFORMATION
Austin Semiconductor, Inc.

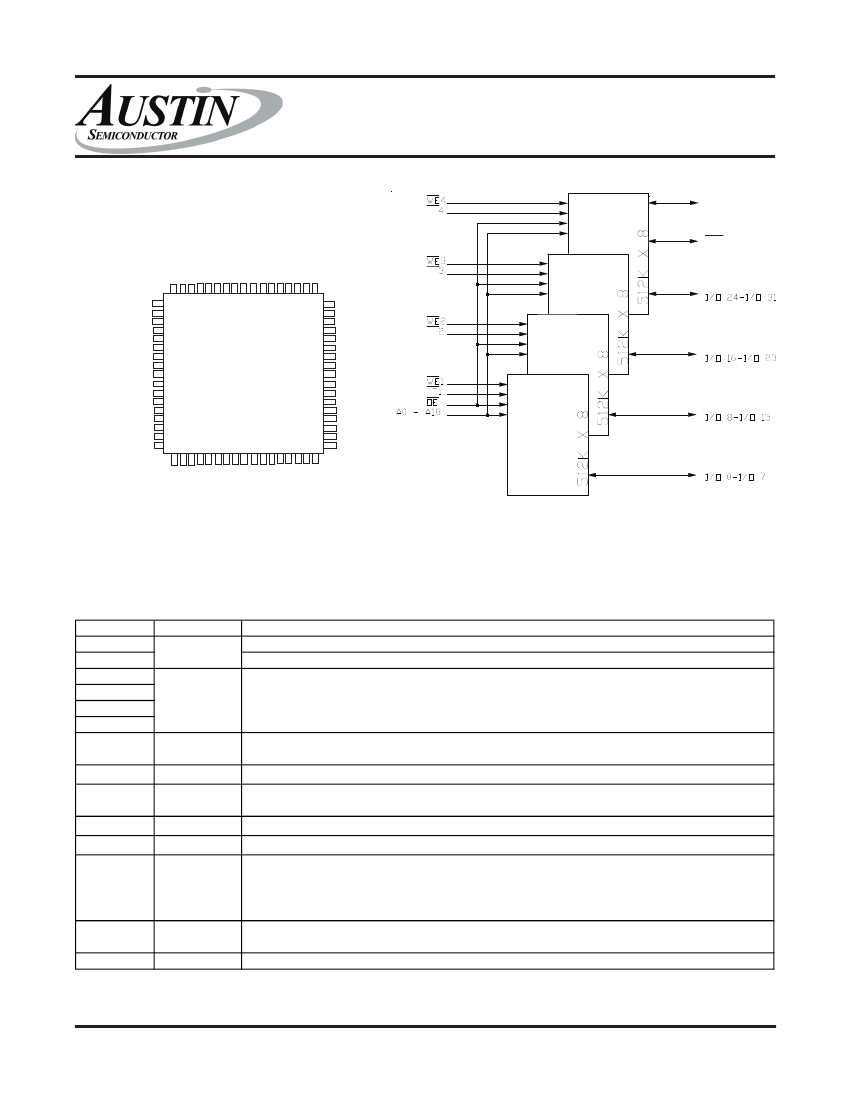

PIN ASSIGNMENT
(Top View)
CS
AS8nvC512K32
M4
M3
M2
VCAP
1
nvSRAM
MILITARY PINOUT/BLOCK DIAGRAM
68 Lead CQFP (Q)
VCAP
A0
A1
A2
A3
A4
A5
CS3\
GND
CS4\
WE1\
A6
A7
A8
A9
A10
Vcc
CS
HSB
2
Vcc
A11
A12
A13
A14
A15
A16
CS1\
OE\
CS2\
A17
WE2\
WE3\
WE4\
A18
NC
HSB\
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
I/O 0
I/O 1
I/O 2
I/O 3
I/O 4
I/O 5
I/O 6
I/O 7
GND
I/O 8
I/O 9
I/O 10
I/O 11
I/O 12
I/O 13
I/O 14
I/O 15
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
9
8
7
6
5
4
3
2
1
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
I/O 16
I/O 17
I/O 18
I/O 19
I/O 20
I/O 21
I/O 22
I/O 23
GND
I/O 24
I/O 25
I/O 26
I/O 27
I/O 28
I/O 29
I/O 30
I/O 31
CS
CS
M1
Notes:
1. This pin left open if ordered with capacitors already mounted in
package.
2. HSB\ signal is wired to all 4 die in module. This can be left open if
not used.
Pin Name
A0 – A18
A0 – A17
DQ0 – DQ7
DQ0 – DQ15
DQ16 DQ23
DQ24 DQ31
WE\
1 4
CE\
1 4
OE\
V
SS
V
CC
I/O Type
Input
Description
Address Inputs Used to Select one of the 524,288 bytes of the nvSRAM for x8 Configuration.
Address Inputs Used to Select one of the 262,144 words of the nvSRAM for x16 Configuration.
Input/Output Bidirectional Data I/O Lines for die M1 (DQ0 7), M2 (DQ8 15), M3 (DQ16 23), M4 (DQ 24 31)
Write Enable Input, Active LOW. When selected LOW, data on the I/O pins is written to the specific
address location.
Chip Enable Input, Active LOW. When LOW, selects the chip. When HIGH, deselects the chip.
Output Enable, Active LOW. The active LOW OE input enables the data output buffers during read cycles.
I/O pins are tri stated on deasserting OE HIGH.
Ground for the Device. Must be connected to the ground of the system.
Input
Input
Input
Ground
Power Supply Power Supply Inputs to the Device.
Hardware Store Busy (HSB\). When LOW this output indicates that a hardware store is in progress. When
pulled LOW external to the chip it initiates a nonvolatile STORE operation. A weak internal pull up resistor
Input/Output
keeps this pin HIGH if not connected (connection optional). After each store operation HSB\ is driven
HIGH for short time with standard output high current.
AutoStore Capacitor. Supplies power to the nvSRAM during power loss to store data from SRAM to
Power Supply
nonvolatile elements. (leave pin open if caps mounted on package)
No Connect No Connect. This pin is not connected to the die.
HSB\
V
CAP
NC
AS8nvC512K32
Rev. 0.0 08/09
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
2
AUSTIN SEMICONDUCTOR, INC.
ADVANCE INFORMATION
Austin Semiconductor, Inc.
Device Operation
The
AS8nvC512K32
nvSRAM is made up of two functional
components paired in the same physical cell. They are
a SRAM memory cell and a nonvolatile QuantumTrap cell. The SRAM
memory cell operates as a standard fast static RAM. Data in the
SRAM is transferred to the nonvolatile cell (the STORE operation),
or from the nonvolatile cell to the SRAM (the RECALL operation).
Using this unique architecture, all cells are stored and recalled in
parallel. During the STORE and RECALL operations, SRAM read
and write operations are inhibited. The
AS8nvC512K32
supports
infinite reads and writes similar to a typical SRAM. In addition, it
provides infinite RECALL operations from the nonvolatile cells and
up to 200K STORE operations. See the Truth Table For SRAM
Operations for a complete description of read and write modes.
AS8nvC512K32
nvSRAM
for automatic store operation. Refer to DC Electrical Characteristics
for the size of V
CAP
. The voltage on
the V
CAP
pin is driven to V
CC
by a regulator on the chip. A pull up should be placed on WE\ to hold
it inactive during power up. This pull up is effective only if the WE\
signal is tri-state during power up. Many MPUs tri-state their
controls on power up. This should be verified when using the pull
up. When the nvSRAM comes out of power-on-recall, the MPU
must be active or the WE\ held inactive until the MPU comes out of
reset.
To reduce unnecessary nonvolatile stores, AutoStore and hardware
store operations are ignored unless at least one write operation has
taken place since the most recent STORE or RECALL cycle. Software
initiated STORE cycles are performed regardless of whether a write
operation has taken place. The HSB\ signal is monitored by the
system to detect if an AutoStore cycle is in progress.
Figure 2. AutoStore Mode
Vcc
SRAM Read
The
AS8nvC512K32
performs a read cycle when CE\ and OE\ are
LOW and WE\ and HSB\ are HIGH. The address specified on pins
A0-18 determines which of the 524,288 data bytes. When the read is
initiated by an address transition, the outputs are valid after a delay
of t
AA
(read cycle 1). If the read is initiated by CE\ or OE\, the outputs
are valid at t
ACE
or at t
DOE
, whichever is later (read cycle 2). The data
output repeatedly responds to address changes within the t
AA
access
time without the need for transitions on any control input pins. This
remains valid until another address change or until CE\ or OE\ is
brought HIGH, or WE\ or HSB\ is brought LOW.
0.1uF
10kOhm
Vcc
WE
1-4
V
CAP
SRAM Write
A write cycle is performed when CE\ and WE\ are LOW and HSB\ is
HIGH. The address inputs must be stable before entering the write
cycle and must remain stable until CE\ or WE\ goes HIGH at the end
of the cycle. The data on the common I/O pins DQ0–31 are written
into the memory if the data is valid t
SD
before the end of a WE\
controlled write or before the end of an CE\ controlled write. It is
recommended that OE\ be kept HIGH during the entire write cycle to
avoid data bus contention on common I/O lines. If OE\ is left LOW,
internal circuitry turns off the output buffers tHZWE after WE\ goes
LOW.
V
SS
V
CAP
Hardware STORE Operation
The AS8nvC512K32 provides the HSB\
6
pin to control and
acknowledge the STORE operations. Use the HSB\ pin to request a
hardware STORE cycle. When the HSB pin is driven LOW, the
AS8nvC512K32 conditionally initiates a STORE operation after t
DELAY
.
An actual STORE cycle only begins if a write to the SRAM has taken
place since the last STORE or RECALL cycle. The HSB\ pin also
acts as an open drain driver that is internally driven LOW to indicate
a busy condition when the STORE (initiated by any means) is in
progress.
SRAM read and write operations that are in progress when HSB is
driven LOW by any means are given time to complete before the
STORE operation is initiated. After HSB\ goes LOW, the
AS8nvC512K32 continues SRAM operations for tDELAY. If a write
is in progress when HSB\ is pulled LOW it is enabled a time, t
DELAY
to
complete. However, any SRAM write cycles requested after HSB\
goes LOW are inhibited until HSB\ returns HIGH. In case the write
latch is not set, HSB\ is not driven LOW by the AS8nvC512K32. But
any SRAM read and write cycles are inhibited until HSB\ is returned
HIGH by MPU or other external source.
During any STORE operation, regardless of how it is initiated, the
AS8nvC512K32 continues to drive the HSB\ pin LOW, releasing it
only when the STORE is complete. When the STORE operation is
completed, the AS8nvC512K32 remains disabled until the HSB\ pin
returns HIGH. Leave the HSB\ unconnected if it is not used..
AutoStore Operation
The
AS8nvC512K32
stores data to the nvSRAM using one of the
following three storage operations: Hardware Store activated by HSB\;
Software Store activated by an address sequence; AutoStore on device
power down. The AutoStore operation is a unique feature of
QuantumTrap technology and is enabled by default on the
AS8nvC512K32.
During a normal operation, the device draws current from V
CC
to
charge a capacitor connected to the V
CAP
pin. This stored charge is
used by the chip to perform a single STORE operation. If the voltage
on the V
CC
pin drops below V
SWITCH
, the part automatically disconnects
the V
CAP
pin from V
CC
. A STORE operation is initiated with power
provided by the V
CAP
capacitor.
Figure 2 shows the proper connection of the storage capacitor (V
CAP
)
AS8nvC512K32
Rev. 0.0 08/09
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
3
AUSTIN SEMICONDUCTOR, INC.
ADVANCE INFORMATION
Austin Semiconductor, Inc.
Hardware RECALL (Power Up)
During power up or after any low power condition (VCC<
VSWITCH), an internal RECALL request is latched. When VCC
again exceeds the sense voltage of VSWITCH, a RECALL cycle is
automatically initiated and takes tHRECALL to complete. During
this time, HSB is driven LOW by the HSB driver.
AS8nvC512K32
nvSRAM
Software STORE
Transfer data from the SRAM to the nonvolatile memory with a
software address sequence. The AS8nvC512K32 software STORE
cycle is initiated by executing sequential CE controlled read cycles
from six specific address locations in exact order. During the STORE
cycle an erase of the previous nonvolatile data is first performed,
followed by a program of the nonvolatile elements. After a STORE
cycle is initiated, further input and output are disabled until the
cycle is completed.
Because a sequence of READs from specific addresses is used for
STORE initiation, it is important that no other read or write accesses
intervene in the sequence, or the sequence is aborted and no STORE
or RECALL takes place.
To initiate the software STORE cycle, the following read
sequence must be performed.
1. Read Address 0x4E38 Valid READ
2. Read Address 0xB1C7 Valid READ
3. Read Address 0x83E0 Valid READ
4. Read Address 0x7C1F Valid READ
5. Read Address 0x703F Valid READ
6. Read Address 0x8FC0 Initiate STORE Cycle
The software sequence may be clocked with CE controlled reads
or OE controlled reads. After the sixth address in the sequence is
entered, the STORE cycle commences and the chip is disabled. HSB
is driven LOW. It is important to use read cycles and not write cycles
in the sequence, although it is not necessary that OE be LOW for a
valid sequence. After the tSTORE cycle time is fulfilled, the SRAM
is activated again for the read and write operation.
Software RECALL
Transfer the data from the nonvolatile memory to the SRAM with
a software address sequence. A software RECALL cycle is initiated
with a sequence of read operations in a manner similar to the software
STORE initiation. To initiate the RECALL cycle, the following
sequence of CE controlled read operations must be performed.
1. Read Address 0x4E38 Valid READ
2. Read Address 0xB1C7 Valid READ
3. Read Address 0x83E0 Valid READ
4. Read Address 0x7C1F Valid READ
5. Read Address 0x703F Valid READ
6. Read Address 0x4C63 Initiate RECALL Cycle
Internally, RECALL is a two step procedure. First, the SRAM data
is cleared; then, the nonvolatile information is transferred into the
SRAM cells. After the tRECALL cycle time, the SRAM is again
ready for read and write operations. The RECALL operation does
not alter the data in the nonvolatile elements.
Mode Selection
CE\
1 4
H
L
L
L
WE\
1 4
X
H
L
H
OE\
13
X
L
X
L
A15 A0
7
X
X
X
0x4E38
0xB1C7
0x83E0
0x7C1F
0x703F
0x8B45
Mode
Not Selected
Read SRAM
Write SRAM
Read SRAM
Read SRAM
Read SRAM
Read SRAM
Read SRAM
AutoStore
Disable
I/O
0 31
Output High Z
Output Data
Input Data
Output Data
Output Data
Output Data
Output Data
Output Data
Output Data
Power
Standby
Active
Active
Active
8
Notes
7. While there are 19 address lines on the AS8nvC512K32, only the 13 address lines (A
14
- A
2
) are used to control software modes. Rest of the address
lines are don’t care.
8. The six consecutive address locations must be in the order listed. WE must be HIGH during all six cycles to enable a nonvolatile cycle.
13.WE\ must be HIGH during SRAM read cycles.
AS8nvC512K32
Rev. 0.0 08/09
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
4
AUSTIN SEMICONDUCTOR, INC.
ADVANCE INFORMATION
Austin Semiconductor, Inc.
Mode Selection
(continued)
CE\
1 4
L
WE\
1 4
H
OE\
L
13
AS8nvC512K32
I/O
0 31
Output Data
Output Data
Output Data
Output Data
Output Data
Output Data
Output Data
Output Data
Output Data
Output Data
Output Data
Output High Z
Output Data
Output Data
Output Data
Output Data
Output Data
Output High Z
nvSRAM
A15 A0
7
Mode
Read SRAM
Read SRAM
Read SRAM
Read SRAM
Read SRAM
AutoStore Enable
Read SRAM
Read SRAM
Read SRAM
Read SRAM
Read SRAM
Nonvolatile Store
Read SRAM
Read SRAM
Read SRAM
Read SRAM
Read SRAM
Nonvolatile
Recall
Power
Active
8
L
H
L
0x4E38
0xB1C7
0x83E0
0x7C1F
0x703F
0x4B46
0x4E38
0xB1C7
0x83E0
0x7C1F
0x703F
0x8FC0
0x4E38
0xB1C7
0x83E0
0x7C1F
0x703F
0x4C63
Active I
CC2 8
L
H
L
Active
8
Preventing AutoStore
The AutoStore function is disabled by initiating an AutoStore disable
sequence. A sequence of read operations is performed in a manner
similar to the software STORE initiation. To initiate the AutoStore
disable sequence, the following sequence of CE controlled read
operations must be performed:
1. Read address 0x4E38 Valid READ
2. Read address 0xB1C7 Valid READ
3. Read address 0x83E0 Valid READ
4. Read address 0x7C1F Valid READ
5. Read address 0x703F Valid READ
6. Read address 0x8B45 AutoStore Disable
The AutoStore is re-enabled by initiating an AutoStore enable
sequence. A sequence of read operations is performed in a manner
similar to the software RECALL initiation. To initiate the AutoStore
enable sequence, the following sequence of CE controlled read
operations must be performed:
1. Read address 0x4E38 Valid READ
2. Read address 0xB1C7 Valid READ
3. Read address 0x83E0 Valid READ
4. Read address 0x7C1F Valid READ
5. Read address 0x703F Valid READ
6. Read address 0x4B46 AutoStore Enable
If the AutoStore function is disabled or re-enabled, a manual STORE
operation (hardware or software) must be issued to save the AutoStore
state through subsequent power down cycles. The part comes from
the factory with AutoStore enabled.
Data Protection
The AS8nvC512K32 protects data from corruption during low voltage
conditions by inhibiting all externally initiated
STORE and write operations. The low voltage condition is detected
when VCC < VSWITCH. If the AS8nvC512K32 is in a write mode
(both CE and WE are LOW) at power up, after a RECALL or STORE,
the write is inhibited until the SRAM is enabled after tLZHSB (HSB
to output active). This protects against inadvertent writes during
power up or brown out conditions.
AS8nvC512K32
Rev. 0.0 08/09
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
5
京公网安备 11010802033920号
EEWORLD
