Fil. F
ITS-RG
Reverse Bayonet
Assemblies
Straight Plug Connector with Rubber-Coated Coupling Nut
ITS 3106 (AGG) and ITS 3106 (RGG)
ITS 4106 (AGG) and ITS 4106 (RGG)
FR ITS G 31 06 AGG 20-27 P Y XXX
Fire Resistant Inserts
(See Note 7)
Bayonet Coupling
Grounding Fingers
(Omit for Standard)
Contact Type
31 - Solder Contacts
41 - Crimp Contacts
06 - Straight Plug Connector
Connector/Backshell Class
AGG - Non-Environmental
RGG - Environmental; Supplied
with Grommet
Mod Code Option (See Table II)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal (See Intro 20-21)
Contact Gender
P - Pin
S - Socket
Shell Size and Insert Arrangement
(See Intro 6-25))
L
O
Q
O
Q1
Application Notes:
1. Straight plug connector with rubber covered coupling nut.
2. Connector/Backshell class “AGG” (no grommet supplied) or “RGG” (insulating grommet supplied).
3. Standard materials configuration consists of aluminum alloy with cadmium olive drab finish.
4. Standard contact material consists of copper alloy with silver plating
(Gold plating available, see mod codes).
5. A broad range of additional connector accessories are available.
See our website and/or contact the factory for complete information.
6. Standard insert material is synthetic rubber.
7. Add “FR” prefix to front of part number to specify fire-resistant insert elastomers.
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-16

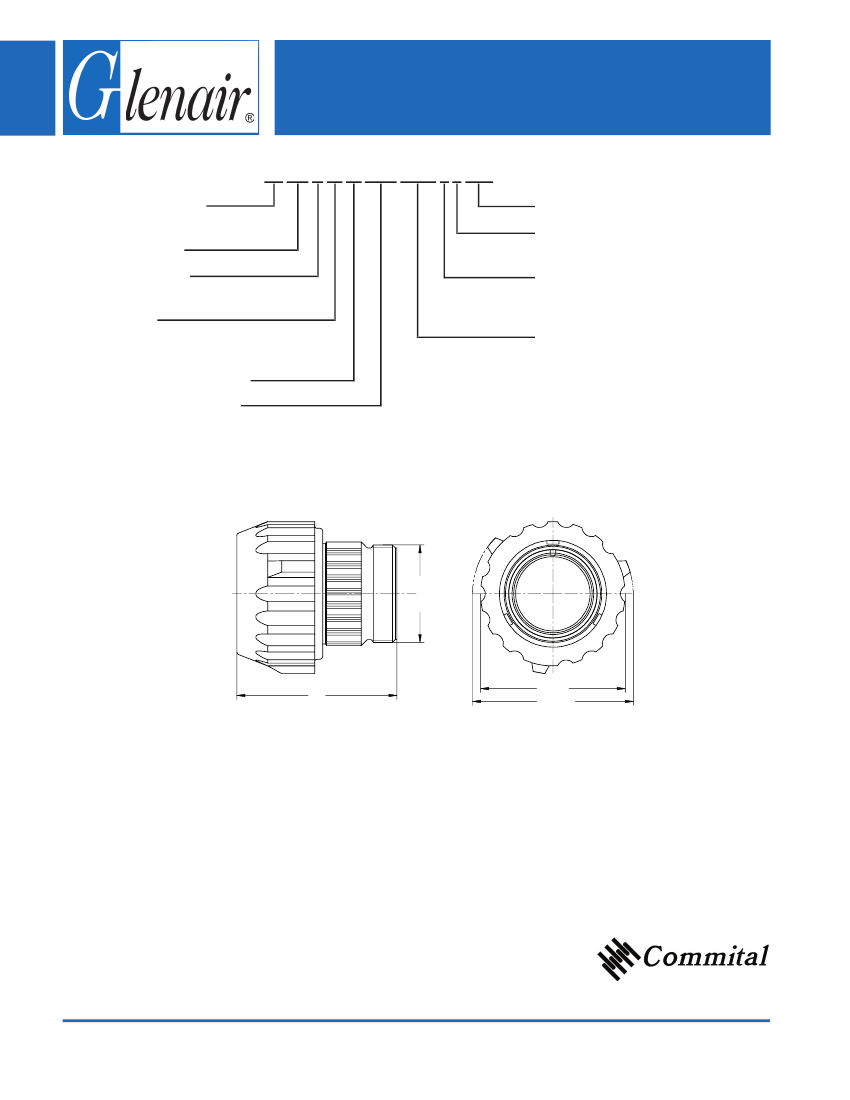

Straight Plug Connector with Rubber-Coated Coupling Nut
ITS 3106 (AGG) and ITS 3106 RGG
ITS 4106 (AGG) and ITS 4106 (RGG)
TABLE I: DIMENSIONS
L
She ll S ize
10 SL
14 S
16 S
16
18
20
22
24
28
32
36
40
Ma x.
46.0
48.4
48.4
59.8
59.8
60.1
60.1
61.7
68.2
73.3
78.8
78.8
ØQ
±0.5
28.6
35.0
38.0
38.0
43.5
46.0
50.5
54.0
61.0
68.0
74.0
80.0
ØQ1
±0.5
33.5
42.0
45.0
45.0
49.0
51.5
56.0
60.0
67.0
76.0
82.0
88.0
F T hre a d
0.6250 - 24UNEF
0.7500 - 20UNEF
0.8750 - 20UNEF
0.8750 - 20UNEF
1.0000 - 20UNEF
1.1875 - 18UNEF
1.1875 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.7500 - 18UNS
2.0000 - 18UNS
2.2500 - 16UN
TABLE II: MODIFICATION CODES
CONTACT OPTIONS
Sym Description
B0
B1
Connector less contacts
Connector with gold plated contacts
Omit for standard version (silver plated)
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
